Feature:
Number of Lines: One 360° horizontal laser lines & Two 360° Vertical laser lines
Laser Wavelength: 505-520nm
Horizontal/Vertical Accuracy: ±1/13’’ at 33Ft.
Plumb Dot Accuracy:1/7’’at 33Ft.
Leveling/Compensation Range: 4°±1°
Working Distance: 130Ft (100 LUX), 200Ft. with Takamine Receiver TK5100
Power Source: 3.7V / 5200mAh Lithium Battery
Reference Operating Time: About 5.5 hours with all laser beams on
IP Rating: IP54
Mount Size: 1/4"-20
Operation Temperature: -10℃～50℃
Storage Temperature Range:-20℃～70℃
WARNING: Avoid direct laser beam exposure to the eyes.

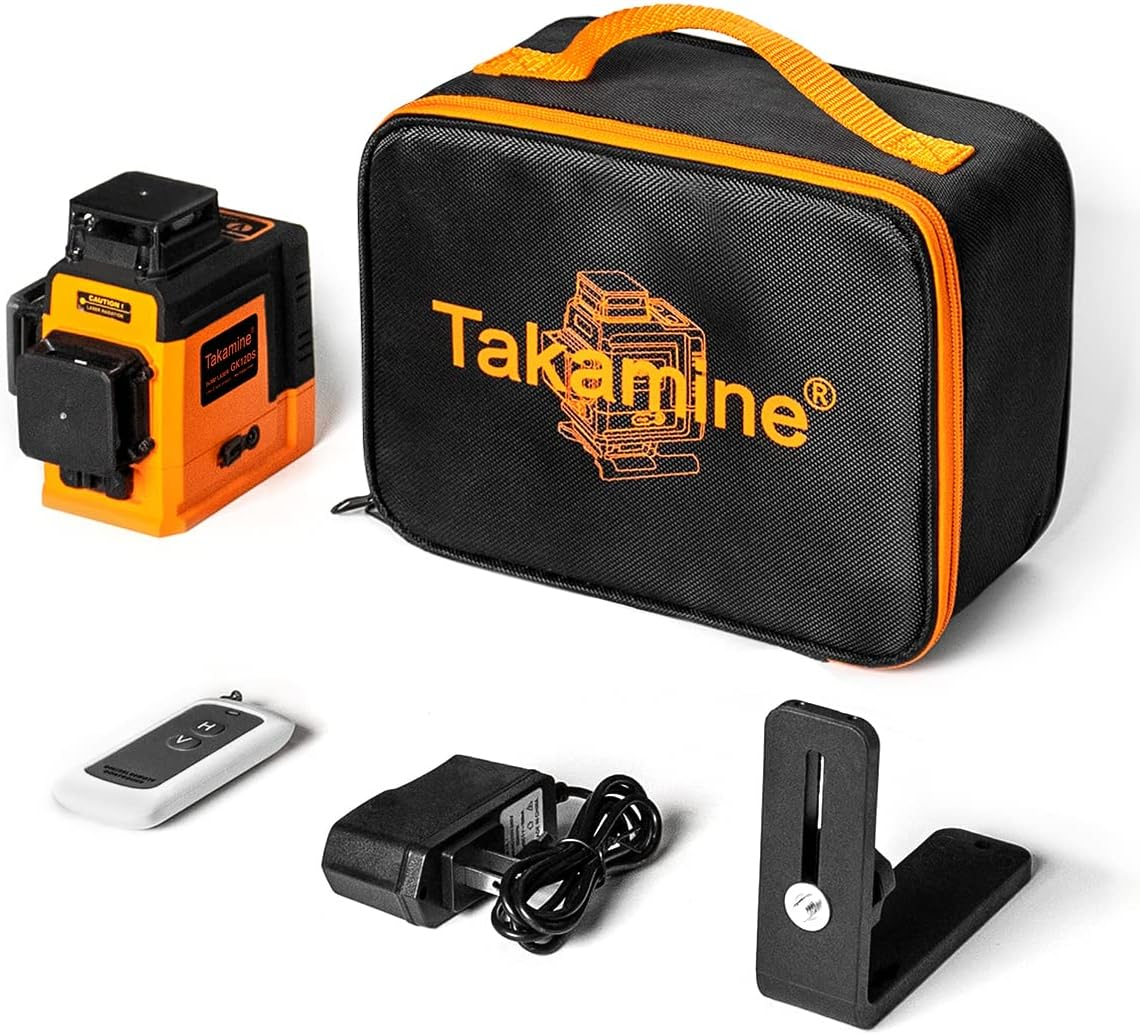

Packing:
1x laser level
1x detachable lithium-ion battery
1x Magnetic "L" Base
1x Type-c power cord
1x power adapter
1x professional portable bag
1x user manual
Specifications:

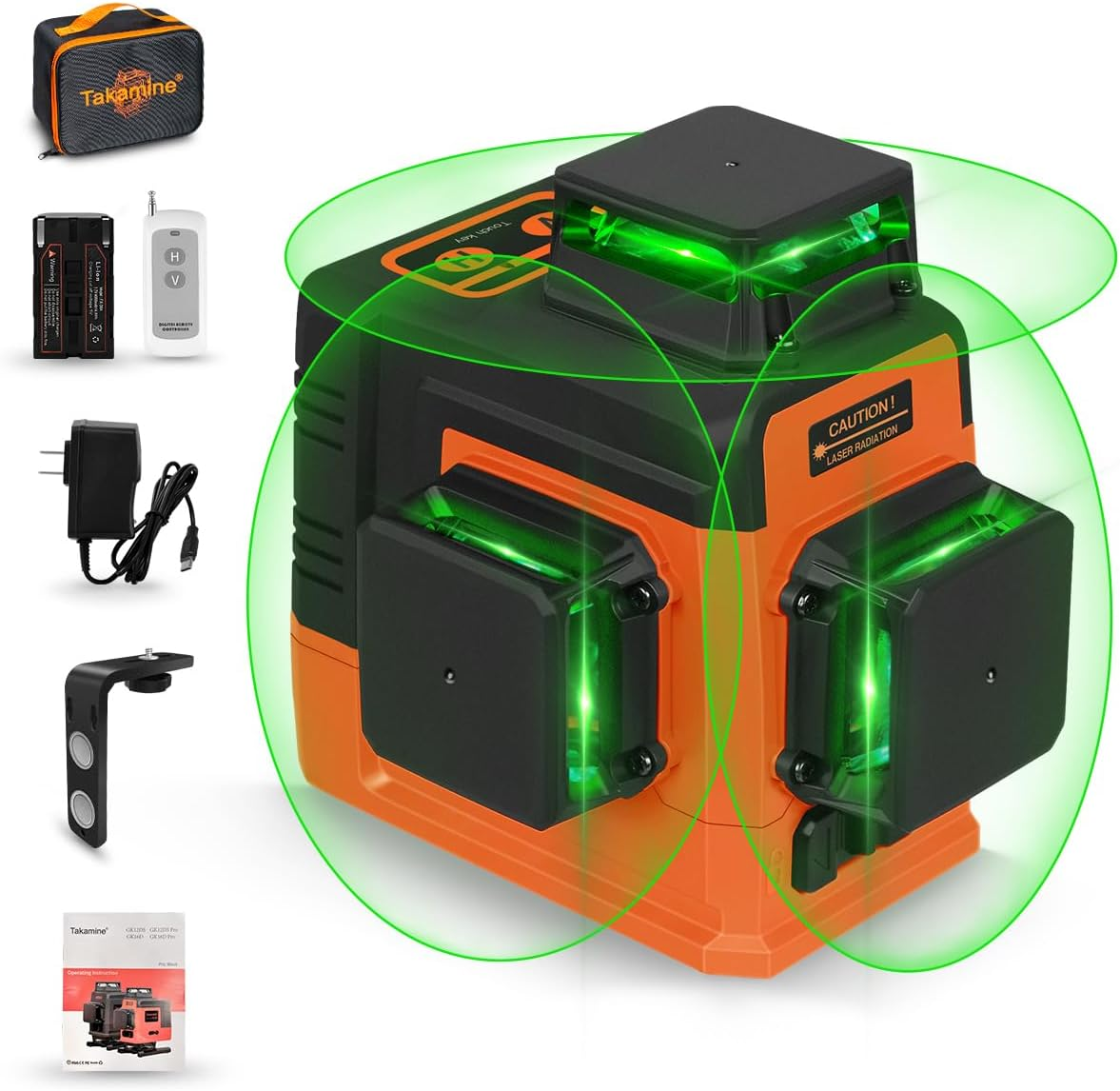

- 3x360° Full Laser Layout: Takamine GK12DS laser for construction has 1 horizontal and 2 vertical lasers,12 laser lines in total covers tiles, ceilings and surrounding walls, helping you to quickly complete a square layout
- Outdoor Pulse Mode: This self-leveling laser level adopts Japanese Sharp green laser unit. Under the same lighting conditions, the brightness of the green laser beam is twice as bright as the red laser, with excellent brightness and higher stability. The working range is up to 130 feet (100 LUX) with an accuracy of 33 feet ± 1/9 inch. It offers a pulsed mode which extends the laser range up to 200 feet with a laser receiver, making it ideal for long distance or outdoor use

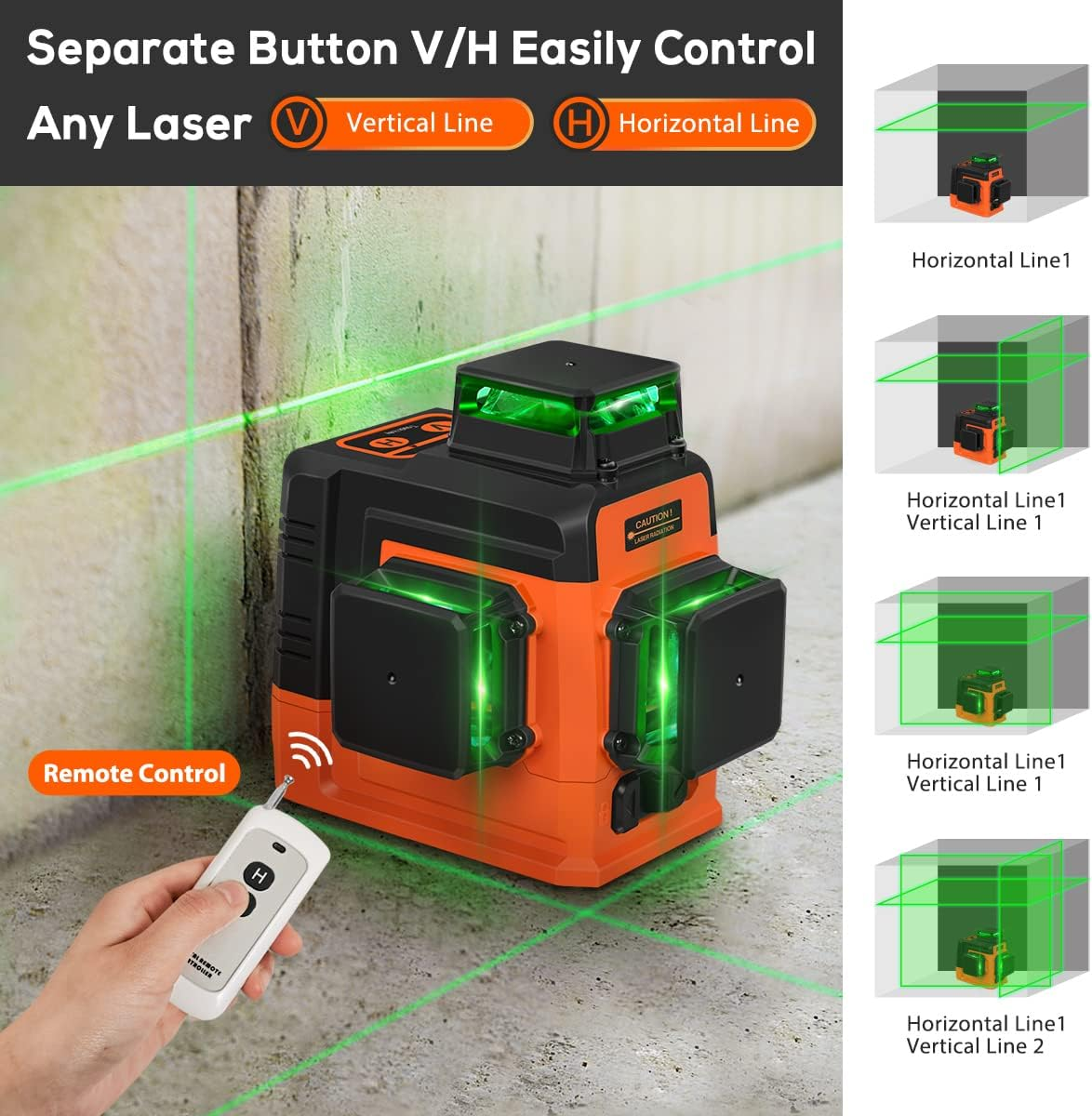

- Self-leveling and Manual Mode: When the pendulum is unlocked, the 360 self leveling laser level will power on and enable the self-leveling mode. When the tool is out of the self-leveling range ±4°, the laser beam will flash rapidly. Long press the V key to enter the manual mode, and you can place the laser tool at any angle for alignment
- Durable Design and Multiple Installation Methods: IP54 waterproof/dustproof to ensure you can work normally and stably in complex working conditions. The surrounding is protected by TPR soft rubber, which is shock-resistant, wear-resistant and impact-resistant. Equipped with a multifunctional Magnetic "L" Base,can be adjusted universally.The laser base with 1/4"-20 mounting threads can accommodate different tripods

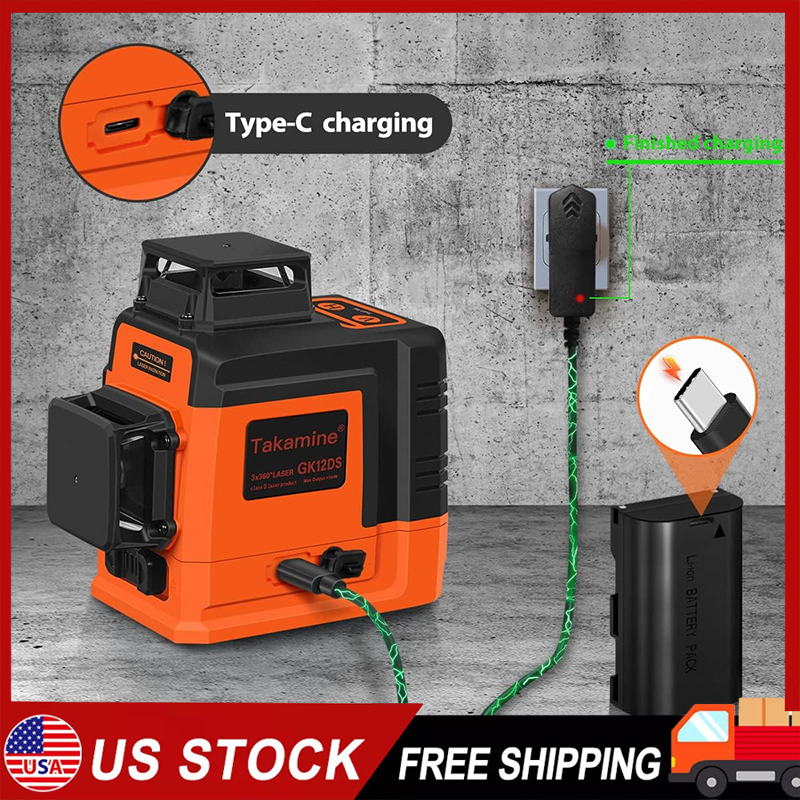

- Remote Control and Lithium Battery Charging: The remote control makes your calibration work easier and faster. Type-C charging is 60% faster than ordinary USB charging.It also saves you the trouble of changing batteries
