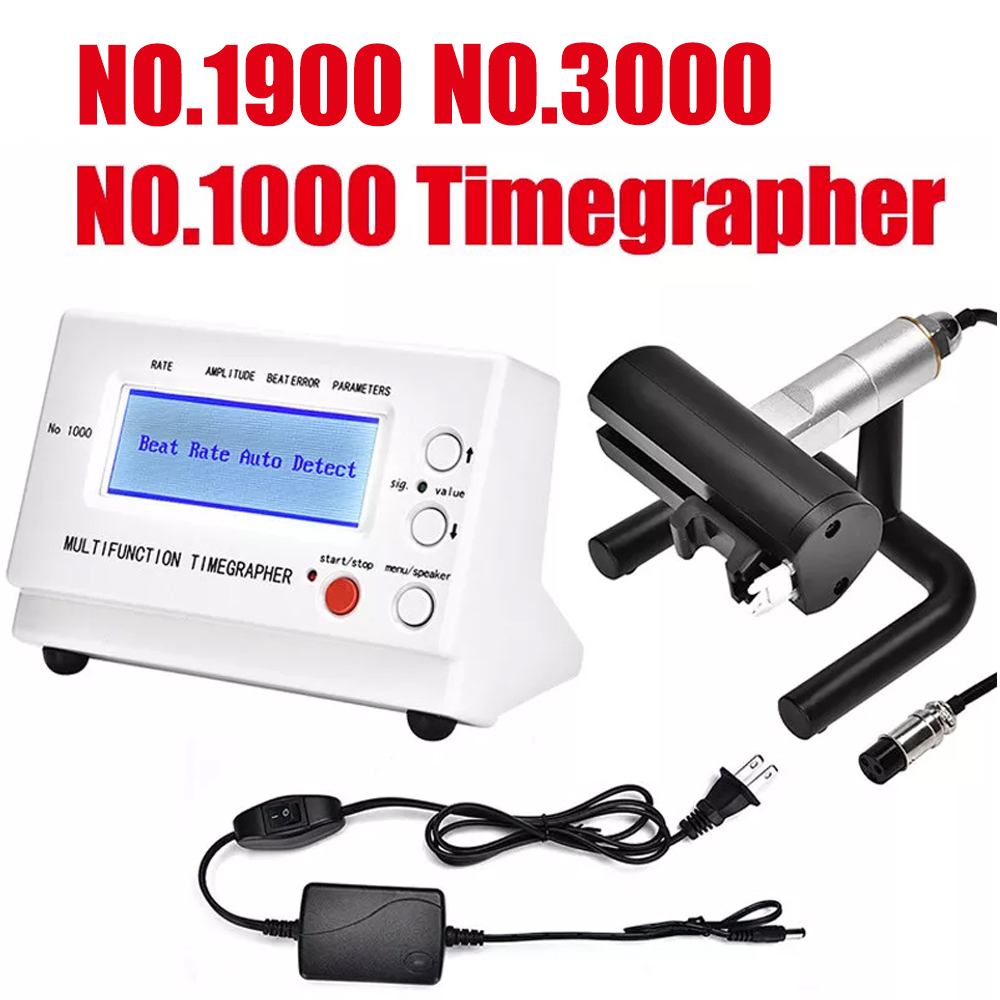

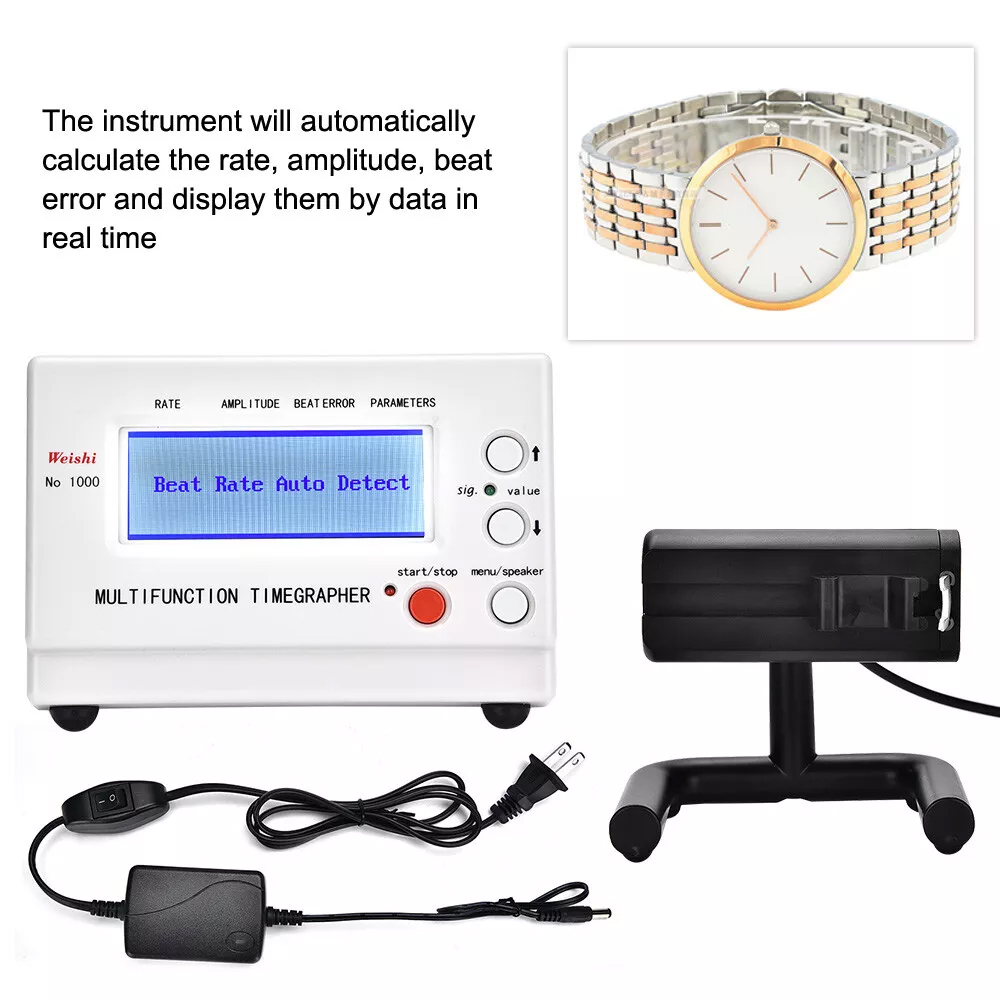

Model: M-1000
✅Easy to use for mechanical watch collection. This watch tester automatically calculates rate, amplitude, and beat error using readings from the microphone stand.
✅LCD screen displayed. According to different watches, the instrument will automatically adjust optimal signal level during testing. - The LCD screen shows the readings in real time with 2 dotted lines moving across the screen to provide a visual representation of the “tic tock” from your watch
6 kinds of testing position can be adjusted. Amplitude level is between 275 and 315; Rate Deviation Range: ±999 s/d with precision ± 1 s/d'
✅The sampling period can selected by 2 , 4 , 6 , 8 , 10, 20, 30 , 60 seconds, and the average of corresponding period will be regard as the precise value of the watch.

Specification:
Frequency: Can be selected automatically or manually, beat frequency: 18000, 19800, 21600, 25200, 28800, 36000
Daily difference measurement: display plus or minus 999 seconds/day, and display 1 second/day within the measurement range
Swing measurement: the score is 1, the range is 100 degrees to 360 degrees.
Measuring average time: 2, 4, 6, 8, 10, 20, 30, 60 seconds
Polarization measurement: unit millisecond, resolution 0.1 millisecond, measurement range 0.0~9.9 seconds
Lift angle: range from 30 degrees to 70 degrees
Voltage: AC 100V-240V
Material: Plastic

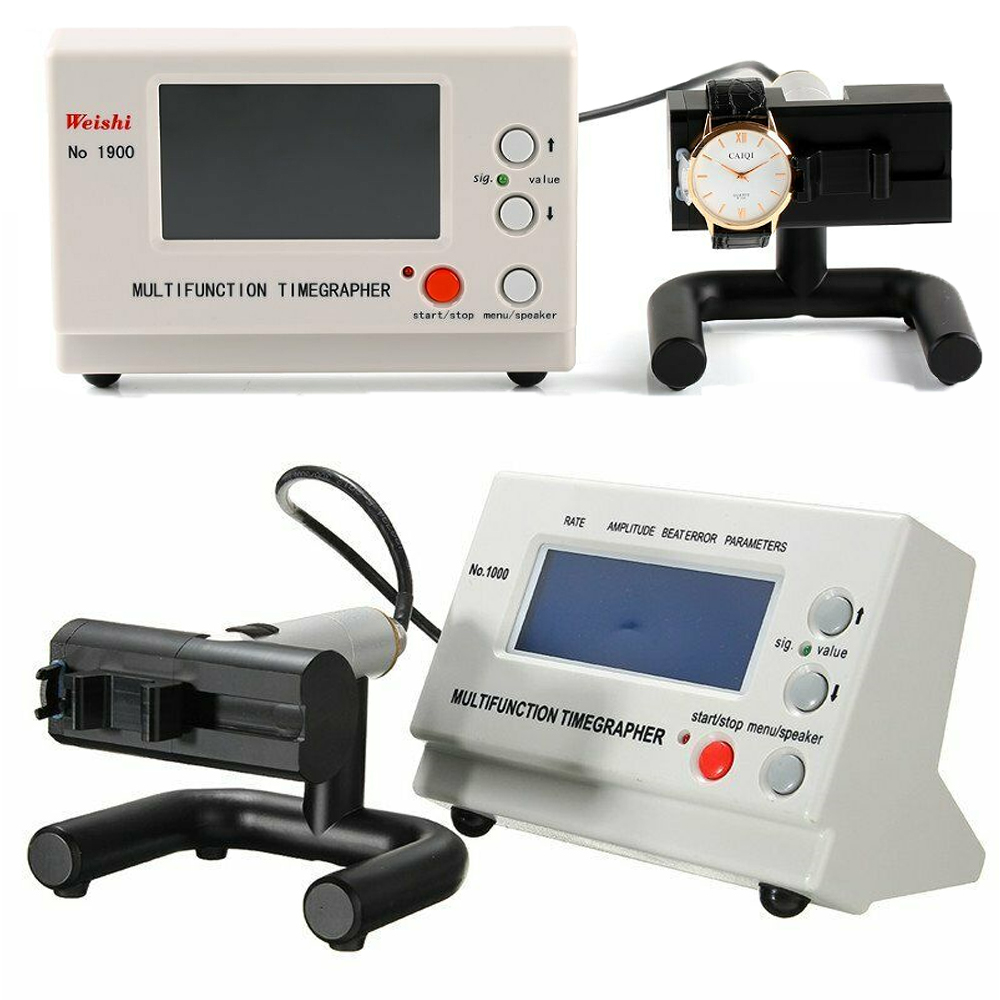

M-1900 ：This No.1900 timegrapher is a precise mechanical watches test instrument, it is used for multi-testing by watch manufacturers and watch technician.

Features:

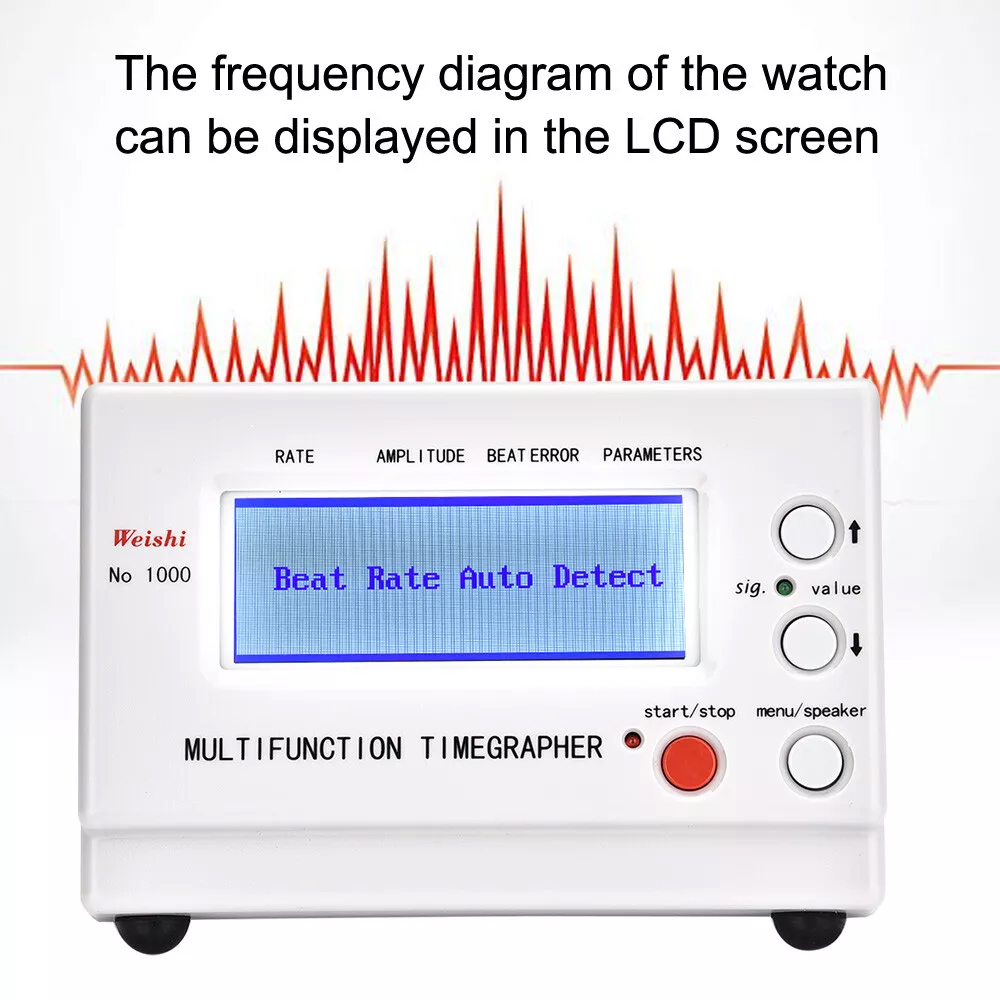

✅The frequency diagram of the watch can be displayed on the LCD screen;

✅According to different watches, the instrument will automatically adjust the optimal signal level during the test;

✅The instrument will automatically calculate the rate deviation, amplitude, be-at error, and display them by the data in real time; select "±99.9s/d" at item rate ranges for result display,

which can make the accuracy of rate deviation up to 0.1s/d;

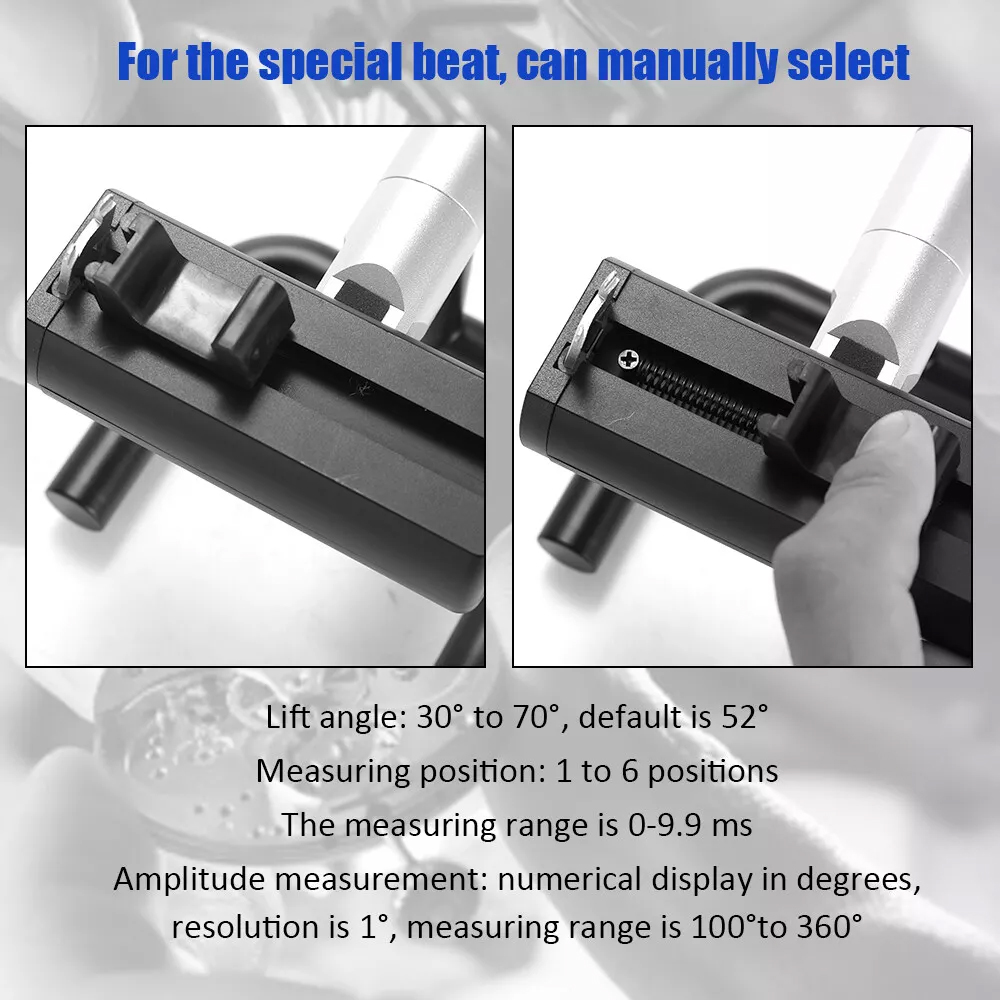

✅For the conventional be-at, the instrument can automatically respond; for the special be-at, can manually select;

✅The sampling period can be selected by 2 seconds, 4 seconds, 6 seconds, 8 seconds, 12 seconds, 20 seconds, 30 seconds, 60 seconds,

and the average value of corresponding period will be regarded as the precise value of the watch;

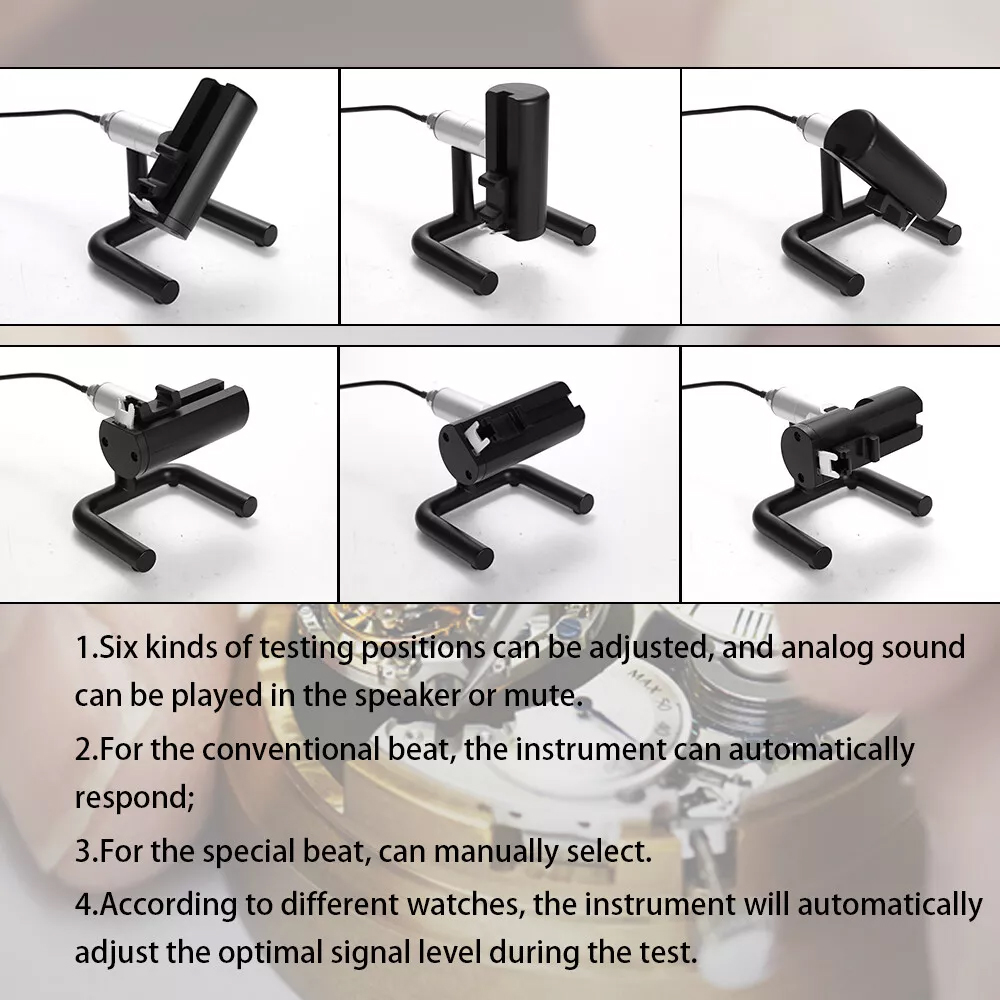

✅Six kinds of testing positions can be adjusted, and the simulation sound can be played in the speaker or mute;

Specifications:

Color: grey+black;

Measuring possibilities: rate deviation, amplitude, be-at error of mechanical watches and diagram recording of the be-at noise;

Rate deviation measurement: How fast/slow the watch runs in seconds per day.If it is wildly out of these ranges, you should bring it to a watchmaker to get it checked out.

Excellent -  +/- 7 s/d, Acceptable - +/- 20 s/d;

Measuring ranges: ±999s/d or ±99.9s/d;

Resolution: 1.0s/d or 0.1s/d;

Amplitude measurement:It’s the amount of rotation in the swing of the balance wheel; A healthy movement should, at full wound, have a high amplitude;

A low amplitude generally indicates problems that needs to be fixed prior to regulation, like obstruction due to foreign elements, oil drying up, etc, but anything above 250 degrees can still be considered healthy amplitude;

Measuring ranges: 100°~360°;

Resolution: 1°;

Measuring of the be-at error:It’s the time difference between the “tick” and the “tock”.

Excellent : 0.0 - 0.5 milliseconds, Acceptable : 0.6 - 1 milliseconds;

Measuring ranges: 0.0~9.9 ms;

Resolution: 0.1 milliseconds;

Lift angle: This should be set manually prior to using the timegrapher, the reason you need to input this into the Timegrapher is so that you can calculate the amplitude.

And you can find the exact number from the official specs of a movement. Most modern watches have a lift angle of 52 degrees;

Measuring ranges: 30°~70°;

Default value: 52°;

Measure positions: 1-6 positions;

Line length: 480 points;

Measuring times periods: 2/4/6/8/12/20/30/60 seconds;

Working environment: 10℃~40℃;

Relative humidity: 0~80% RH;

Weishi MTG-3000 multifunction Timegrapher Watch timing machine is automatically calculate in real time for the following:

-Beat rate
-Amplitude
-Beat error
-Beat number

Automatic selection are available for the most common beat:
12000, 14400, 18000, 19800, 21600, 25200, 28800, 36000, 43200

Manual selection are available for the following beat:
3600, 6000, 7200, 7380, 7440, 7800, 9000, 9100, 10800, 11880, 12000, 12342, 12480, 12600, 13320,
13440, 13500, 14000, 14040, 14160, 14200, 14280, 14400, 14520, 14580, 14760, 14850, 15000, 15360,
15600, 16200, 16320, 16800, 17196, 17258, 17280, 17786, 17897, 18000, 18049, 18514, 19332, 19440,
19800, 20160, 20222, 20944, 21000, 21031, 21306, 21600, 25200, 28800, 32400, 36000, 43200

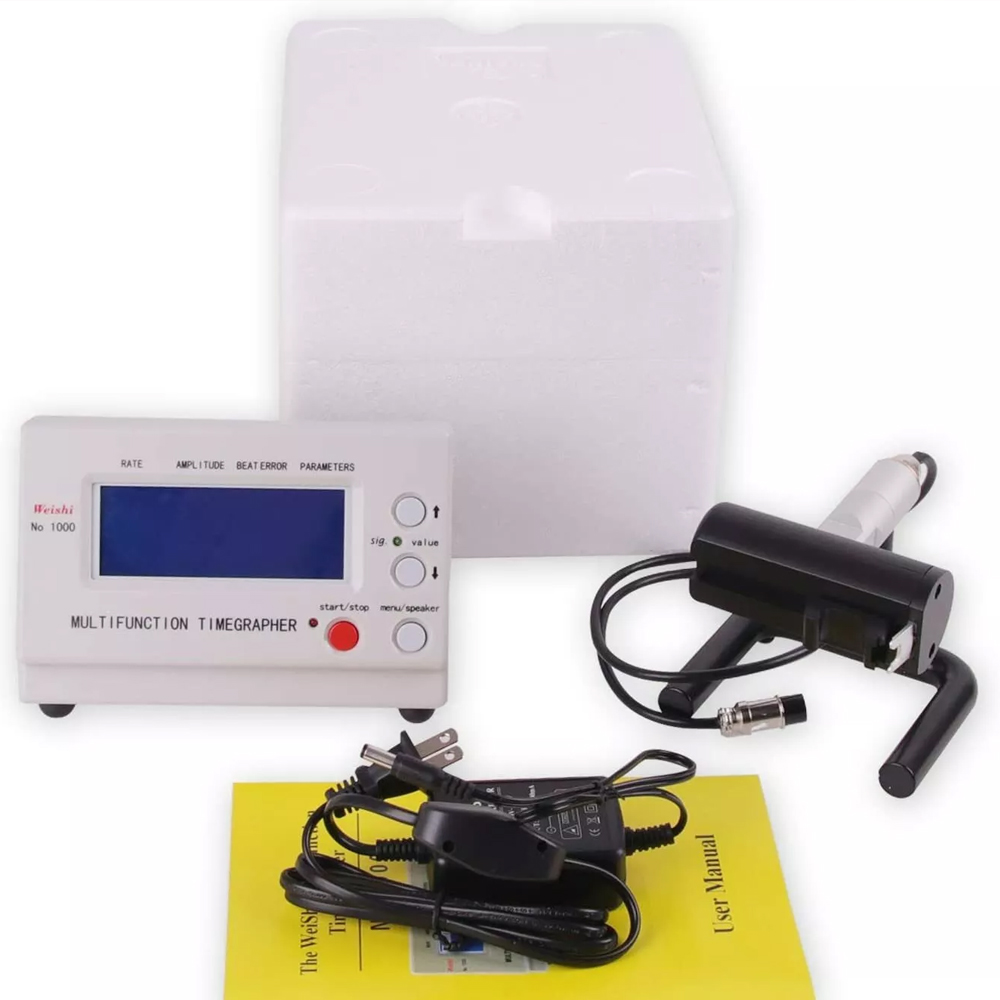

Packing Includes

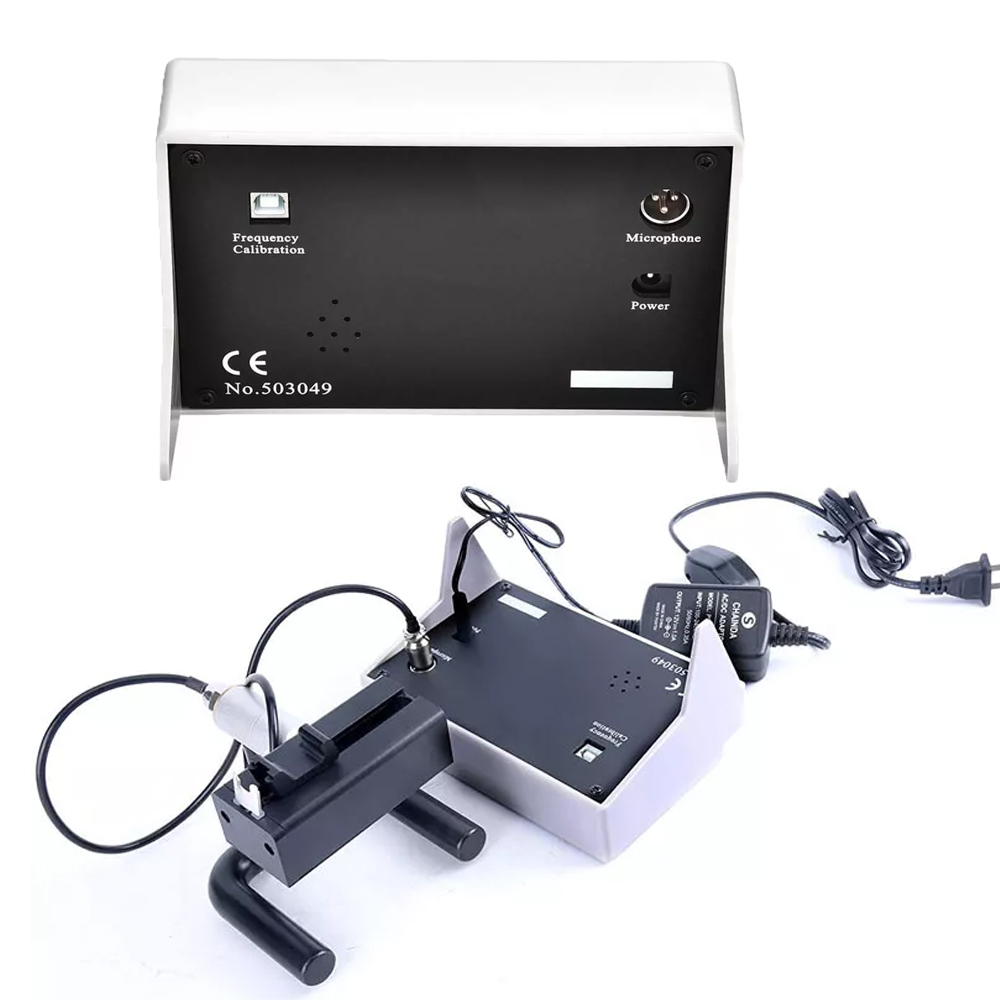

1 x Testing Watch Timing Machine Timegrapher

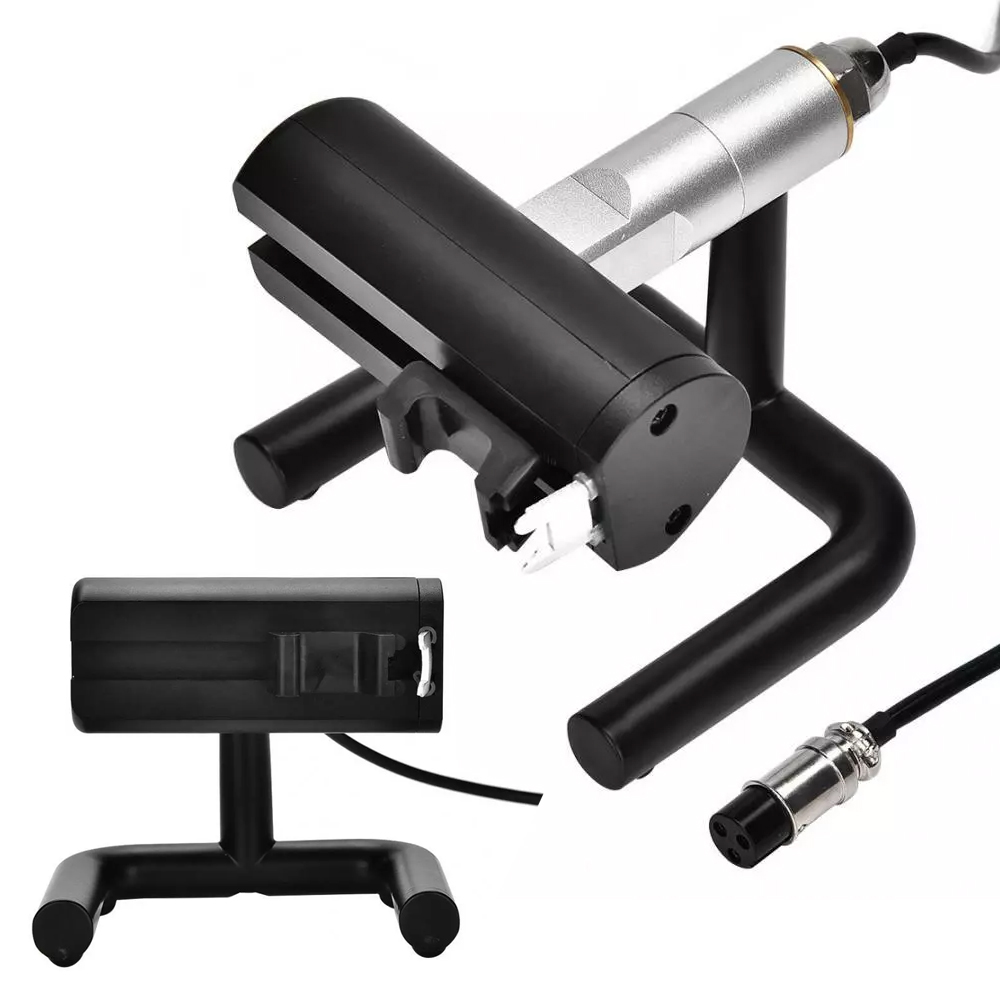

1 x Sensor
1 x Power Adapter(suitable adapters will be sent depends on the countires)
1 x Instruction

Note:

Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
