Features and specifications:
Bandwidth: 200MHz
Channels: 2, plus 1 ext. trigger CH
Real Sampling Rate: 1G Sa/s
Memory depth: 40Kpts
Rise time: <1.7ns
Input impedance: 1MΩ+-2%//16pF+-3pF
Sec/div range: 2ns/div-50s/div, Roll: 100ms-50s/div
Display: Color TFT (800x480) 7'' LCD
Display |
7" TFT LCD, 800x480 |
Channels |
2 |
Vertical Sensitivity |
2mv-5v/div(1-2-5 Sequence) |
Vertical Resolution |
8bit |
Input coupling |
DC, AC, GND |
Input Max voltage |
400V(Vpp) |
Trigger Types |
Edge, Pulse, Video, Slope, Alternative |
Trigger Modes |
Auto, Normal, Single |
Trigger Source |
CH1, CH2, Ext, Ext/5, AC Line |
Save/Recall |
Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function |
Auto Measure Types |
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
Cursor measure |
Manual, Track, Auto |
Sample Types |
Real Time, Equivalent Time |
Averages |
4, 16, 32, 64, 128, 256 |
Math |
+, -, *, /, FFT |
FFT |
Window: Hanning, Hamming, Blackman,Rectangular Sampling Points: 1024 points |
XY Mode |
Phase Error: ±3 degrees Support the sampling rate : 5KSa/s-200MSa/s (in a 1-2-5 sequence) |
Persist |
Off, 1sec, 2sec, 5sec, Infinite |
Display Model |
Main, Window, Window Zoom, Roll, X-Y |
Menu Display |
2Sec, 5Sec, 10Sec, 20Sec, Infinite |
Skin |
Classical, Modern, Tradition, Succinct |
Display Language |
Chinese, English |
Power Source Voltage |
AC100-240VAC,47HZ-440HZ,30VA Max |
Size and Weight |
305mm x 154mm x133mm, about 2.5kg |

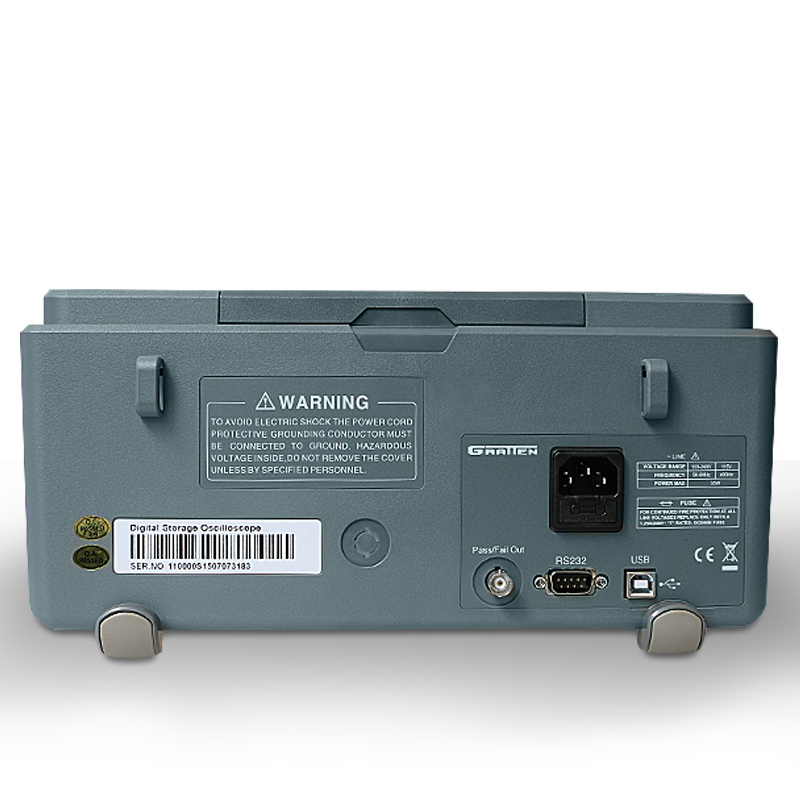

Interface |
USB host, USB device, RS232 |
(1:1, 10:1) Probe x 2, EasyScope Computer Software System, Power Cord(US, UK, EU or AU plug), USB Cable, RS232 cable, PDF English User Manual
