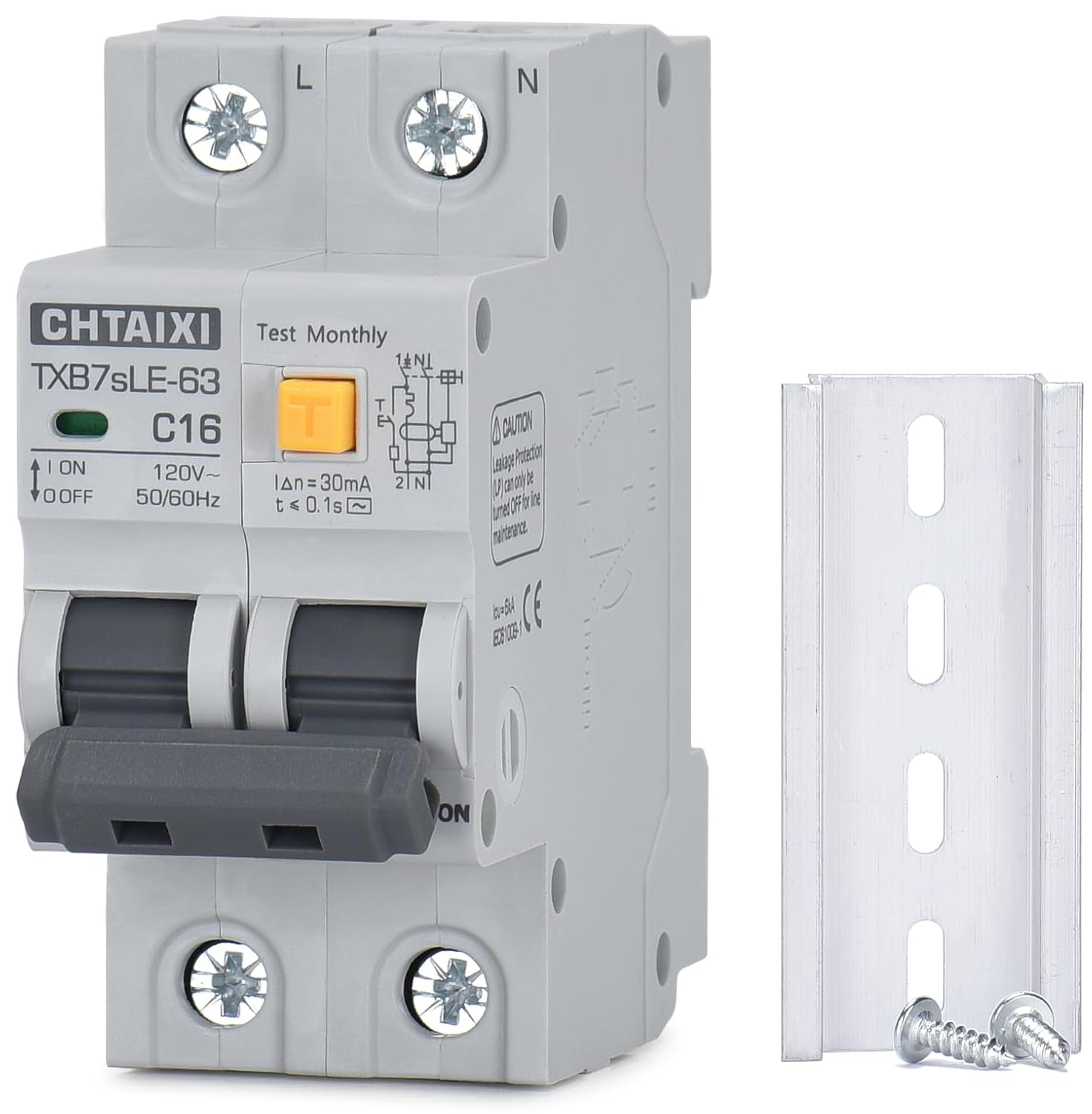

Ground Fault Circuit Breaker, 16 Amp 120V AC DIN Rail Mount Residual Current Circuit Breaker, Thermal-Magnetic Trip, Earth-Leakage Protection 30Ma 1PN RCBO C16
- FUNCTIONS: Used for earth-leakage protection ground fault protection of 110V 120V AC circuits, also short-circuit overload protection, control and isolation.
- Residual Current: AC type, 0.03A, t≤ 0.1s.
- QUALITY: Silver alloy contacts, flame retardant material shell, color indicators.
- APPLICATION: Can be used in solar ac system, RV, home line circuits, or other 50/60Hz AC systems.
- INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first).
Product Description
Specifications
Product type: Residual Current Circuit Breaker
Earth-leakage protection class: AC
Earth-leakage sensitivity: 0.03A, t≤0.1s.
Rated operational voltage: 120V AC
Rated current [In]: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional)
Poles: 1P+N
Trip unit technology: Thermal-magnetic, Residual Current
Trip Curve code: C
Breaking capacity: 6 kA Ics=Icu
Uimp: 4 kV
Mechanical durability: 10000 cycles
Electrical durability: 4000 cycles
Operating temperature: -13°F(-25℃) ~ 140°F(60℃)
Mounting support: 35 mm DIN rail
Tightening torque: 2.5 N.m
Standard: IEC61009-1
Package includes
1 x Residual Current Circuit Breaker
1 x DIN rail
2 x screws
Installation
DIN Rail
- Install the 35mm DIN rail horizontally in a stable environment.
Installation
- Hang the circuit breaker slot on the DIN rail.
- Push the lower end of the circuit breaker into the DIN rail.
Dismounting
- Push the circuit breaker upward.
- Turn the upper end of the circuit breaker out of the DIN rail.
Item Specification
-
Item model number TXB7sLE-63 Style 16 Amp Current Rating 16 Amps Mounting Type DIN Rail Mount Circuit Breaker Type GFCI Product Dimensions 2.95 x 1.42 x 3.15 inches; 6.74 ounces Number Of Poles 1
- Product Dimensions: 1.42 inches x 2.95 inches x 3.15 inches. Weight: 6.74 oz
