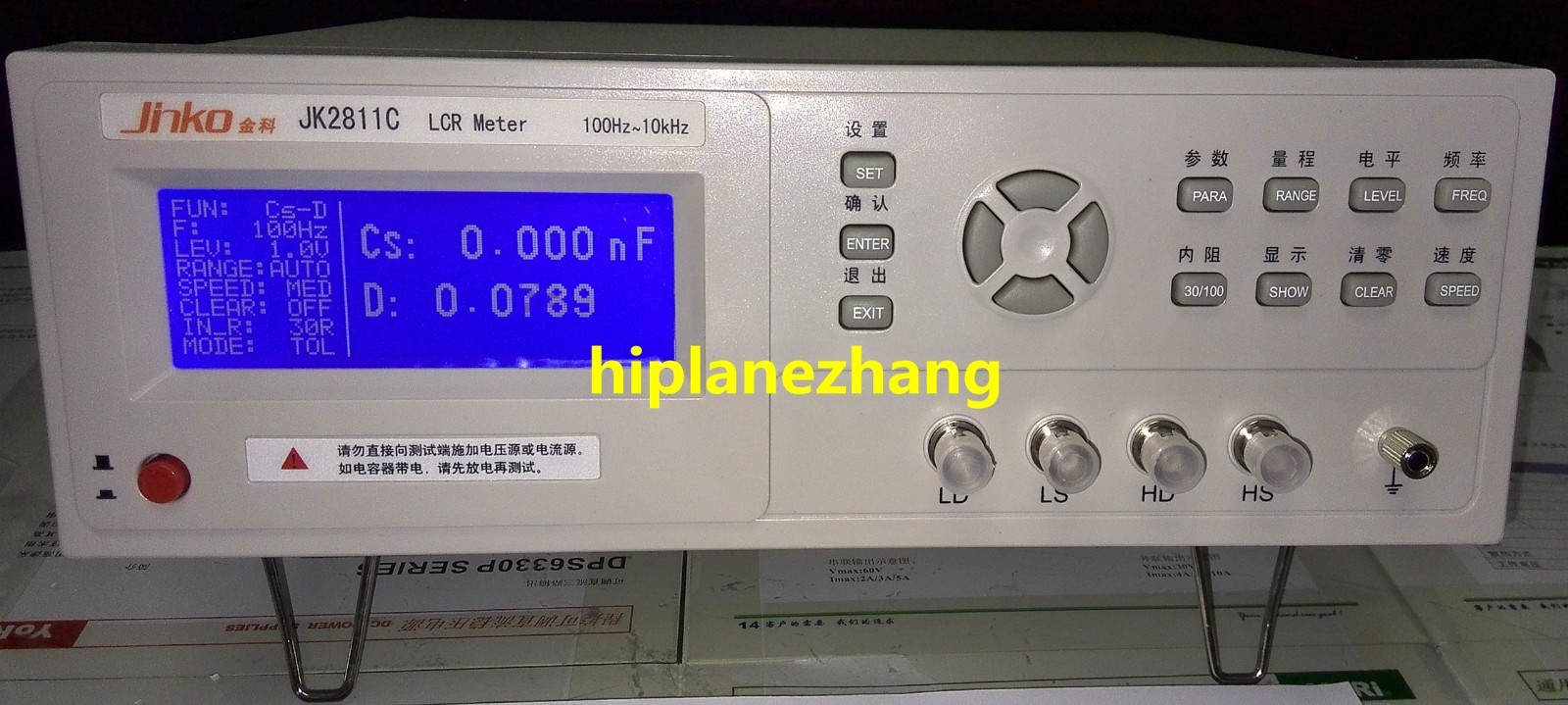

Bench LCR Meter 10KHz Inductance Capacitance Resistance RZDQLC Tester JK2811C
Features:
192 x 64 dot matrix LCD display.
Higher measurement speed. (80ms/time)
30Ω/100Ω selectable signal source output impedance.
Measuring frequencies: 100/120/1kHz/10KHz
User-friendly interface and easy operation.
Specifications:
|
Parameter
|
Frequency(＜10KHz)
|
Measuring range
|
|
L
|
50Hz - 800Hz
|
1uH - 9999H
|
|
1kHz
|
0.1uH - 999.9H
|
|
|
10kHz - 200kHz
|
0.01uH - 99.99H
|
|
|
C
|
50Hz - 800Hz
|
1pF - 19999uF
|
|
1kHz
|
0.1pF - 1999.9uF
|
|
|
10kHz - 200kHz
|
0.01pF - 19.99uF
|
|
|
R
|
0.001Ω - 39.999MΩ
|
|
|
D
|
0.0000 - 9999
|
|
|
Q
|
0.0000 - 9999
|
|
Measuring parameters
|
L-Q, C-D, R-Q, Z-Q
|
|
Basic Accuracy
|
0.2%
|
|
Measuring Frequency
|
100/120/1kHz/10KHz
|
|
Display Range
|
Z, R: 0.0001 Ω - 99.999MΩ
C: 0.01 pF - 99999mF
L: 0.01 µH - 99999H
Q: 0.0001 - 99999 D: 0.0001 - 99999 |
|
Output Impedence
|
30Ω , 100Ω
|
|
Range
|
Automatic, Hold
|
|
Max Reading
|
5 digital, primary parameter: 99999;
secondary parameter: 99999;
monitor parameter; 99999.
|
|
Signal Level
|
0.1V, 0.3V, 1V.
|
|
Measuring Speed
|
Slow: 2 times/second, Med:5 times/second,
Fast:10times/second
|
|
Trigger mode
|
Internal, Manual, External |
|
Clear Function
|
Open / short circuit, Clear Zeroing
|
|
Equivalent Circuit
|
Series and parallel
|
|
Display
|
192 x 64 dot-matrix LCD
|
|
Power Supply
|
AC 110V or 220V AC
|
|
Dimension & Weight
|
350mm (width)x110mm(height)x320mm(depth), 5.5kg
|
Interface: Optional RS232 or Handler

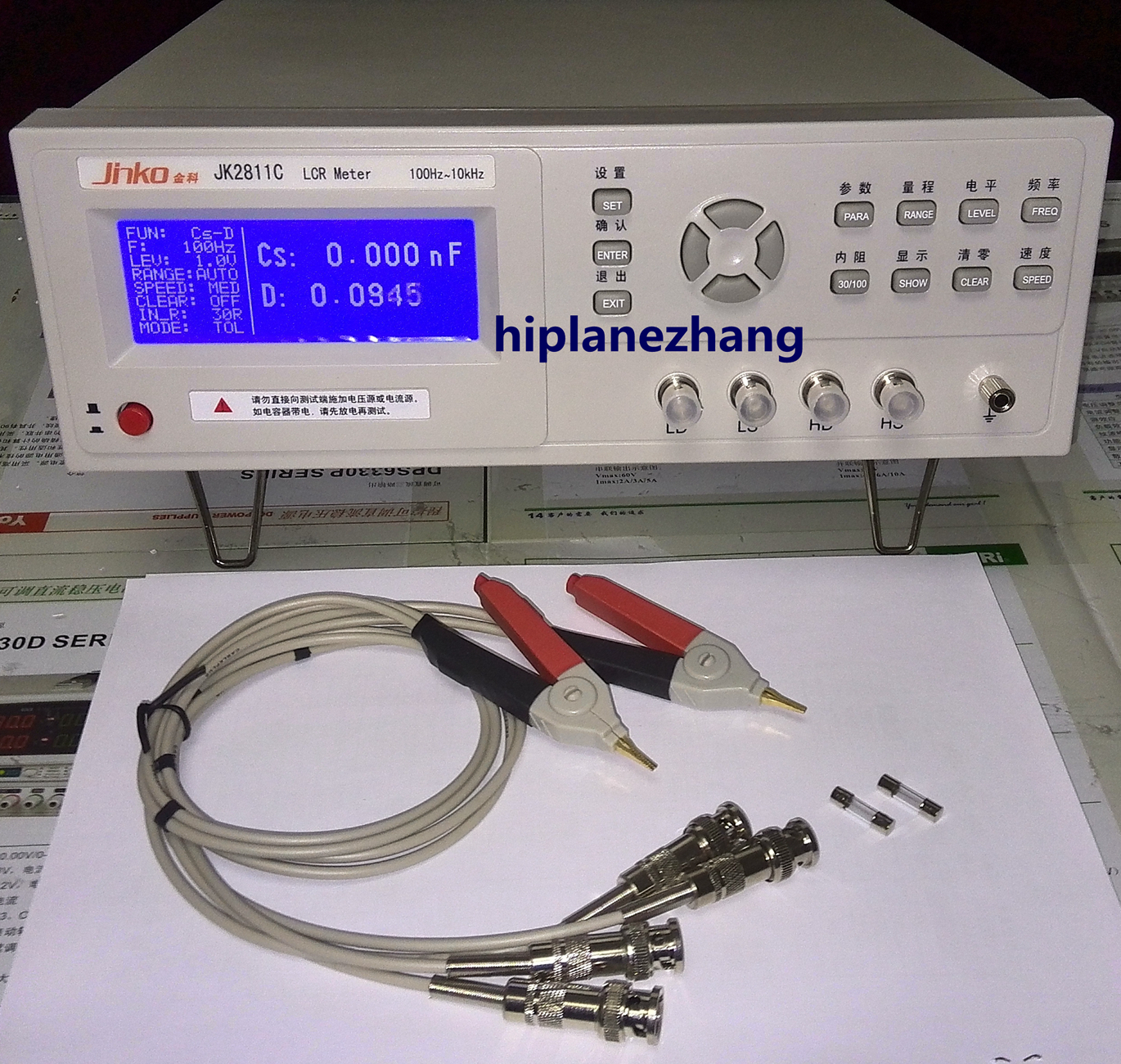

Accessories: power cord x1 (US, UK, Euro or AU plug is available), test leads x1, fuse x2.
 |
 |
