750W 1HP ER20(60) Spindle Motor Belt Spindle Milling 5 Bearings Cutting Milling

PRODUCT DESCRIPTION

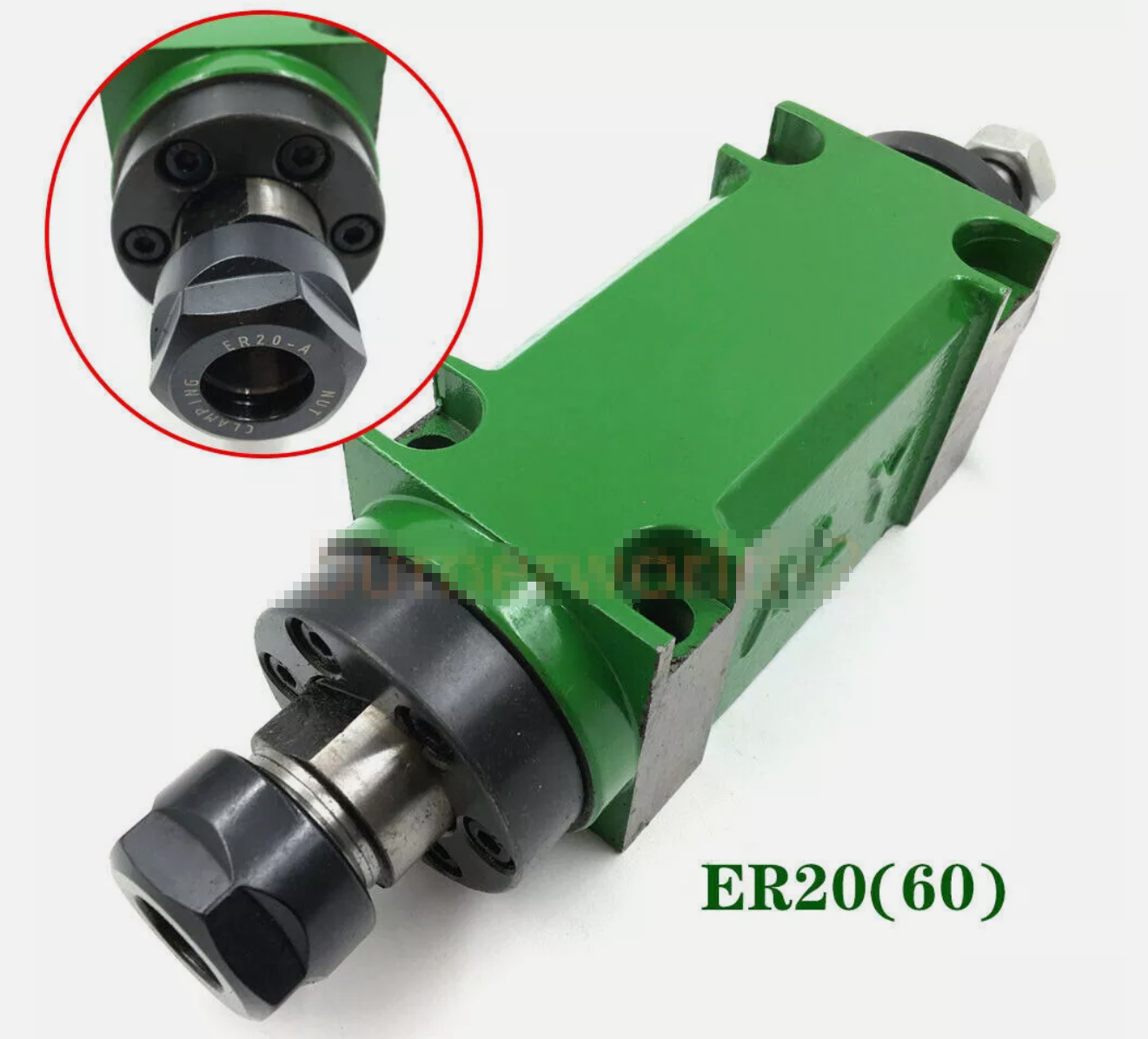

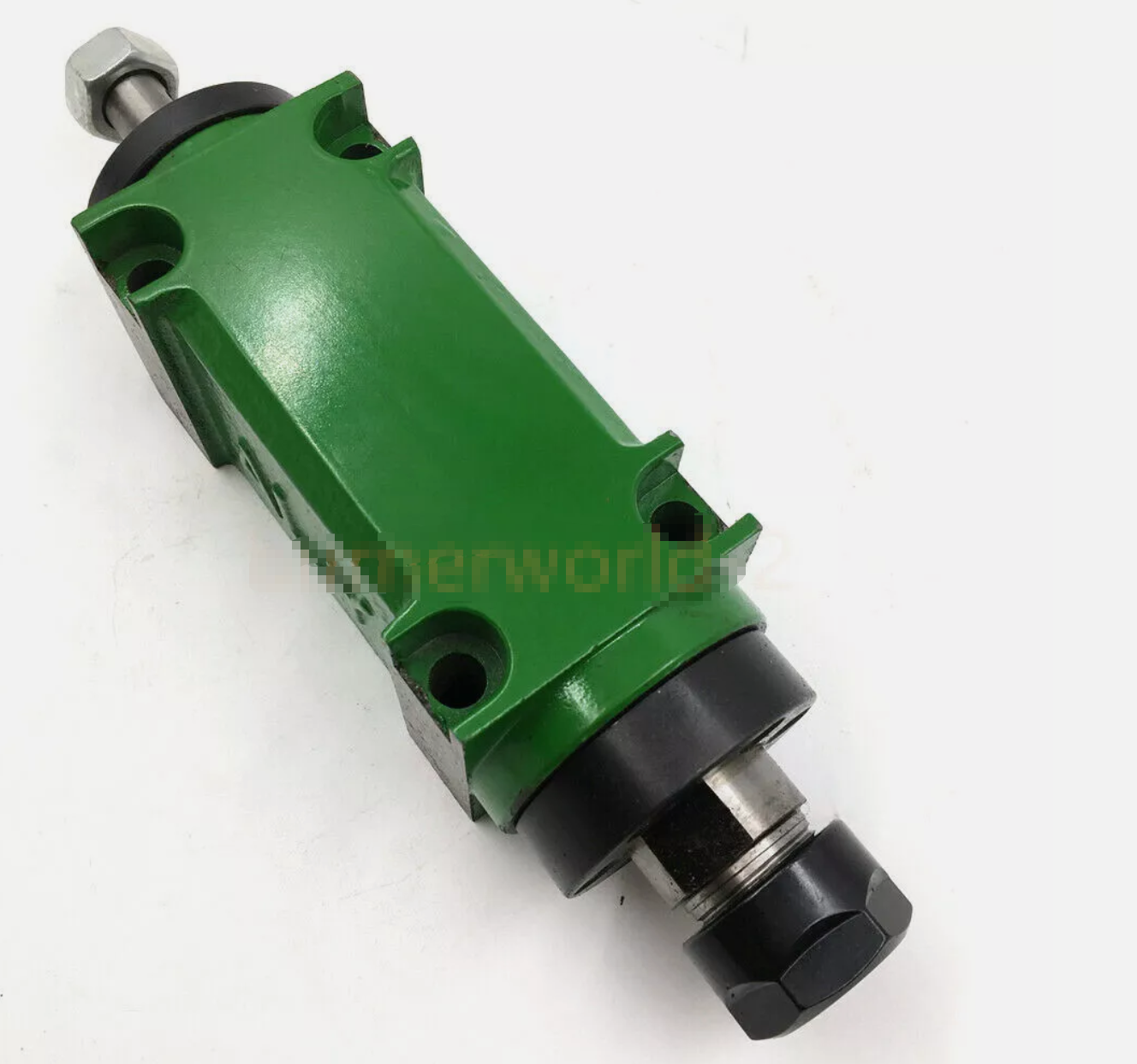

750W 1HP ER20(60) Spindle Motor Belt Spindle Milling 5 Bearings Cutting Milling
Specifications :
Size: 234x60x60mm
Axle head size: diameter 14mmx38mm
Central Height: 32mm
Run-out: 0.01mm

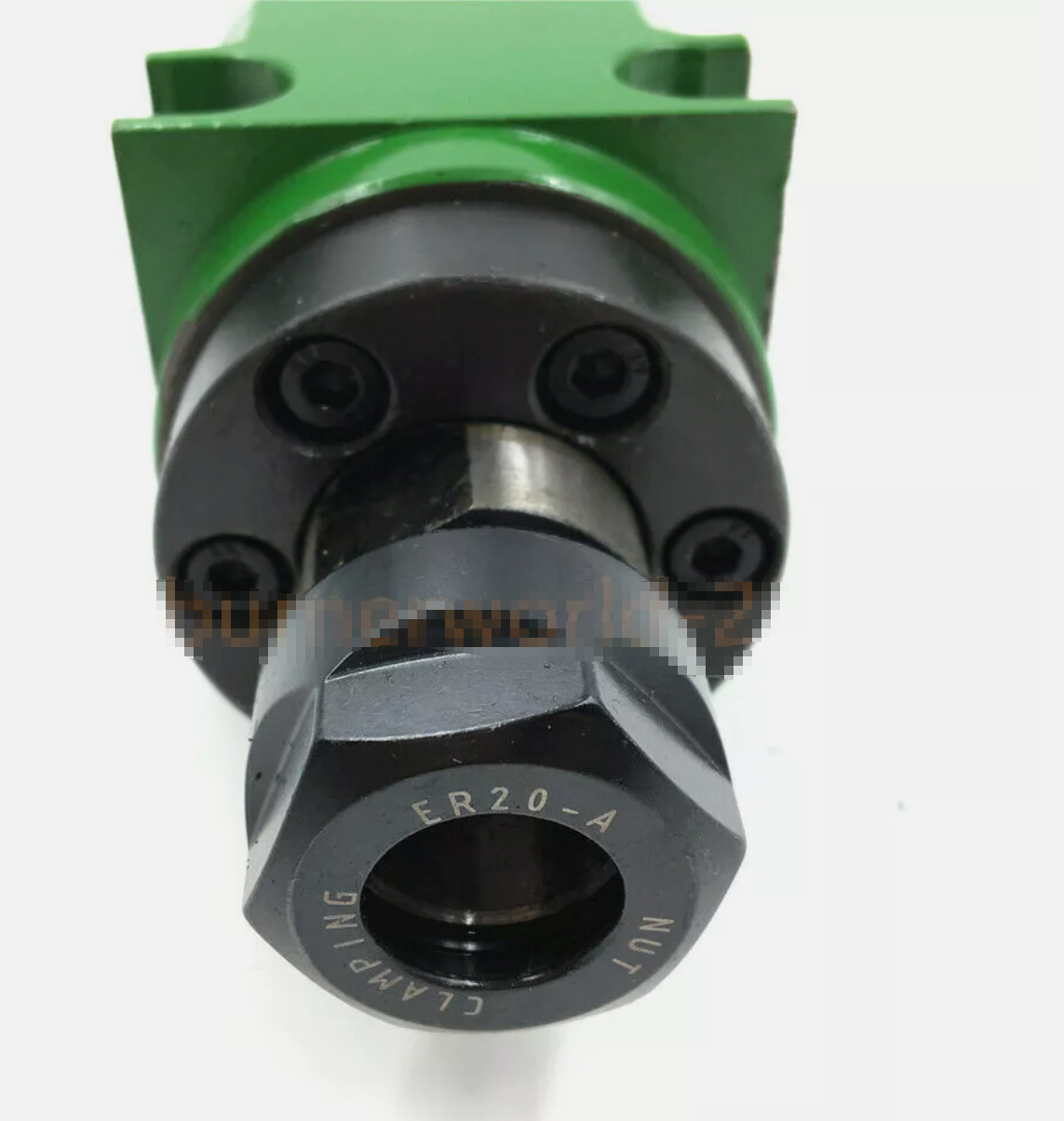

Spindle: ER20
Speed: 5000~6000rpm
Bearing: 7203*2, 6203*1, 6202*2
Max. Power: 0.75KW 750W 1HP
Clamping range: 2-13mm
Rising Temperature: within 25 Degree Celsius
Spindle Material: 20CrmnTi, carburizing heat treatment
1. Shipping list
1PC
ER20(60)  Power Head
2. Specifications
Model
Drilling

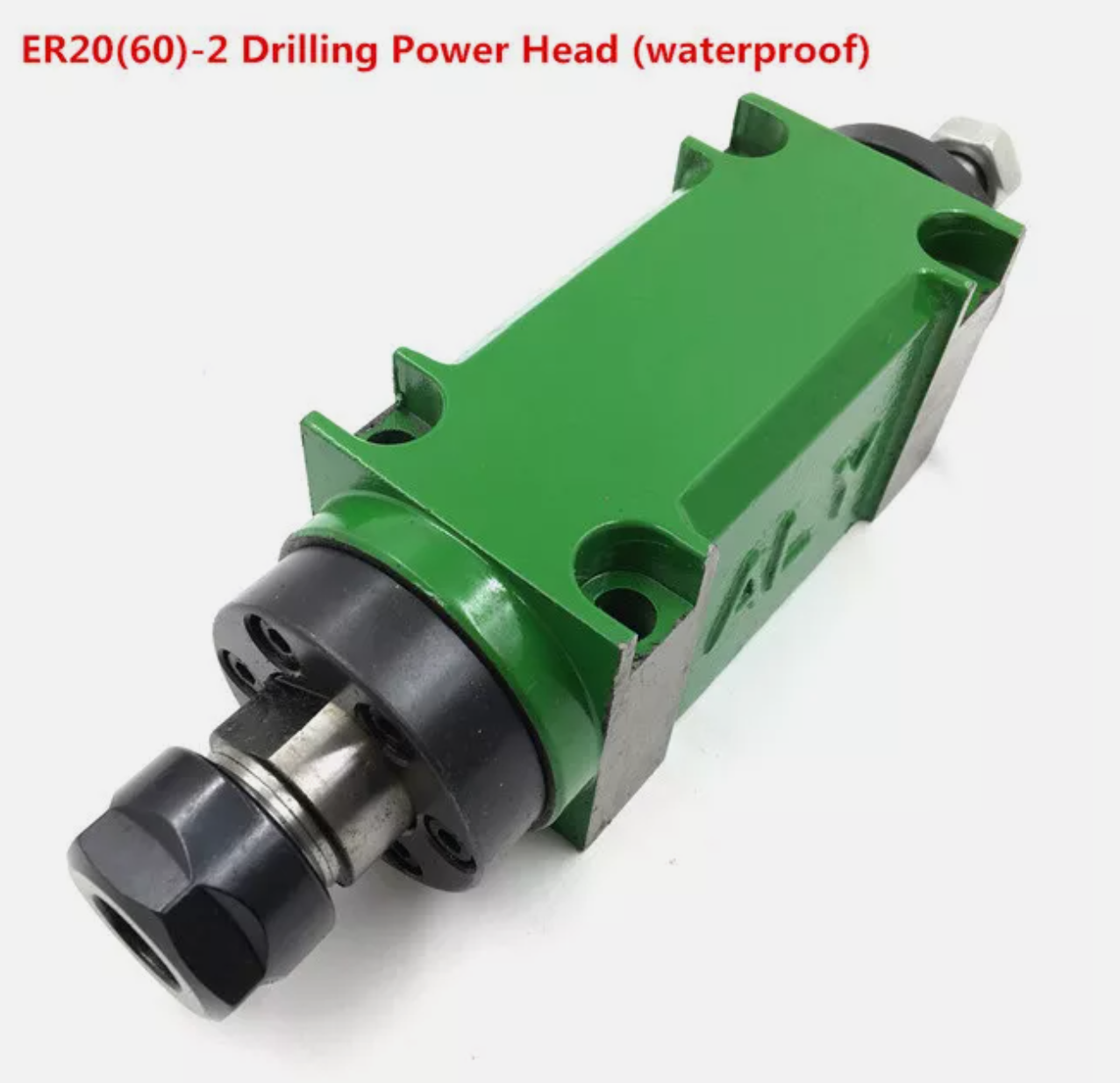

Drilling +Waterproof

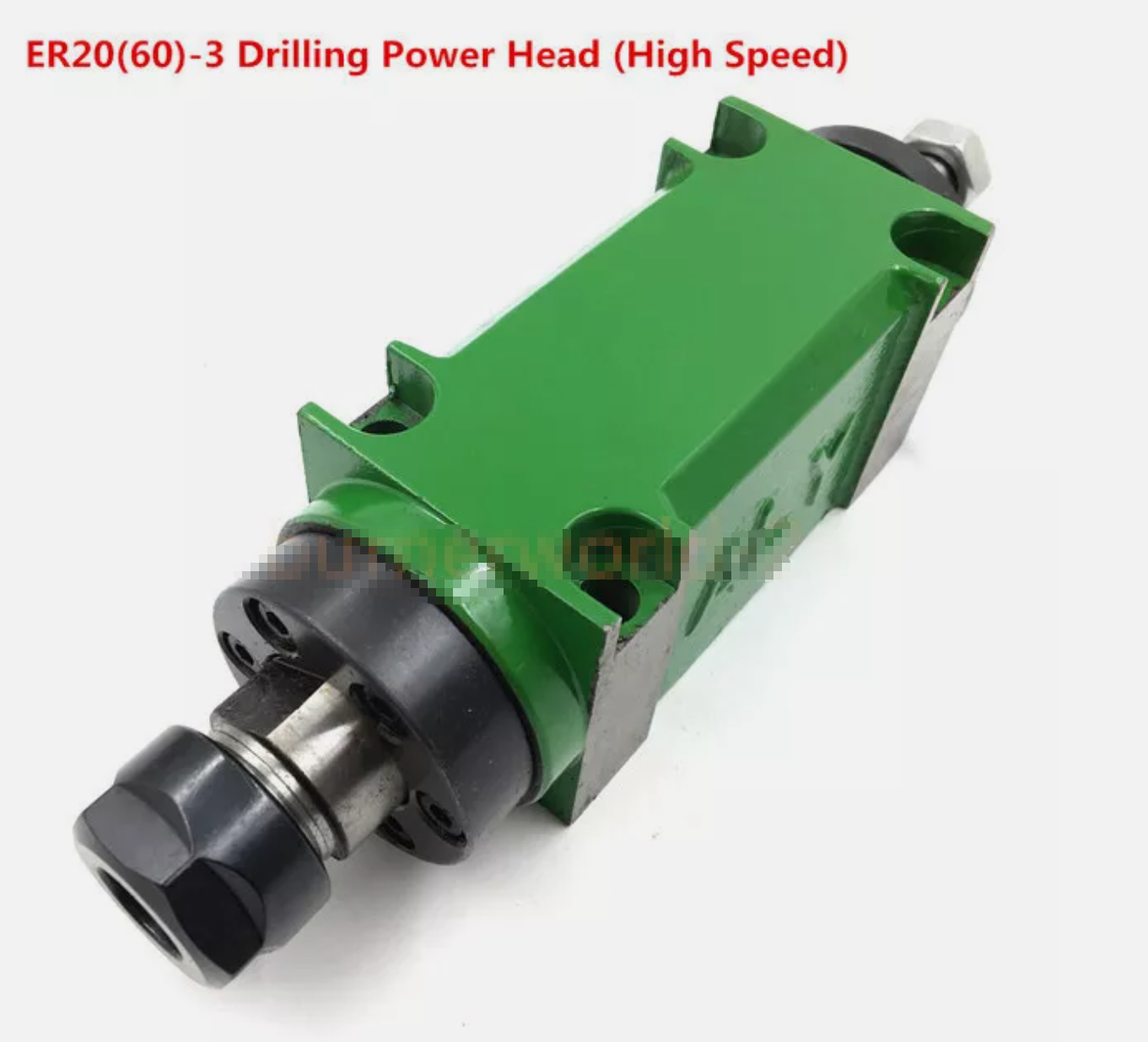

Drilling +High Speed

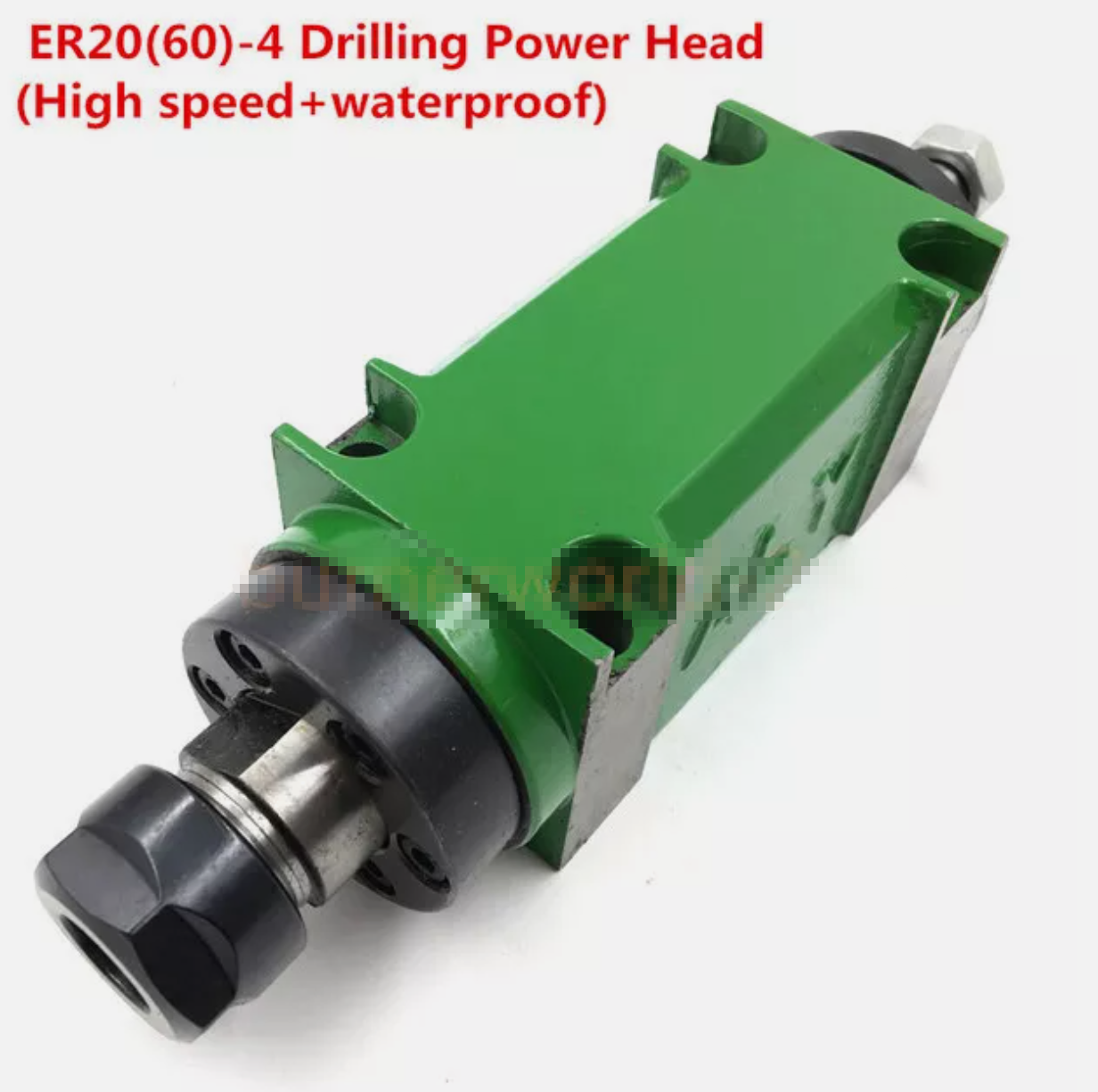

Drilling +High Speed +Waterproof

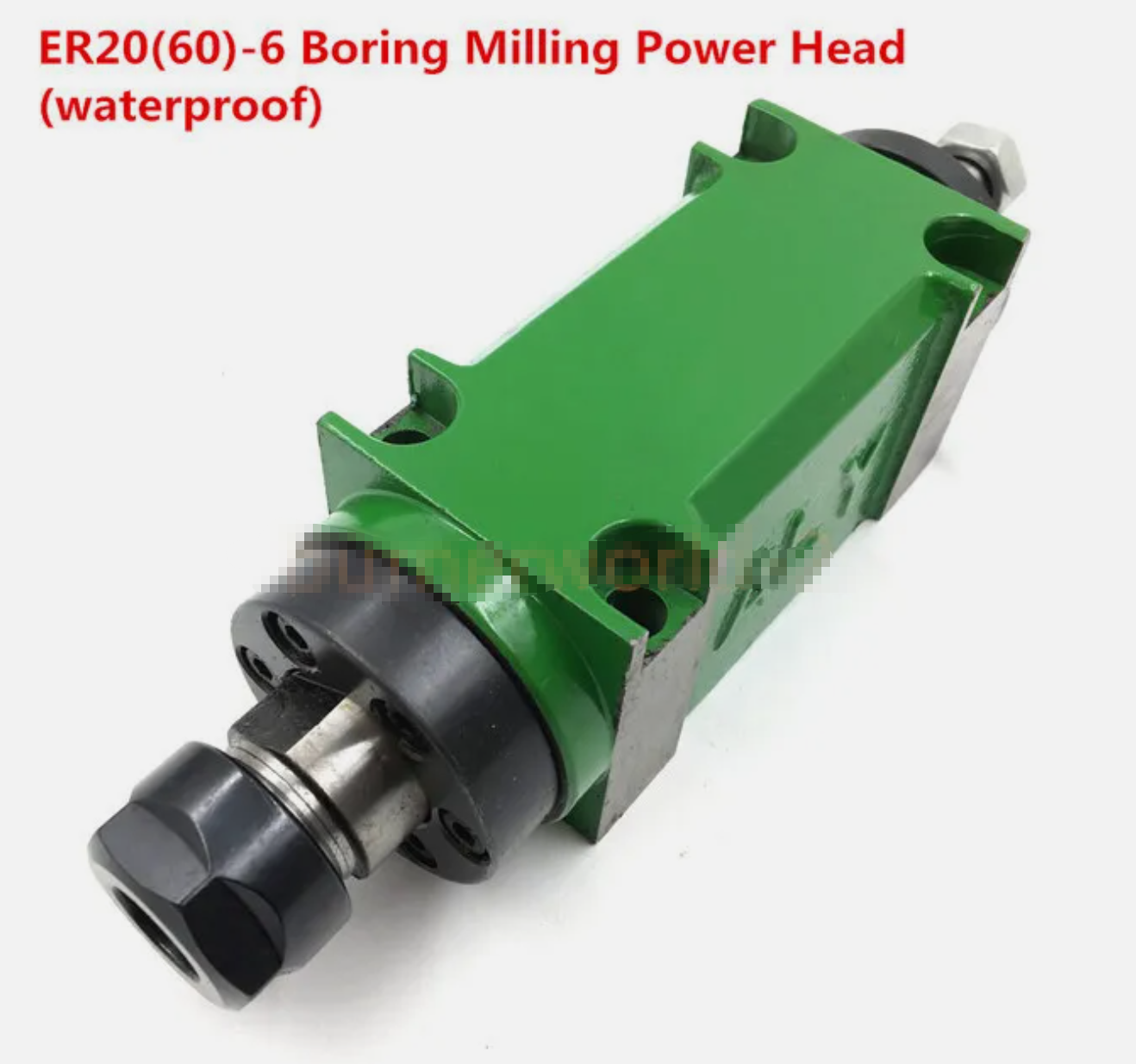

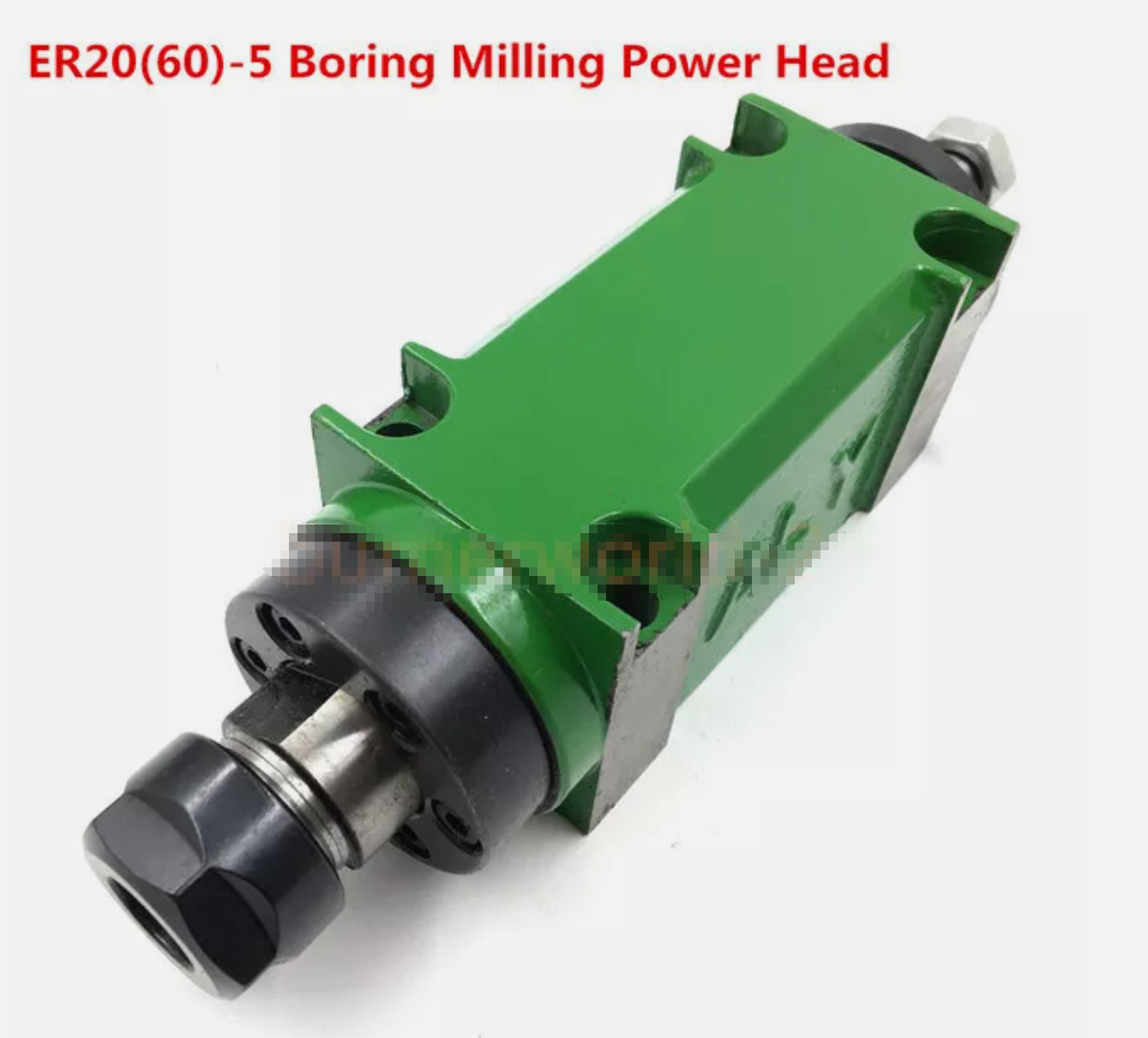

Angular Contact Boring Milling
Angular Contact Boring Milling +Waterproof
Overall size
234×60×60mm
234×60×60mm
234×60×60mm
234×60×60mm
234×60×60mm
234×60×60mm
Shaft head size
14x38mm
14x38mm
14x38mm
14x38mm
14x38mm
14x38mm
Central height
31mm
31mm
31mm
31mm
31mm
31mm
Clamping range
2-13mm
2-13mm
2-13mm
2-13mm
2-13mm
2-13mm
Run-out
0.01mm
0.01mm
0.01mm
0.01mm
0.01mm
0.01mm
Speed
3000rpm
3000rpm
5000~8000rpm
5000~8000rpm
5000~6000rpm
5000~6000rpm
Rising Temperature
within 25 Degree Celsius
within 25 Degree Celsius
within 25 Degree Celsius
within 25 Degree Celsius
within 25 Degree Celsius
within 25 Degree Celsius
Spindle Material
20CrmnTi, carburizing heat treatment
20CrmnTi, carburizing heat treatment
20CrmnTi, carburizing heat treatment
20CrmnTi, carburizing heat treatment
20CrmnTi, carburizing heat treatment
20CrmnTi, carburizing heat treatment
Bearing
deep groove ball bearing
deep groove ball bearing
7003*2, 6003*1, 6002*2
7003*2, 6003*1, 6002*2
7003*2, 6003*1, 6002*2
7003*2, 6003*1, 6002*2
application
Drilling Cutting Machine
Drilling Cutting Machine
Drilling Cutting Machine
Drilling Cutting Machine
Boring Milling Cutting Machine
Boring Milling Cutting Machine
waterproof

3. Advantage
(1) Higher precision, better stability and smoother operation.
(2) Adopting Japanese technology, double waterproof design structure, isolating cutting fluid and dust in production and processing, ensuring the good condition of the spindle head in actual work.( Waterproof function is only available on some models,Please choose the right model according to your needs)
(3) The main shaft housing is cast in high-tough cast iron. After manual and natural double aging treatment, it is wear-resistant and not easily deformed.
4. Benefits for you
(1) Using better manufacturing technology, bring you a higher quality and more perfect experience.
(2) Excellent service, a variety of models to meet your needs.
5. Application area
This series of power heads is mainly suitable for drilling, boring and other work occasions.
6. Technical Support
All Products from the factory will be provided for one year warranty after sales and lifetime technical support.
