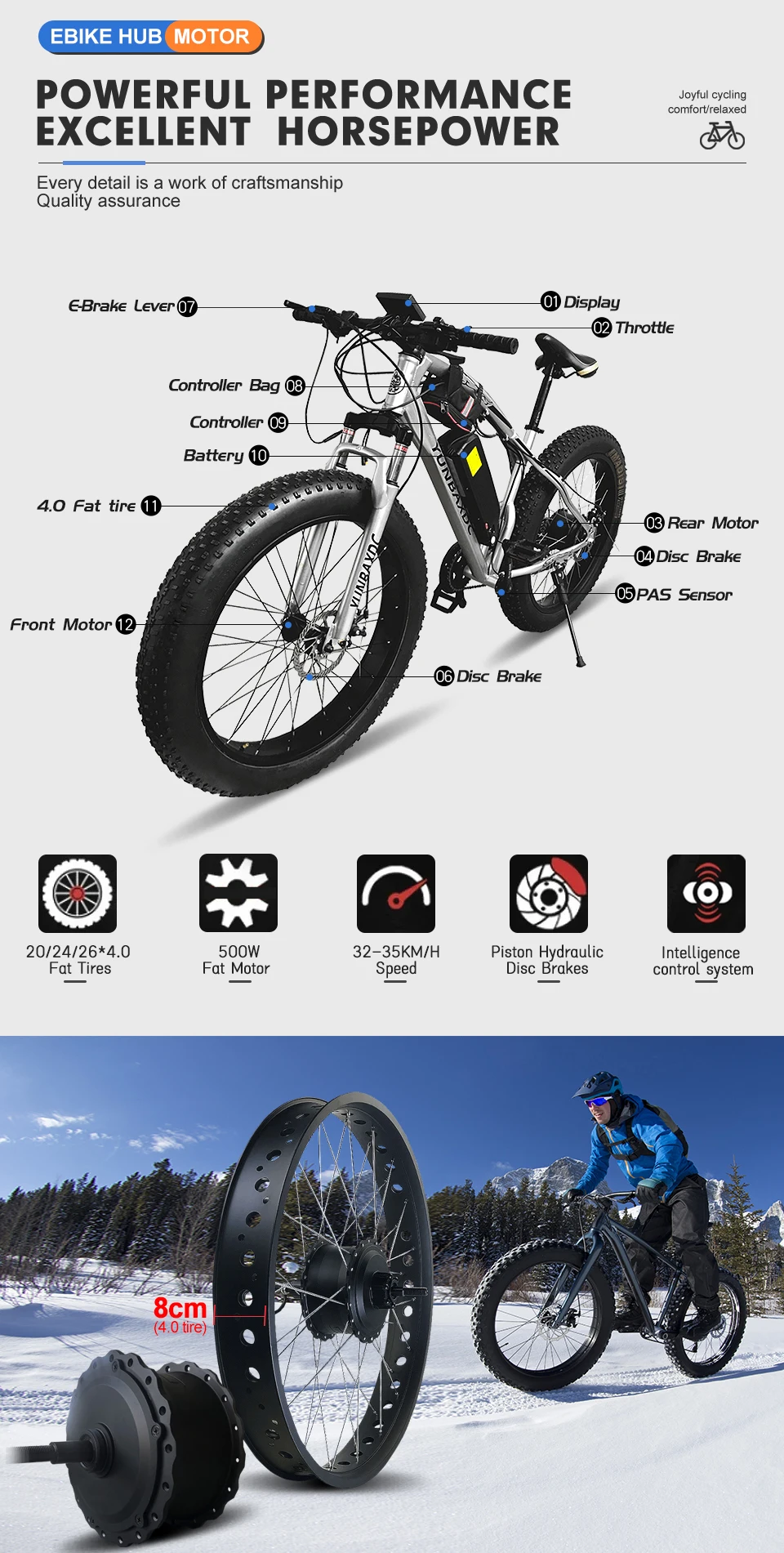

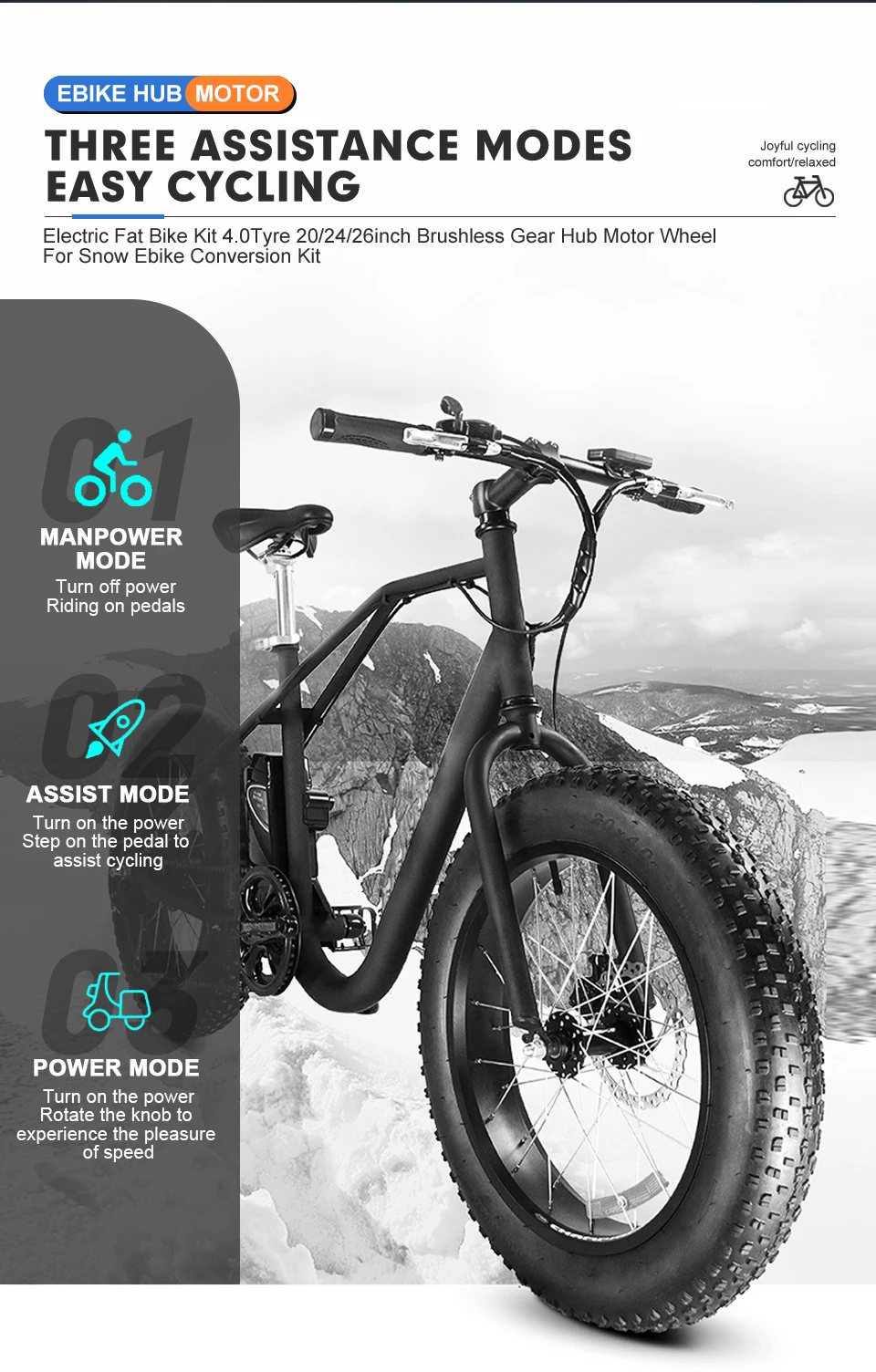

●1. This product is suitable for snow bike fat tire bike.

●2. This product can easily convert your ordinary bike into an electric bike.It's hundreds of doller cheaper than buying a new electric bike.

●3. It takes one person 1-2 hours to successfully convert it.We will put the installation manual in the box.

●4. I am the source manufacturer, if there is after-sale, you will contact the factory directly, it is very convenient.

●5. We work hard to ensure that you are satisfied with our services and products.

●6. And we will give you a controller bag as a gift !!!

●7. The color of the rim can be selected at the time of purchase!(Black/Blue/Green/Red)

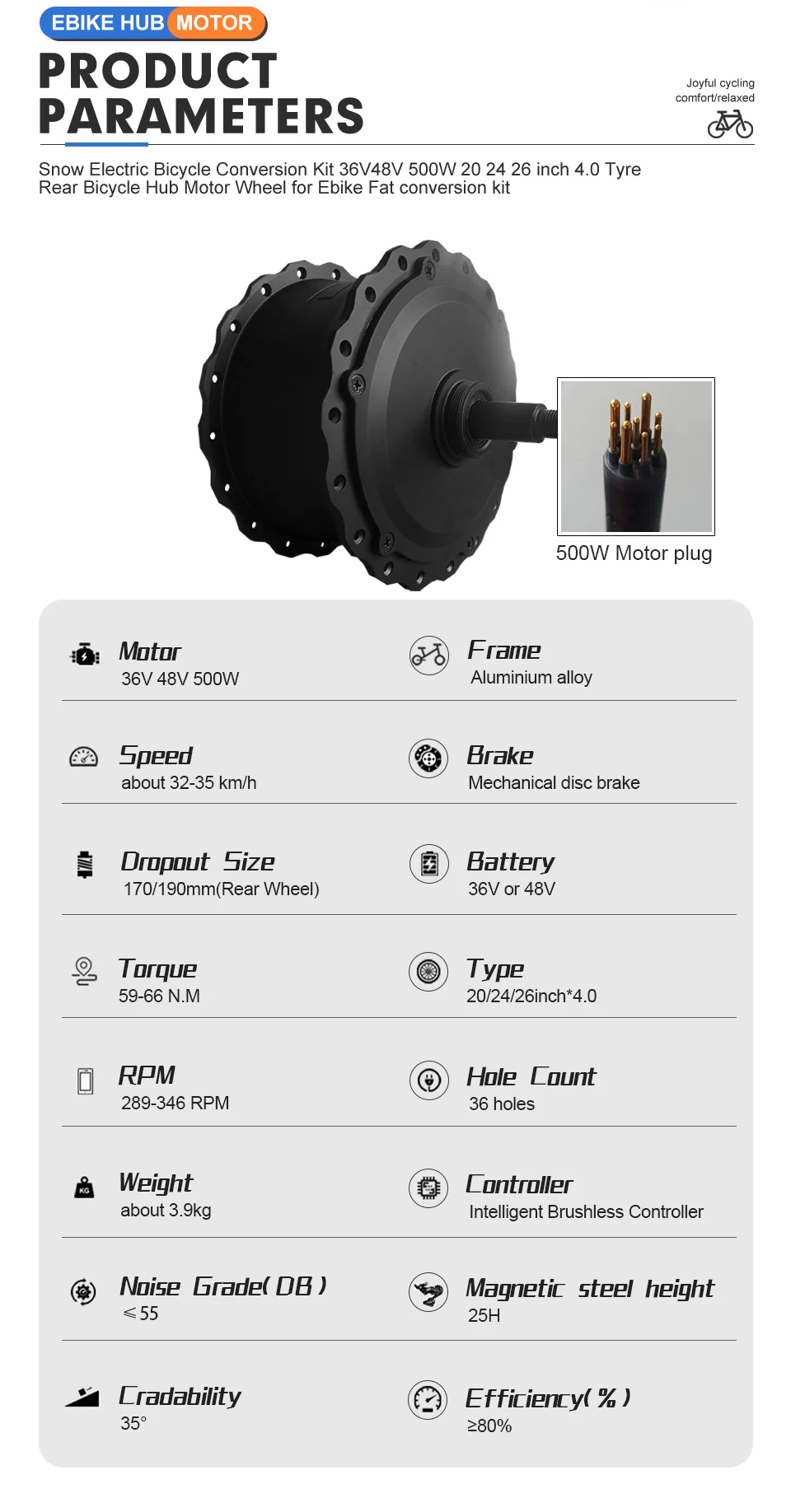

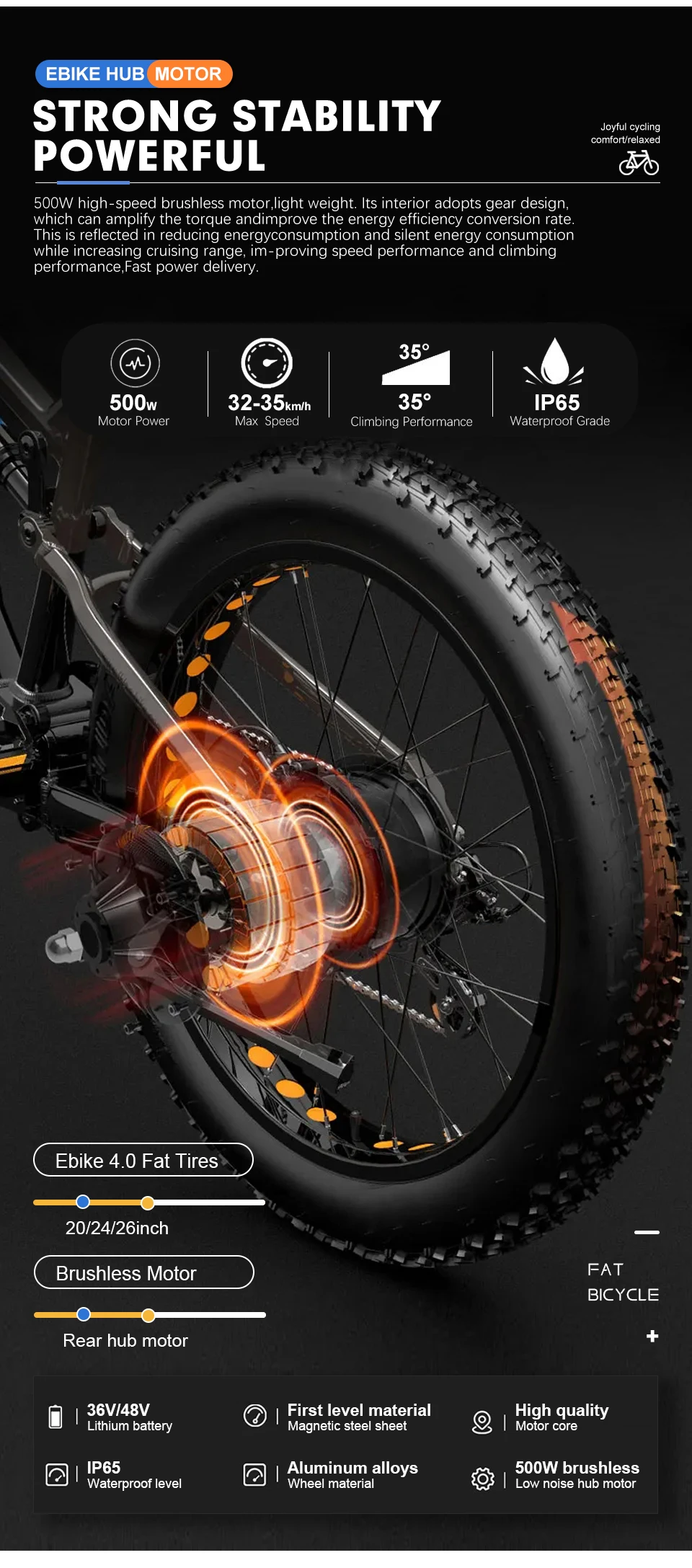

Motor：

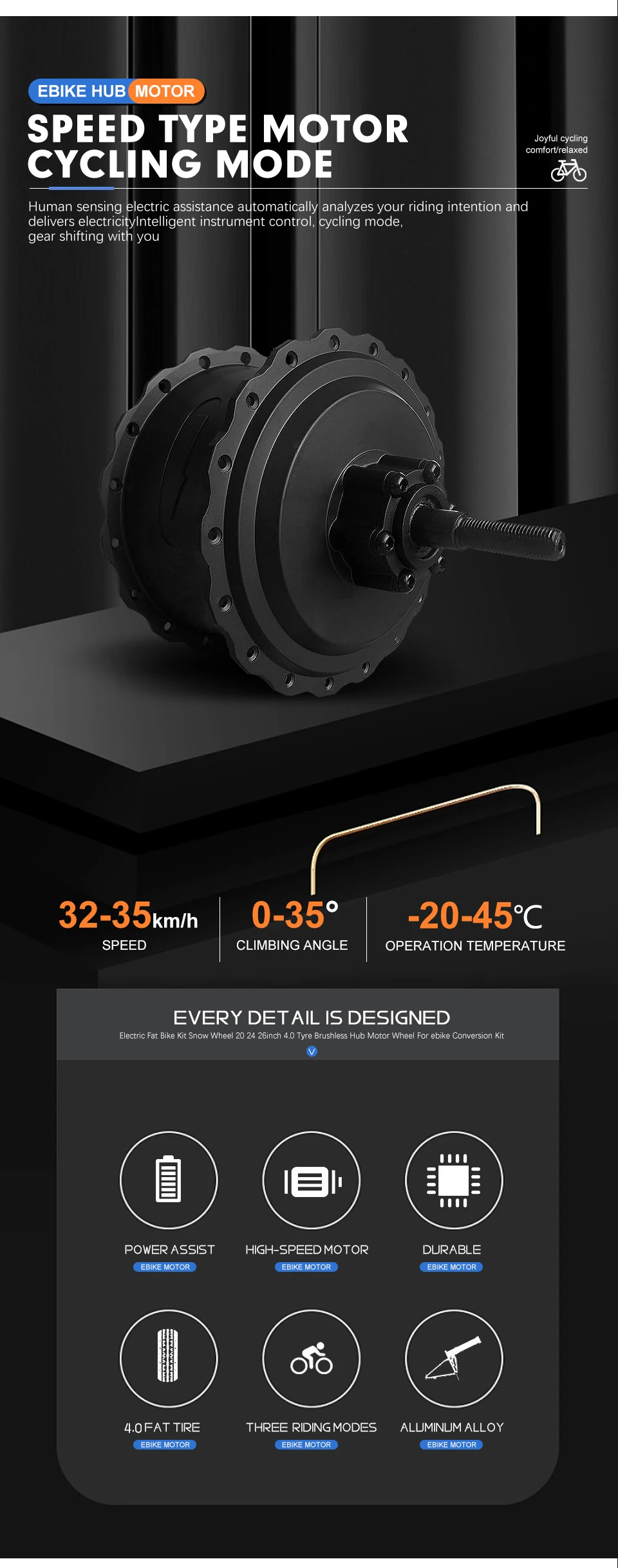

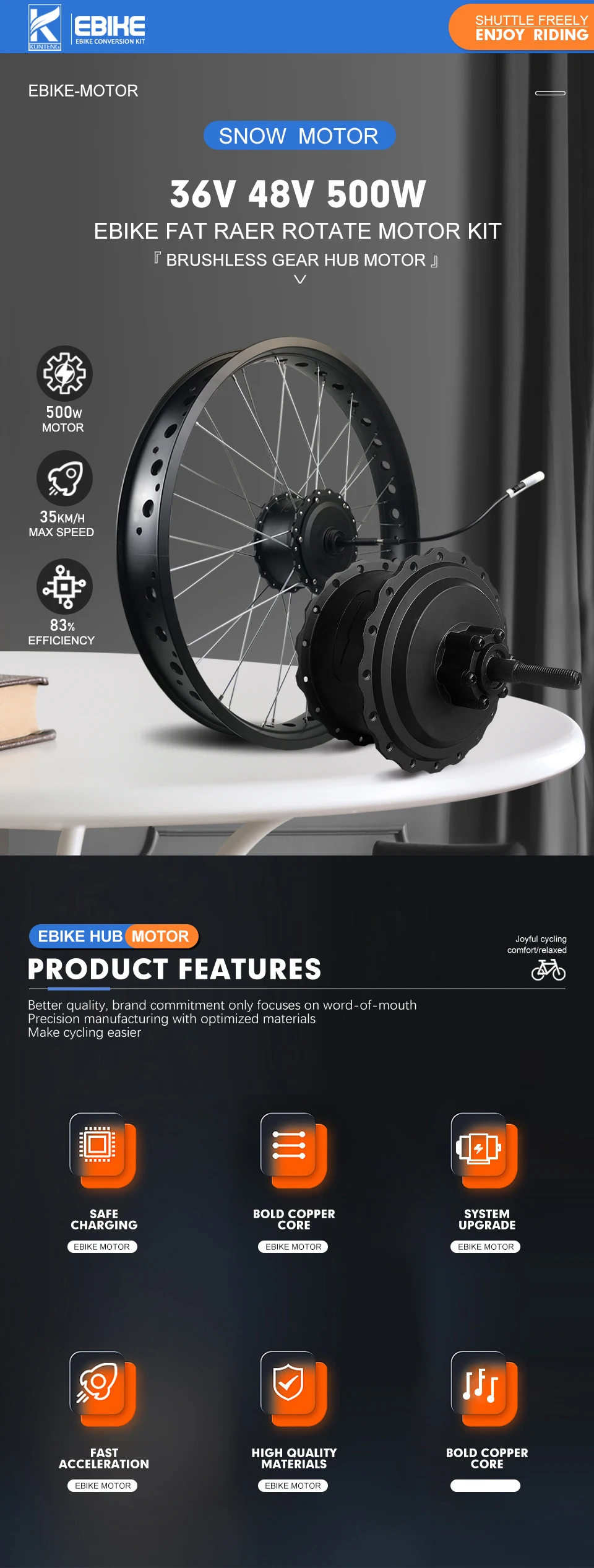

●Type:Brushless gear hub motor

●Installation location:Rear wheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Brake Type:Disc brake available

●Rated speed:32-35 KM/H.

●Load≤200KG

●Motor cable length:200mm

●Wheel size:20inch 26 inch wheel

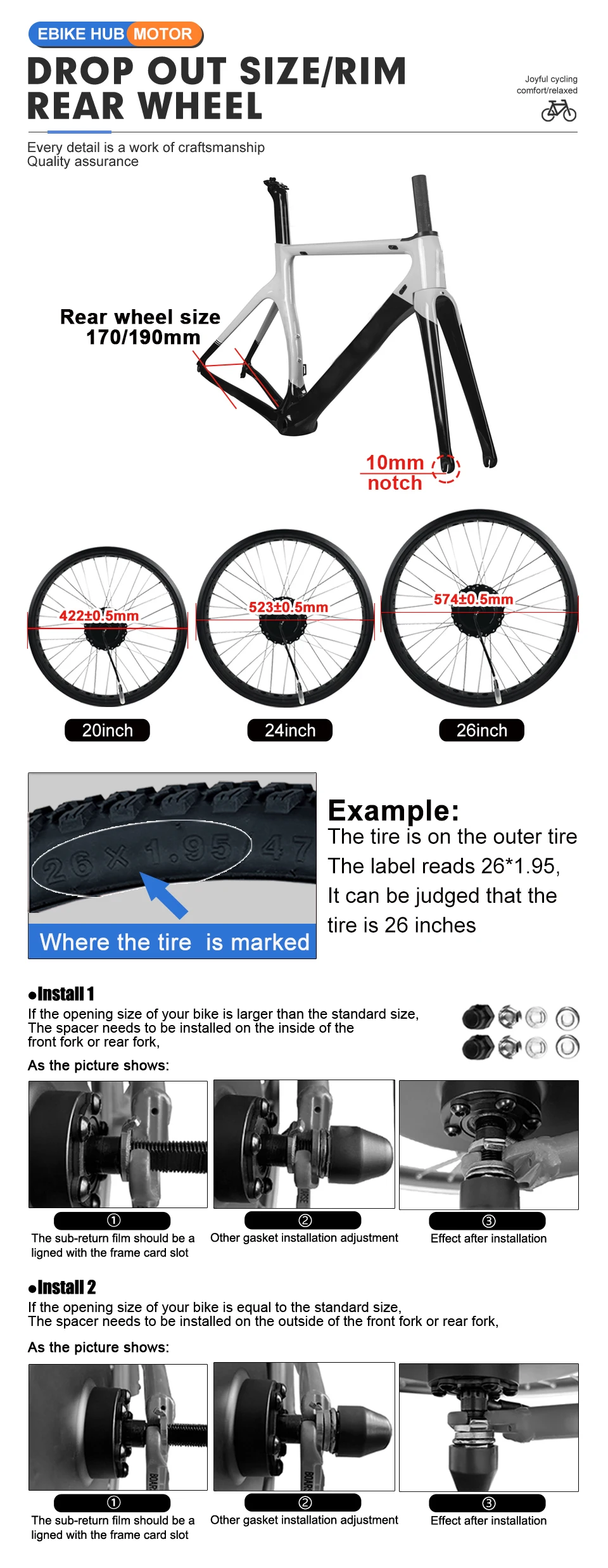

●Rear fork:170mm

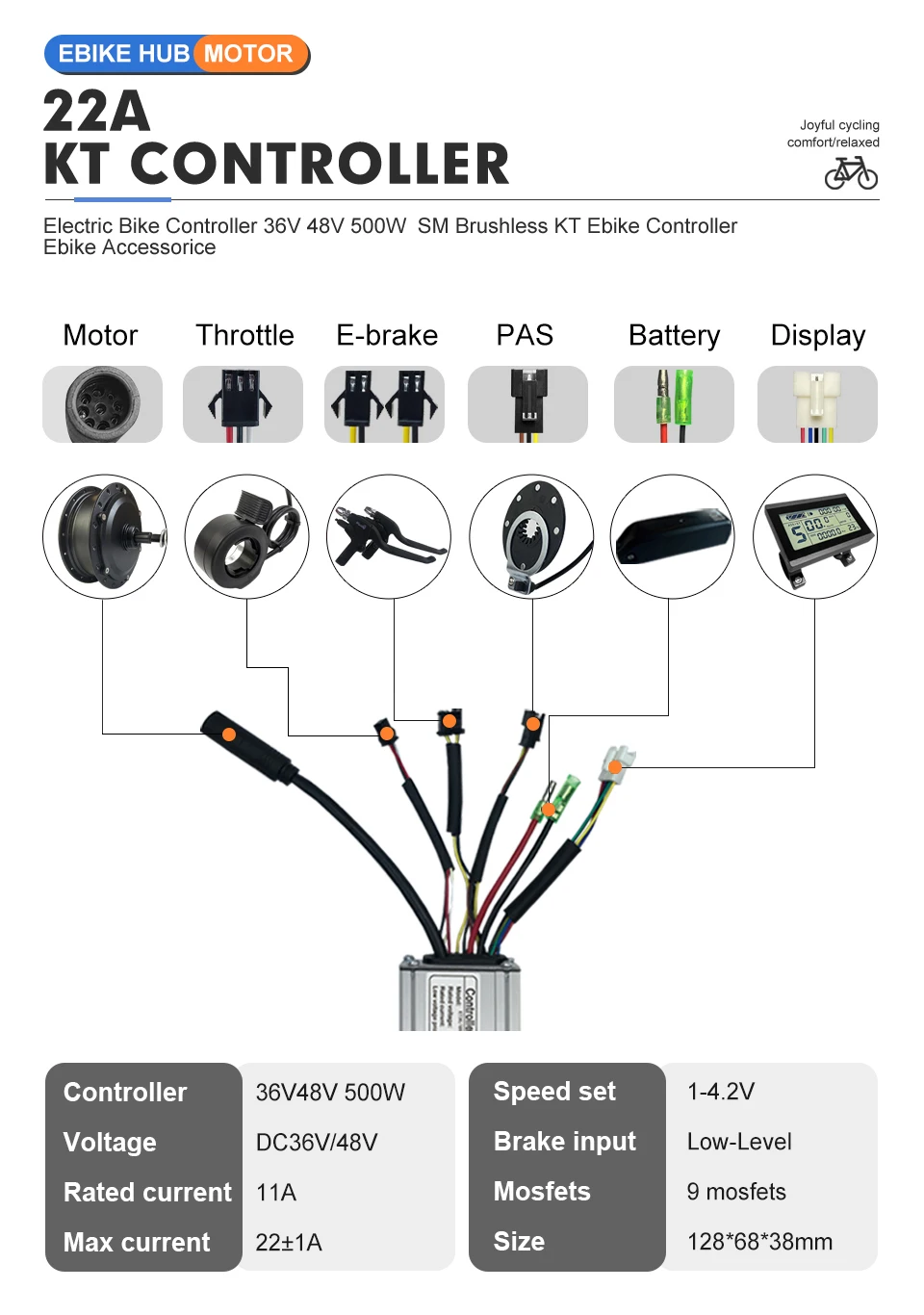

Controller：

●Dimension:128* 68 * 38 mm

●Weight:350g

●Cable length :all about 10-13cm

●Mosfets :9 mosfets

●Maximum current:22±1A

●Rated voltage:DC36V/48V

●Speed set:1-4.2V

●Rated current:11A

●Brake input :Low-Level

●Low voltage protection:DC30/40±0.5V

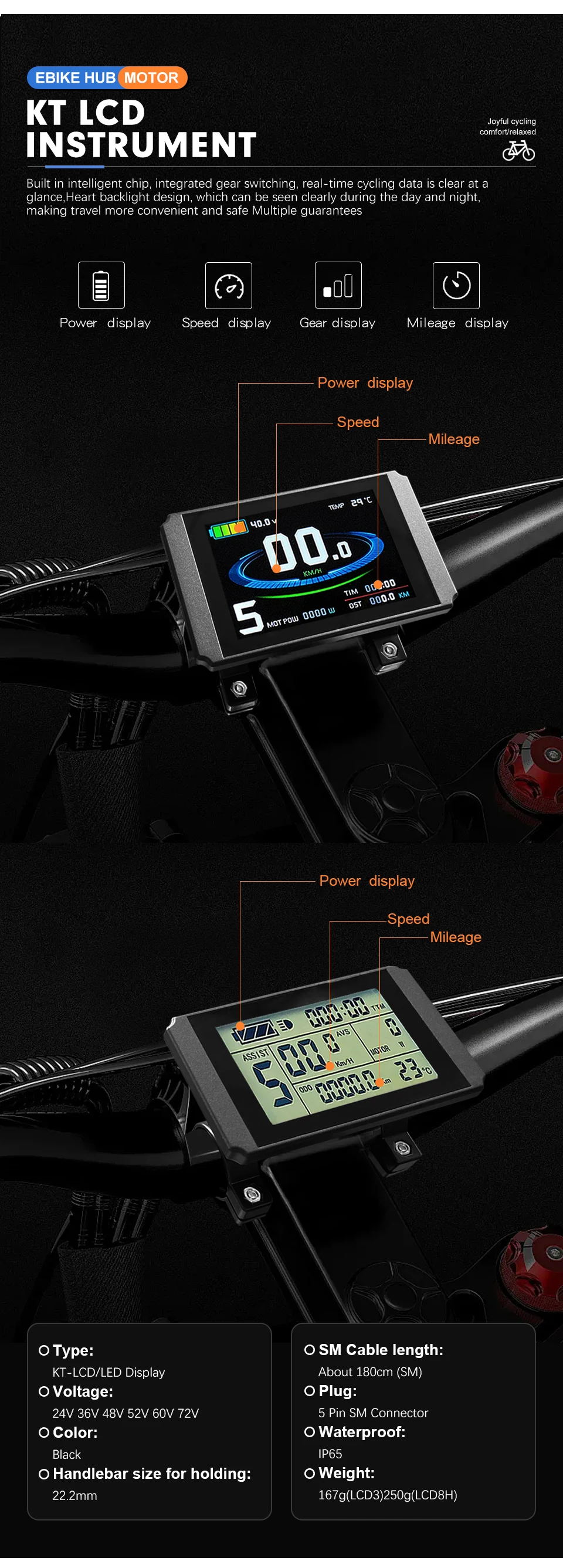

Display（Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :24V 36V 48V universal

●Cable length :About 180cm(SM)

●Plug :5 Pin SM plug

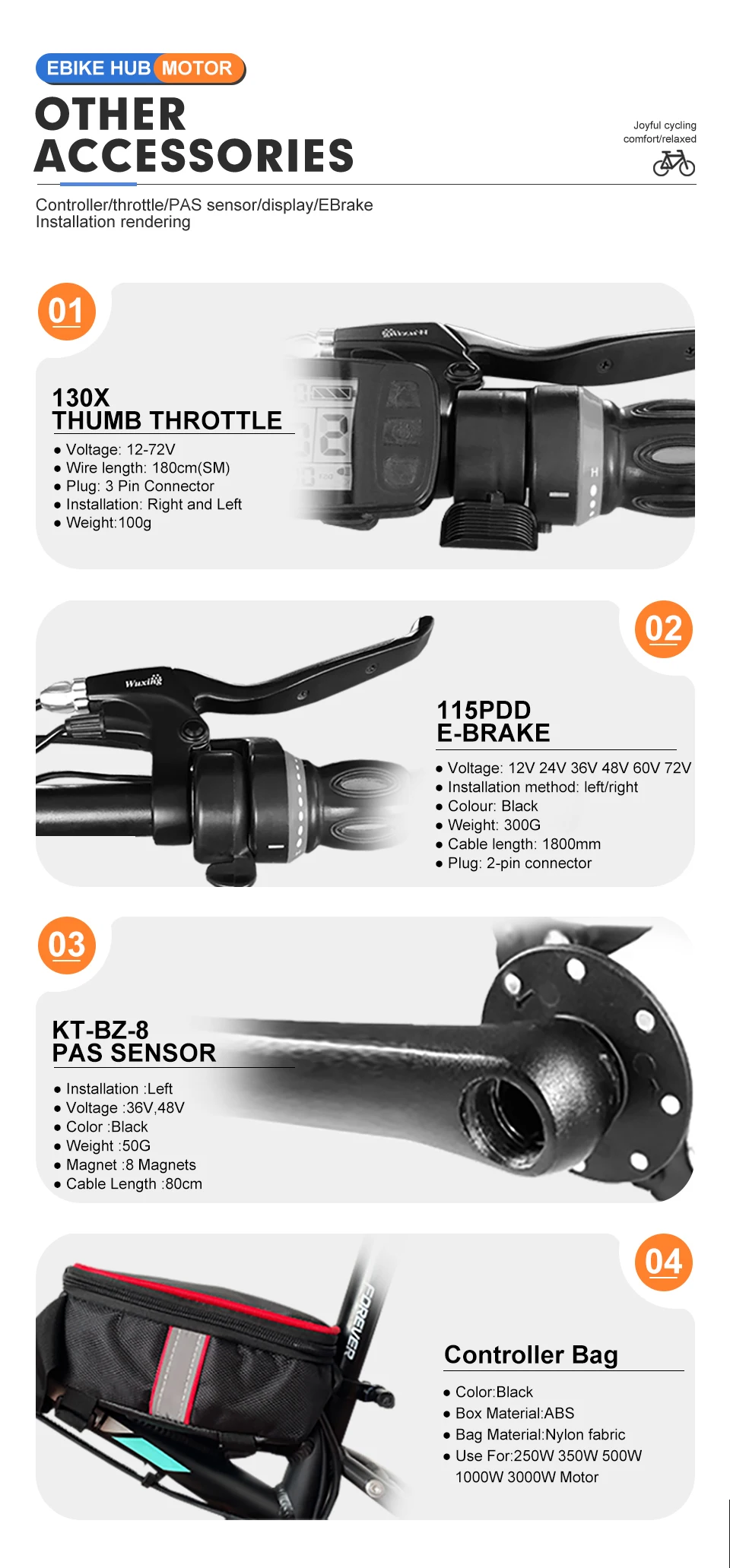

130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:180cm(SM)

●Weight :100g

●Waterproof :IP76

●Plug Type:3 Pin SM plug

●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:180cm (SM)

●Weight :300g

●Waterproof :IP76

●Material:Aluminum Alloy

●Installation:Left/Right

●Size:L156mm W105mm H34mm

●Plug :2 pin SM plug

PAS KT-BZ-8(Default):

●Type:KT-BZ-4 (8) Pulse assist sensor

●Voltage:36V/48V

●Cable Length:180cm including the connector

●Magnet :8 Magnets

●Weight :100 g

●Plug Type:3 Pin SM plug

●Color :As pictures shown

● Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

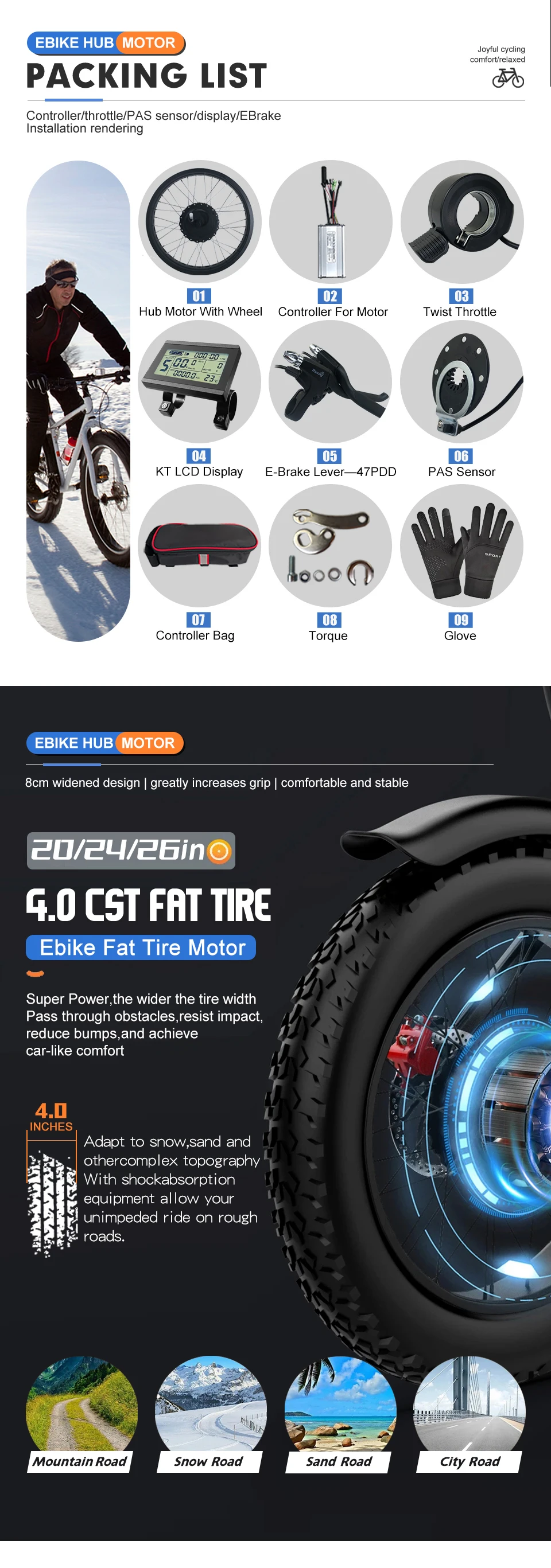

【Packing List】

(1) 500W rear Wheel x1 (without tire)

(2) 22A controller x1

(3) Display and manual x1

(4) Throttle x1

(5) Power Cut-off Brake x1

(6) PAS sensor x1

(7) Zip ties and Protection line x1

(8) Gift! controller bag and Torque arm and gloves x1
