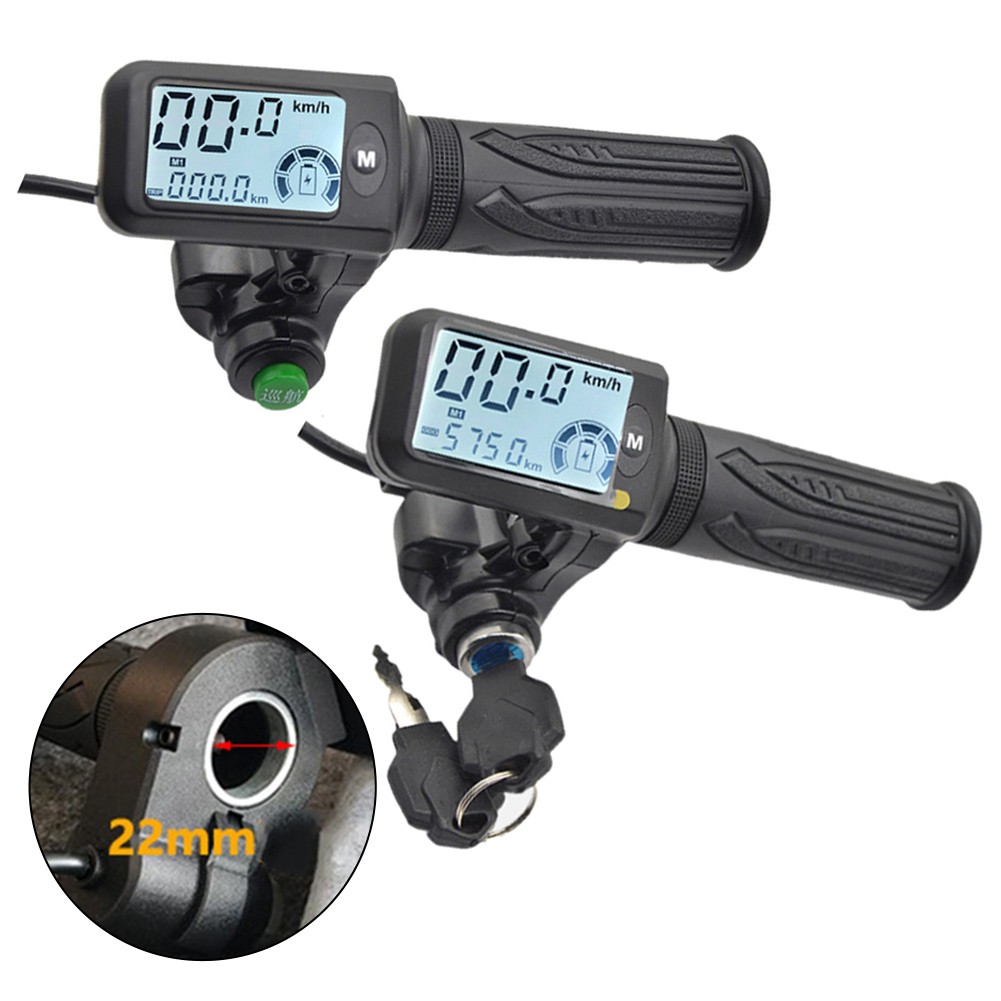

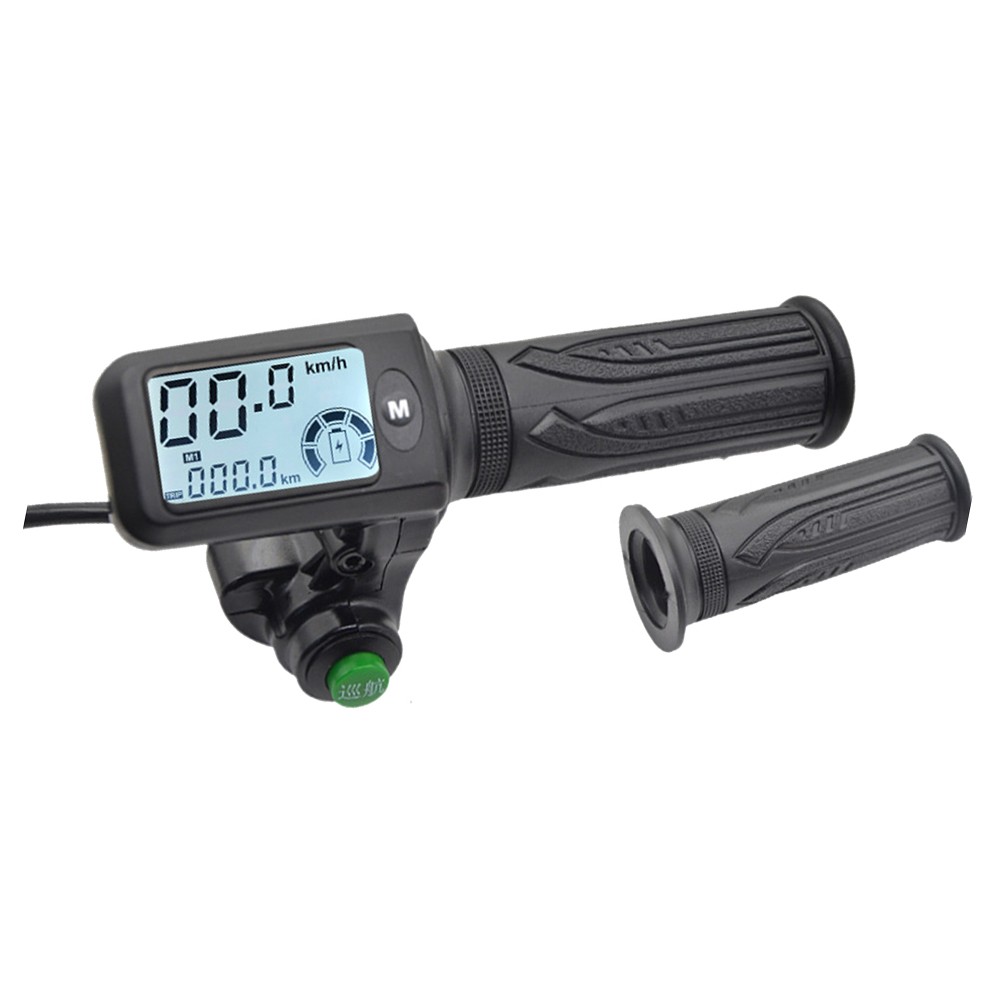

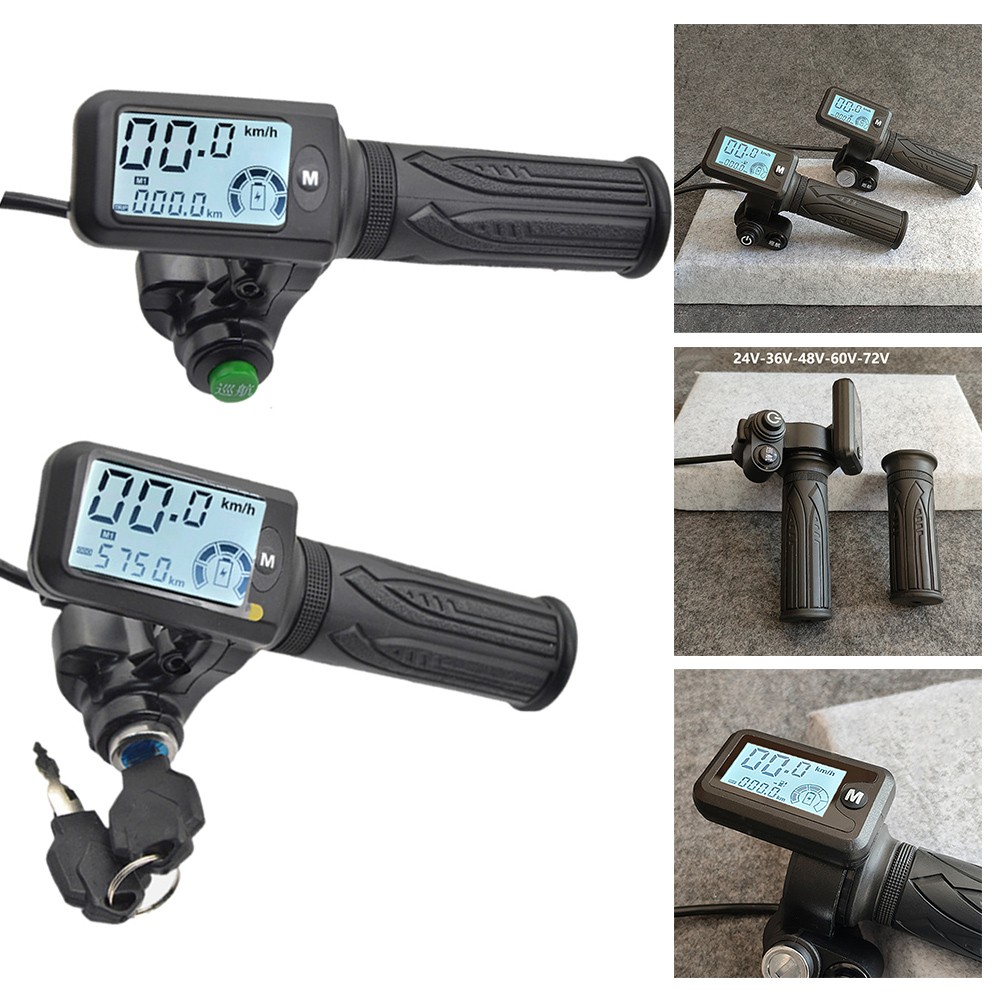

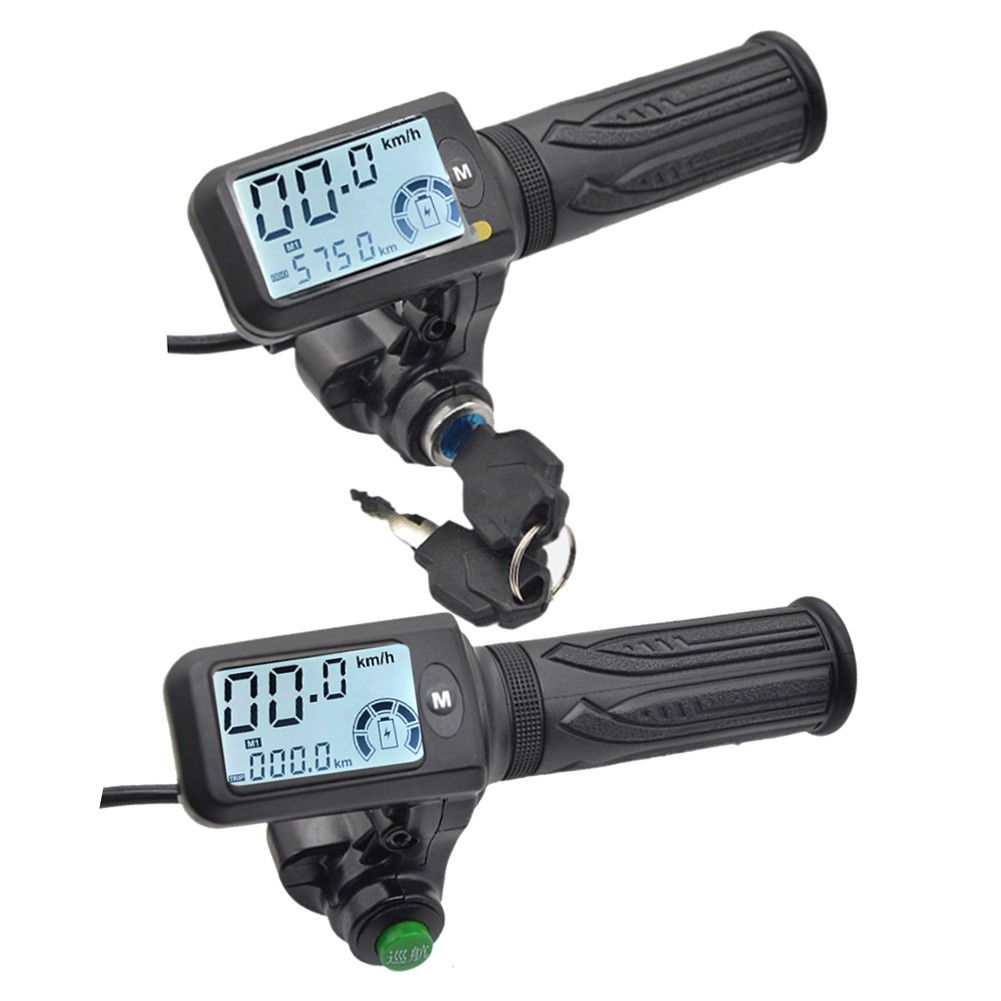

EBike Throttle Control Set with Three Gear Speed Hall Speed Sensor LCD Display
DESCRIPTION



feature:

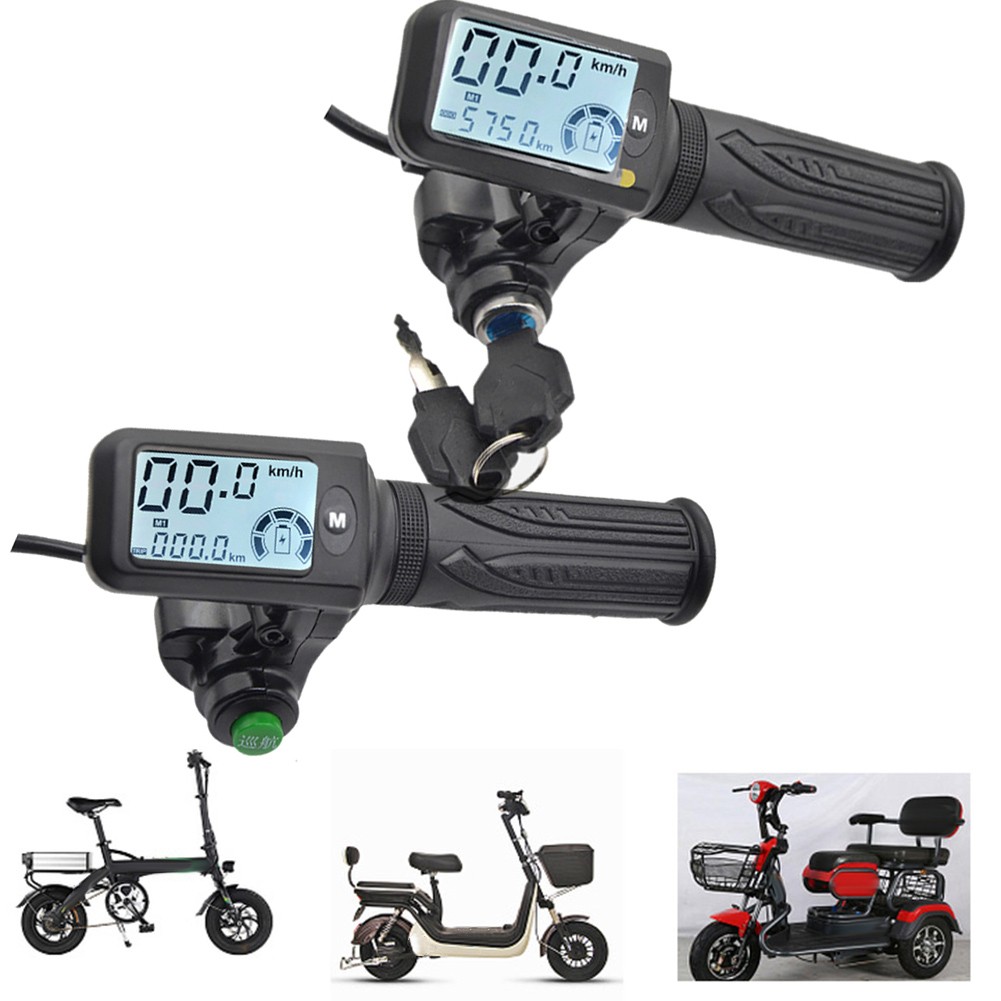

*Throttle Control Set 8PIn ,Suit for Electric Throttle,Motorcycle,Scooter.

*come with 3 speed Gear Switching

*with larger LCD display,more information

*This turntable is a Hall speed measurement, compatible with any brand of controller, regardless of sine wave or square wave

*Byturning the real-time voltage value can accurately determine the amount of the remaining amount of electricity.
*support 36V or 48V,or 60V，P01 to switch Voltage

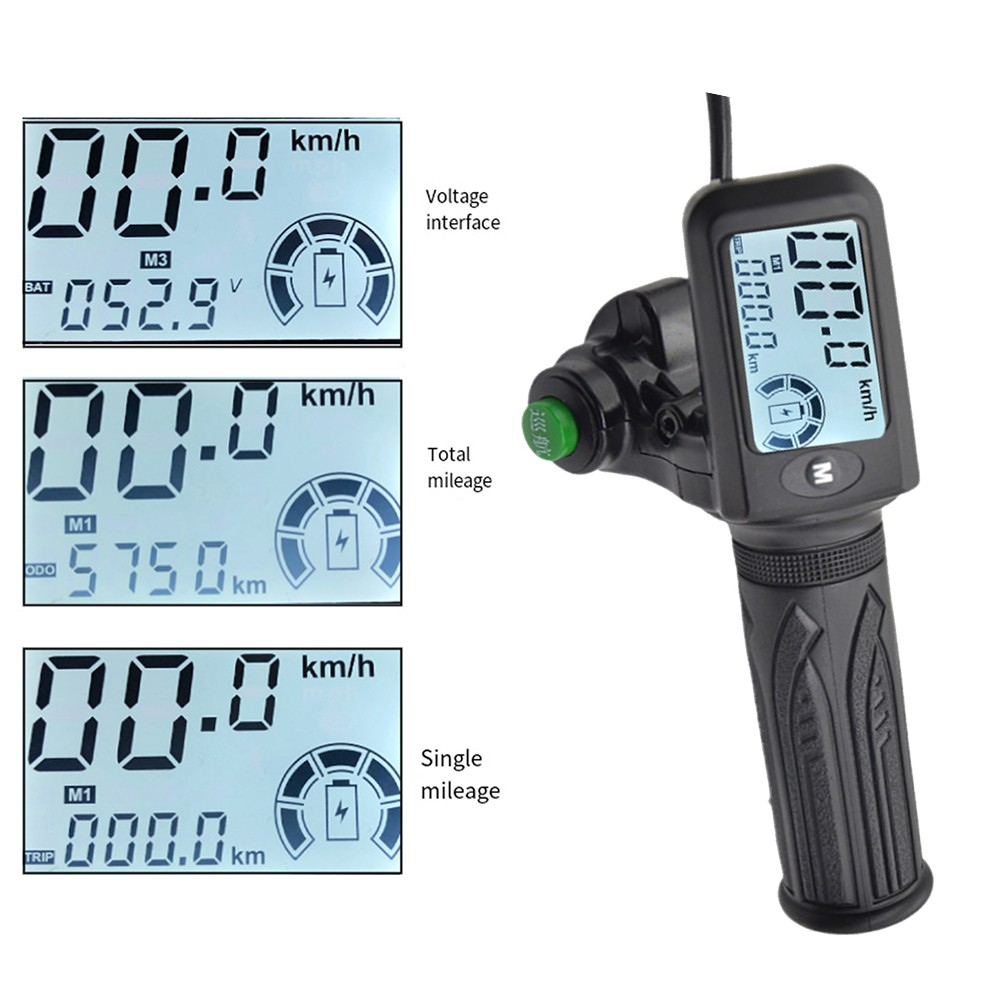

*M butom:When power is on: . Short press the M key to switch between single mileage, total mileage and voltage.

2. Built-in three gears: short press the M key to switch to the -2-3 gears, and long press the M key to switch to display the single mileage, total mileage, and voltage interface.

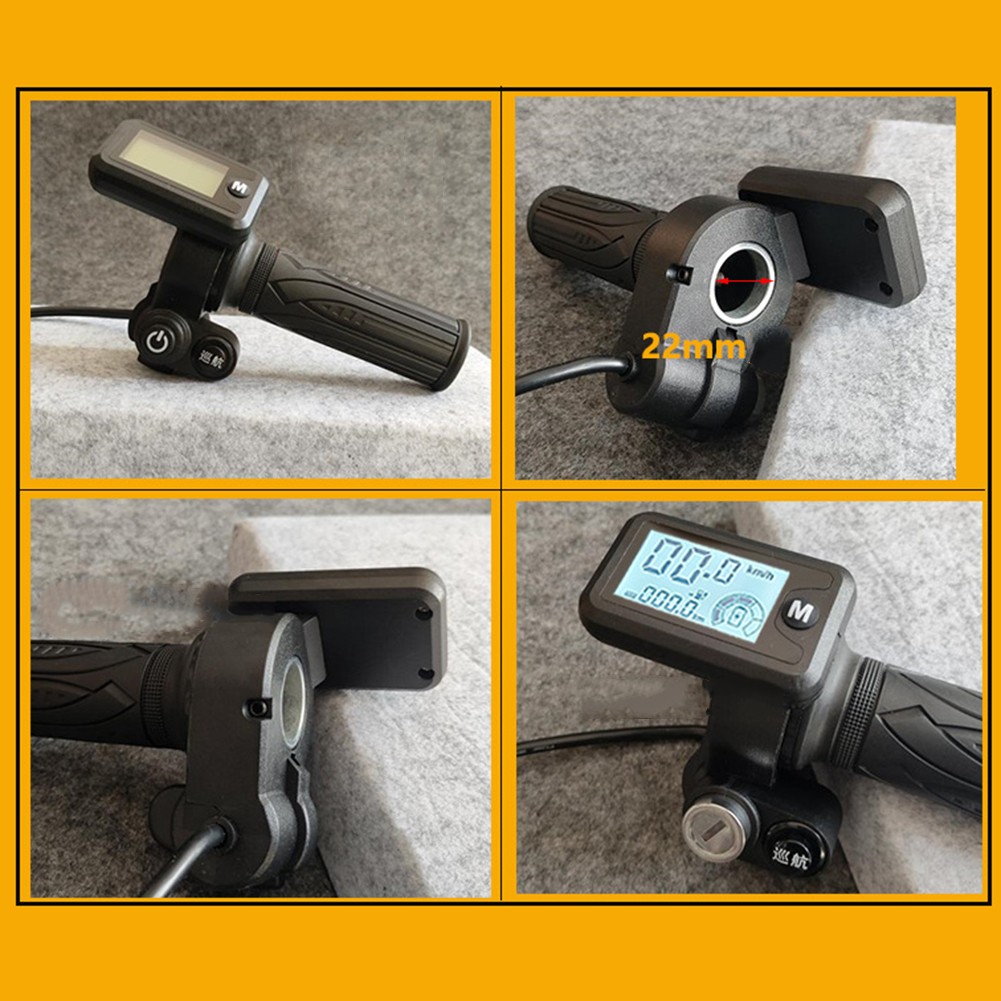

3in*Fits all Electric Scooter wist E-Bike with 7/8 inch 22MM application.

*How to enter the backstage: Press and hold the M key to power on, and enter the backstage after 3 seconds. When the numbers below are flashing, short press the button to select the actual value of each parameter:


Specifications:
*Material:abs+ Rubber
*Color:Black

product name: ebike throttle
*size：Cable length: 160CM(Approx.)

*voltage： 36V， 48V,48V

*KEYs: no

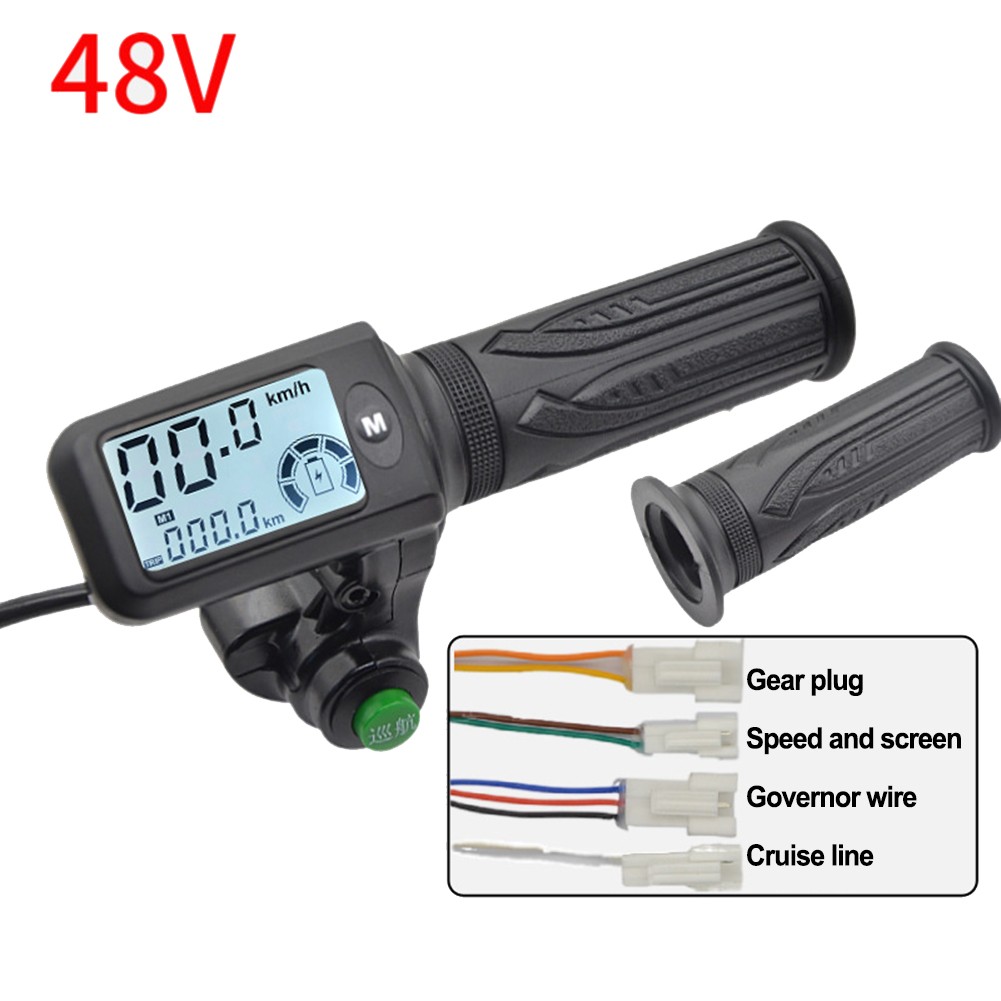

*9pin interface:（cruise mode type+buttom start+ 3 gear speed）：

Orange: low grade

Purple: high grade

Brown: Hall speed sensor

Green: Screen positive

blue+blue+red:throttle

white+yellow：cruise



Package content:
1pair x Bicycle handlebar with display


Note:
2. Please allow slight manual measurement deviation for the data.
