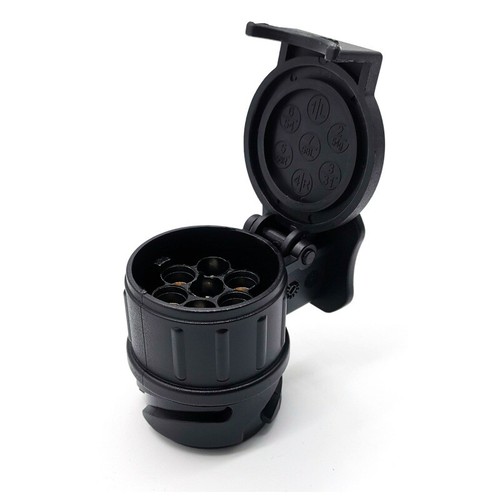

Feature:
1. Durable Plastic Construction: Crafted from high-quality plastic, it offers a lightweight yet robust solution. While ensuring good durability, it provides adequate resistance to environmental factors. This makes it a practical and long-lasting choice for various conditions.
2. Comprehensive Multi-functional Interfaces: The socket is equipped with seven powerful pins (7pin), capable of simultaneously connecting and powering multiple devices such as rear fog lights, brake lights, turn signals, and license plate lights. Its strong compatibility makes it widely applicable across different scenarios, including commercial vehicles, trailers, private cars, motorhomes, and even boats.
3. Compliant with European Standards, Global Compatibility Guaranteed: Strictly designed and manufactured according to European electrical standards, ensuring perfect compatibility with mainstream trailer and vehicle electrical systems in the European market. The connection is stable and reliable, allowing you to connect with ease whether you're traveling across the European continent or need to interface with other equipment meeting European standards.
4. Stable Power Supply, Ensuring Driving Safety: Specially designed for a 12V DC operating voltage system, it delivers a stable and reliable power output. This ensures the normal operation of critical systems on trailers, trucks, and other auxiliary vehicles, such as lighting and braking assistance, adding an extra layer of safety to every journey you undertake.
5. Plug-and-Play, Easy and Hassle-Free Installation: Featuring a user-friendly design, the connectors are plug-and-play. You don't need any additional tools or specialized knowledge; simply perform a few easy steps to quickly complete the installation, significantly saving your valuable time and effort.
7 Pin Lighting Connections - 12 N Black Cable Function
PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
13 Pin Lighting Connections - Cable Function
Pin1 - Yellow Wire ( Left Indicator )
Pin2 - Blue Wire ( Fog Light )
Pin3 - White Wire ( Earth Return )
Pin4 - Green Wire ( Right Indicator )
Pin5 - Brown Wire ( Right tail / Side Light )
Pin6 - Red Wire ( Brake / Stop Lights )
Pin7 - Black Wire ( Left tail / Side Light )
Pin8 - Pink Wire ( Reversing Light )
Pin9 - Orange Wire ( 12V Pemanent power from battery )
Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )
Pin11 - White / Black Wire ( Earth for Teminal 10 )
Pin 12 - White / Blue Wire ( NOT usually used )
Pin 13 - White / Red Wire ( Earth for Teminal 9 )
Specification:
Material: Plastic
Number of Cores: 13 Pin to 7 Pin
Package List:
1 x Trailer Plug
