| 80A/100A MPPT | 60A MPPT | 40A 30A 20A MPPT |
|
-Solar charge controller (fan
cooling) |
-Intelligent maximum power point tracking
technology |
-Solar charge controller (fan
cooling) |
 |
 |
 |
| Models | ICharger MPPT 10048 | ICharger MPPT 8048 | ICharger MPPT 4860 |
| Charging mode | 3-stage: constant current (MPPT), constant voltage, floating | 3-stage: constant current (MPPT), constant voltage, floating | 3-stage: constant current (MPPT), constant voltage, floating |
| System voltage | 12/24/36/48V Auto | 12/24/36V/48V Auto Setting | 12/24/36/48/Auto |
| Max. PV input power |
1200W/12V; 2400W/24V 3600W/36V; 4800W/48V |
1500W/12V; 3000W/24V 4500W/36V; 6000W/48V |
900W/12V; 1800W/24V; 2600W/36V; 3200W/48V |
| Max. PV input voltage | 150 Voc | 150 Voc | 150Voc |
| Automatic detection of the battery voltage |
12V System(DC8.7V-DC15.5V) 24V System(DC16V -DC31V) 36V System(DC33V -DC41V) 48V System(DC42V -DC64V) |
12V System(DC8.7V-DC15.5V) 24V System(DC16V -DC31V) 36V System(DC33V -DC41V) 48V System(DC42V -DC64V) |
12Vsystem(DC8.7V-DC15.5V) 24Vsystem(DC16V-DC31V) 36Vsystem(DC33V-DC41V) 48Vsystem(DC42V-DC64V) |
| Overcharge protectionVoltage |
12V System(16V) 24V System(32V) 36V System(48V) 48V System(64V) |
12V System(16V) 24V System(32V) 36V System(48V) 48V System(64V) |
12V system (16V) 24V system (32V) 36V system(48V) 48V system(64V) |
| Limited current protection | 100A | 80A | 60A |
| Maximum efficiency | ≥98.1% | ≥98.1% | ≥98.1% |
| PV capacity utilization | ≥99% | ≥99% | ≥99% |
|
Automatic temperature compensation |
-3mV/2V/ºc | -3mV/2V/ºc | -3mV/2V/ºC |
| Protective function | |||
| Temperature protection | 80℃ | 80℃ | 80℃ |
| Fan on temperature | >45℃ | >45℃ | >45℃ |
| Fan-off temperature | <40℃ | <40℃ | <40℃ |
| Characteristics | |||
| Size (mm) | 252*201*80.3 | 252*201*80.3 | 201*201*80.3 |
| Net weight / kg) | 2.28 | 2.49 | 1.72 |
| Electromagnetic compatibility | Accord to EN61000, EN55022, EN55024 | Accord to EN61000, EN55022, EN55024 | Accord to EN61000, EN55022, En55024 |
| Enclosure | IP21 | IP21 | IP21 |
| Ambient temperatu | -20℃~+55℃ | -20℃~+55℃ | -20℃ ~ +55℃ |
| Storage temperature | -40℃~+75℃ |
-40℃~+75℃ | -40℃ ~ +75℃ |

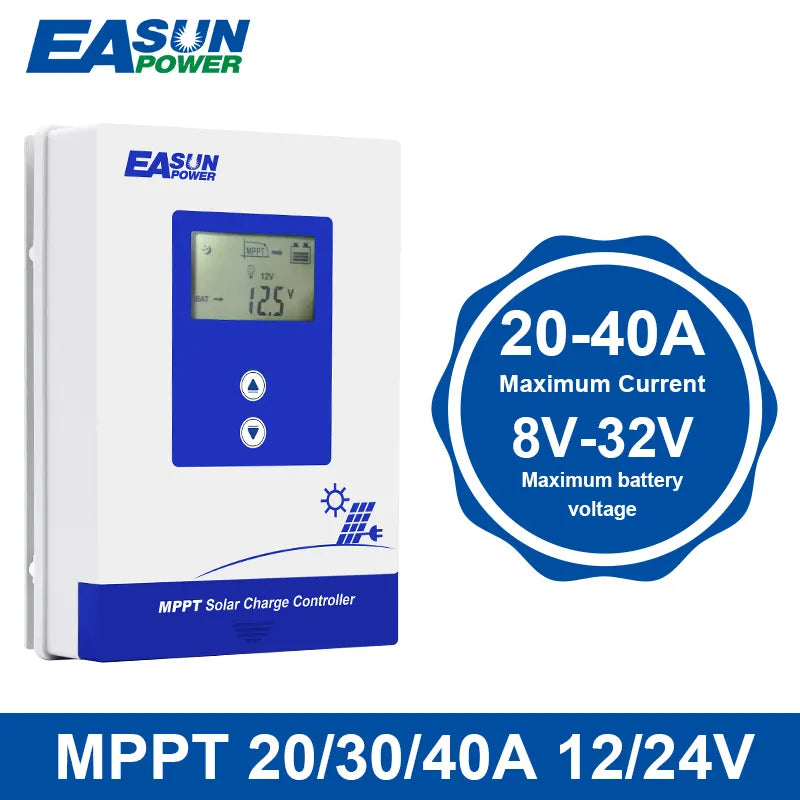

| Model | ICharger-MPPT-2420 | ICharger-MPPT-2430 | ICharger-MPPT-2440 |
| Rated charge current | 20A | 30A | 40A |
| Solar panel inputrange | 16.8V-60V(12V) | 16.8V-75V(12V) | 16.8V-100V(12V) |
| 33.6V-60V(24V) | 33.6V-75V(24V) | 33.6V-100V(24V) | |
| System rated voltage | 12/24V Auto recognized | ||
| Maximum batteryvoltage | 8V-32V | ||
| Maximum input power | 260W(12V) | 390W(12V) | 520W(12V) |
| 520W (24V) | 780W (24V) | 1040W (24V) | |
| Output | |||
| Rated Discharge Current | 20A | 20A | 30A |
| Battery type | User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2. | ||
| Equalizedchargingvoltage | Duration: 2hours |
Maintenance-freelead-acid
battery :14.6V GEL:No;Lead-acid Flooded battery: 14.8V |
|
| Absorption chargingvoltage | Duration: 2hours |
Maintenance-free lead-acid
battery :14.4V GEL:14.2V ;Lead-acid Flooded battery: 14.6V |
|
| Float charging voltage | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :13.8V | ||
| Rated charge current | 20A | 30A | 40A |
| LVR | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :12.6V | ||
| LVD | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :10.8V | ||
| Static loss | ≤50mA | ||
| HVD | Lead acid battery 16V | ||
| Light control voltage | 5V/10V | ||
| Temperature compensationcoefficient | -4mV/°C/2V(25°C) | ||
| Discharge loop voltagedrop | -20°C~ +70 °C | ||
| Operating temperature | -20°C ~ +55 °C | ||
| Storage temperature | -30~ +80 °C | ||
| Working humidity | ≤90%, No condensation | ||
| Protection class | IP30 | ||
| Grounded type | Positive grounded | ||
| Aperture for installation | 5mm | ||
