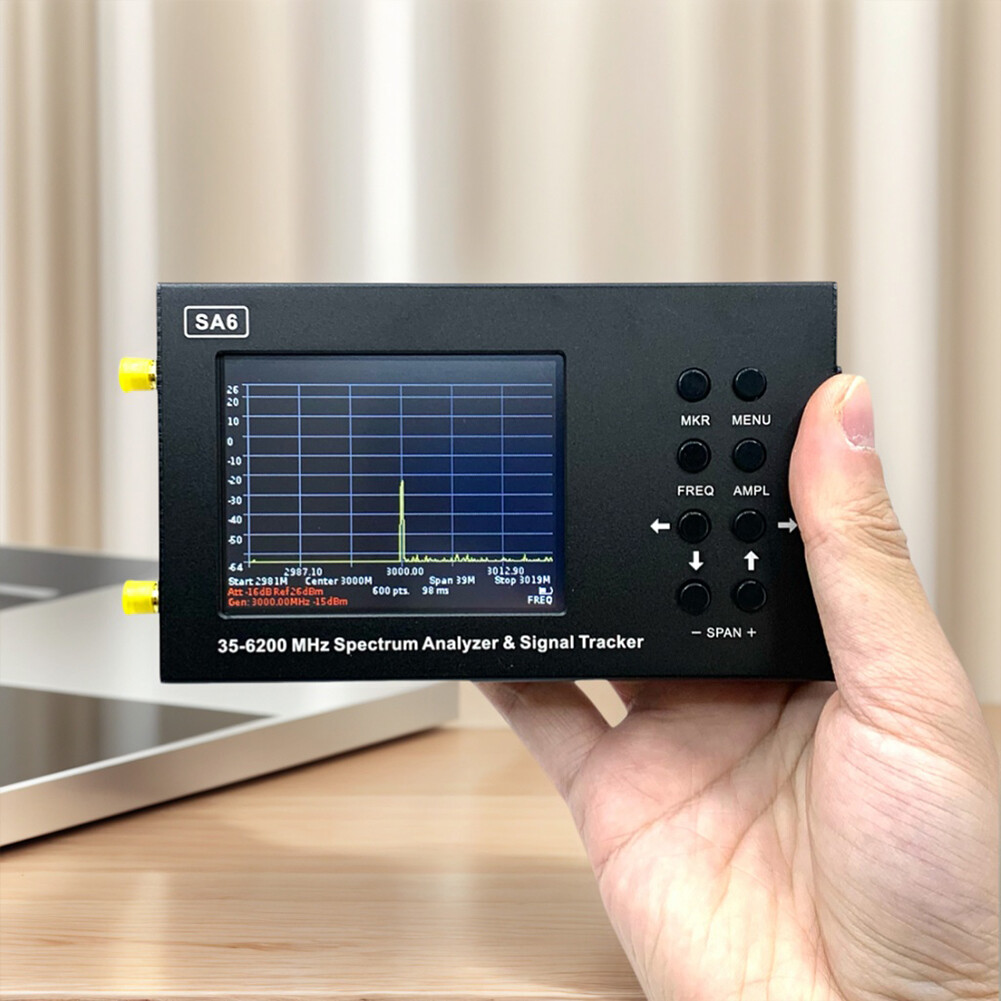

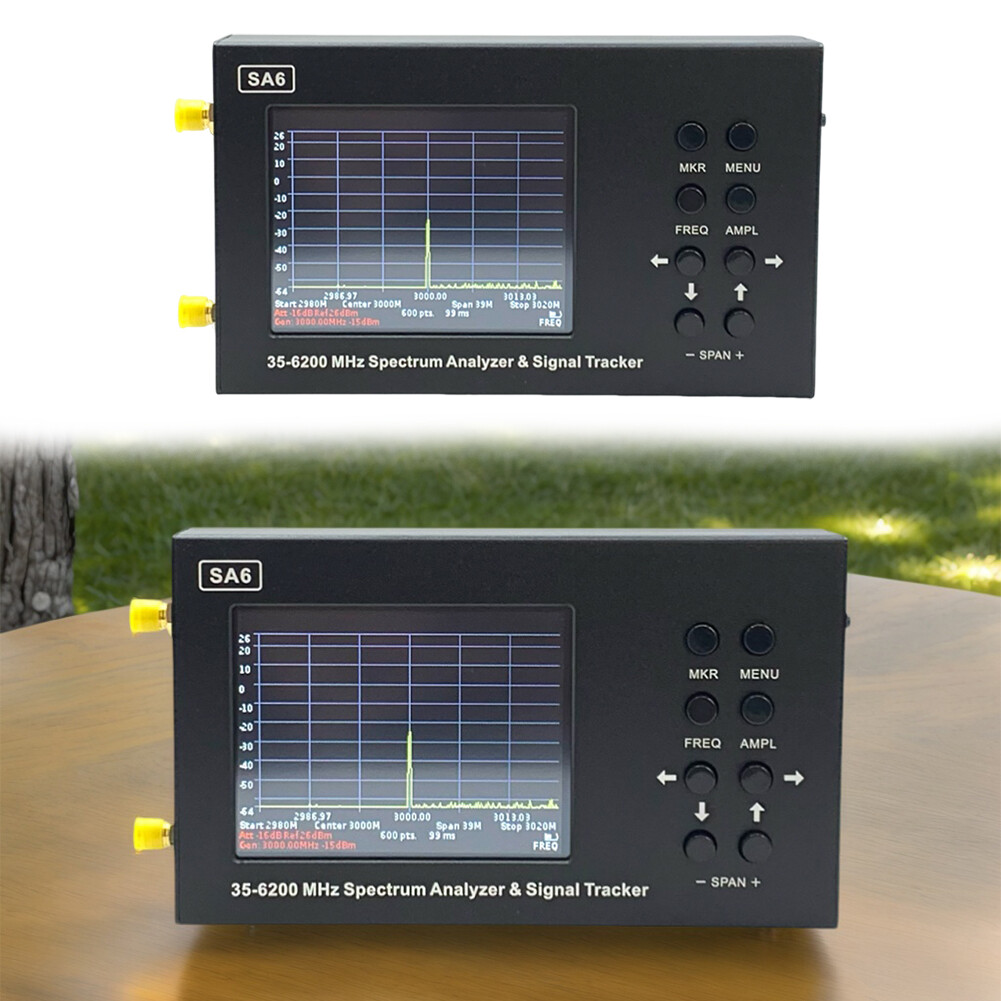

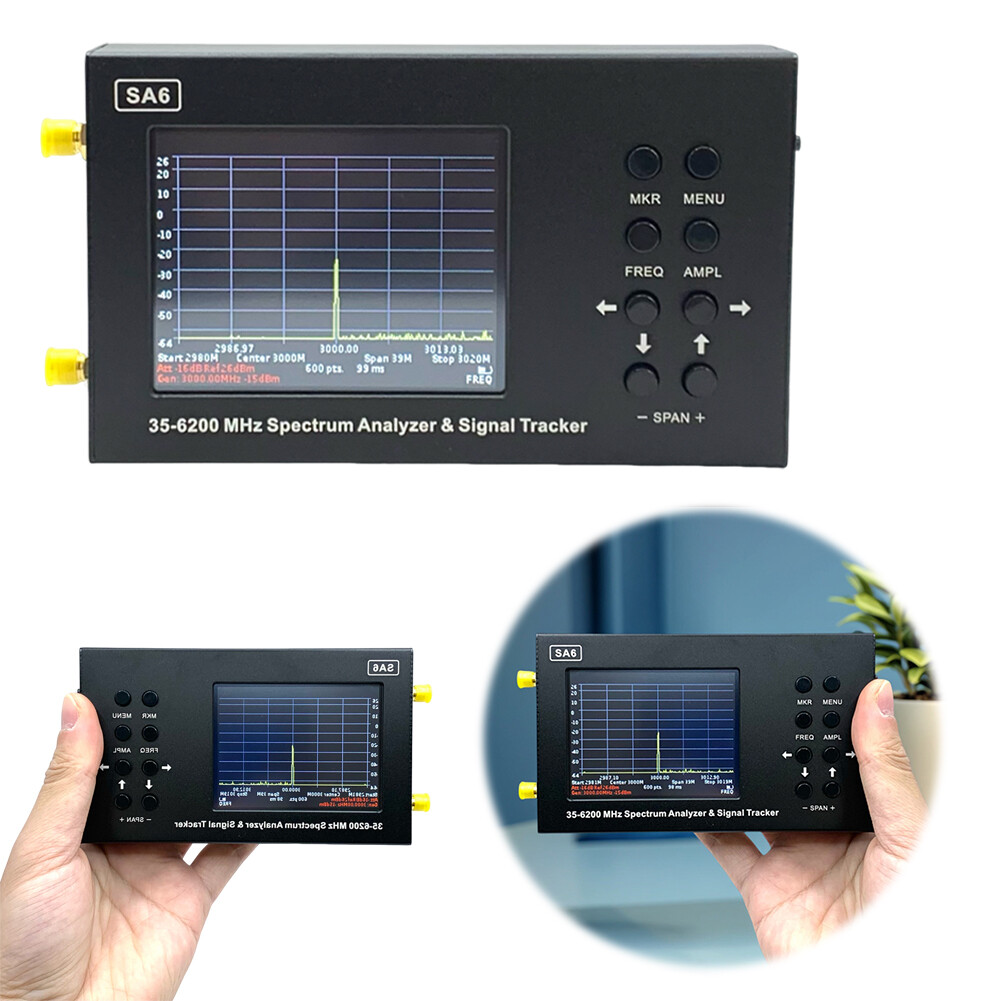

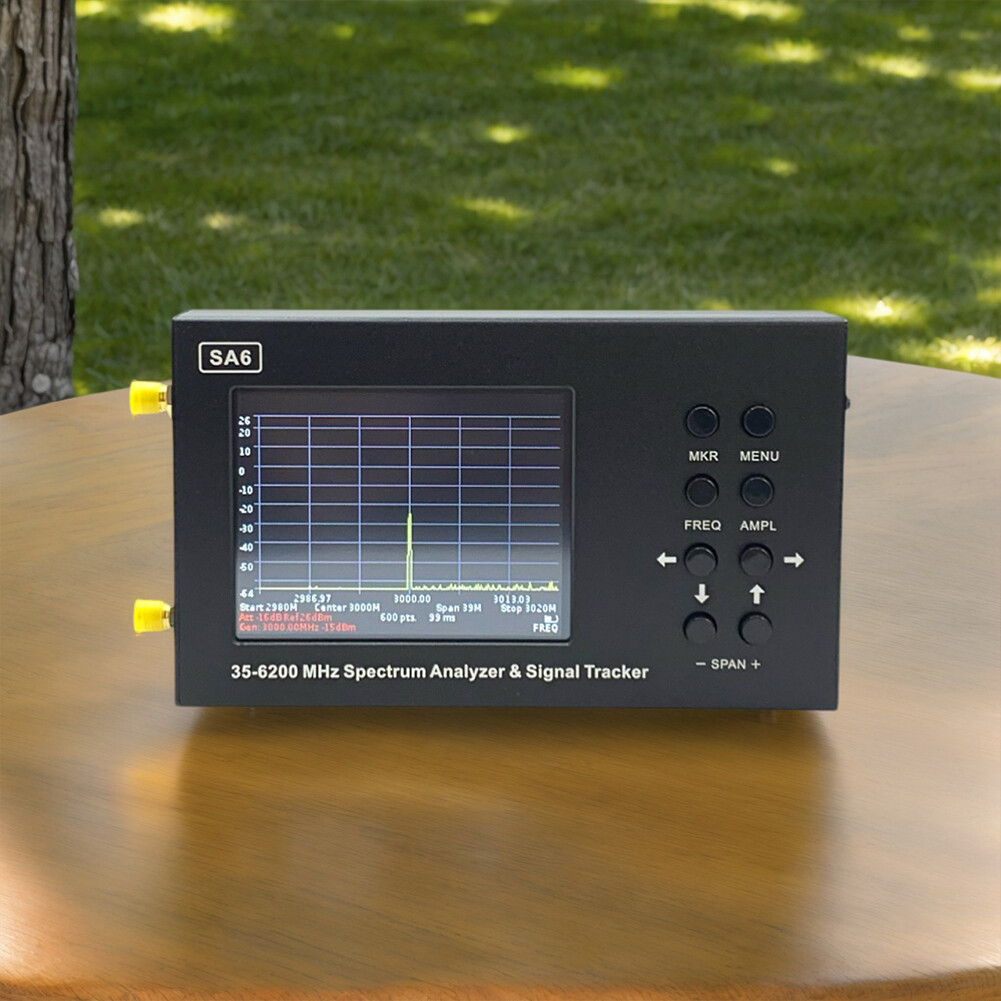

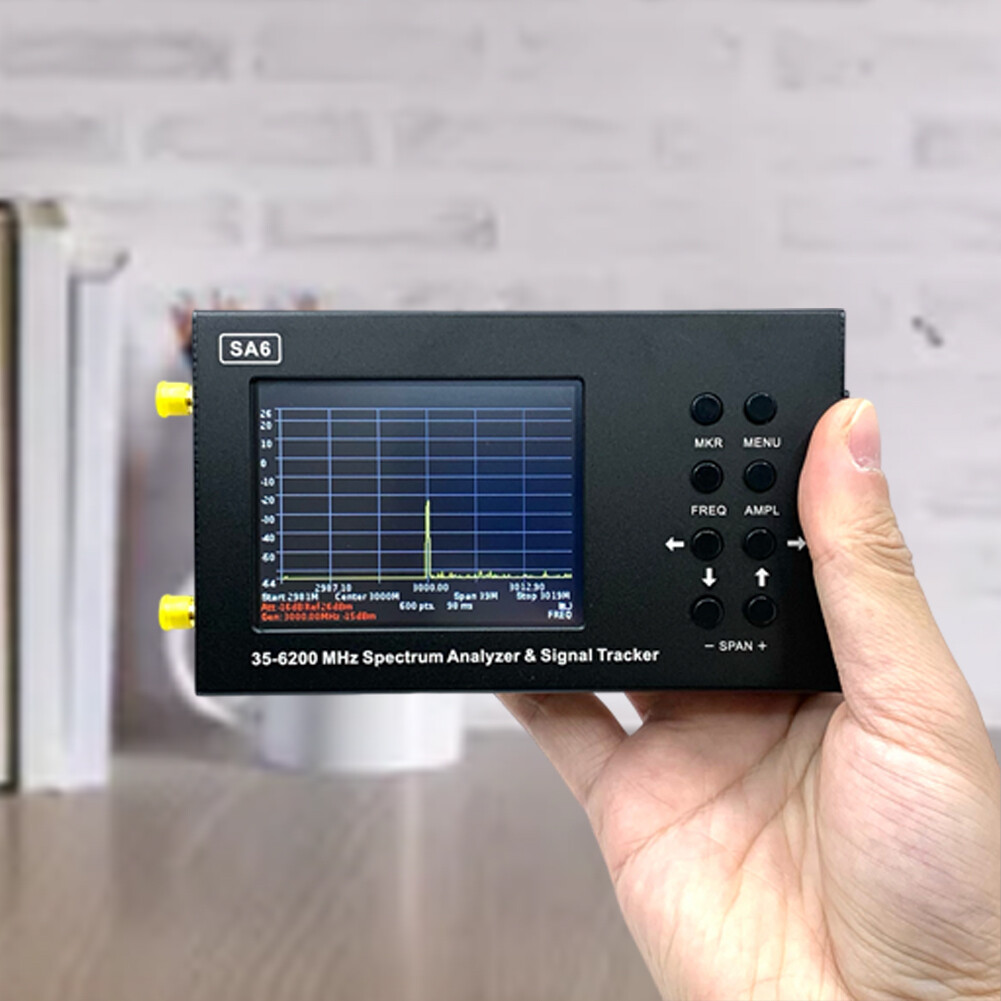

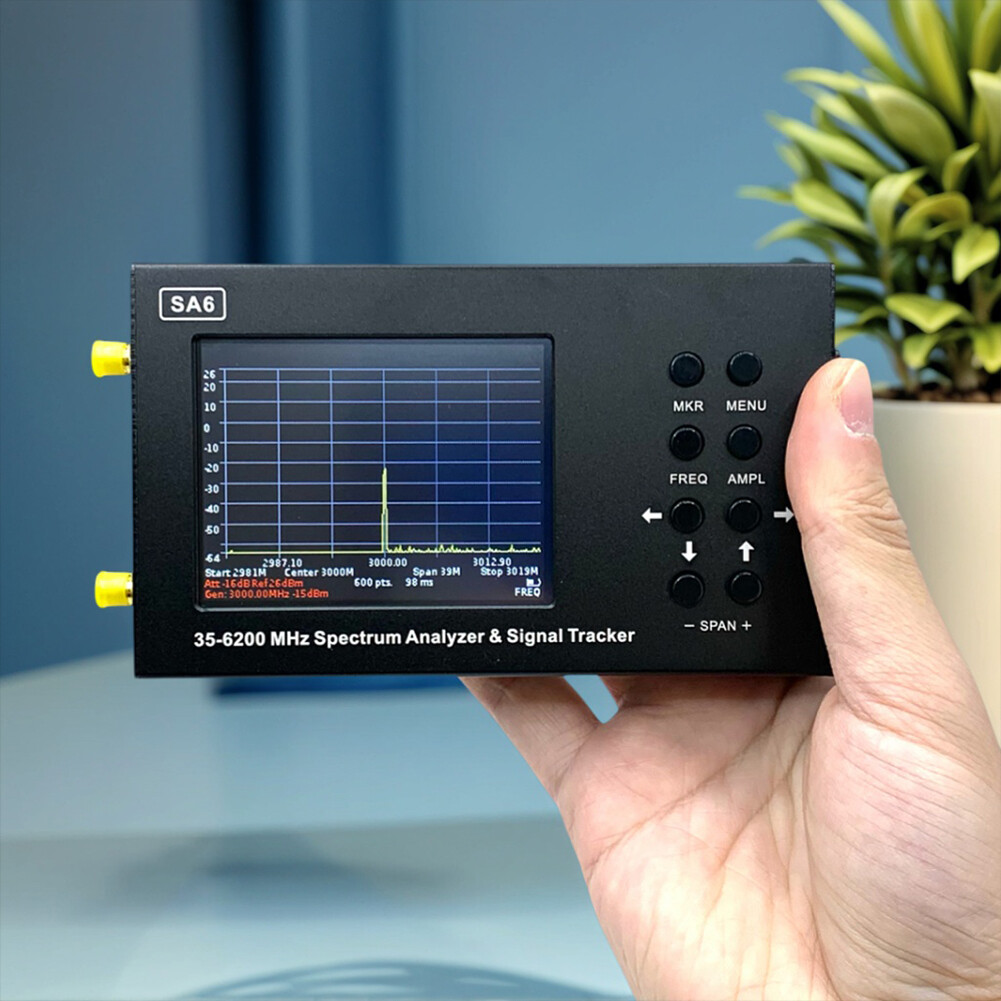

SA6 35-6200 MHz Portable Spectrum Analyzer Signal Genertor 3G 4G LTE CDMA DCS GSM GPRS GLONASS Spectrum Signal Genertor 3.2inch Screen Spectrum Analyzer & Signal Tracker
Feature:
1.3.2-Inch Color Touch Screen: Experience precision in control with the 3.2-inch color resistive touch screen, providing intuitive operation and clear visualization when managing your portable spectrum analyzer signal generator for on-the-go convenience.
2.Wide Frequency Range: Covering from 35 to 6200 MHz, this rf spectrum analyzer allows for extensive signal tracking and measurement across a broad range of frequencies, making it a versatile tool for various applications.
3.Fast Scanning Capability: With a rapid scanning frequency range at 500 points per point, the spectrum signal generator enables swift and efficient signal monitoring, optimizing your analysis process.
4.High Measurement Accuracy: Achieve precise results with a dynamic range of 70-75dB, maintaining accuracy within 2dB. This tracking generator ensures reliable data for professional-grade tasks.
5.Portable and PC Compatible: Weighing just 380g with dimensions of 150X75X23mm, this spectrum analyzer & signal tracker is lightweight and compact, featuring seamless integration with Windows-based computers for extended functionality.
Specification:
Product Description:
SA6 is a simple portable spectrum analyzer and signal rangefinder designed to display the spectrum of signals in the frequency range from 35 to 6200 MHz.
The analyzer finds the amplitude and frequency of the spectral components of the analyzed process. The spectrum analyzer can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.
Another important feature is the additional functionality of the tracking generator, which makes it possible to measure the frequency response of passive or active devices such as filters or amplifiers.
The software allows the measurement of SWR and return loss modules. This requires an external directional coupler and a set of calibration measures.
SA6 is mainly intended for field operation.
The device is rugged, lightweight and has low energy consumption.
It enables service centers and maintenance teams to perform on-site HF analysis for commissioning and repair work. In addition, the spectrum analyzer is a perfect solution for repair shops and radio amateurs.
Applications:
Place external antenna on base station
Quickly analyze RF environment
Check if repeater unit is operating correctly
Repair and adjust repeaters, generators, filters, etc.
Measure SWR when using external directional coupler.
The device is controlled in one of two ways:
By buttons on the device and by touch screen.
All measurement data is displayed in real time on the screen of the device or PC.
Specifications:
Display frequency range: 35 - 6200 MHz
Measurement frequency range: 35 - 4500 MHz
Dynamic range in the 35-3000 MHz band: 75 dB
Dynamic range in the 3000-4500 MHz band: 70 dB
Maximum span: 6165 MHz
Bandwidth: 200 kHz, fixed
Sweep speed to view bands above 100MHz: 700MHz/sec
Sweep 100 MHz: <0.25 sec
Noise floor up to 3000 MHz: <-90 dBm
Noise floor 3000-4500 MHz: <-85 dBm
Noise floor 4500-6200 MHz: <-80 dBm
Wave impedance: 50 ohms
VSWR in the operating frequency range: <1,5
Internal attenuator: 0-30 dB
Attenuation up to 10 dB : 2 dB
Error at 10 to 20 dB attenuation: 5 dB
Error at 20 to 30 dB attenuation: 8 dB
Output power of tracking generator: -15 ... -25 dBm
Accuracy of dynamic range: 2.0 dB
Maximum input power at 0 dB attenuator: 10 dBm
Maximum input power at attenuation > 20 dB: +20 dBm
Maximum input measurement signal: +10 dBm
Maximum input DC voltage: 25 V
Maximum current consumption when operating on battery: 450 mA
Maximum current consumption when operating on USB: 500 mA (when charging)
Battery: 2500 mAh
Material of housing: ABS
Product dimensions: approx. 132.00x78.00x20.00 mm
Product dimensions: 5.2x3.07x0.79 inch
