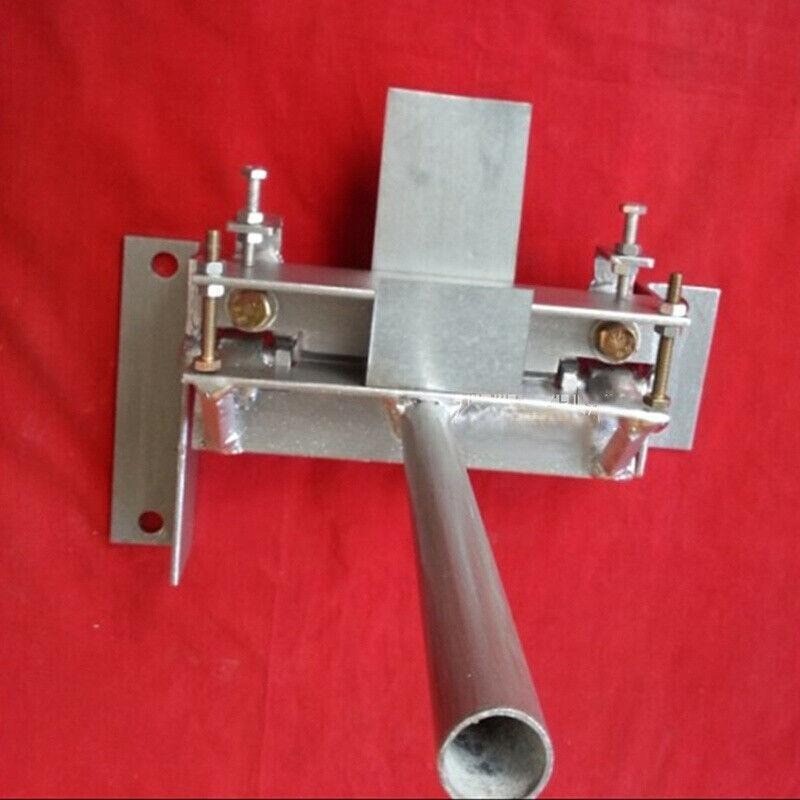

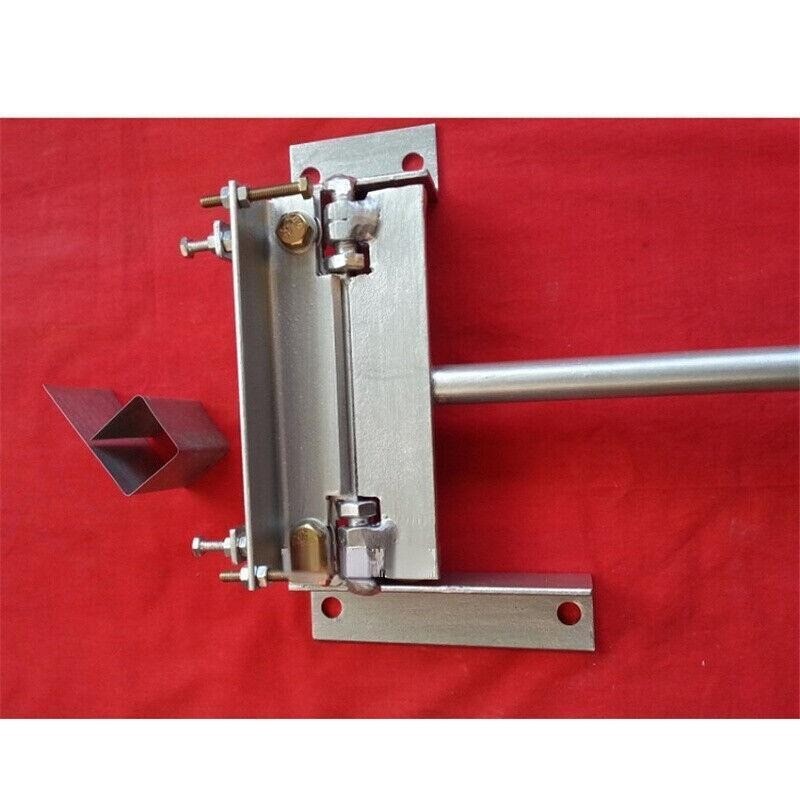

Manual bending machine practical small bender coiler kk-110mm
Performance Introduction
This bending machine is a very small and convenient, practical, solid, and inexpensive new species. Applicable to a variety of thin plate parts, and can bend its workpiece into a variety of angles, and a variety of forms, equivalent to thousands of tens of thousands of prices of large-scale bending machine performance, and there are large-scale bending machine is not as convenient as the flexibility, not subject to site constraints for a small number of sporadic workpieces do not need to be fixed to be completed for the mass production of the proposal to use the dowel fixed to the bench to use, and more to improve the quality and work efficiency. Is a small business, individual processing industry, and the ideal home good helper good tool.
Features:
1. The use of the center of the force lever, to ensure that the workpiece is uniform force, will not appear oblique angle phenomenon. (On the market there is one end of the force, the other end of the passive force, easy to appear on one end of the angle in place, while the other end is not completely in place)
2. Can fold less than 90 ° angle, (60-180 °) extremely practical. Slightly better than the small similar folding machine on the market.
Technical parameters
Bending width: 0-110mm. Note: the actual up to 115mm
Bending thickness: 0-2.mm. Note: the narrower the workpiece, 2.5mm
Bending Angle: 60-90-180 °
Minimum bending height: about 8mm. Note: thinner and narrower pieces: about 5mm
Scope of application
Copper plate, iron plate, aluminum plate, galvanized plate, stainless steel plate and so on.
Tips for use
1. The gap can be adjusted in 0 ~ 3mm, (under the pressure plate with a washer) according to their own need to commonly used workpiece thickness to determine, for example, commonly used is 0.1-1.0 can be adjusted to the gap of 1.0 where 1.0 or less do not have to adjust, such as commonly used is between 1.0-2.0, adjusted to the 2.0 where between 1.0 and 2.0 do not need to bother, and so on. Facilitate the workpiece in the gap under the pressure plate can move freely. The advantage of doing so is that there is no need to take out a pressure plate for each folded edge, saving labor and time. Especially suitable for mass production.
2. Angle can be controlled at 60-180 ° (with the angle adjustment dowel adjustment), for example, to fold into 90 ° to be adjusted at 88 ° or so, because the workpiece has a molding rebound, please work in practice according to the need and the possibility of determining the angle of position.
3. Rich molding capacity. Folding “hex” “mouth” “L” “B” “U” and other types, and can be Folding other bending machine can not be folded less than 90 ° of the complex shape, such as to fold the four sides upward, you can first fold 2 small side, after a slightly higher than the height of the small side of the plate bottom, and then fold the other 2 sides, (this time, we have to take out the pressure plate, adjust the height) can be satisfied with the results. Please use it in practice, to give full play to its functional advantages.
Friendly reminder
Please note that this machine focuses on practical effects, is machined and welded, in appearance may not be as beautiful as the decorations, so please pay attention to the appearance of the relatives carefully consider.
