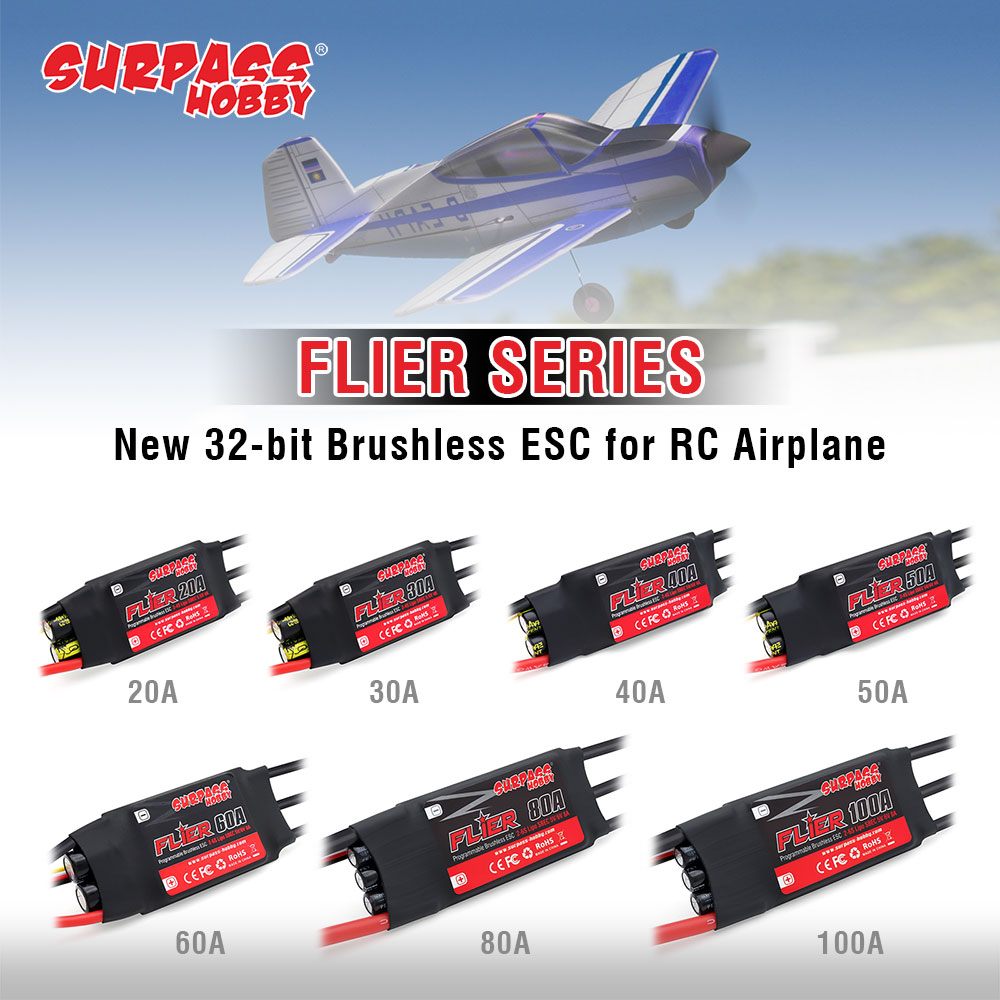

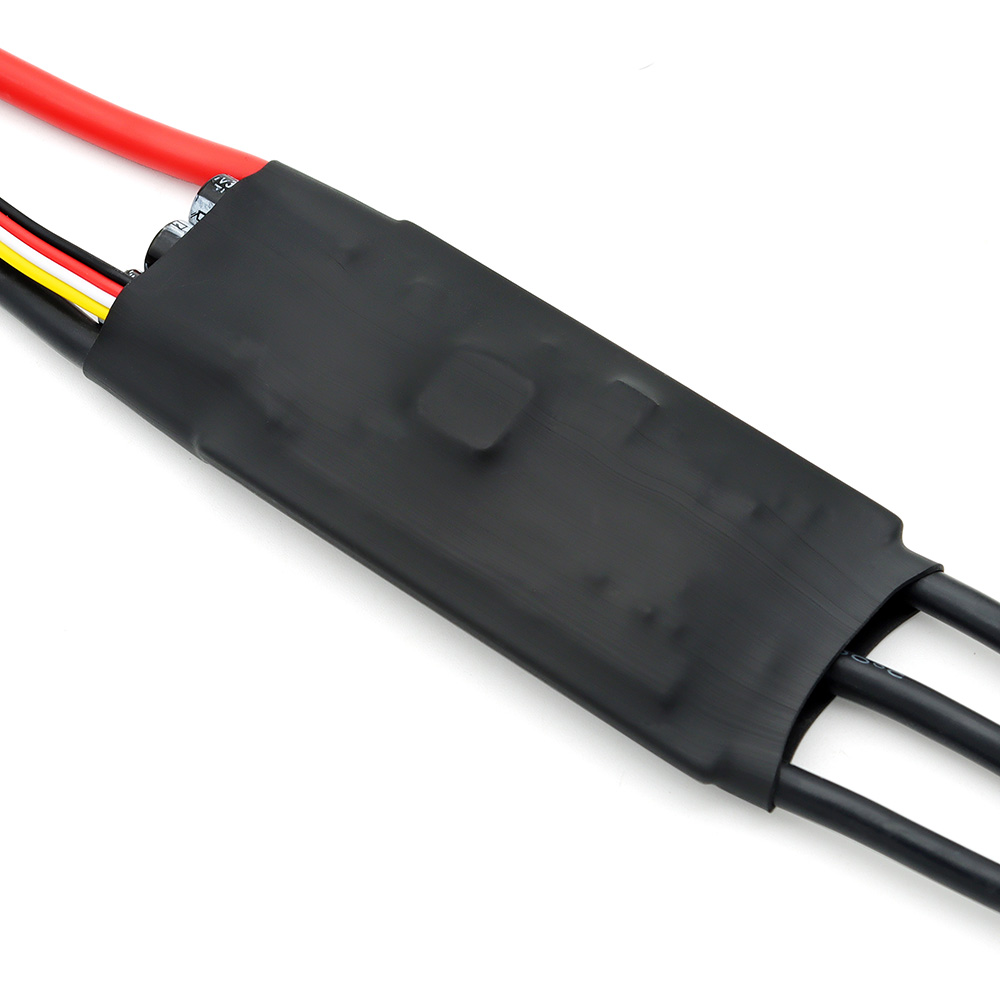

SURPASS HOBBY ESC 60A 80A 100A 2-6S 32-bit Brushless ESC 5V/6V Switchable BEC LCD Programming Card for RC Fixed-wing Airplane Helicopter Plane Spare Parts

Features:

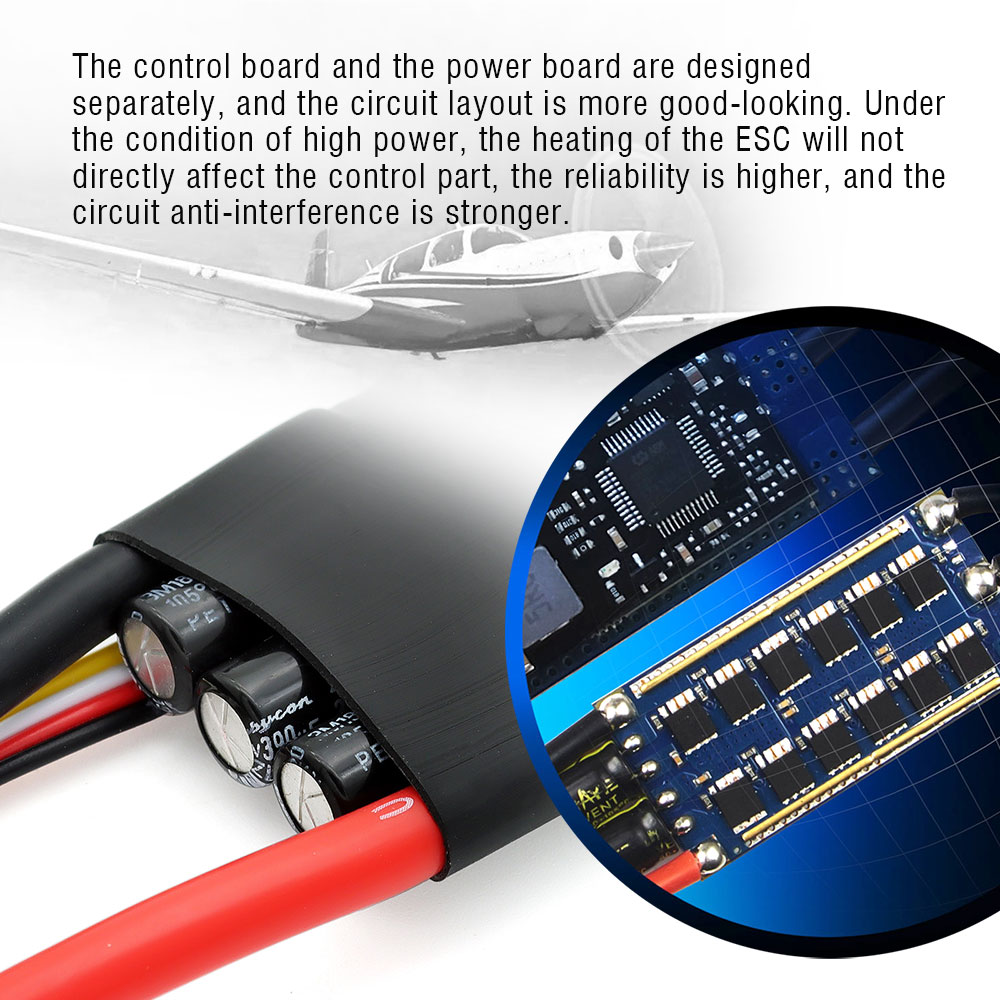

1. The power output component (MOSFET) adopts a new generation of manufacturing technology, which has low heat generation, large instantaneous current and high reliability.

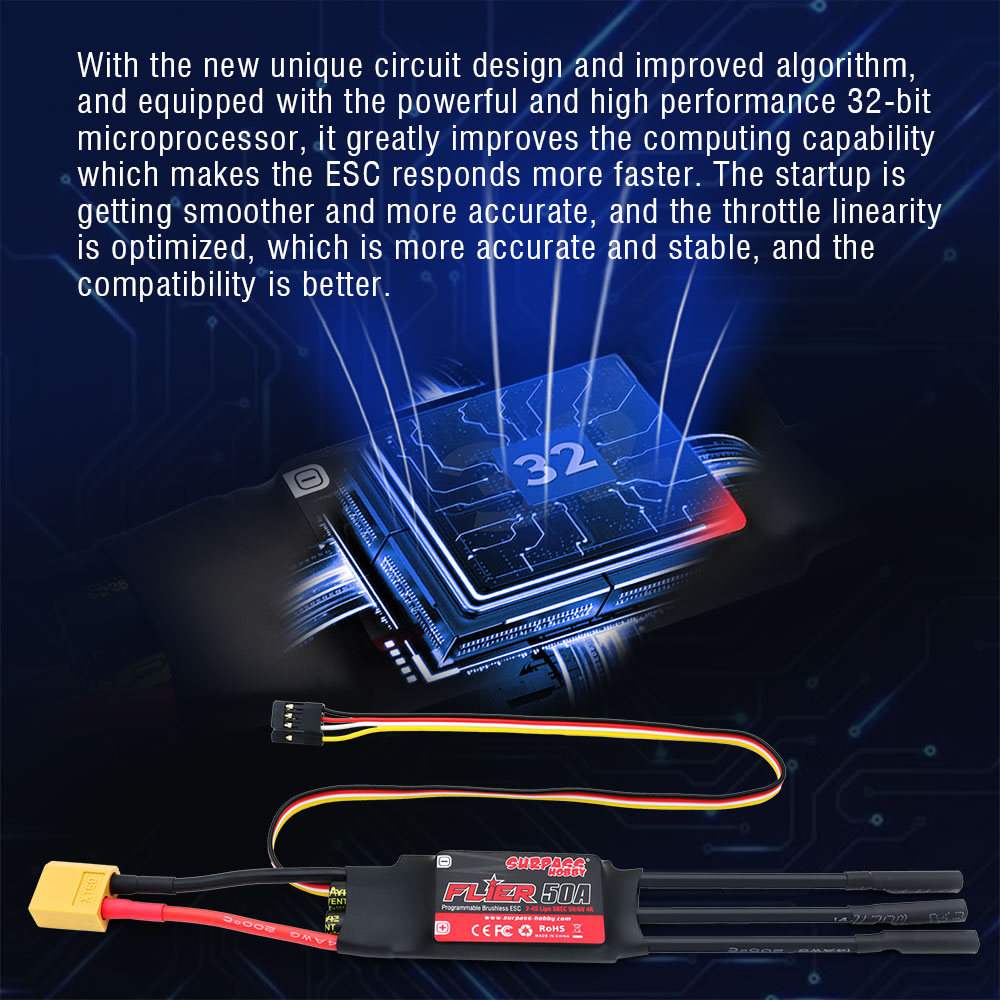

2. High-performance 32-bit processor with stronger computing power and faster running speed.
3. Ultra-smooth start-up and precise throttle linearity.
4. High efficiency, more energy-saving ESC, longer battery life.
5. SBEC 5V/6V two-speed adjustable, continuous 8A current supply, providing stronger power to the steering gear (40A/50A/60A/80A/100A has SBEC adjustable).
6. Multiple protections: start-up protection, over-temperature protection, low-voltage protection, phase loss protection, and signal loss protection.
7. Automatically identify the motor timing, support high RPM motors, and can be compatible with most motors on the market.
8. Support LCD programming, and the operation is simpler and more convenient (LCD programming card needs to be purchased separately).

Descriptions:
32-bit brushless ESC specially designed for RC airplane. With fast throttle response, small and light design, helping for the high effciency flying. Suppoert 2-4S/2-6S Lipo, stonger SWITCH BEC.

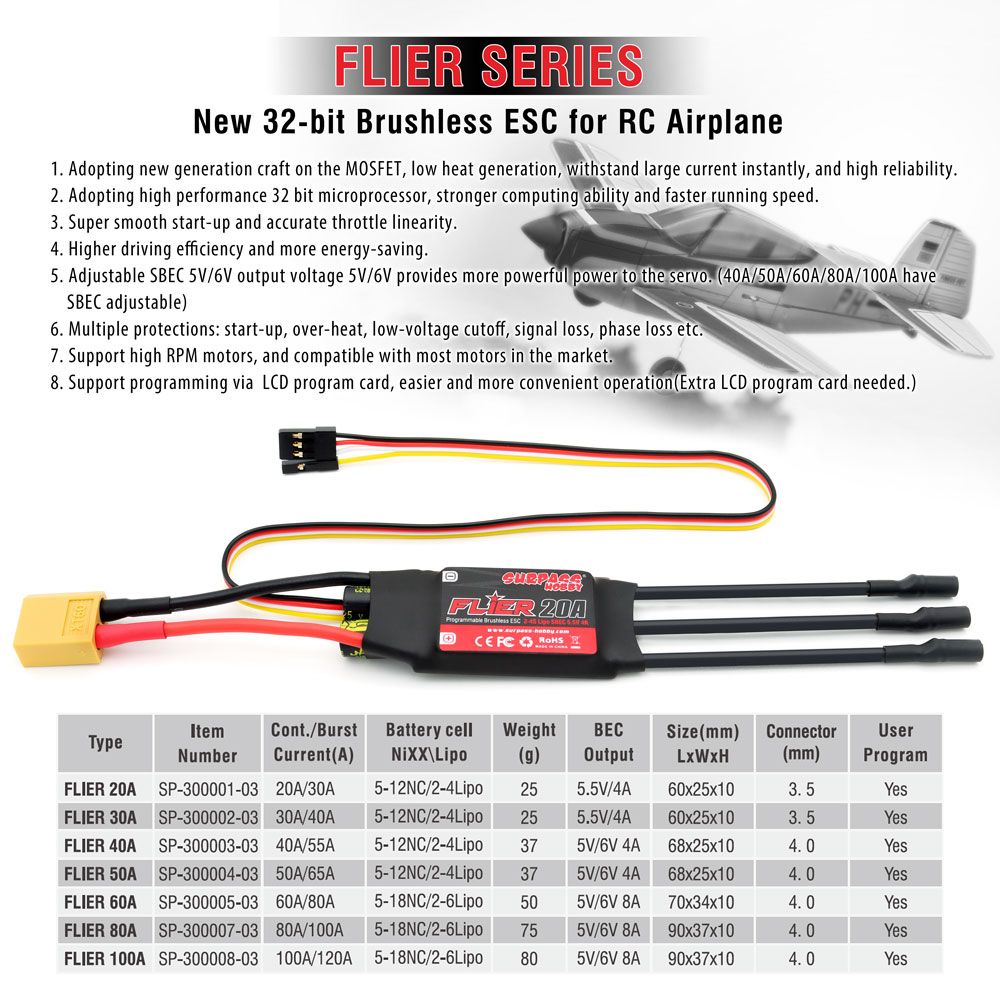

Specifications:
60A:
Cont./Burst Current(A): 60A/80A;
Battery Cell NiXX/Lipo: 5-18NC/2-6Lipo;
Weight(g): 50g;
BEC Output: 5V/6V 8A;
Size(mm) L*W*H: 70x34x10;
Connector(mm): 4;
User program: Yes;

80A:
Cont./Burst Current(A): 80A/100A;
Battery Cell NiXX/Lipo: 5-18NC/2-6Lipo;
Weight(g): 75g;
BEC Output: 5V/6V 8A;
Size(mm) L*W*H: 90x37x10;
Connector(mm): 4;
User program: Yes;

100A:
Cont./Burst Current(A): 100A/120A;
Battery Cell NiXX/Lipo: 5-18NC/2-6Lipo;
Weight(g): 80g;
BEC Output: 5V/6V 8A;
Size(mm) L*W*H: 90x37x10;
Connector(mm): 4;
User program: Yes;

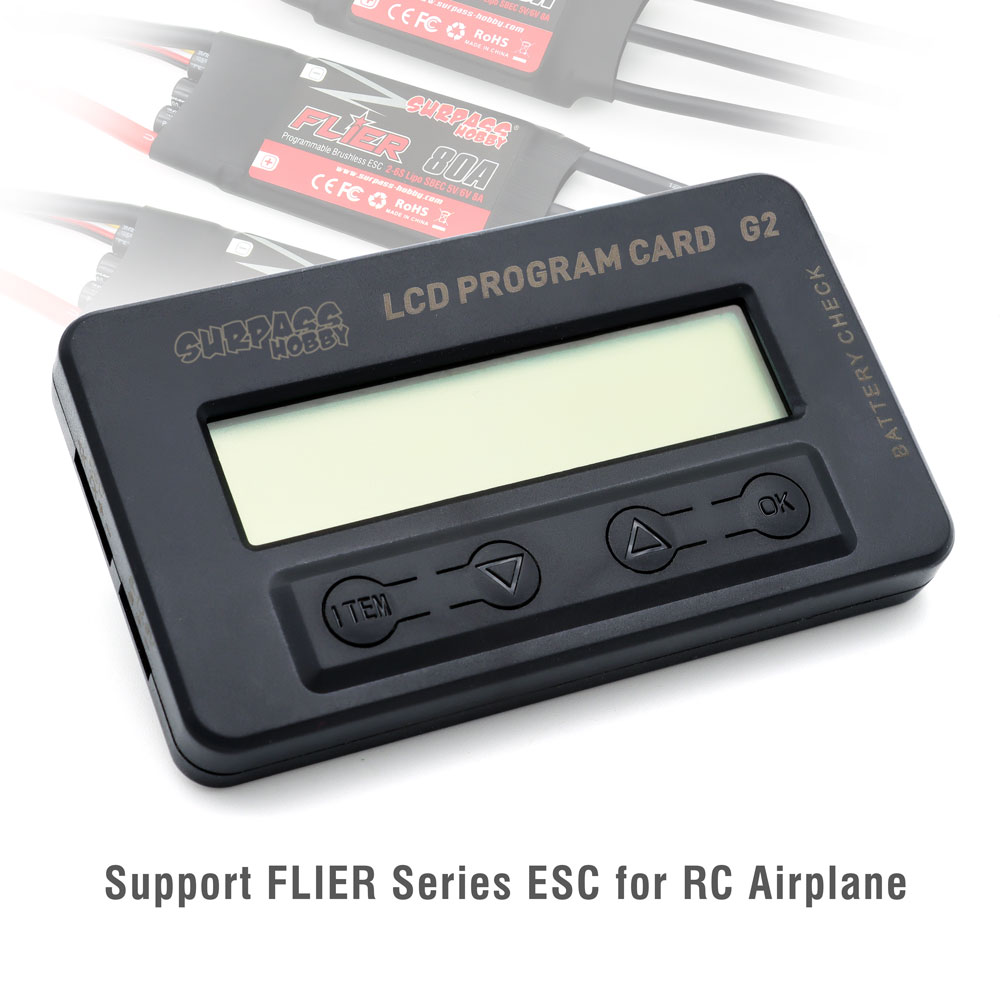

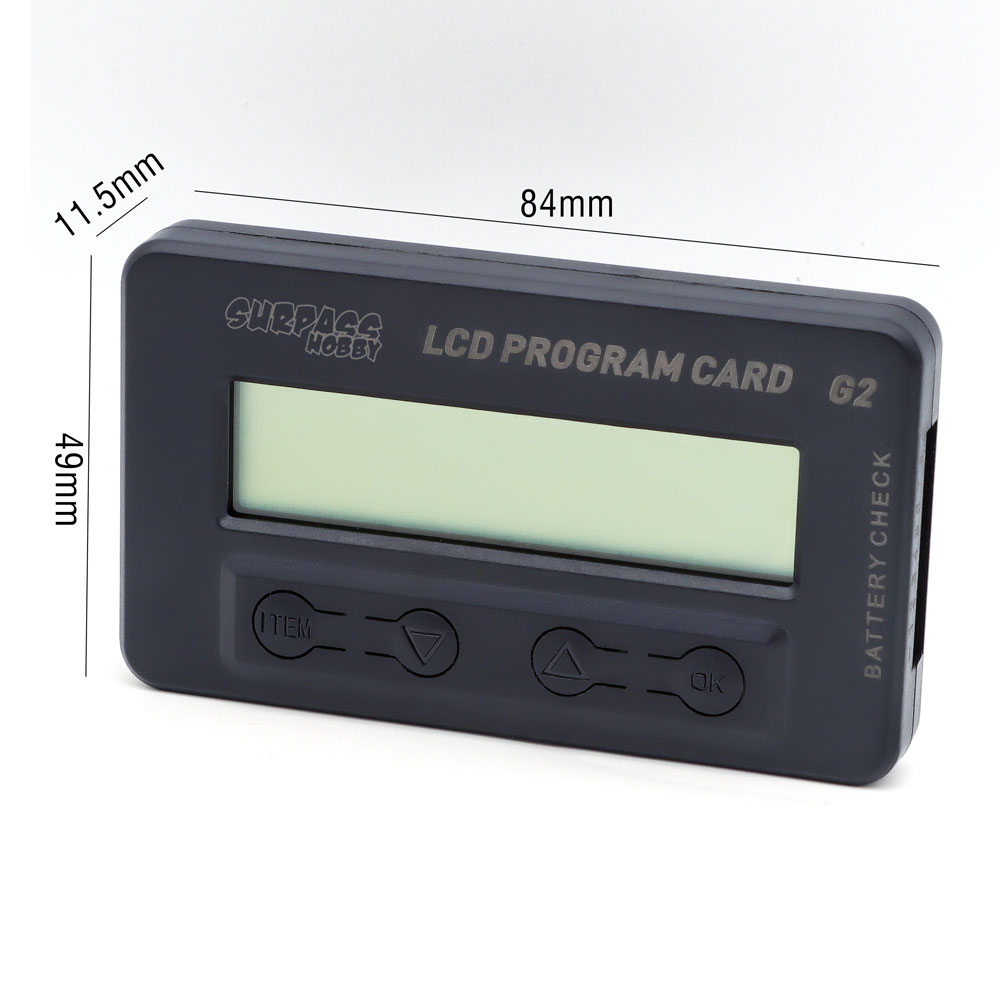

LCD Programming Card:
Size: 84x49x11.5mm
Weight; 40g
Power supply: DC5-12.6V

Package Included:
1 x Brushless ESC/LCD Programming Card(optional)
1 x User Manual
