Edge FC830 FX2S Server

The price includes:

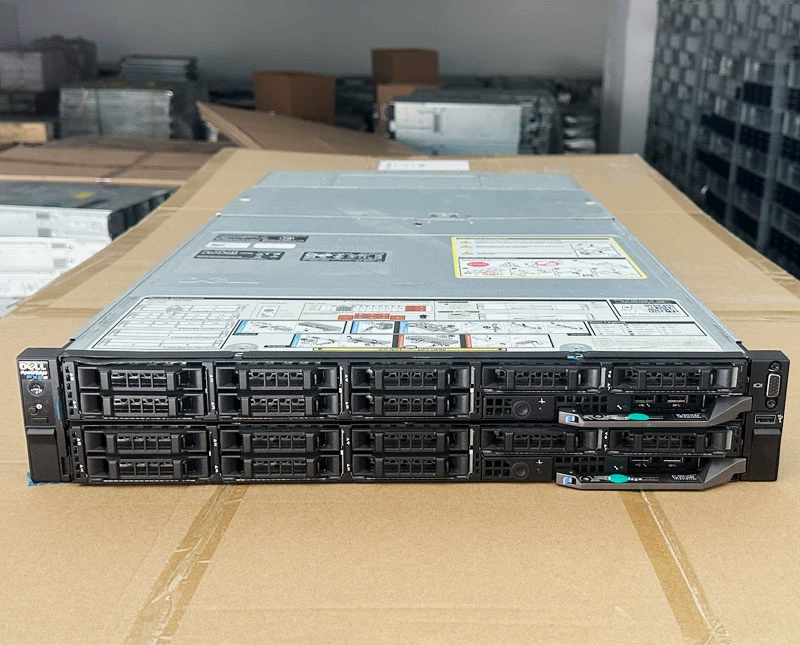

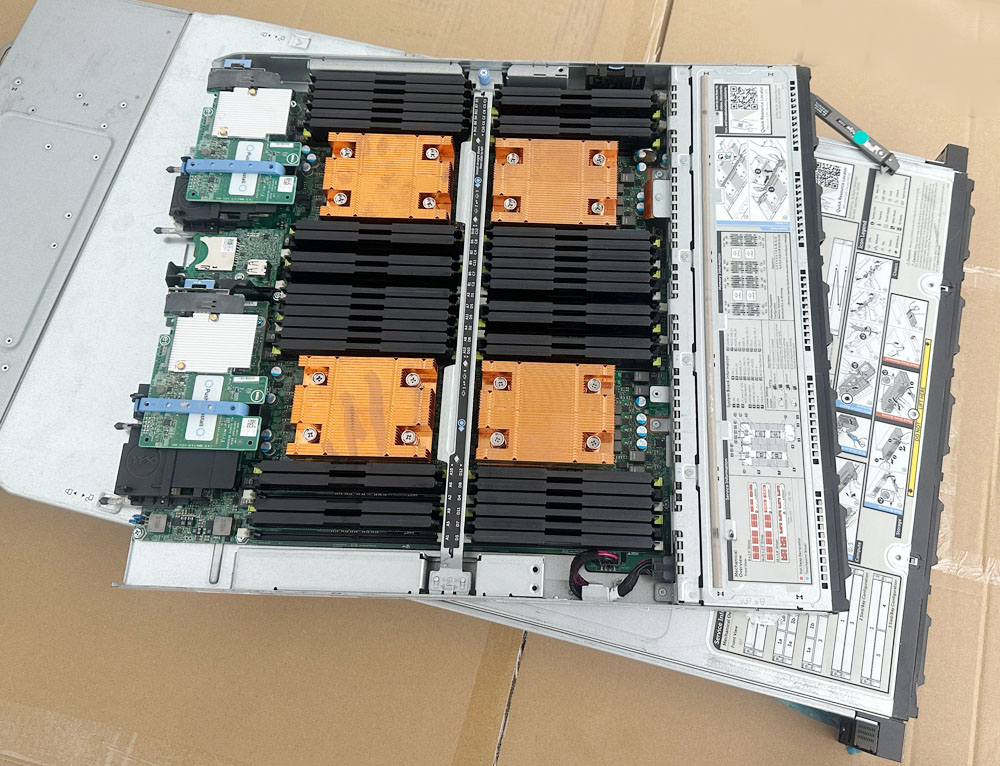

Model: Dell Dell PowerEdge FC830 four way dual node server

CPU: E5-4610V4 (single 1.8Ghz 10 core 20 threads * 8)

Memory: Total capacity 256Gb (single 32G 2400T DDR4 * 8)

Hard drive: 1.2Tb * 4

Power supply: 2000W * 2

Buyer Notice:

1. The above configurations are randomly provided by the seller and can be recalculated based on the buyer's budget. Please leave a message! 2. The entire machine can be pre installed with a system, and the warranty period of the entire machine can be communicated. Please communicate the delivery time!

2. We are not responsible for customs clearance, buyers need to pay customs duties


Technical specifications and customization

processor

Up to four Intel ® xeon  ®  E5-4600 v4 product series processors, each equipped with up to 22 cores

Operating System Options

Canonical ®  Ubuntu ®  LTS

Citrix ®  Hypervisor

Microsoft ®  Windows Server ®  LTSC (with Hyper-V)

Oracle ®  Linux

Red Hat ®  Enterprise Linux

SUSE ®  Linux Enterprise Server

VMware ®  vSphere ®

Memory i

DIMM speed

Up to 2666 MT/s

Memory type

DIMM

RDIMM

LRDIMM

Memory module socket

48 DDR4 DIMM slots

Maximum RAM

DIMM 1.5 TB

RDIMM 1.5 TB

LRDIMM 3 TB

storage

Front tray

Up to 8 2.5 "SAS/SATA/NVMe (HDD/SSD)

Up to 51.2 TB

Storage controller

Internal controller

PERC H330、H730、H730p、HBA330

Software RAID

S130

Internal startup

Boot optimized storage subsystem (BOSS): HWRAID 2 M.2 SSDs (240 GB, 480 GB)

Built in dual SD module

*ESXi (supported operating system only)

Administration

Embedded/server level

Chassis Management Controler

iDRAC9

IDRAC RESTful API (using Redfish)

iDRAC Direct

Console

OpenManage Enterprise

OpenManage Enterprise Power Manager

mobility

OpenManage Mobile

tool

Dell EMC RACADM CLI

Dell EMC Repository Manager

Dell EMC System Update

Dell EMC Server Update Utility

Dell EMC Update Catalogs

iDRAC Service Module

IPMI Tools

OpenManage Server Administrator

OpenManage Storage Services

OpenManage Integrations

BMC Truesight

Microsoft ®  System Center

RedHat ®  Ansible ®  Modules

VMware ®  vCenter

OpenManage Connections

IBM Tivoli ®  Netcool/OMNIbus

IBM Tivoli ®  Network Manager IP Edition

Micro Focus ®  Operations Manager I

Nagios ®  Core

Nagios ®  XI

Power Supply

(FX2 chassis)

1600 W Platinum

2000 W Platinum

2400 W Platinum

1+1 redundancy, only redundant alarms (RAO), and 2+0 non redundant configurations

Up to 8 fully redundant hot swappable fans supported

Port contains items

Network Options

2 x 10 GbE

4 x 10 GbE

4 x 1 GbE

slot

PCIe

Please refer to the specifications of the PowerEdge FX2 chassis

Graphics card

1 VGA controller integrated with iDRACs

Chassis contains items

FX2

Appearance specifications

1U full width modular computing base with up to 2 FC830s per FX2 chassis

size

height

427.6 mm (16.8 ")

width

40.3 mm (1.6 ")

depth

538.1 mm (21.6 ")

weight

13.0 kg (28.66 lb)

Recommended support

Choose Dell ProSupport Plus for critical systems, or choose Dell ProSupport services that provide advanced hardware and software support for Edge solutions. Simultaneously providing consulting and deployment services. Contact your Dell representative immediately to learn more details. The provision and terms of Dell services vary by region.

statute

Product Safety, EMC, and Environmental Data Sheets (English version)

Dell Compliance Home Page (English Version)

Dell and Environment
