Rotary Welding Positioner Welding Turntable 10Kg Welding Positioner Turntable Tilt Table for Ring Welding with 65 Chuck
Specification:
Name: 10 kg positioner
Model: BWJ-10
Load (horizontal/vertical): 10/5KG
Speed: 2-20r/M (1-10rr/M)
Input voltage: AV220/110V 50-60HZ
Table diameter/thickness: 180mm/9mm
Conductivity of copper rod ground wire: 80A (100% duty cycle)
Applicable chuck: XH65mm

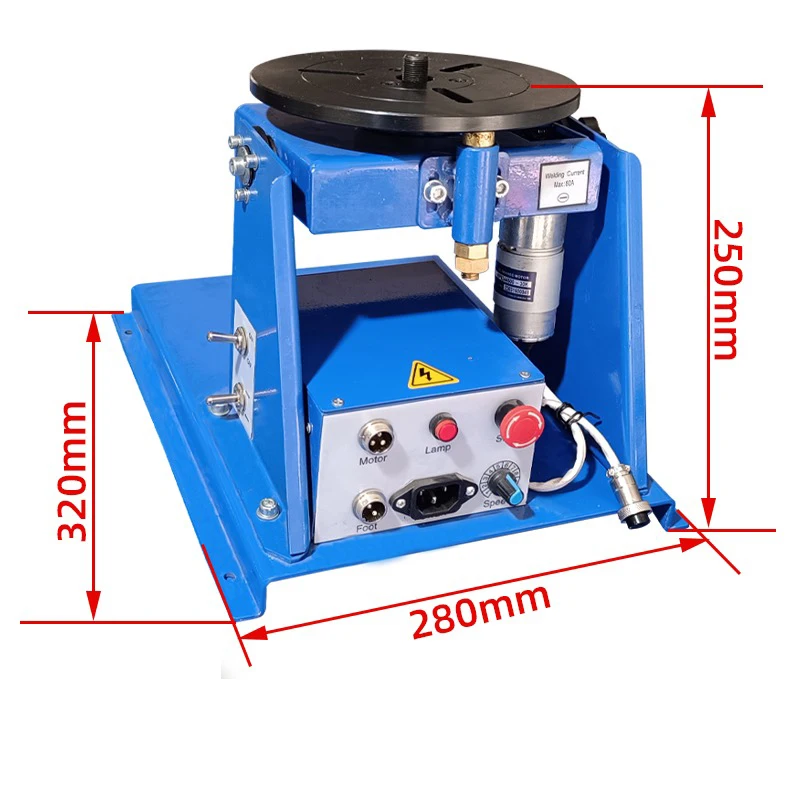

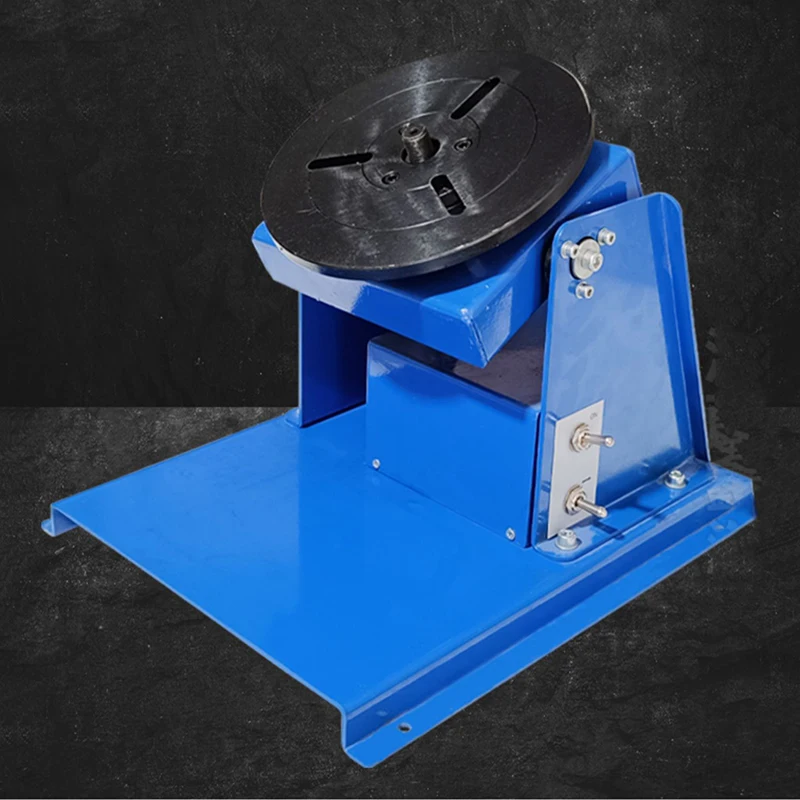

BWJ-10 (10 kg positioner) mainly consists of five parts: workbench, turning
Mechanism, control box, motor and reducer, frame. artifact is
Fixed on the workbench, it can be rotated and tilted, so that the welding seam is at the most
Favorable welding position for improved weld quality and yield
efficiency and reduce the labor intensity of workers.
feature:
1. The thickness of the plate is 9mm, and the rotation is smooth;
2. Conductive copper brush for ground wire of special welding machine;
3. High-quality DC motor is used to transmit torque to the rotation
The workbench is driven by gear meshing, and the workbench runs smoothly.

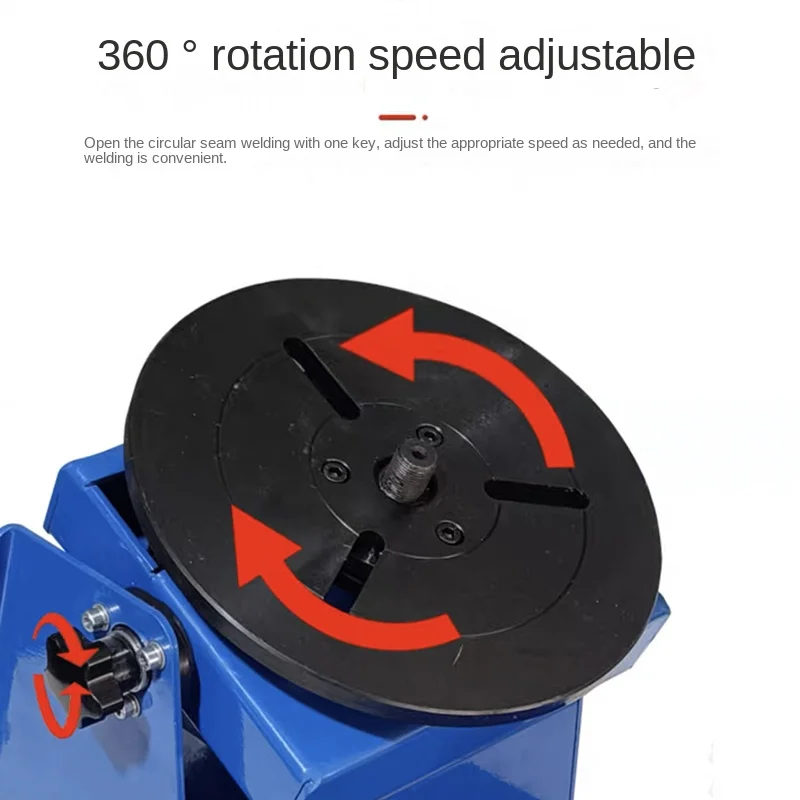

The welding speed can be adjusted steplessly, and the adjustment range is large.
High adjustment accuracy.
4. Small size, precise structure, convenient operation and flexible use.
5. Fixtures and fixtures use simple mechanical connection methods
Workbench with high positioning accuracy.

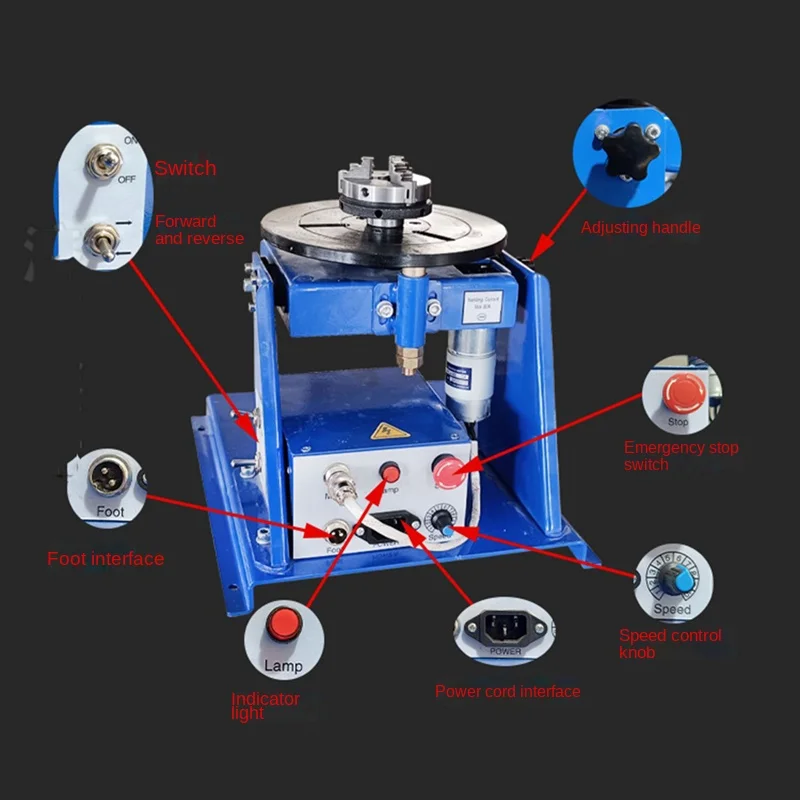

6. The foot switch is used to control the rotation of the workbench, namely
Easy to control rotation.
7. Especially suitable for welding flanges, steel pipes, rings, circles, etc.
Parts under 10 kg.
8. The standard speed is 2-20 rpm, 1-10 rpm
Every minute can also be selected according to actual needs.
notes:
The conductive carbon brush current cannot exceed 70A during welding
This is only suitable for welding small parts of 20-30mm
Configure the chuck with a maximum outer diameter of 60mm
The welding length is generally within 200mm
NOTE: Torch stand not included.
