| Model | Dia of Painting Nozzle mm | Retad Pressure Map | Painting Output ml/min | Max.Pattem width of fanshaped mm | Max.Pattem of round-shaped mm | Effective spraying mm | Capacity ofpaint container ml | Type of Feed |
| W-71-1S | 1.0 | 0.4 (0.3-0.5) | 95 | 100 | 30 | 180 (150-200) | 800 | Suction |
| W-71-2S | 1.3 | 135 | 130 | 38 | ||||
| W-71-3S | 1.5 | 180 | 170 | 45 | ||||
| W-71-4S | 1.8 | 195 | 190 | 50 |
Features:
It is 100% brand new,high quality and never mounted.
Advanced equipment technology manufacturing, high atomization,low energy consumption, high efficiency, easy maintenance.

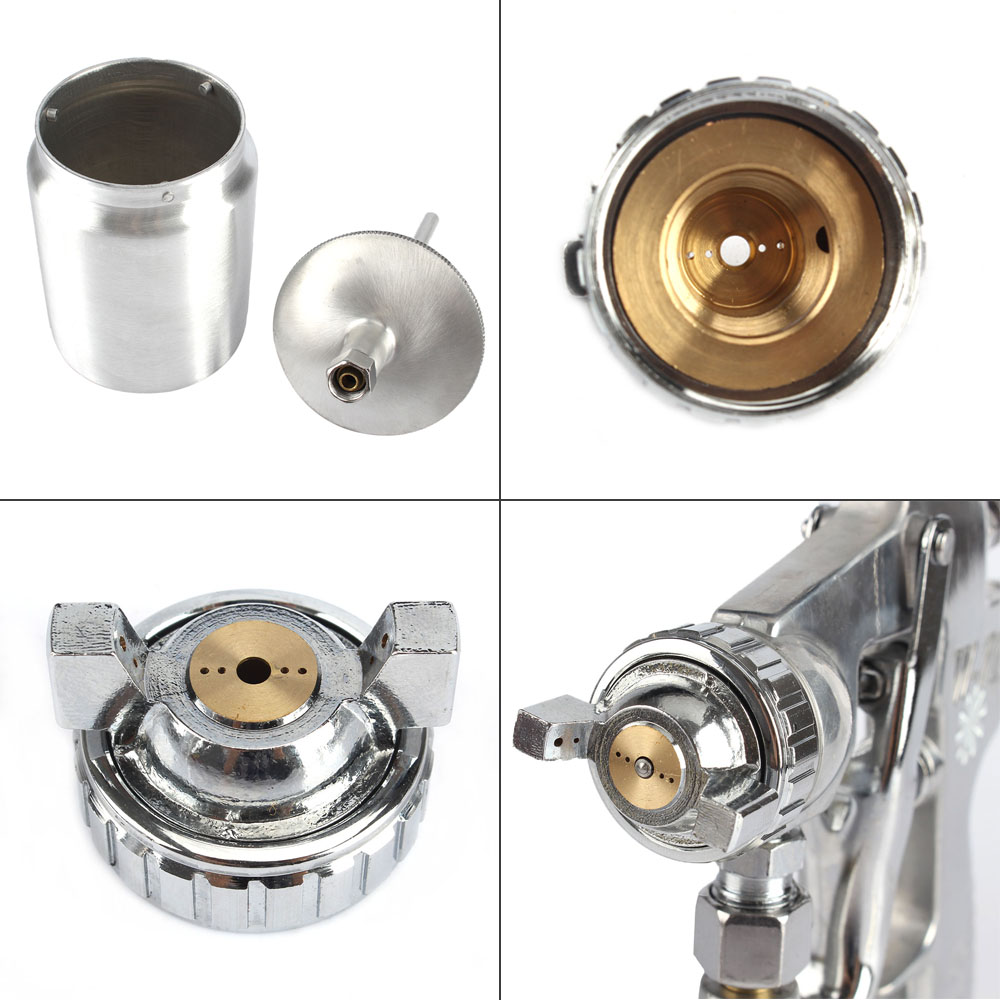

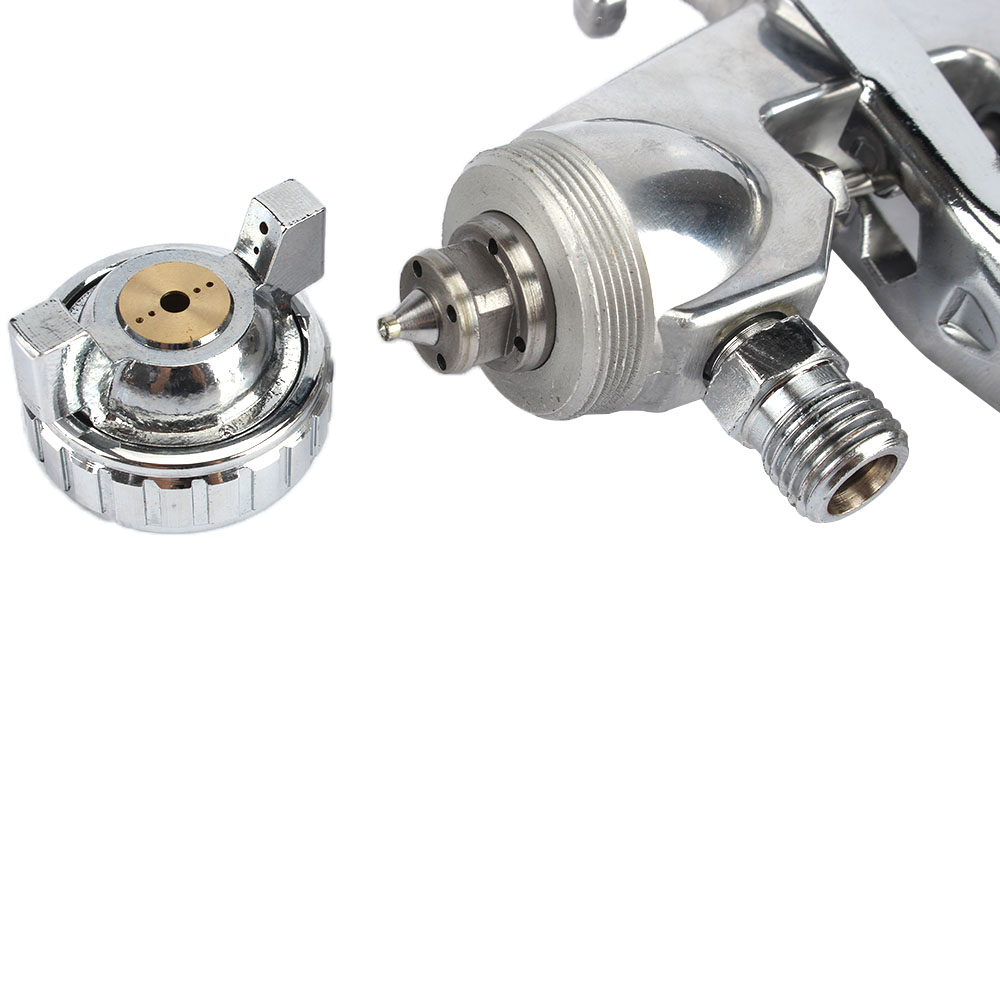

The nozzle uses wear resistance, corrosion resistance, high strength stainless steel, can remove the nozzle for cleaning maintenance.
The separate and adjustable fluid fan pattern and air controls make for more precise fan patterns and less waste.
Lower noise and more comprehensive ergonomic design will give you a pleasure experience while spraying.
Suitable for spray-painting medium and highly adesive , surface such as car ,furniture,matchinery etc.
Specifications:
Type of feed : Suction
Optional Nozzle: 1.5mm
Working Air pressure:3.0kg/cm2
Air Consumption: 75-230 L/min
Tank capacity: 600cc.
Package Include

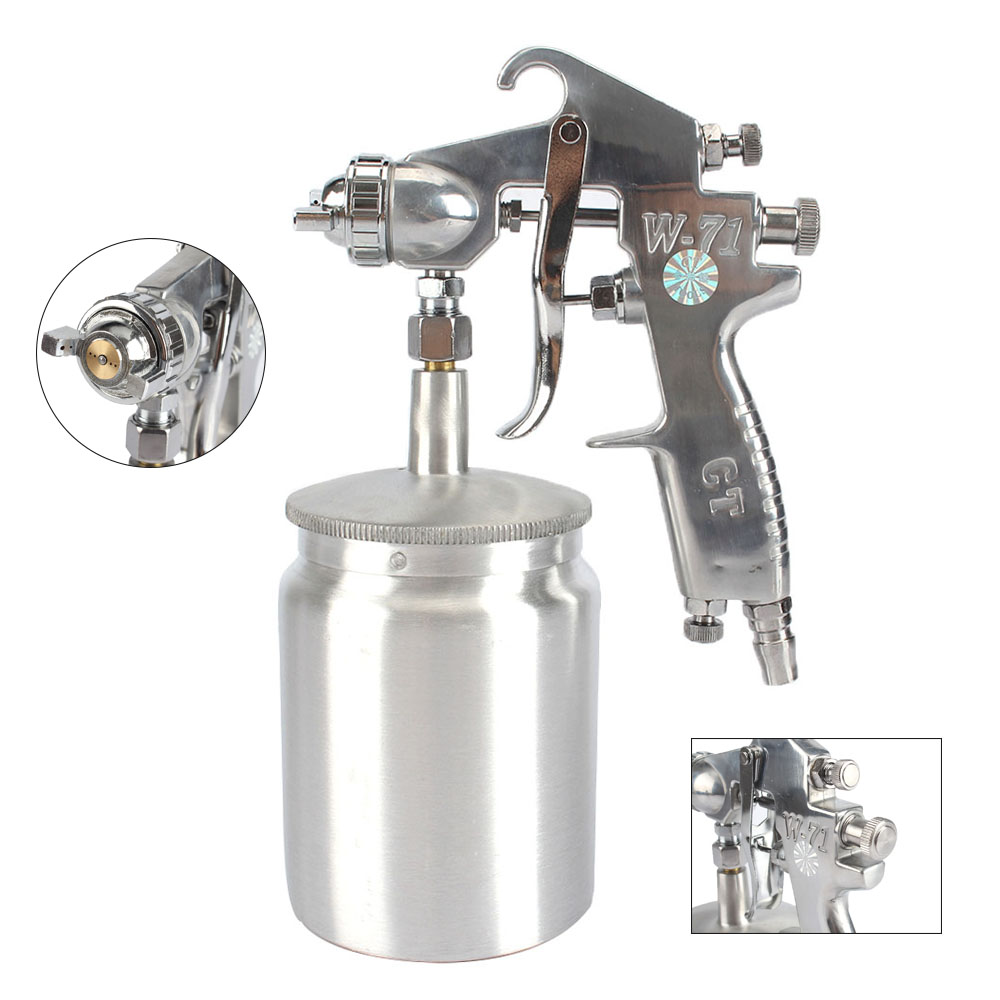

1* Air Spray Gun (as the picture shows)
