FH-125/FH-160 Milling machine Universal Indexing Head Small Simple Vertical and Horizontal Dual-use Manual indexer

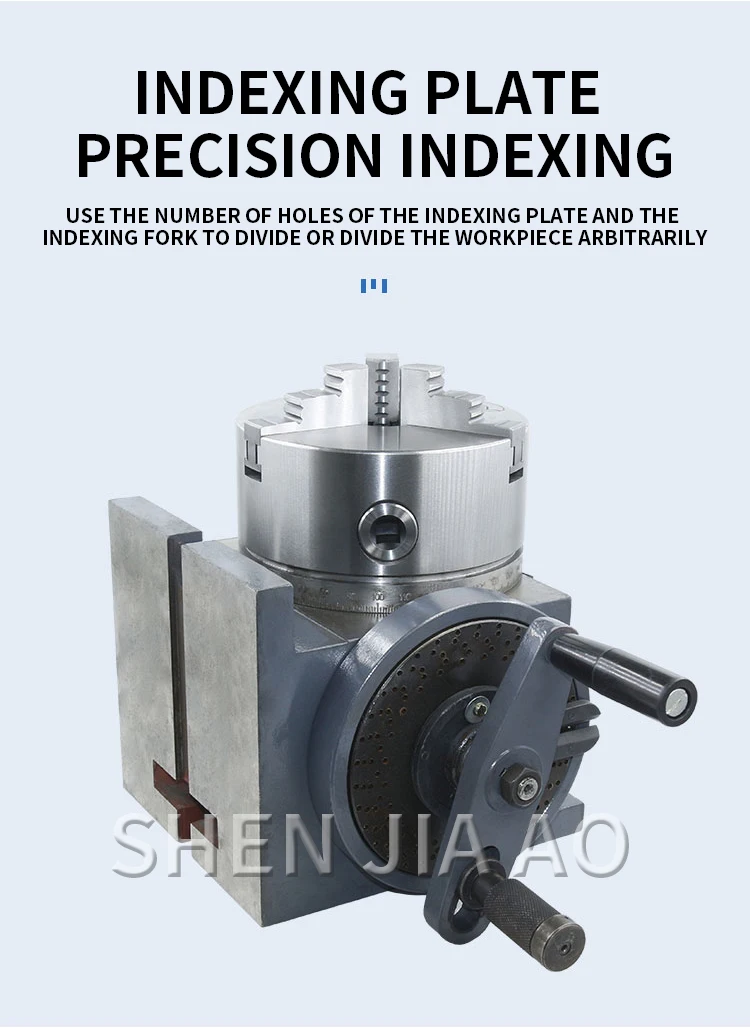

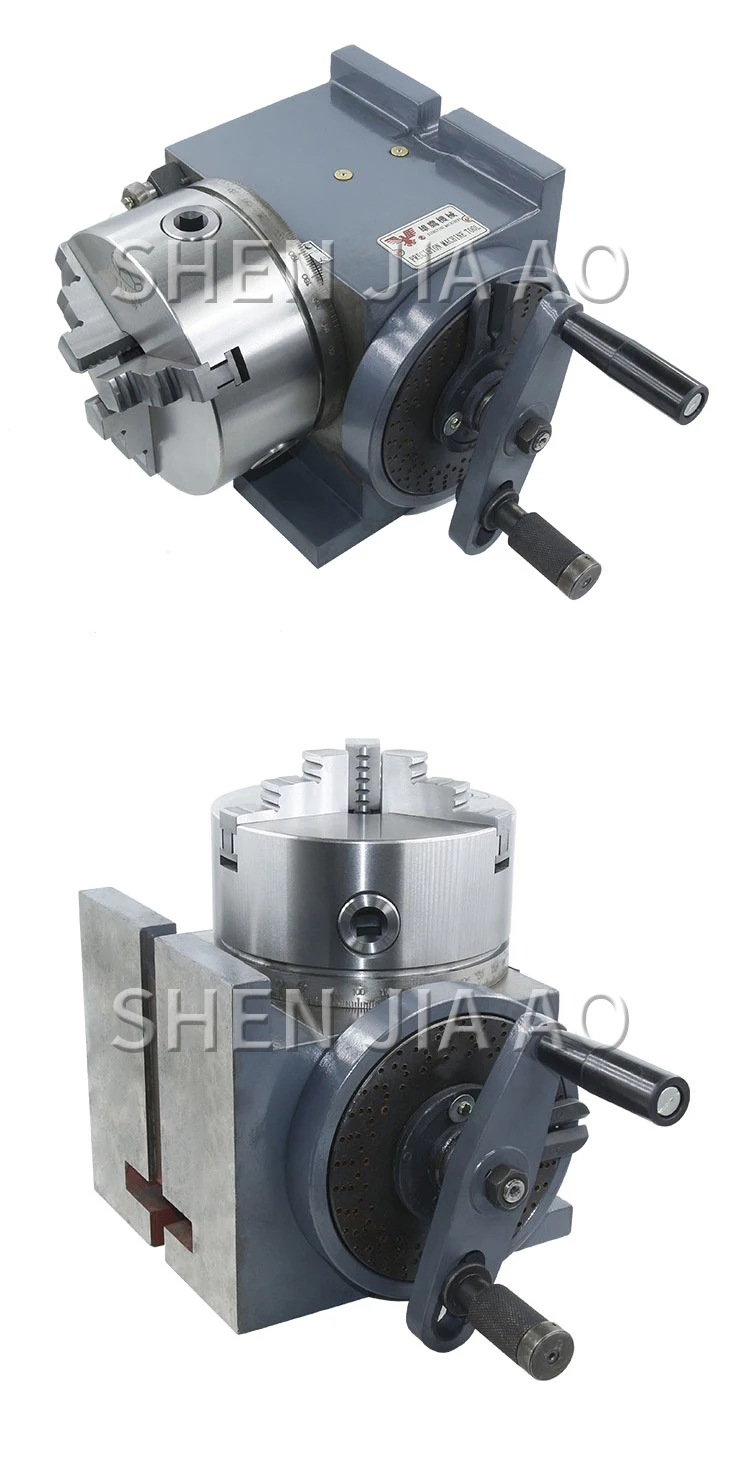

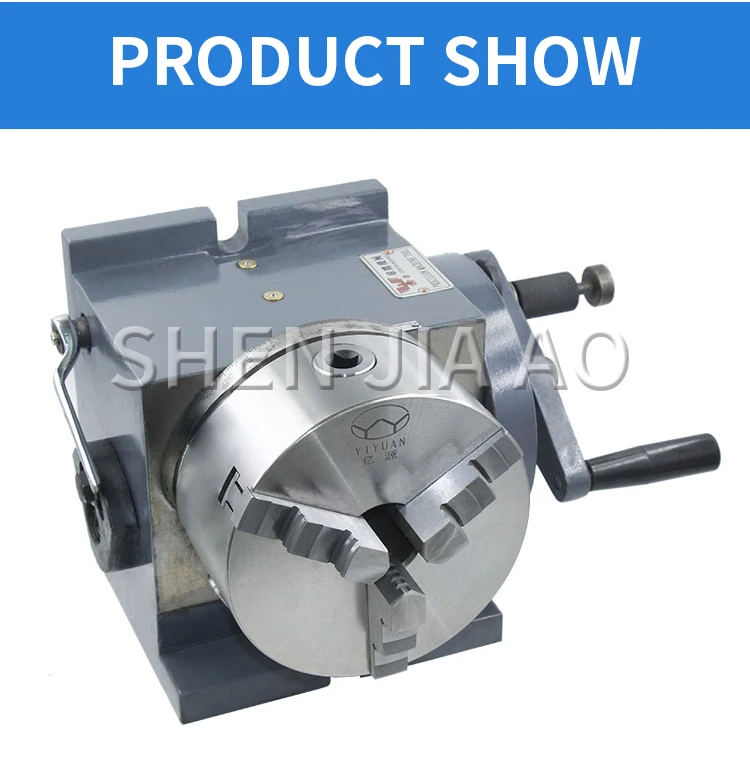

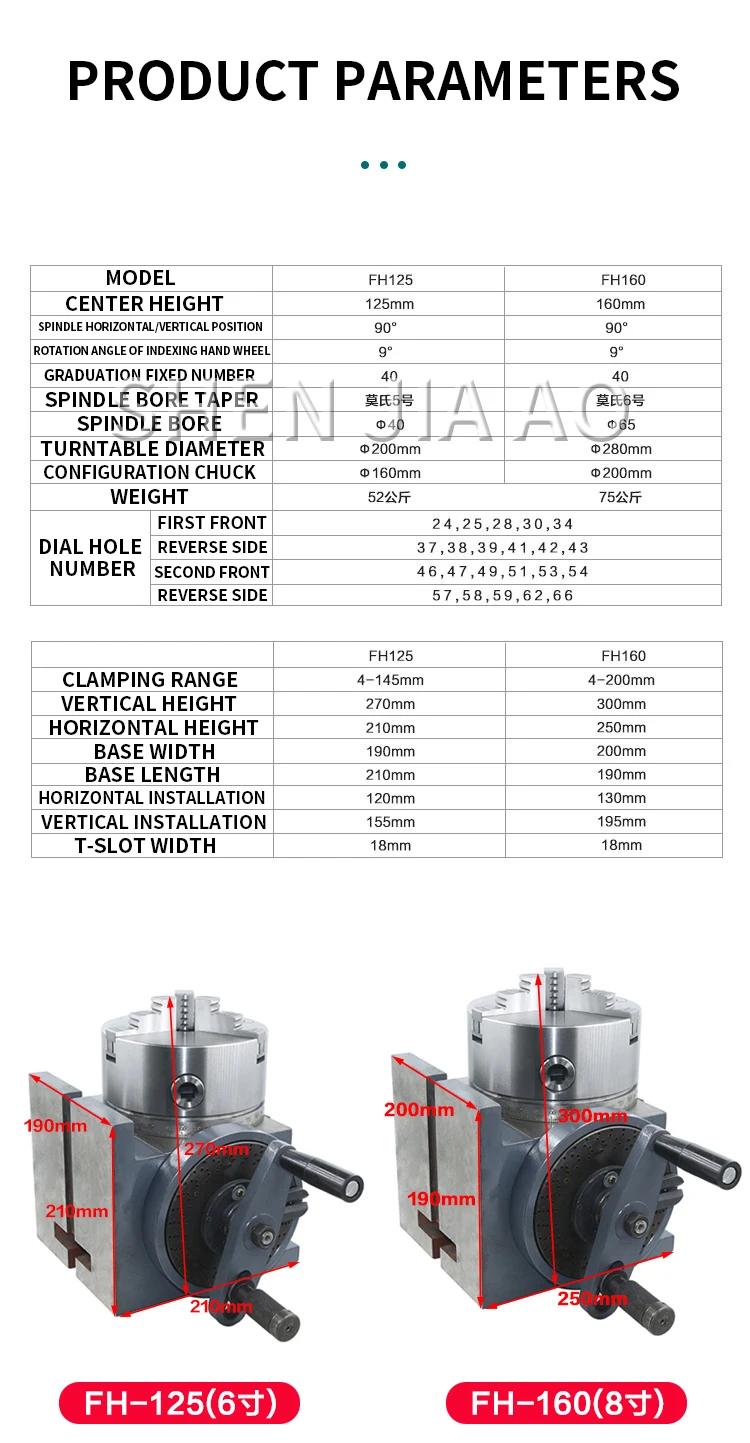

Name: Universal dividing head
Model: FH-125
Center height: 125MM

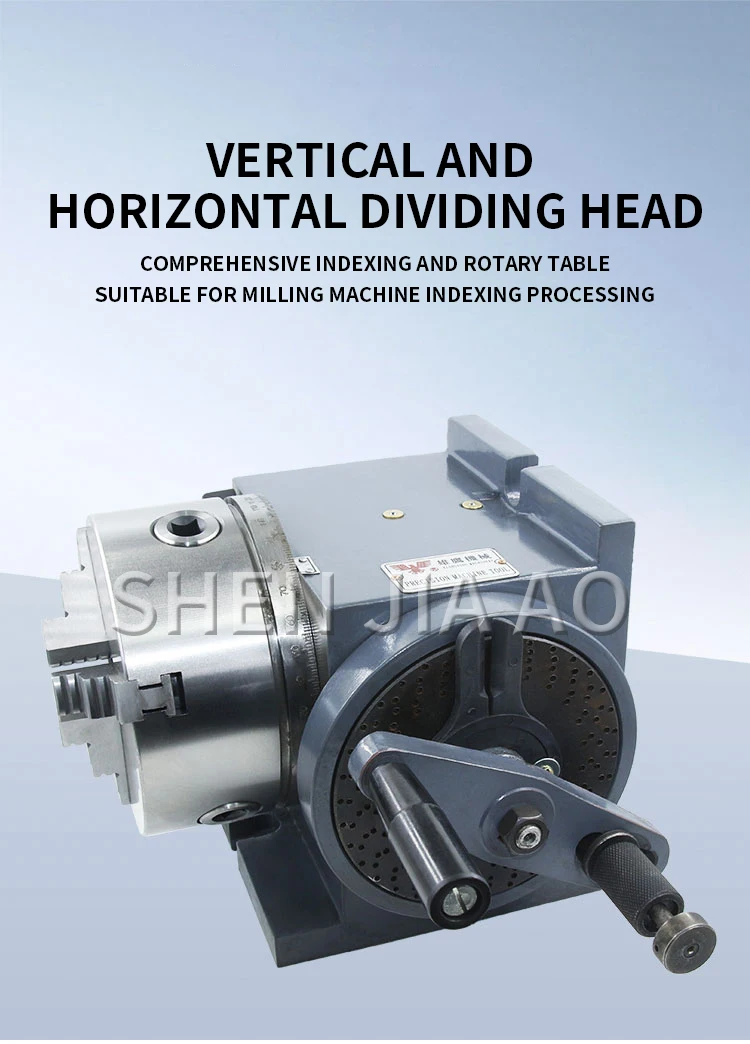

Spindle horizontal and vertical position: 90°
Rotation angle of indexing hand wheel: 9°

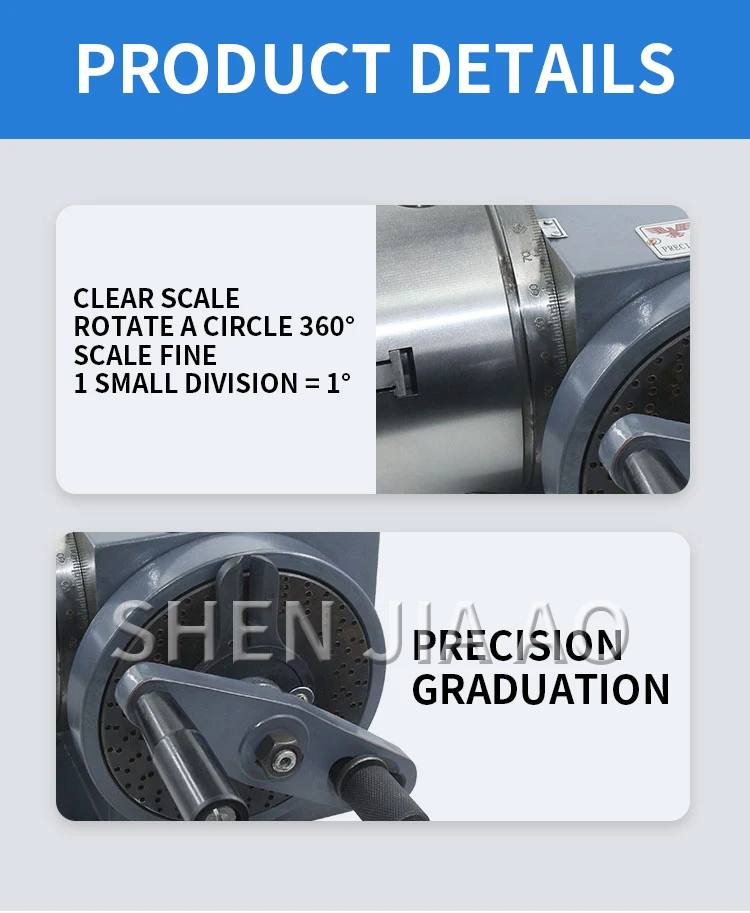

Number of graduations: 40
Spindle hole taper: Mohs No. 5
Spindle inner hole: 40
Turntable diameter: 200MM

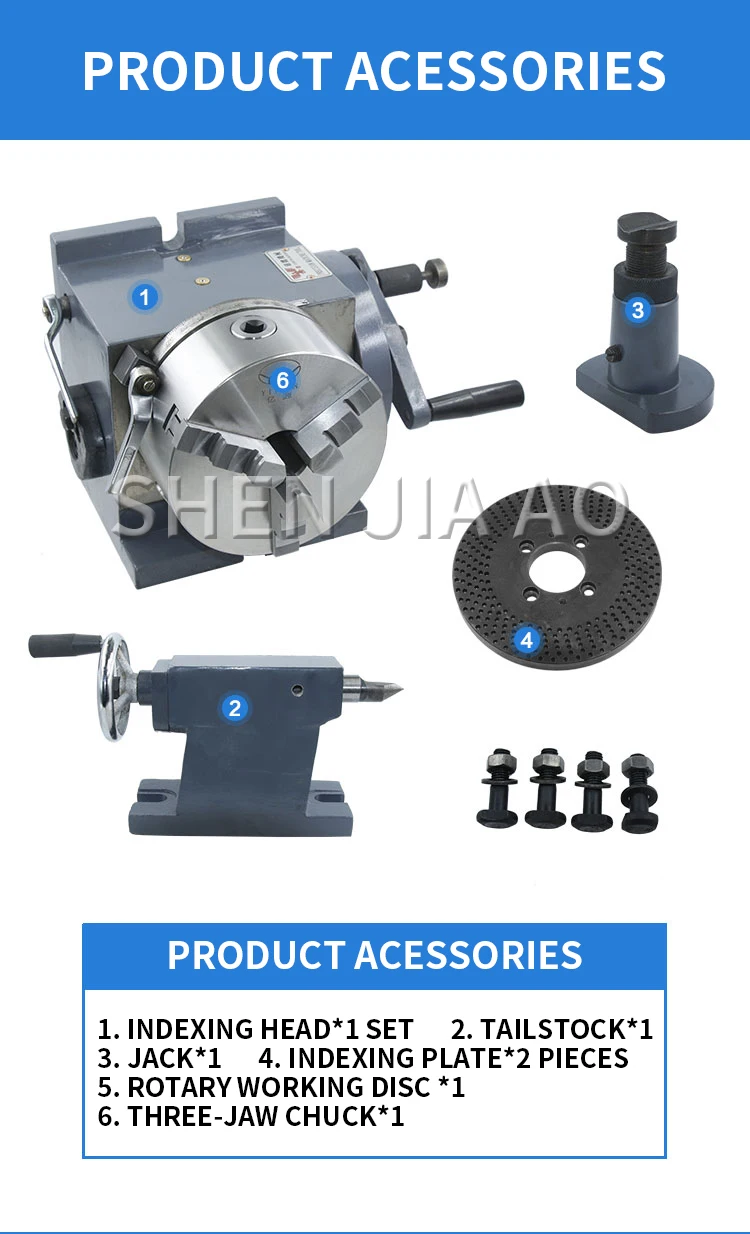

Configuration Chuck: 160MM
Weight: 52KG
Maximum clamping range: 4-145MM
Dividing head vertical height: 270MM
Dividing head horizontal height: 210MM
Base width: 190MM
Base length: 210MM
Horizontal installation shortest distance: 120MM
The shortest distance for vertical installation: 155MM
T-slot width: 18MM
Name: Universal dividing head
Model: FH-160
Center height: 160MM
Spindle horizontal and vertical position: 90°
Rotation angle of indexing hand wheel: 9°
Number of graduations: 40
Spindle hole taper: Mohs 6
Spindle bore: 65
Turntable diameter: 280MM
Configuration Chuck: 200MM
Weight: 75KG
Maximum clamping range: 4-200MM
Dividing head vertical height: 300MM
Dividing head horizontal height: 250MM
Base width: 200MM
Base length: 190MM
Horizontal installation shortest distance: 130MM
The shortest distance for vertical installation: 195MM
T-slot width: 18MM
