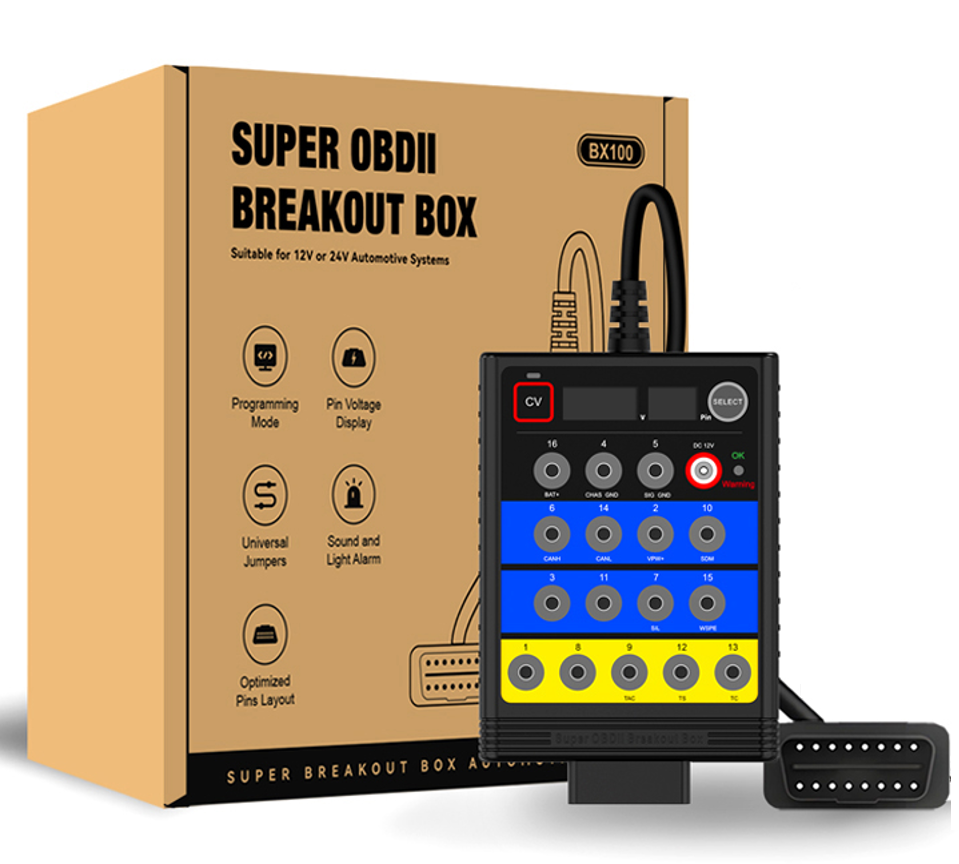

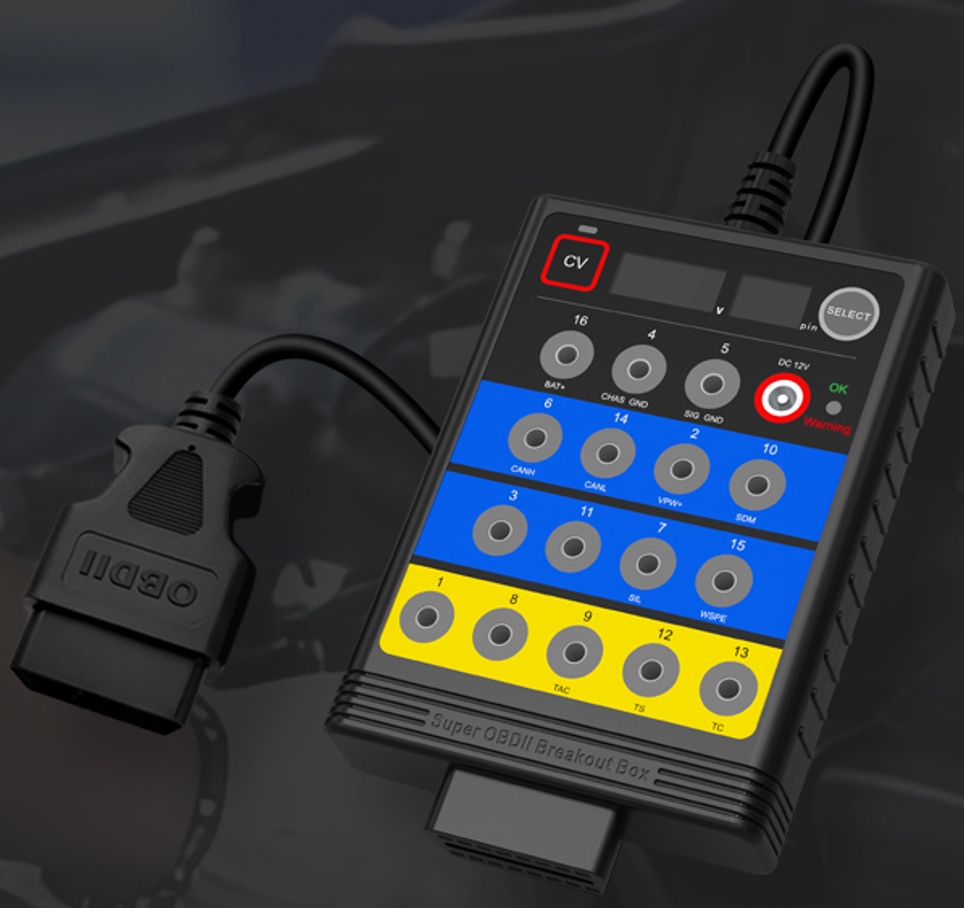

NEW OBD2 Breakout Box OBDII Protocol Detector CAN Test Box Voltage Constant Tool
Product Description
Features:
Jumper detection function

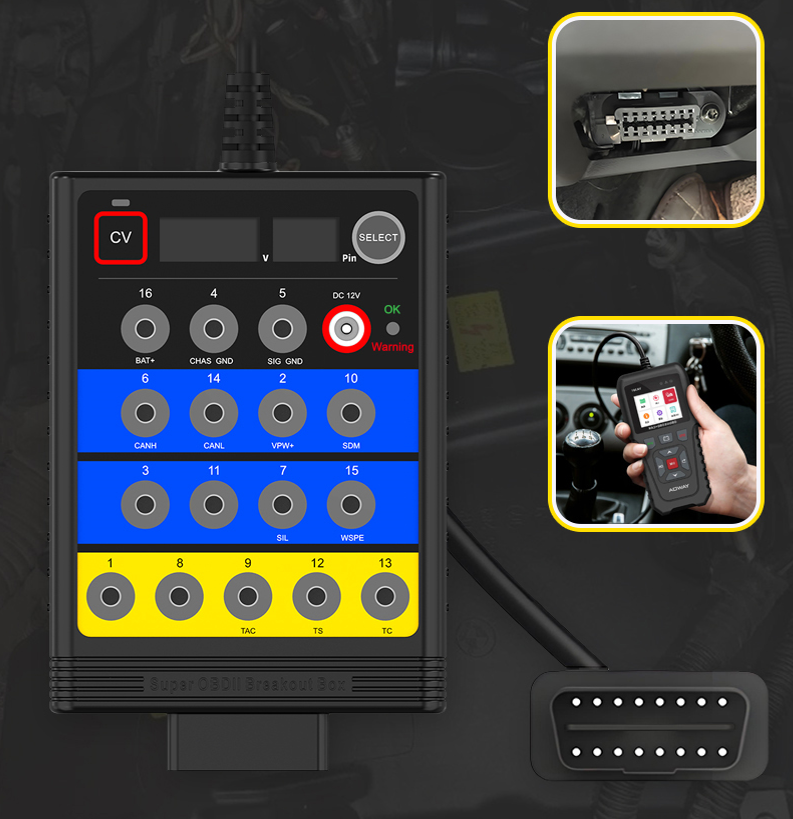

Pin Status Indication
Pin Voltage Display
Constant Voltage Function
Short circuit Protection

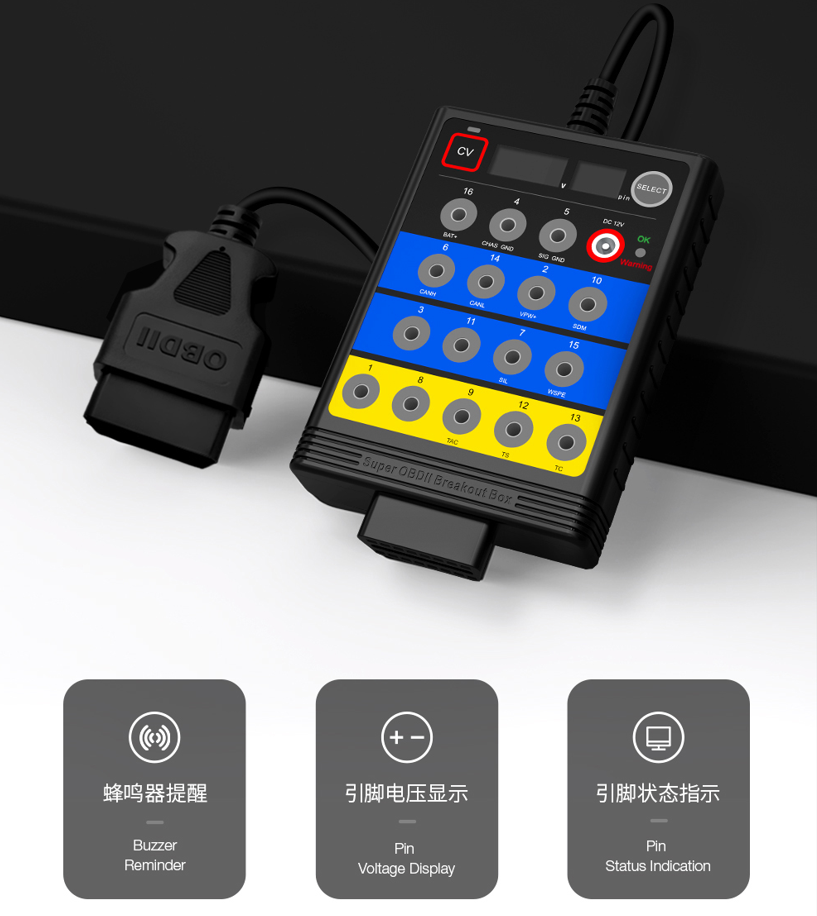

Sound and Light Alarm
Why we need this item?
A. This tool supports 12V 24V input.
B. It supports K line and Can-Bus signal display,even some private OBD2 comunication protocols jump signal display.
C. It supports test short open and positive-reverse test (When circuit short open or reverse connection, #4 and #5 led light will light long time.)
D. Each position jump voltage value display.(Push select button switch jump location, reset location just press button lasts long time.)
E. Over high voltage or low voltage alarm.
F. Short-open protection due to follows:
Extrenal device shorts open;
Jump cable supply cause short open;
OBD socket short open
ECU socket short open
Some decoder port short open
G. Supports 4 Kinds supply sources.

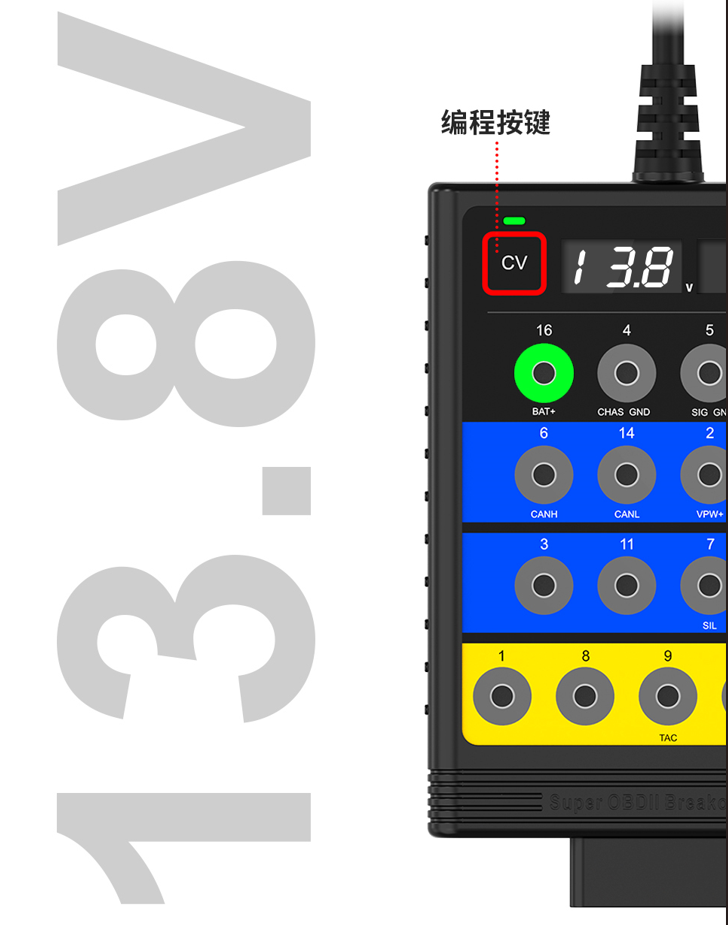

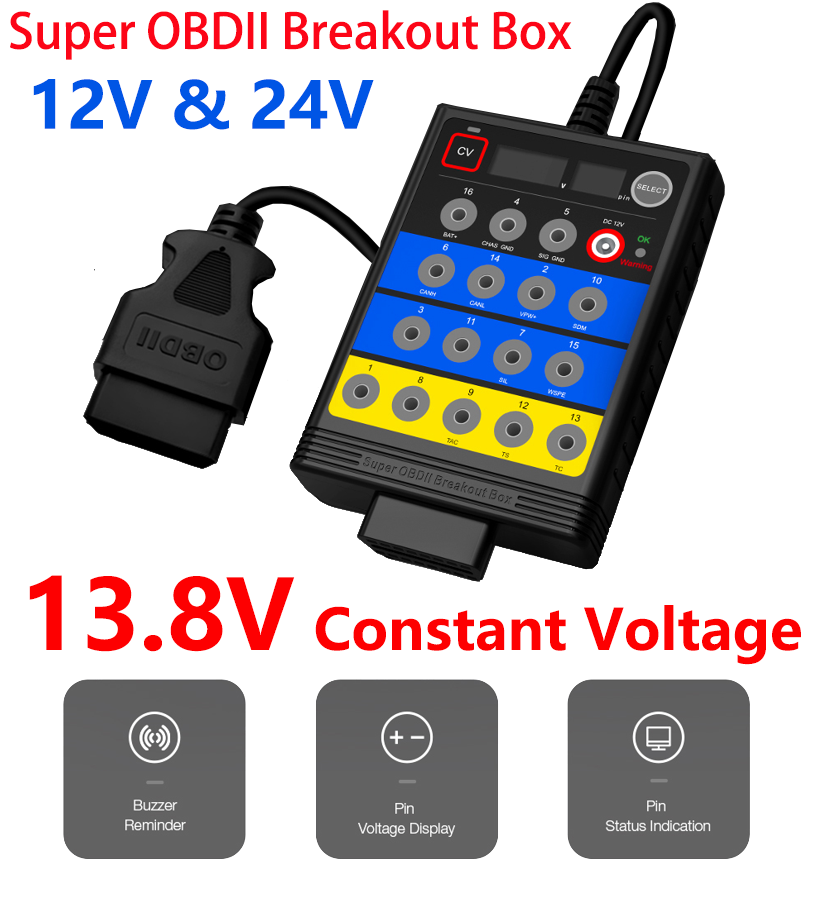

H. Voltage Constant Tool, It could constant program voltage to 13.8V when ECU programing, in order to programme works succeesful.
I. No need to disconnect power when replace car battery.
J. Super brightness LED Light indicator, we could see indicator even in very bright environment.
Specification
Operation Temperature: 0 to 60 C (32 - 140 F)
Storage Temperature:-5 - 70 C (40-185 F)
Supply Voltage: 12V DC 2A or 24V DC 2A
Pin Voltage Display:0-30 V,accurate to 0.1V
Overload Protector:Resettable Fuse
1-16 Pin: 4mm Banan Leads
OBD Cable length: 1 Meter
Rated Current: <2A
Package included:
1x Breakout Box
1x Cable
1x User Manual
OBD BX100 Auto ECU Connector OBDII Break Out Box Detector Voltage Constant Tool
{}
{}
