48V 2000W Ebike Front Drive Brushless Gearless Motor Conversion Kit with 20 24 26 28 29 inch 700C Wheel KT SM Accessories

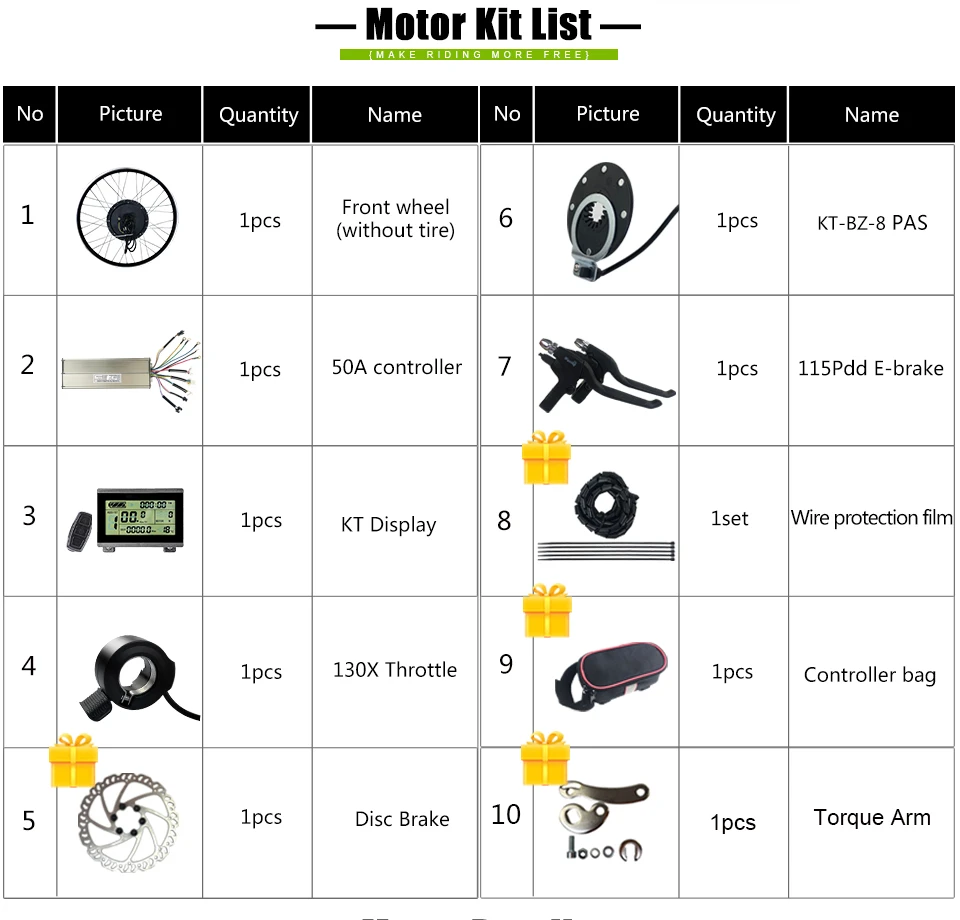

Packing List:
1. 2000W Front Motor
2. 20/24/26/27.5/28/29inch 700c Wheel
3. KT 48V 50A Square Wave Controller
4. KT LED880 LCD3 Display
5. 130X Thumb Throttle
6. Disc Brake
7. KT-BZ-8 PAS
8. 115 Pdd E-brake
9. Wire Protection Film
10. Controller Bag

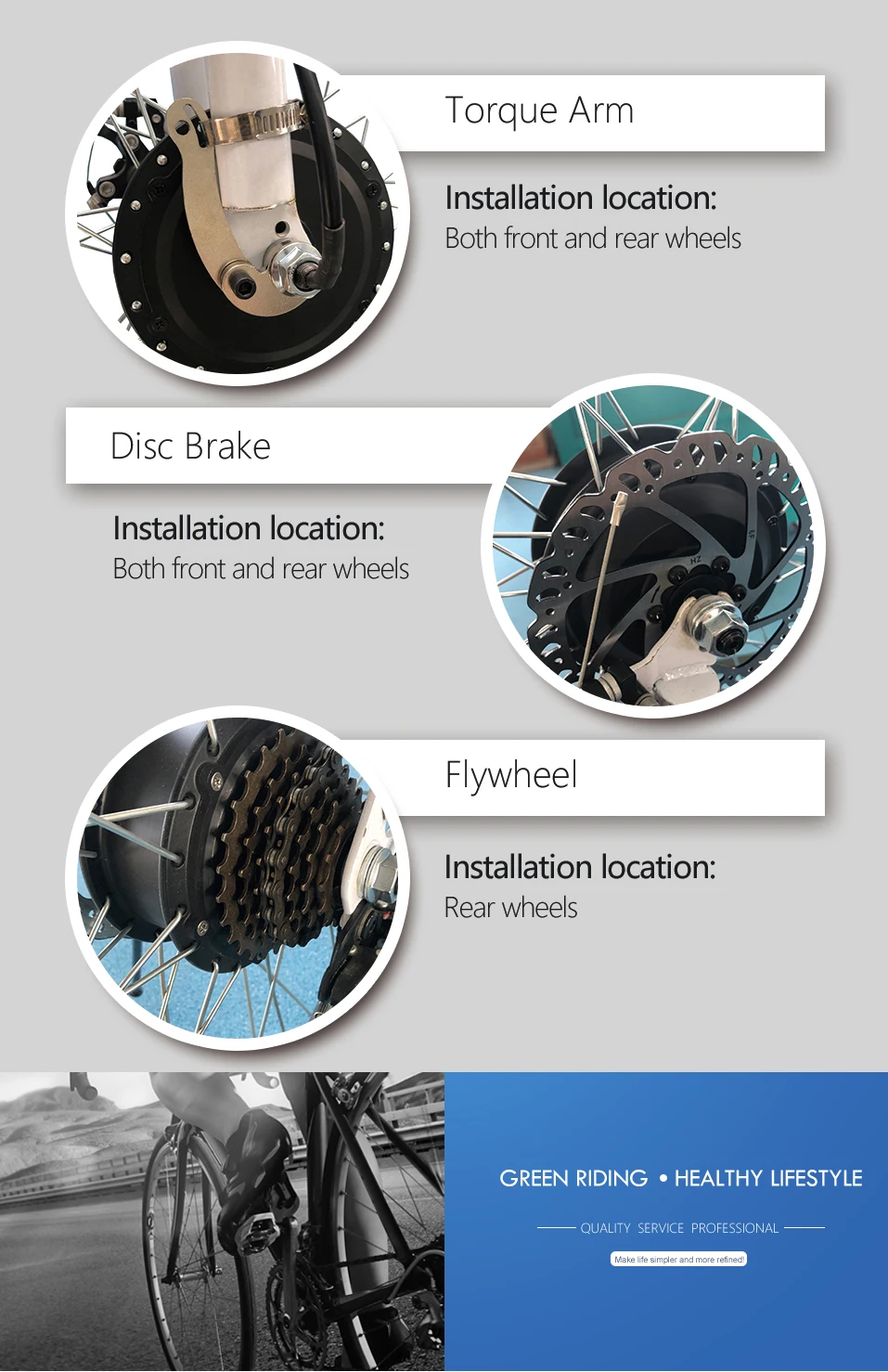

11.Torque Arm

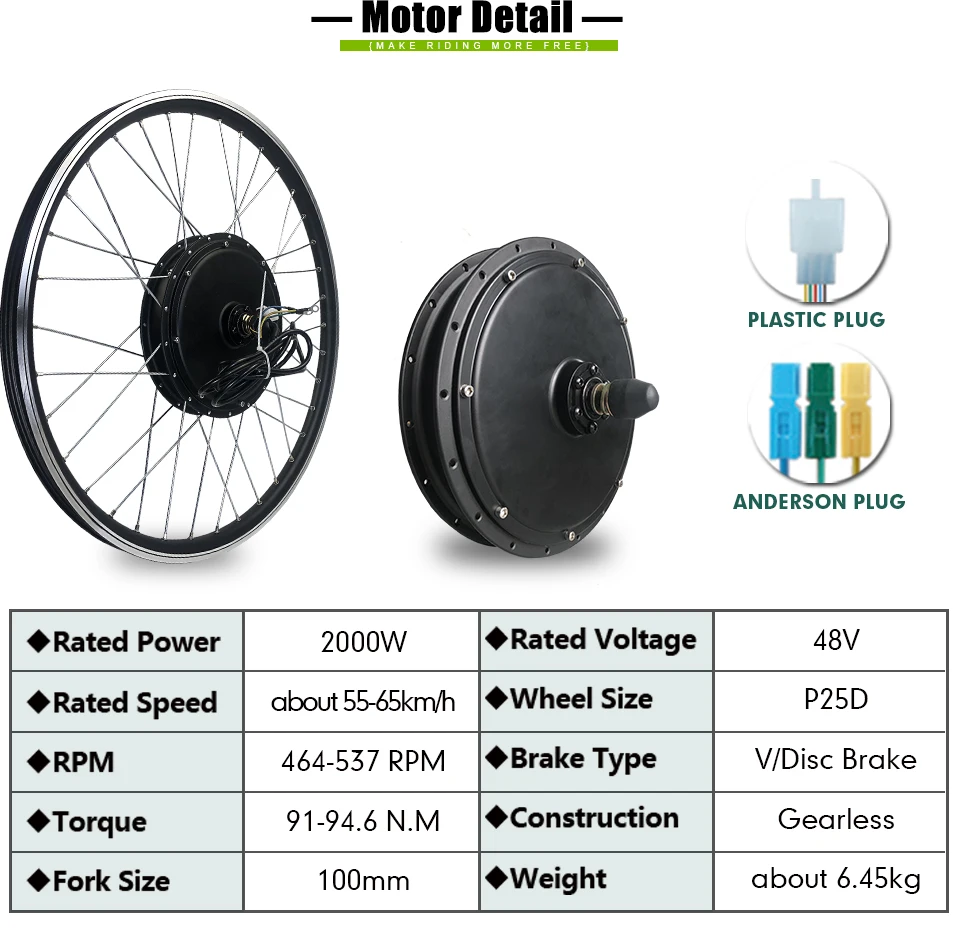

Motor Detail
Rated Power: 2000W
Rated Voltage: 48V
Rated Speed: about 55-65 Km/h
Wheel Size: P25D
RPM: 464-537 PRM
Brake Type: V/Disc Brake
Torque: 91-94.6 N.M
Construction: Gearless

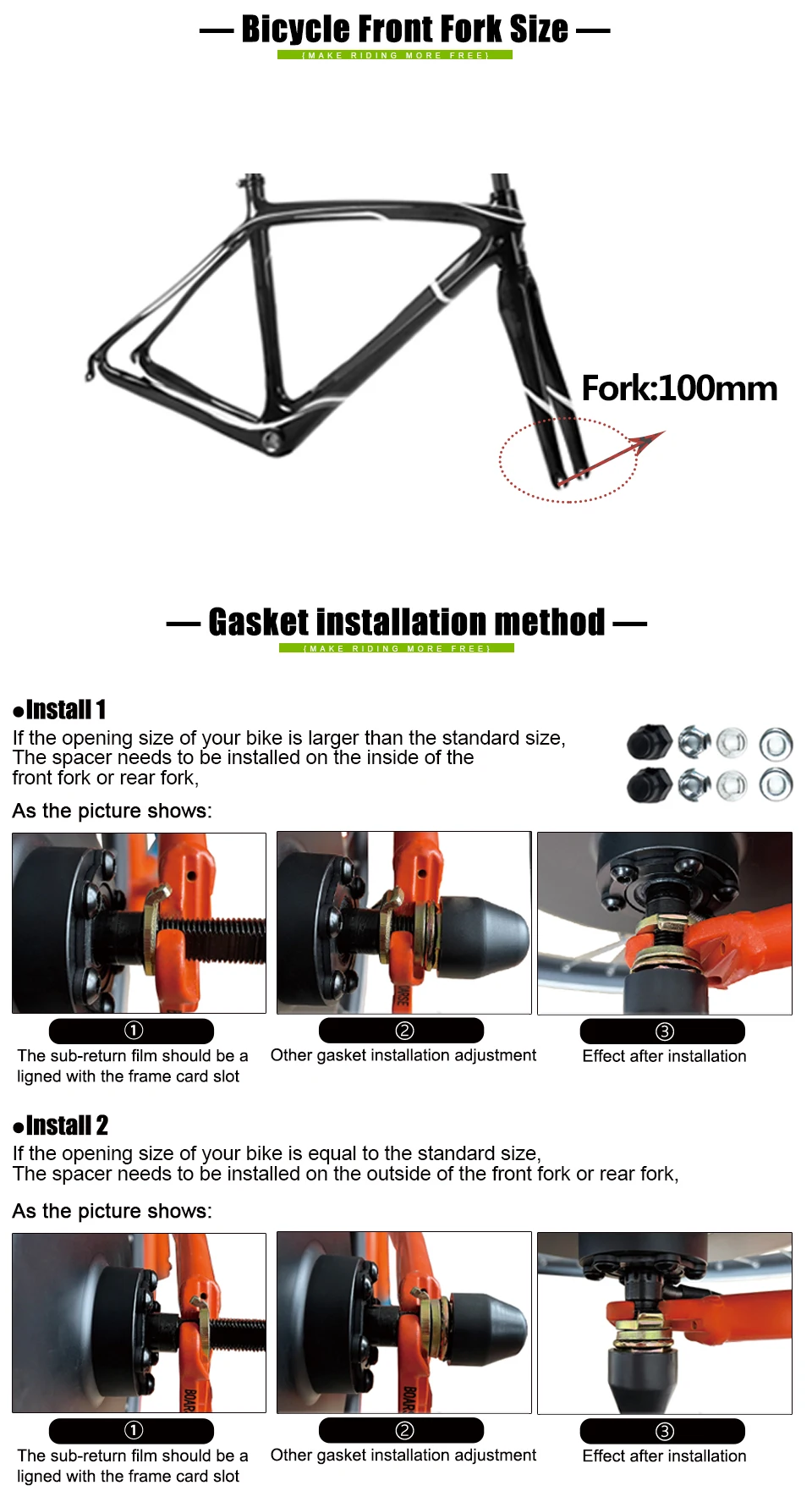

Fork Size: 100mm
Weight: about 6.45kg

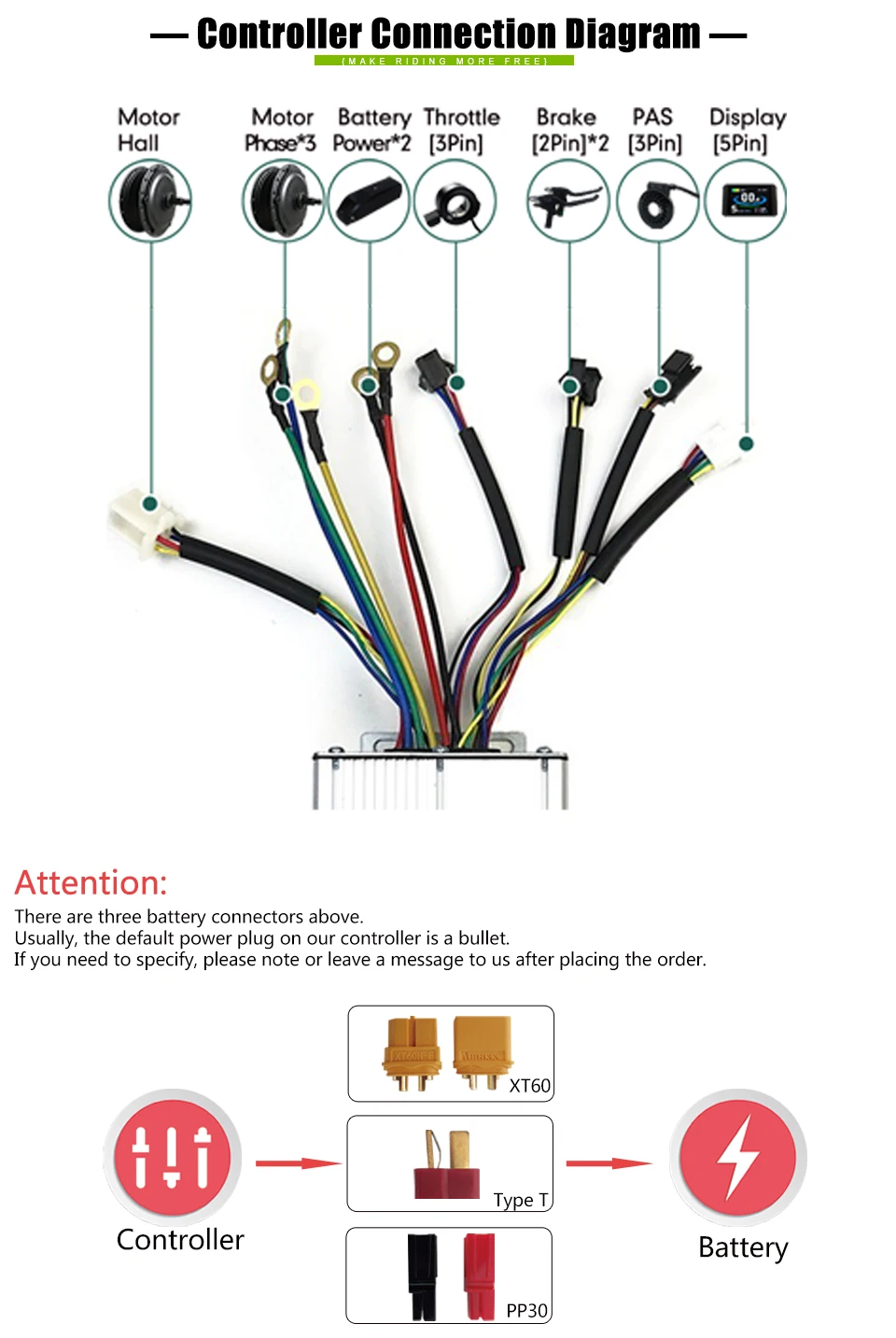

Controller Detail
Type:KT 50A Controller(Square wave)
Brand :KT（KUNTENG）
Color :Silver
Dimension :about about 236 * 88 * 42 mm mm
Mosfet :18 Mosfets
Maximum current :50±2A
Rated current :25A
Rated voltage :DC36V/48V
Speed set :1-4.2V
Brake input :Low-Level
Low voltage protection :DC24±0.5V
Cable Length :all about 13-18cm
Weight:about 872g
Wave:Square wave

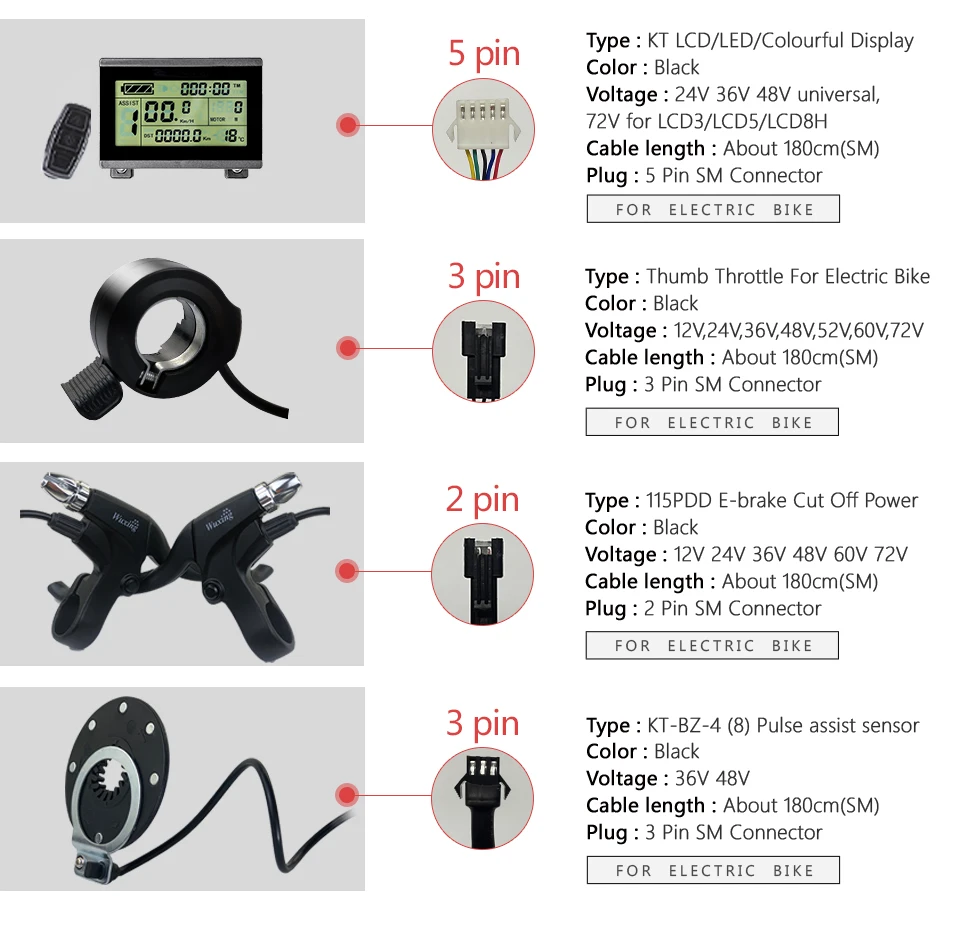

KT Display:
Voltage:24V/36V/48V
Color:Black
Weight:◆Weight:about 250g
Handlebar size for holding:Φ22.2mm/25.4mm/31.8mm
Display Cable Length:SM connector ,about 180cm ,Switch button length about 27cm
115PDD E-break:
Type:115PDD E-brake Cut Off Power
Voltage:12V 24V 36V 48V 60V 72V
Cable Length: 180cm (SM)
Weight :300g
Waterproof :IP76
Material:Aluminum Alloy
Installation:Left/Right
Size:L156mm W105mm H34mm
Plug :2 pin SM plug
130X Thumb Throttle:
Type: 130X Thumb Throttle
Voltage :12V,24V,36V,48V,52V,60V,72V
Wire length :180cm/70.87in (SM)
Plug :3 Pin Connector
Installation :Left/Right
Weight :100g
KT-BZ-4（8）PAS:
Type: KT-BZ-4(8) Pedal Assistant Sensor
Material: Plastic
Color: Black
Weight: 60g
Installation: Left
Cable Length: 80cm SM Plug
Voltage: 12V/24V/36V/48V/60V/72V
