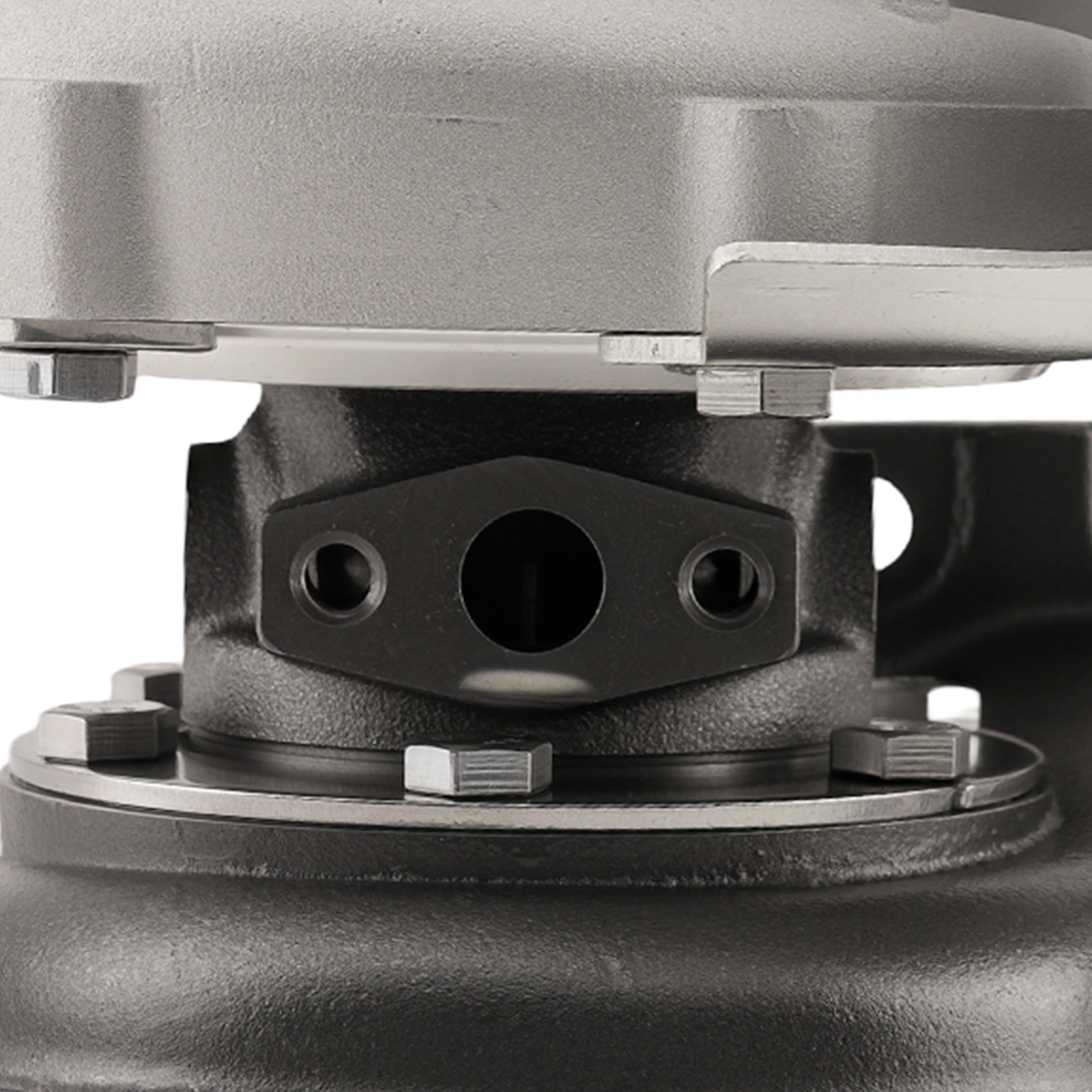

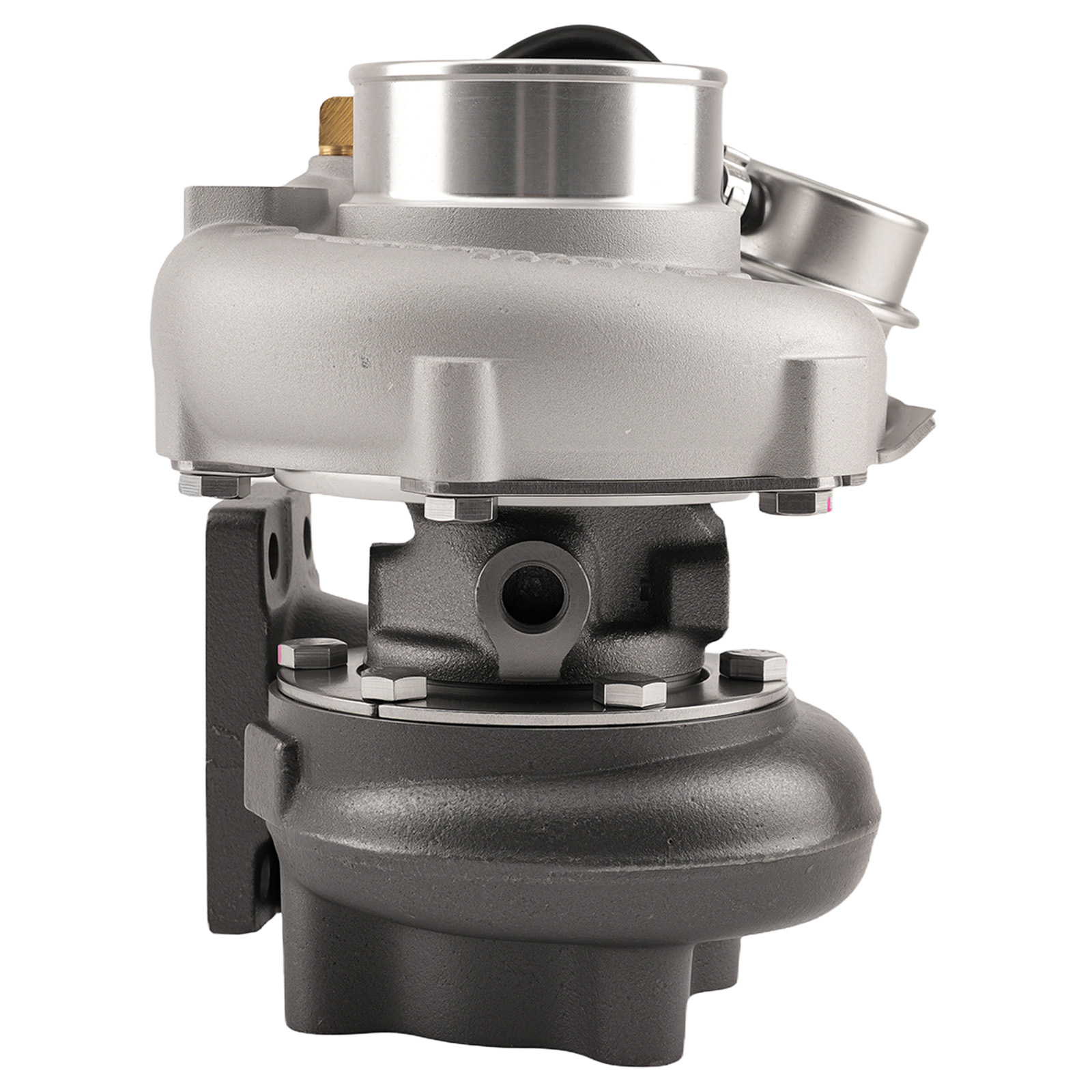

Upgraded Billet GT28 GT2871 Universal T25 Turbo Ball Bearing Turbine Trim 76.3

Images

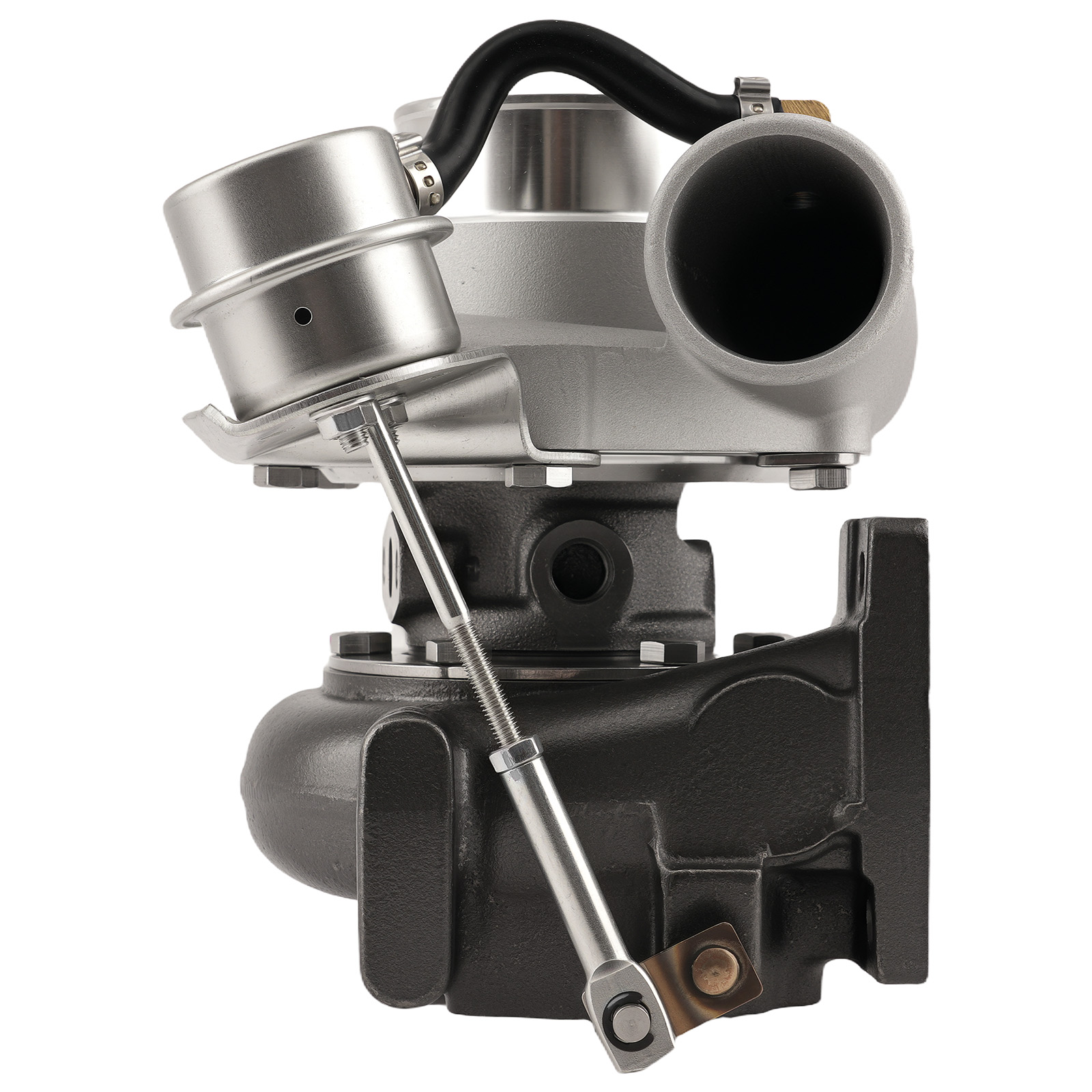

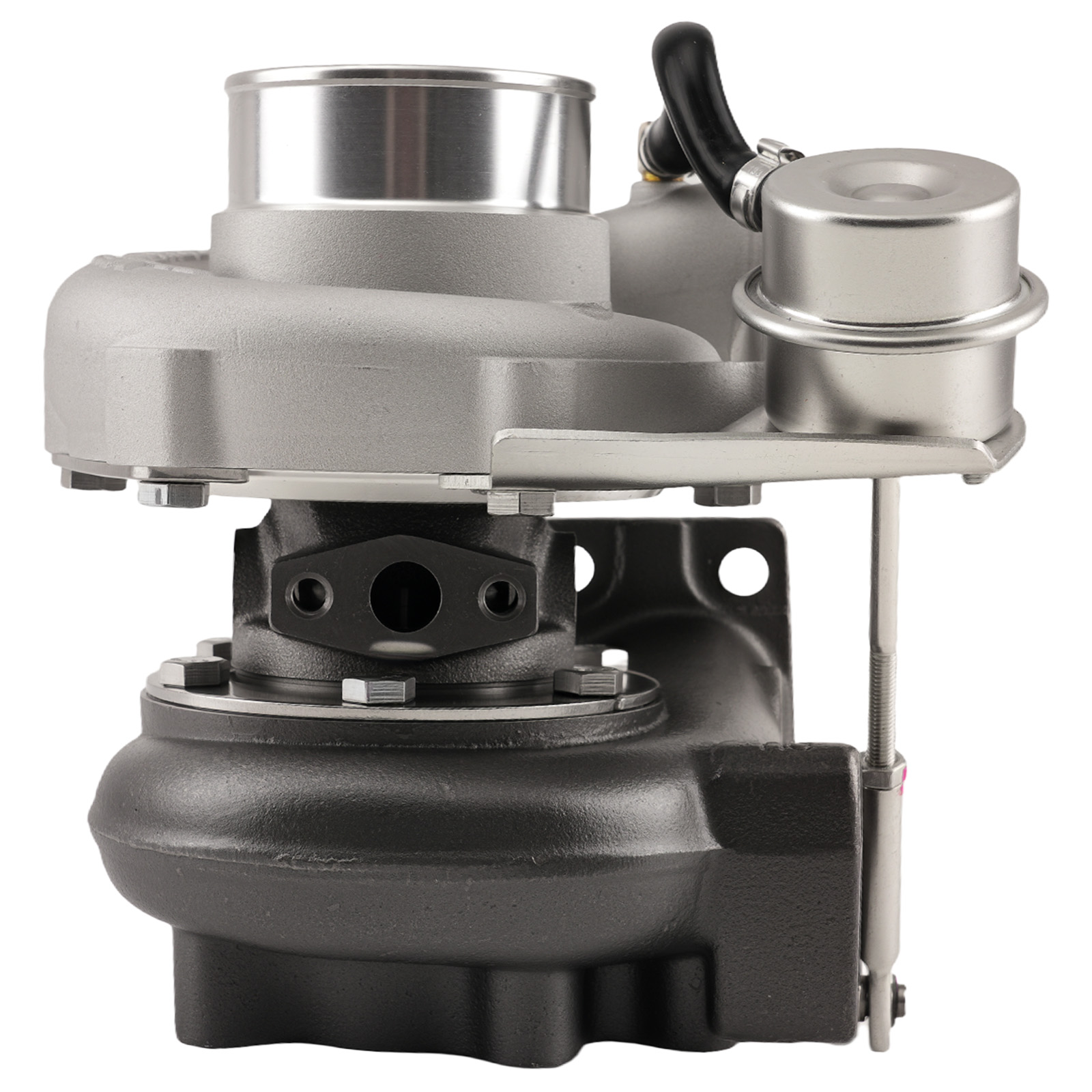

GT2871 Racing Dual Ceramic Ball Bearing Billet Turbocharger



Application:

Universal for Turbo Manifold with T25 Flange (T28 Flange can be converted to T25 Flange, Adapter is needed).
Perfect for all 1.5L-2.0L engine, for all 4 cylinder engine



Specification:

Exhaust Inlet Flange: Standard T25 Flange
Exhaust Outlet Flange: 5-Bolt

Turbine:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm

Compressor:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter:49.2mm
Compressor Exducer Diameter: 71 mm

Cooling Type: Water+Oil Cooling
Bearing Type: Dual Ceramic Ball Bearing
Thrust bearing: 270 Degrees
Horse Power: Boost Horse Power up to 350BHP
Wastegate: with Wastegate
Oil Restrictor: Yes
Oil Restrictor Size: Inside diameter 2mm
Oil Feed Size: 12mm
Oil Drain Size: 14mm
Oil Drain Thread Pitch: 40mm
Oil Inlet Size: M12*1.25
Oil Outlet Size: M14 & 2*M8*1.25

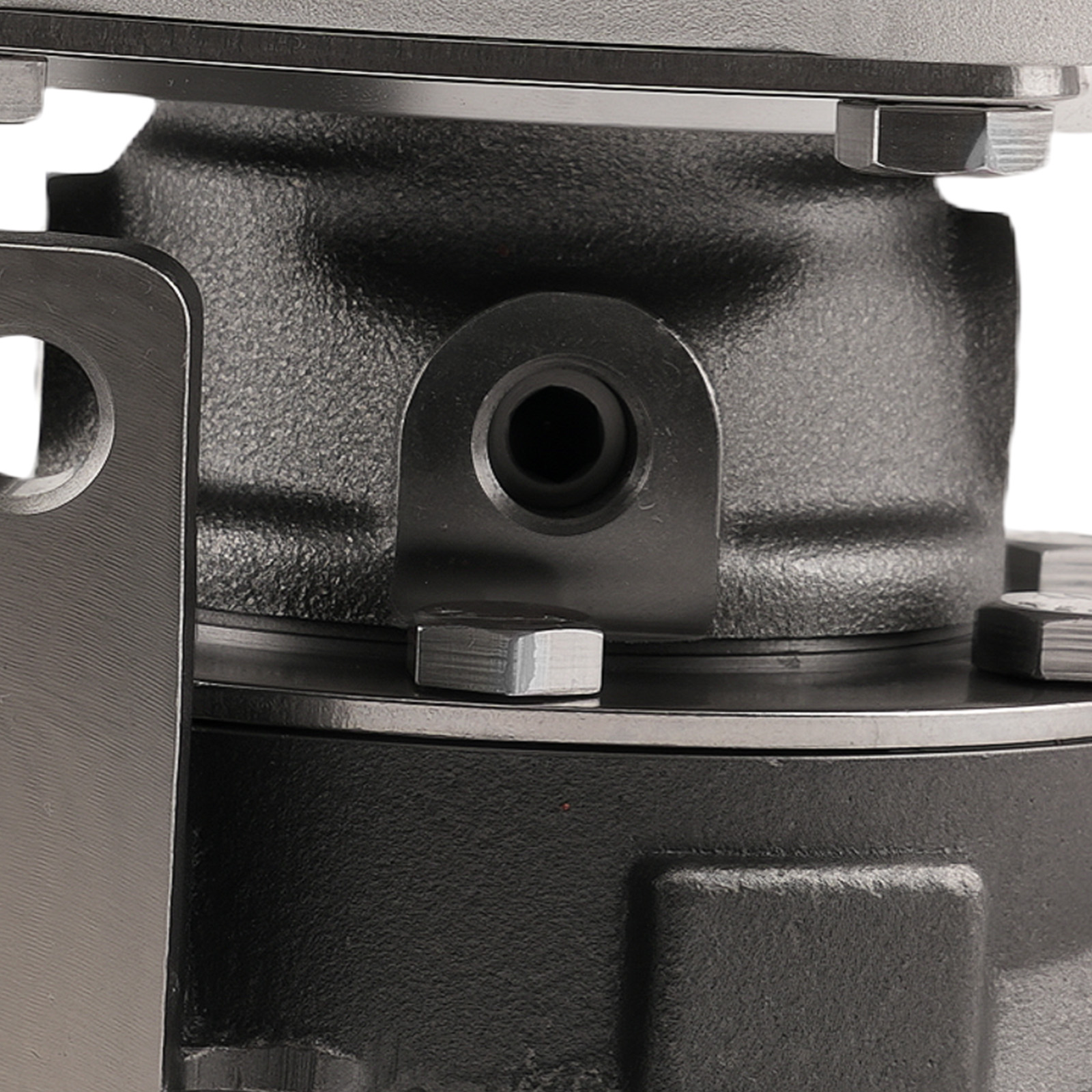

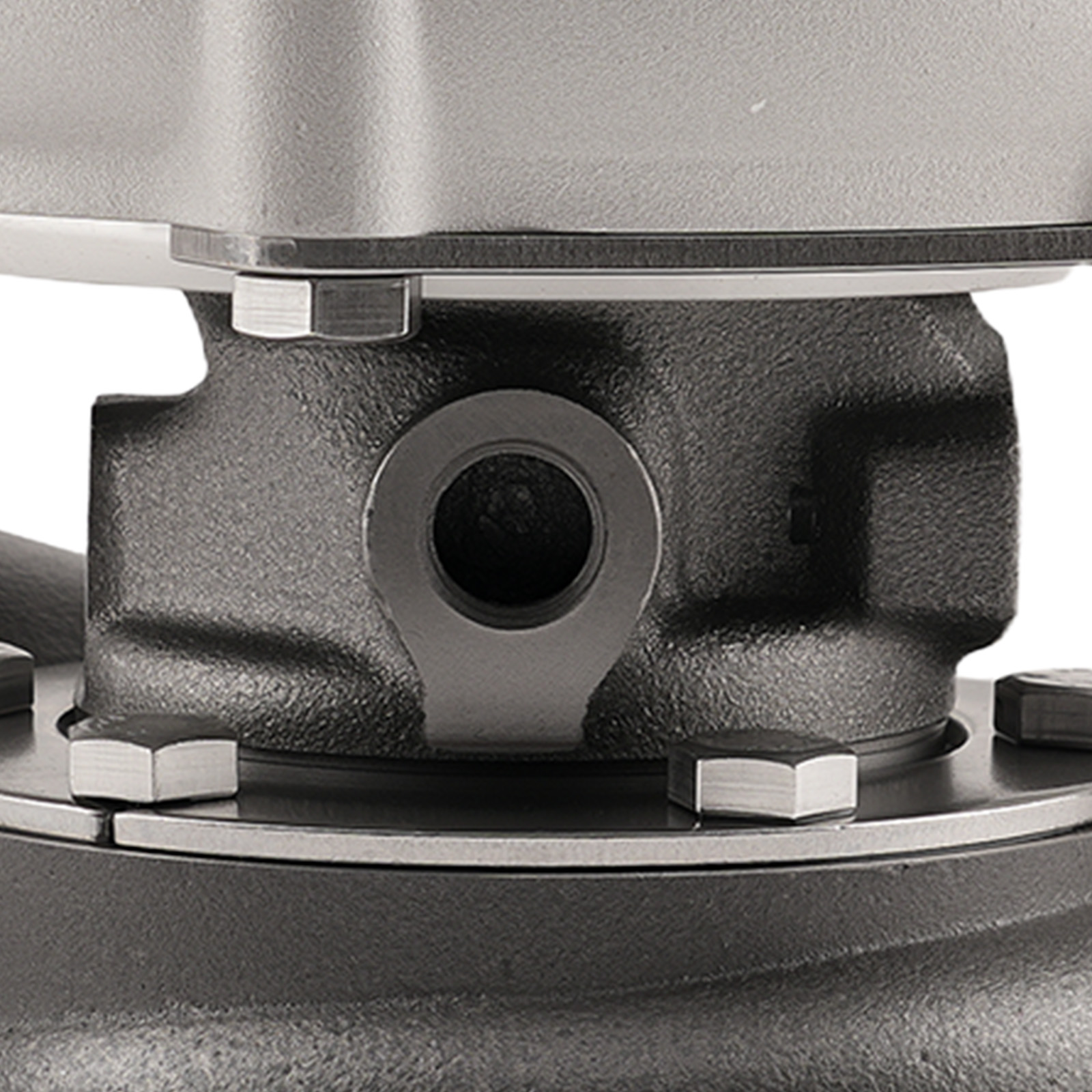

Water Thread Size: M14*1.5

Turbo Type: Individual
Universal Fitment: Yes
Finish:Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size:25x 23 x 26 cm
Package Weight: 7950g



Features:

*Product Material

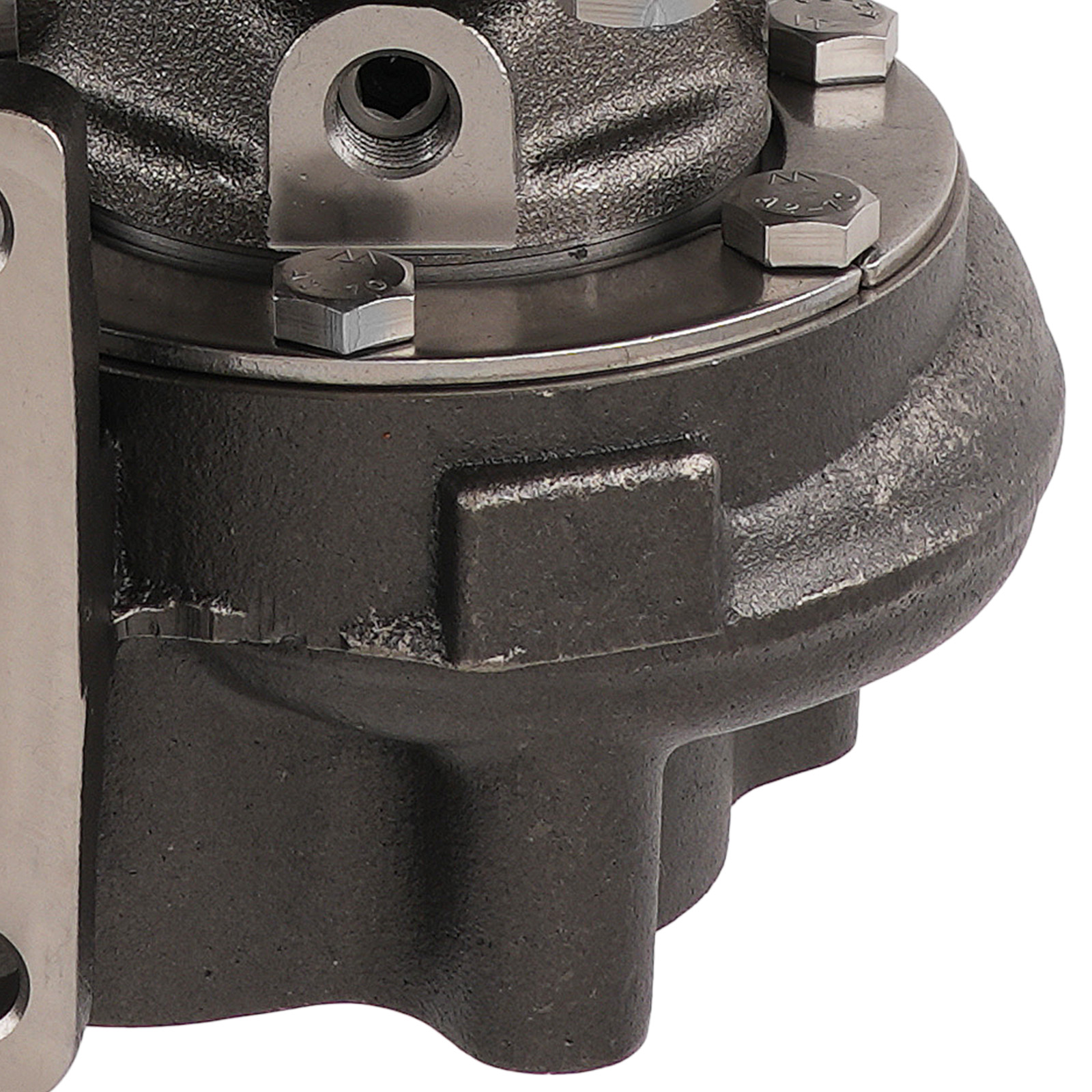

1. Turbine housing: Stainless steel turbine housing - temperature resistant up to 1020℃

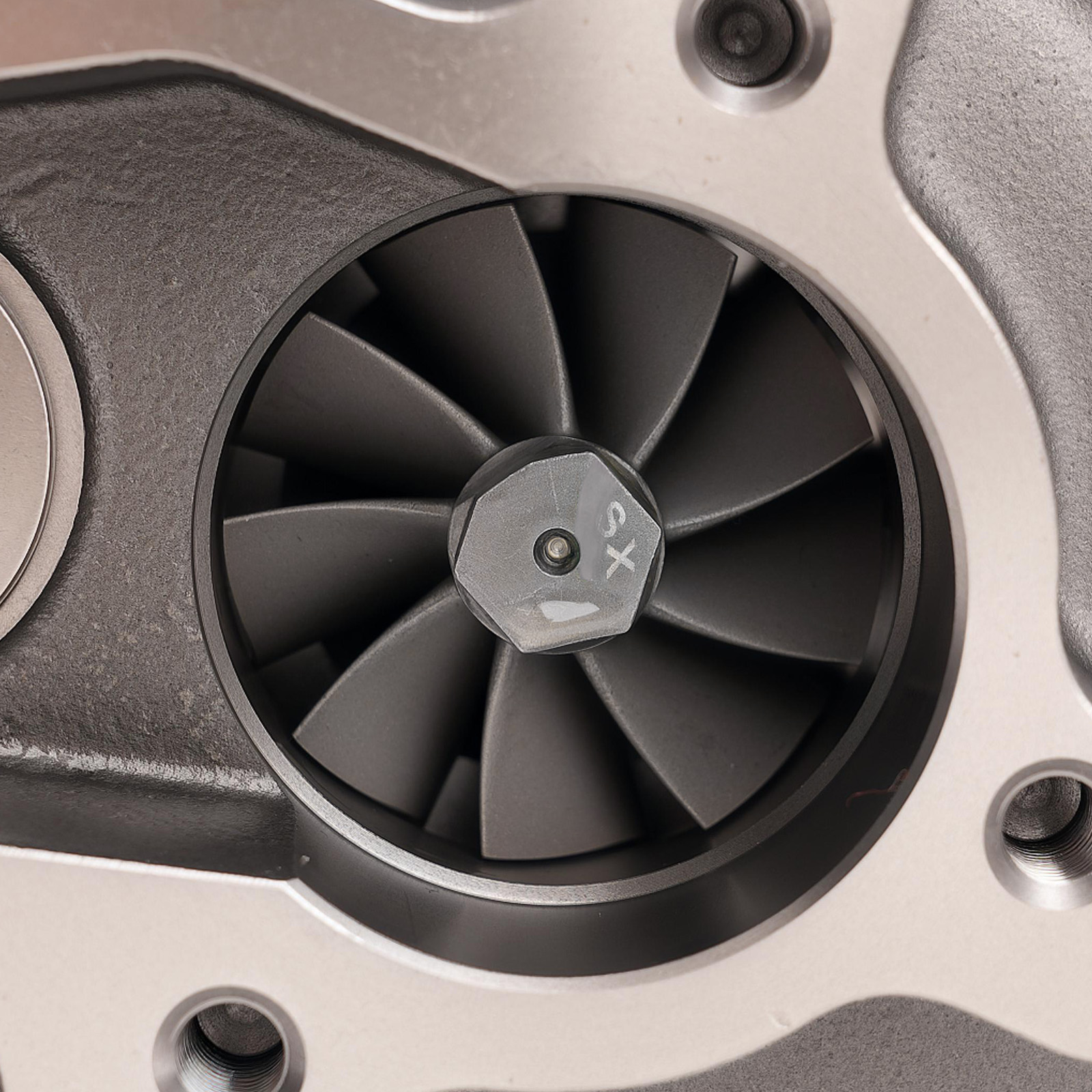

2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance  up  to 1000℃
3. Compressor housing: ZL104 aluminum with lightweight

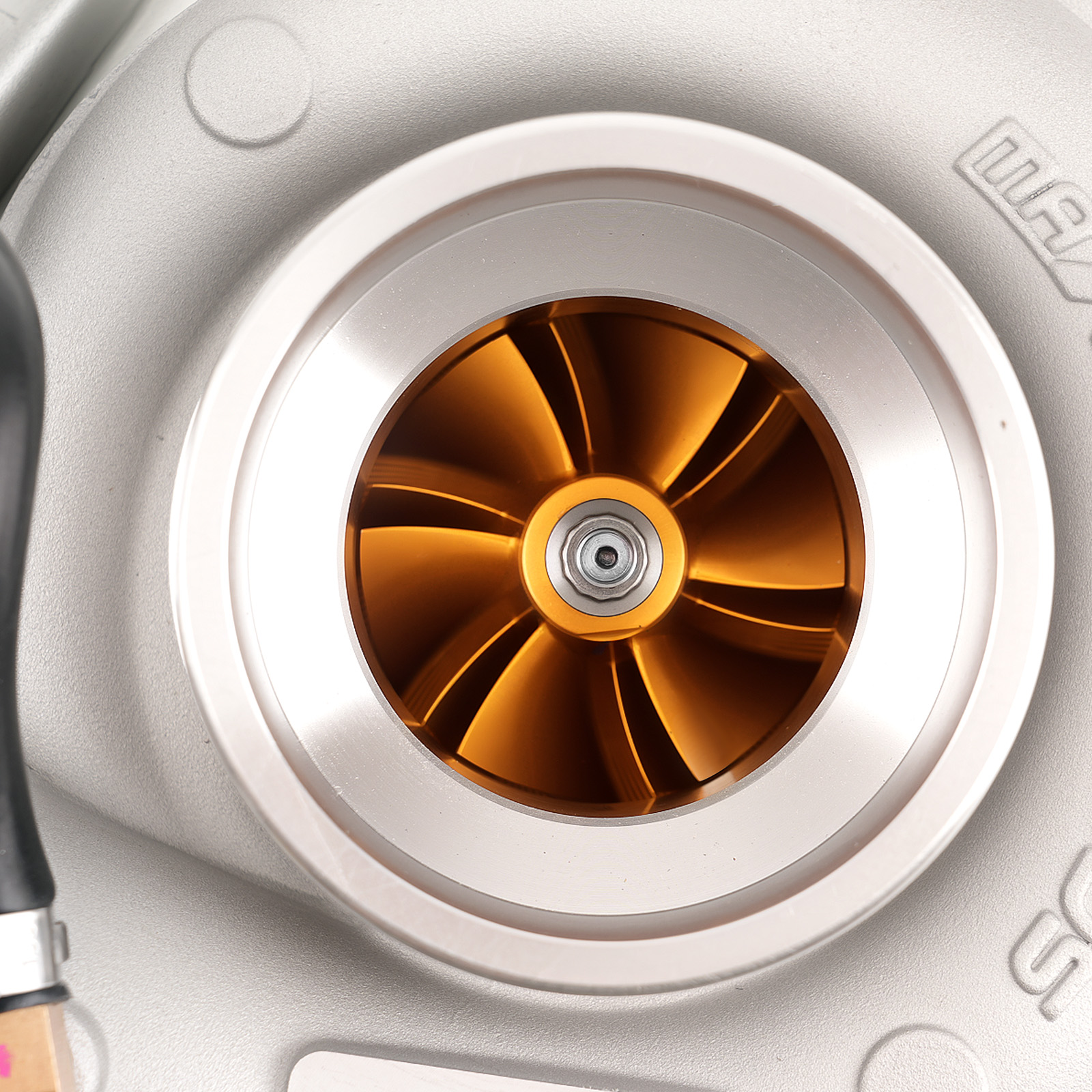

4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response

Feature

1. Racing turbocharger
2. Excellent high temperature resistance,high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

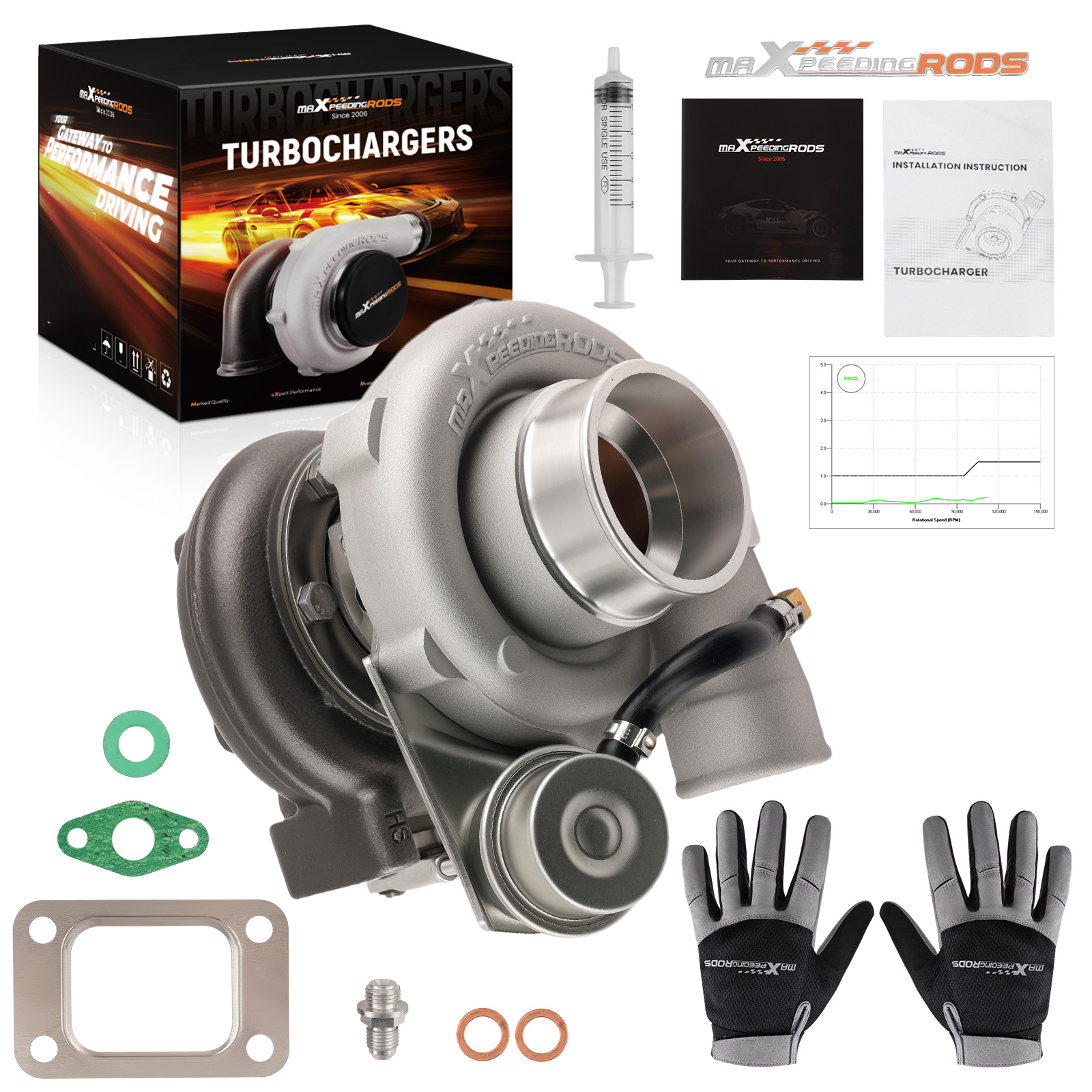

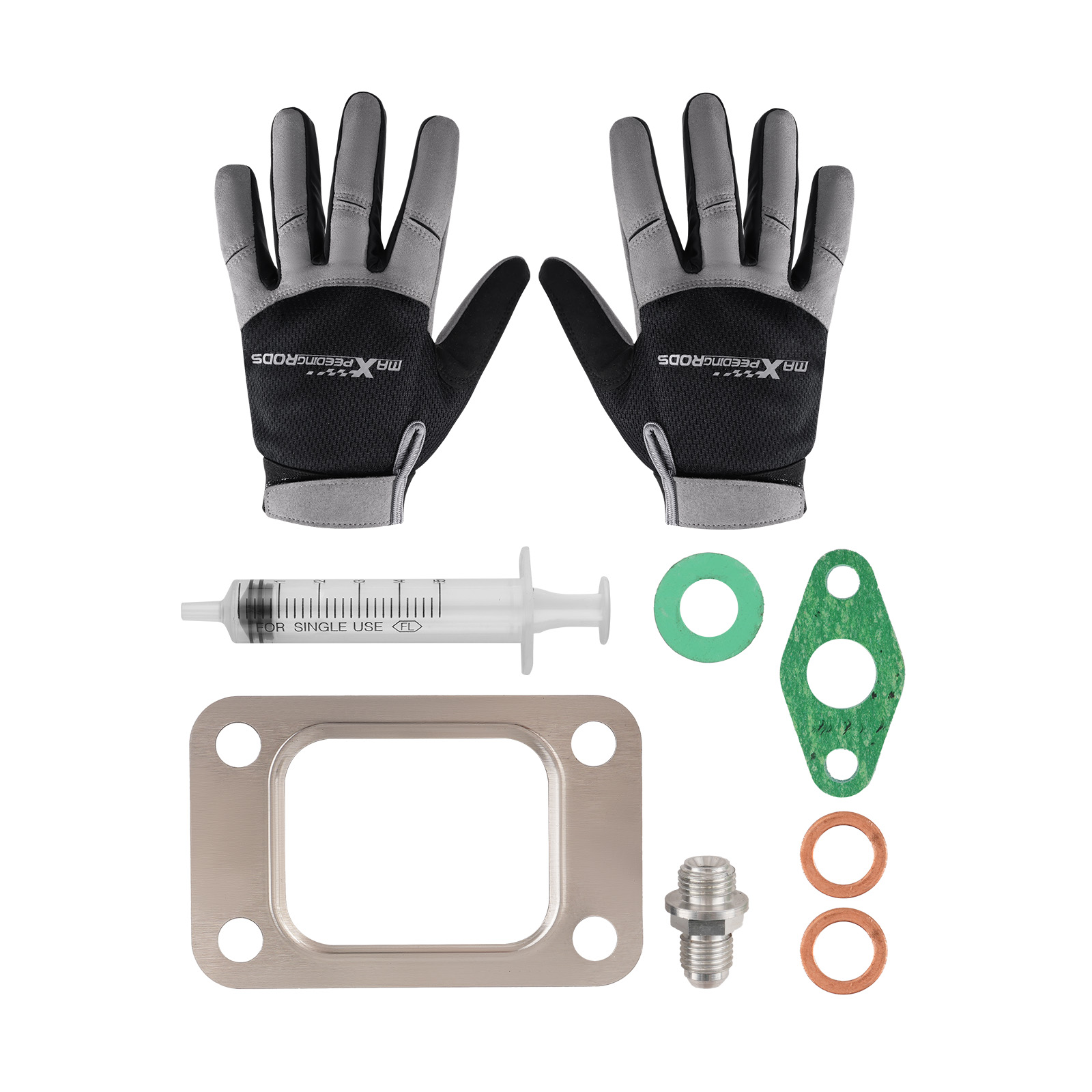

Package included:

1x Turbocharger
1x Oil Gasket
1x Flange Gasket
1x Bolts
1x Manual
1x Brochure
1x Sticker



Notice:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
