CAMWAY Digital Ultrasonic Thickness Gauge
Digital Ultrasonic Thickness Gauge Tester Meter, Range 0.039 to 8.85 in with Probe for Measuring Metal and Nonmetal Materials, Steel, Silver, Plastic, Glass, PVC, Pipes

WT100A Features:
  • 【 Fast & Accurate】  The ultrasonic thickness gauge measuring ranges from 0.039 to 8.85 in/1 to 225mm, Resolution: 0.01mm. you can get accurate (±0.5%H+0.05mm) readings in inch or mm in 0.5 seconds.
  • 【Two Calibration Modes】Basic Calibration and Sound Speed Calibration,The ultrasonic thickness gauge calibration block is close to operation key,with thickness of 4.0 mm,The sound speed in calibration is automatically set as 5900m/s,You can be easily changed sound velocity from 1000 to 9999m/s to get the most accurate results.
  • 【Data Storage & 5 Colourful Backlight LCD Display】Digital Ultrasonic Thickness Tester store up to 500 readings and recall function.View the number of data, maximum, minimum, average, etc, Easy to read measurements at all angles with High contrast LCD and backlit brightness with 5 selectable display Color
  • 【Wide Application】Durable gauge and probe construction,Measures with 0.01 mm display resolution and ±(0. 5%H +0. 05) mm Accuracy,The thickness of any good conductor for ultrasonic waves with top and bottom surfaces parallel to each other, like metal,plastic, ceramic and glass, can be measured with the instrument.For example: aluminum, copper, gold, resin, water, glycerin, etc.
  • 【 What You Get】  1x Digital ultrasonic thickness gauge, 1x Probe 5MHz, Built-in metal calibration block, 1x USB Cable, 3x Rechargeable Battery, 1x Operation Manual, and 12 months warranty, and a friendly 24/7 professional customer service team.
CAMWAY Digital Ultrasonic Thickness Gauge

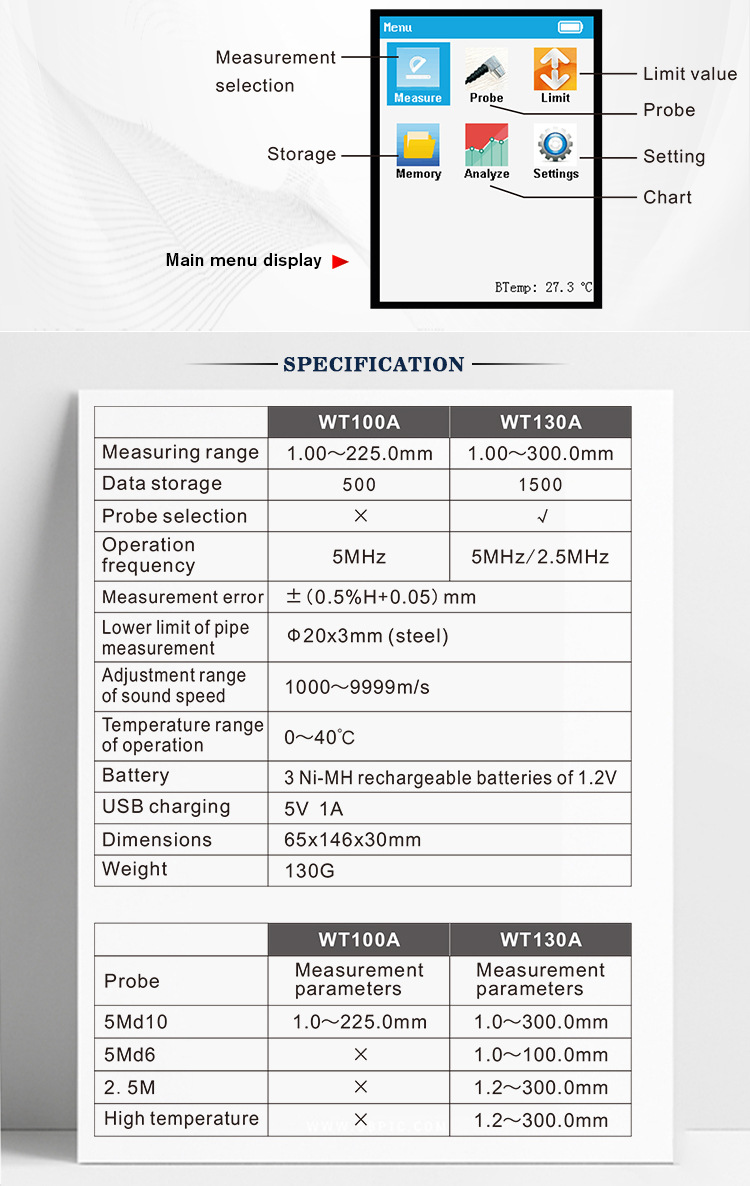

WT100A Specifications:
Transducer choice: 10mm 5.0MHz Transducer

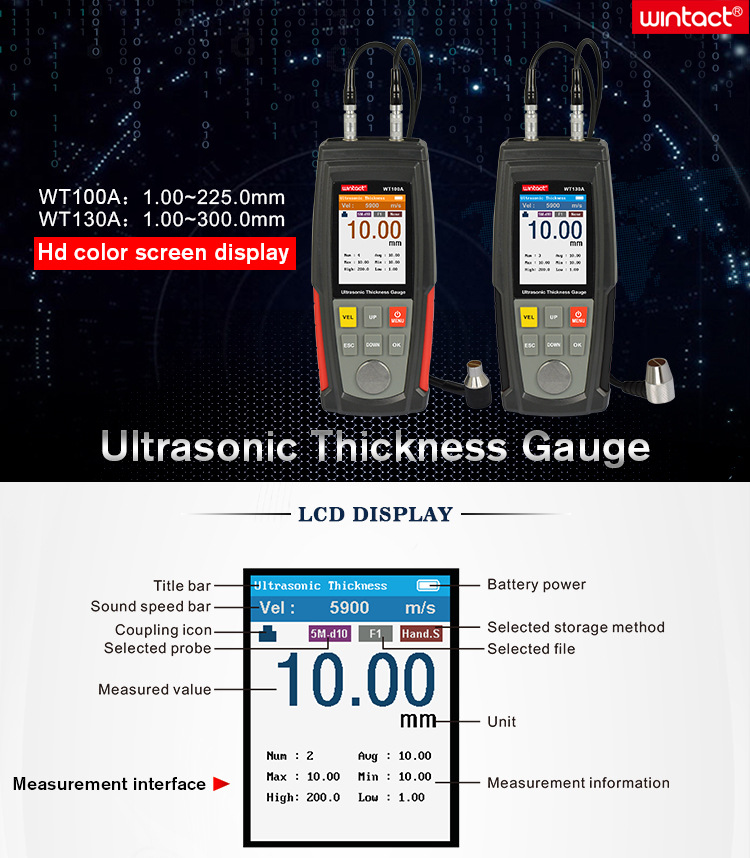

Display:240*320 Color Screen 4-digital LCD display
Minimum display unit:0.01mm
Working frequency:5MHz
Measuring range:1.0 to 225mm(steel)
Minimum limit for tube measuring:20*3mm(steel)
Accuracy:+/-(0.5%H+0.05)mm,H denotes the measured thickness.
Sound velocity range:1000 to 9999 m/s
Measuring sound velocity with a given thickness: measuring
range: 1000 to 9999 m/s.When the given thickness over 20mm,the accuracy is +/-0.5%; when the given thickness less than 20mm,the accuracy is +/-0.5mm/H*100%.
Operation temperature:0 to 40℃
Power supply 3 Ni-MH rechargeable batteries of 1.2V
USB charging 5V 1A
Operation current: Normal operation current 50MA, with Backlight turn on current 120mA
Stand-by current: 20Ua
Size:65*146*30mm

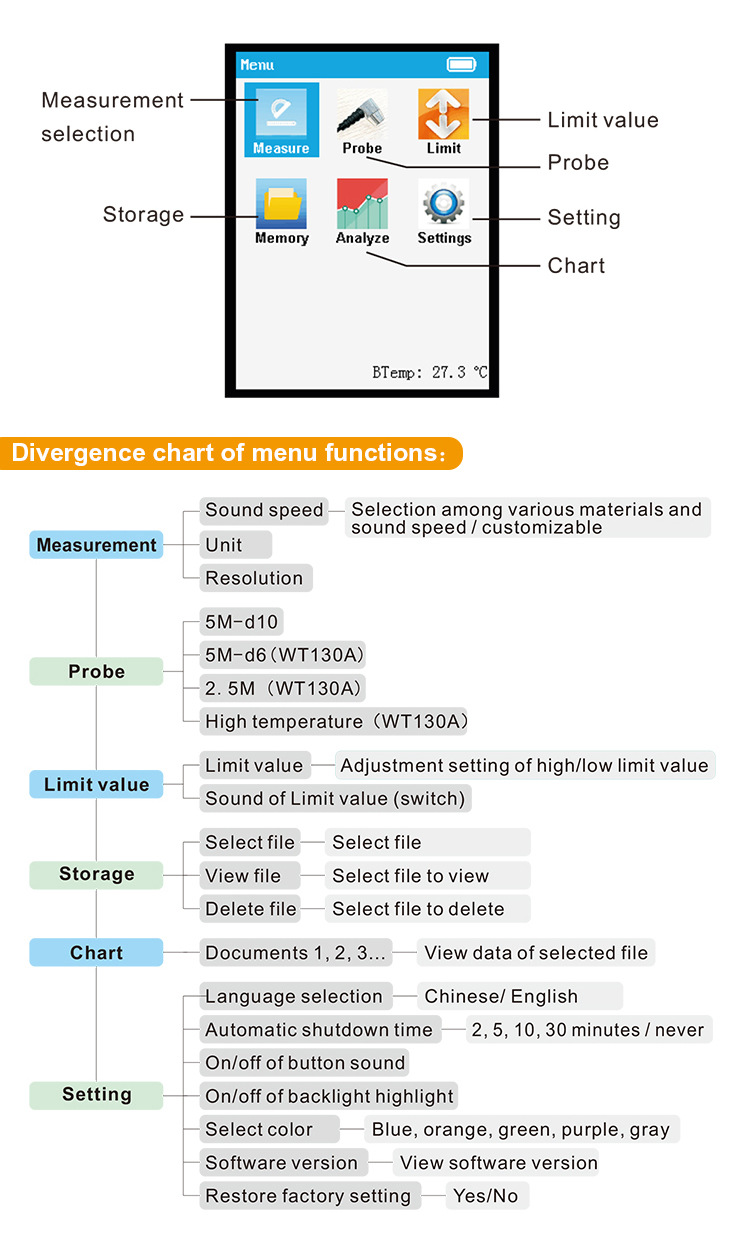

WT100A Other Function:

Backlight:Yes
Data hold:Can store 500 sets of data
Automatic shutdown
Pre stored sound speed: 12 different sound speeds
Upper and lower limit alarm: Yes


WT100A What is in the package:

  • 1*Ultrasonice Gauge WT100A
  • 1*Probe
  • 1*Hard shell PP Plastic Carry Case
  • 3 x 1.2V AAA battery
  • 1 x USB Cable with Adapter
  • 1*Manual
