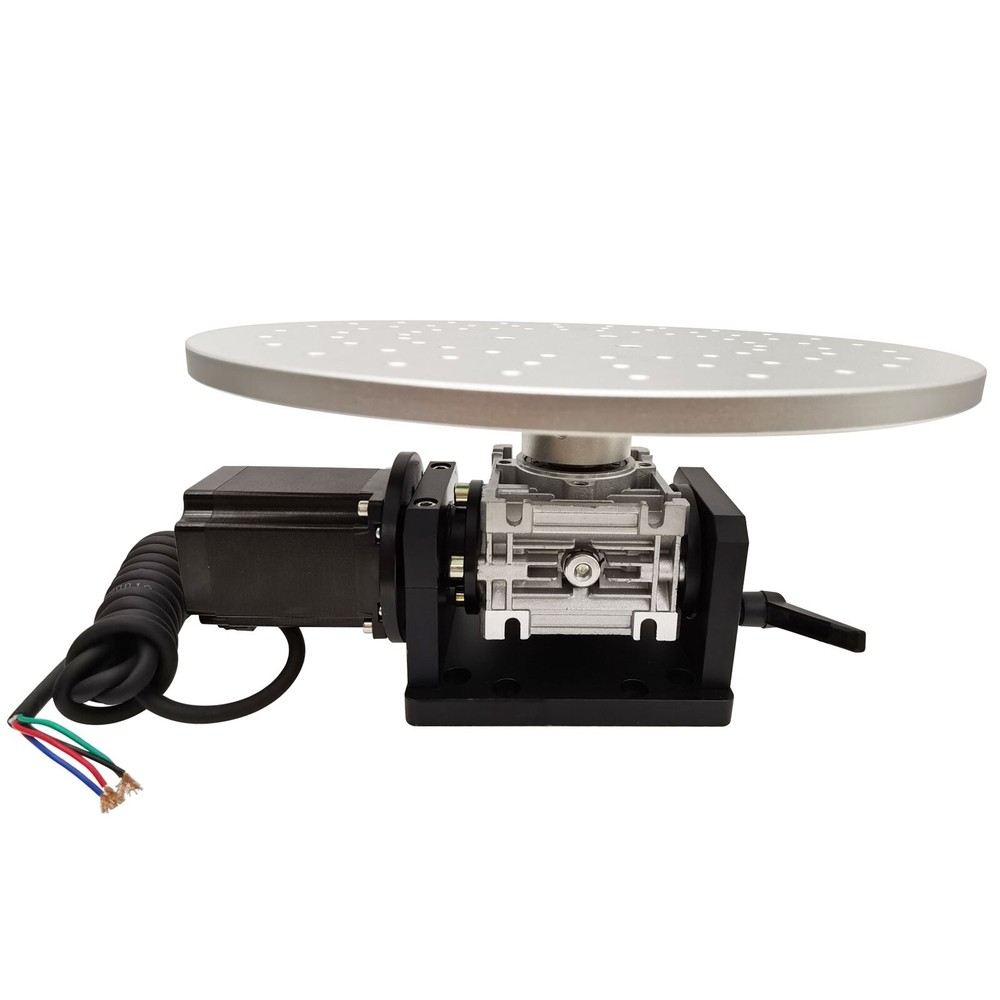

| Electric 360 Degree Marking Machine Rotary Table Workbench Rotating Platform for Marking Machine Electric Rotating Platform |
|
|
| Product Overview |
| Suitable for multi-station marking of small workpieces or marking of larger workpieces, can be used to fix the workpieces in the way of fixing strips, suitable for a wide range of products. It can also be used for product inspection. Using stepping motor, it is convenient to realize automatic control. |
| Product Parameters |
| Voltage: |
220V |
| Reduction ratio: |
1:10 |
| Motor: |
Stepping motor |
| Turntable material: |
Aluminum alloy |
| Center load: |
33lbs(15kg) |
| Rotation angle: |
0-45 degree |
| Diameter of platform surface: |
11.8"(30cm) |
| Mounting hole distance: |
2"*3"(50*75mm), the other group is 2.4"*3.5"(60*90mm) (two groups, eight 6.5 mounting holes) |
| Net weight/Gross weight: |
11.8lbs(5.35kg)/13.3lbs(6.05kg) |
| There are 3 rings of M6 thread holes on the table surface. |
|
 |

|
