1.100% brand new and high quality products, made of high quality materials, compact size, easy to install.
2. Easy to apply, strong fog, large fog output, continuous spraying.
3. Strong versatility, stable performance, simple to use, easy to operate.

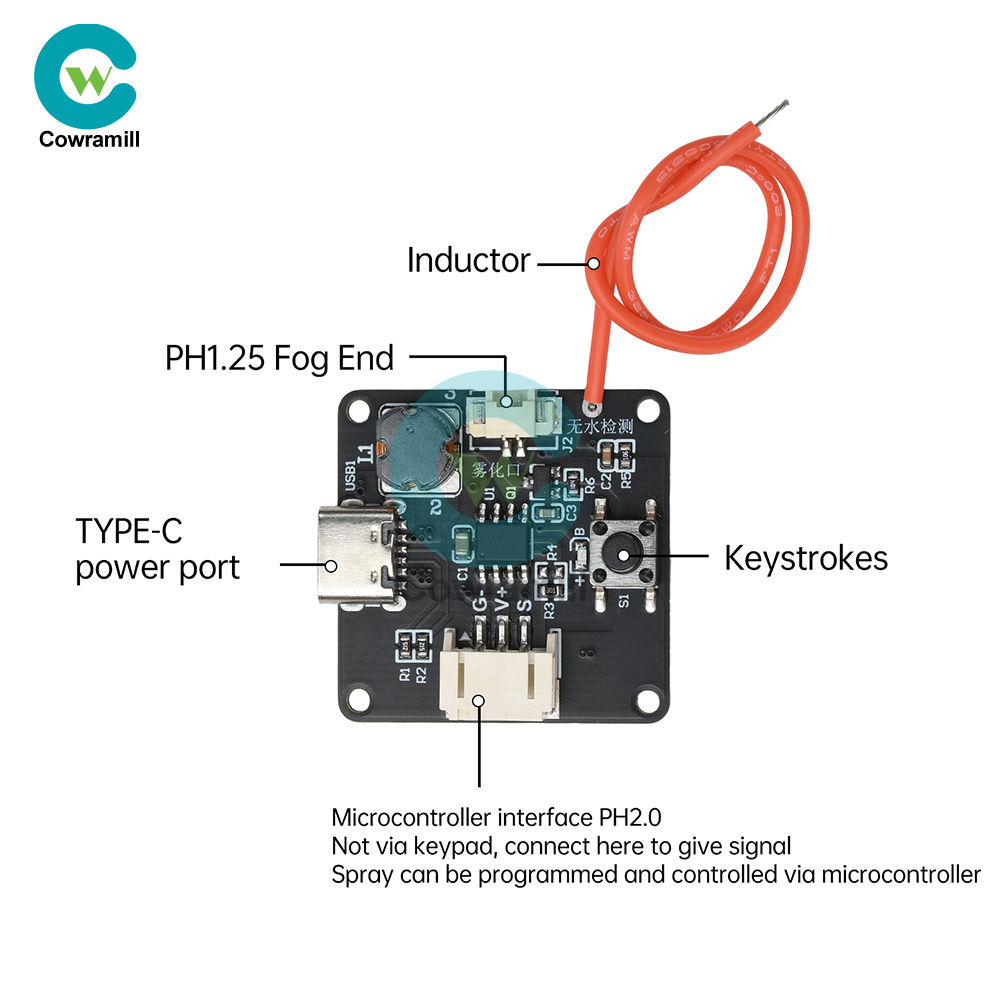

4. Support microcontroller linkage, humidifier module is equipped with a microcontroller control interface, which can be programmed through the microcontroller to control its work.
5. Wide range of applications: DIY homemade, plant moisturizing, product applications, module set ready to use assembly is simple.

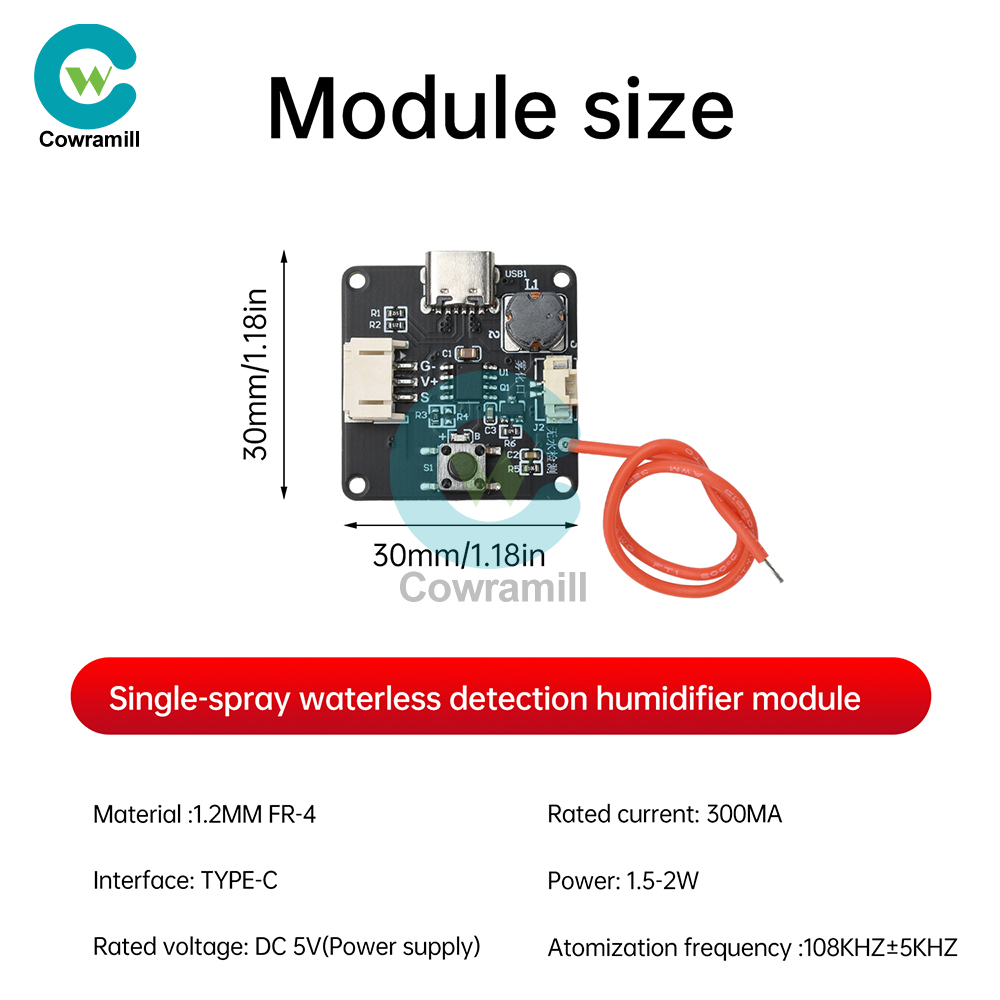

Name: single spray waterless detection humidifier module
Material:1.2MM FR-4
Interface:TYPE-C
Rated voltage:DC 5V(power supply)
Rated current:300MA
Power:1.5-2W
Atomization frequency:108KHZ±5KHZ
Module:30*30MM
Cotton swab:8*100MM

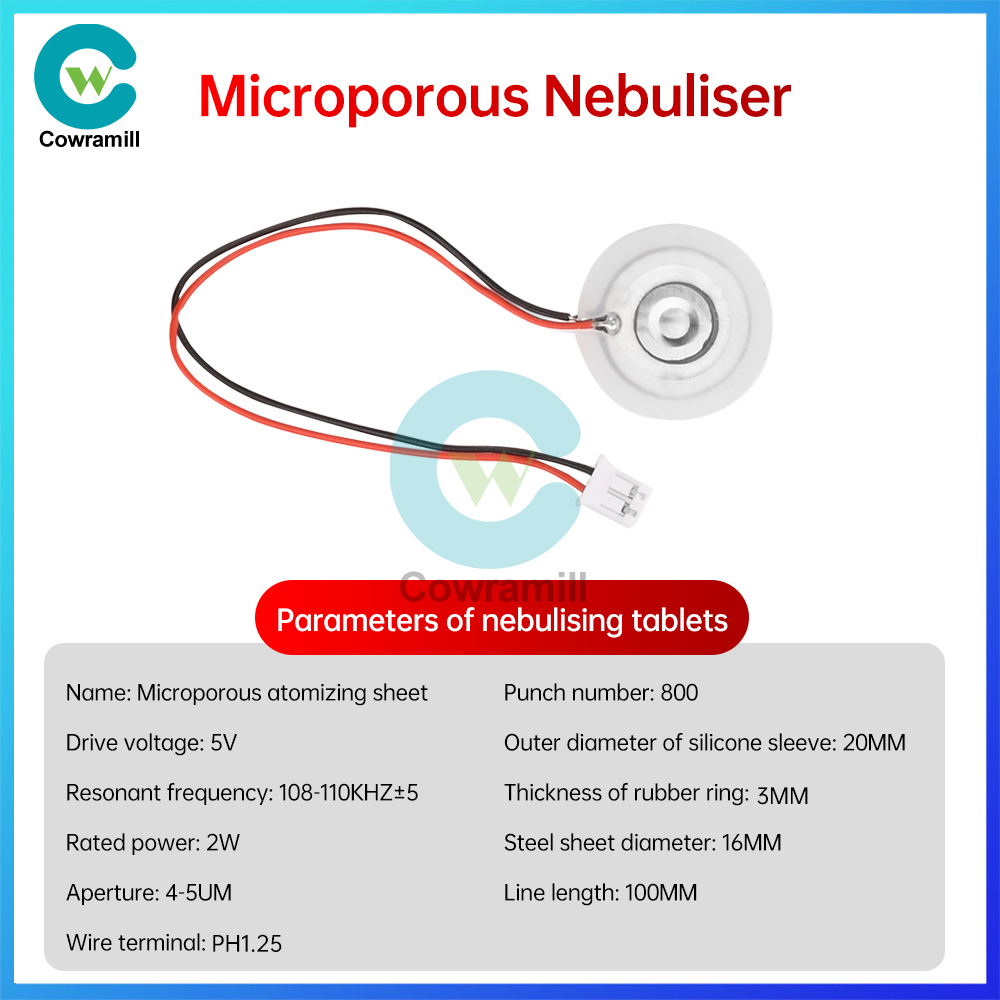

drive voltage:5V
resonance frequency:108-110KHZ±5
rated power:2W
number of holes punched:800
aperture:4-5UM
Silicone sleeve OD:20MM
Glue ring thickness:3MM
steel plate diameter:16 MM
wire length:10CM
wire terminal:PH1.25 interface
1, no water detection anti-dry burn function
2, microcontroller programmable control spray
3, high level, spray, indicator light, low level, shutdown
4, press a start spray, indicator light, press the second shutdown
1, the first installed atomizer bracket cotton swabs
2, the atomizer to the module atomizer port
3, and then the power supply to the module power port
4, press the power switch
5, the atomizer in the event of water that is the spray
1, it is strictly prohibited to poke the atomizer, atomizer welding points can not be folded and pulled
2, it is strictly prohibited not connected to the atomizer power
3, it is strictly prohibited to use the fast charger
4, it is strictly prohibited to modify the module
5, the module can not touch the water

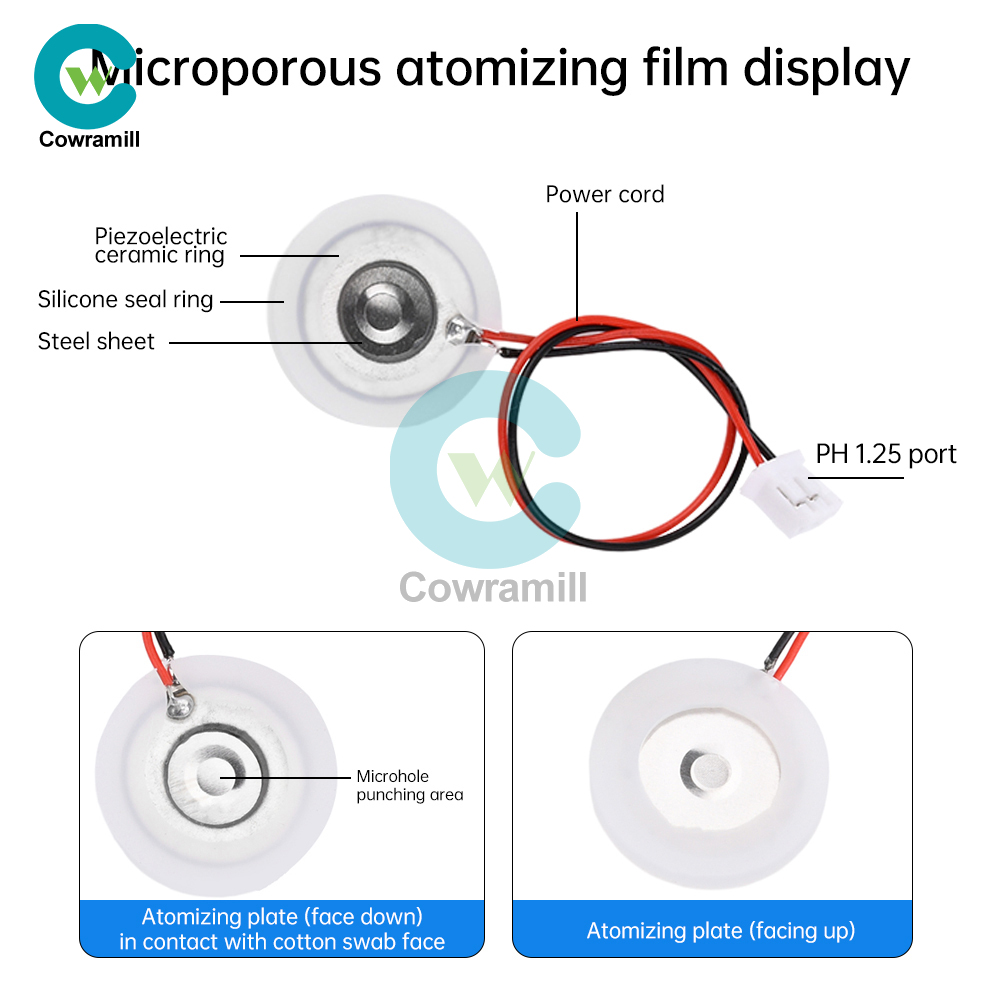

6, all steel (raised surface) down contact, cotton swabs absorb water
7, rated power input

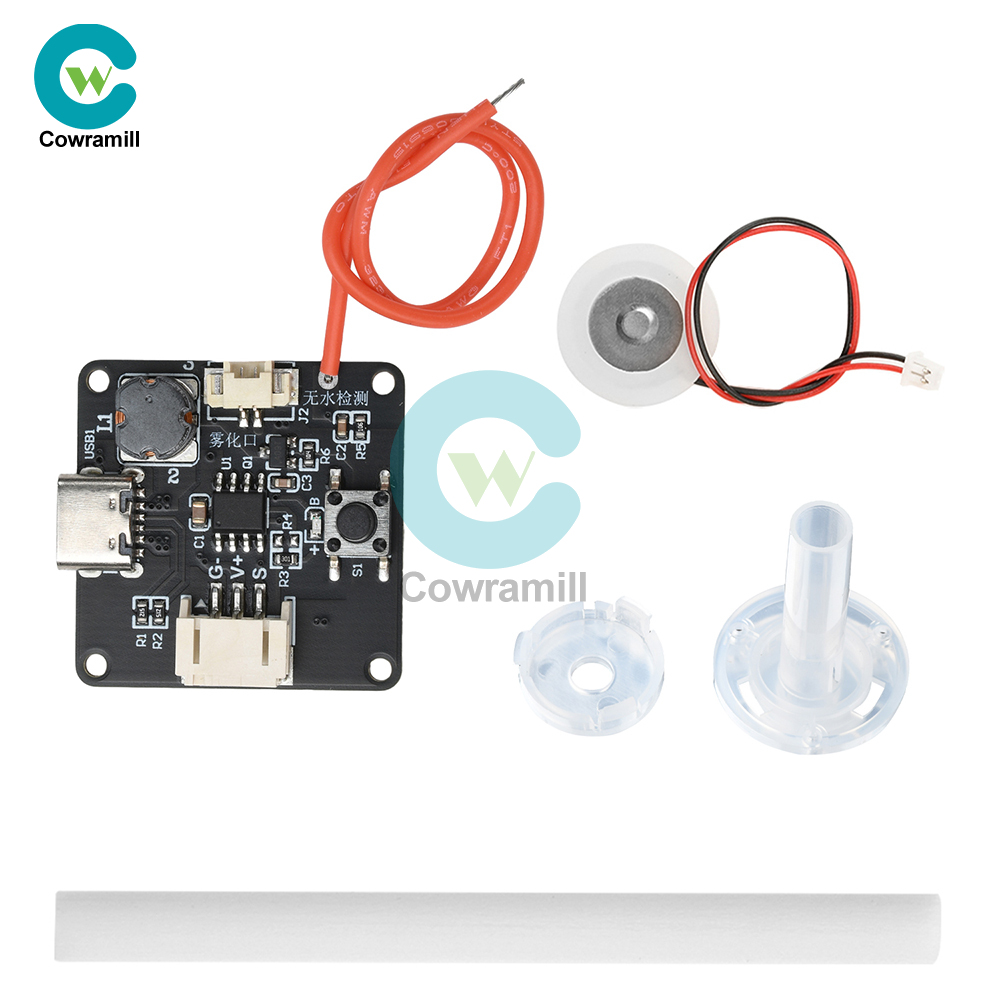

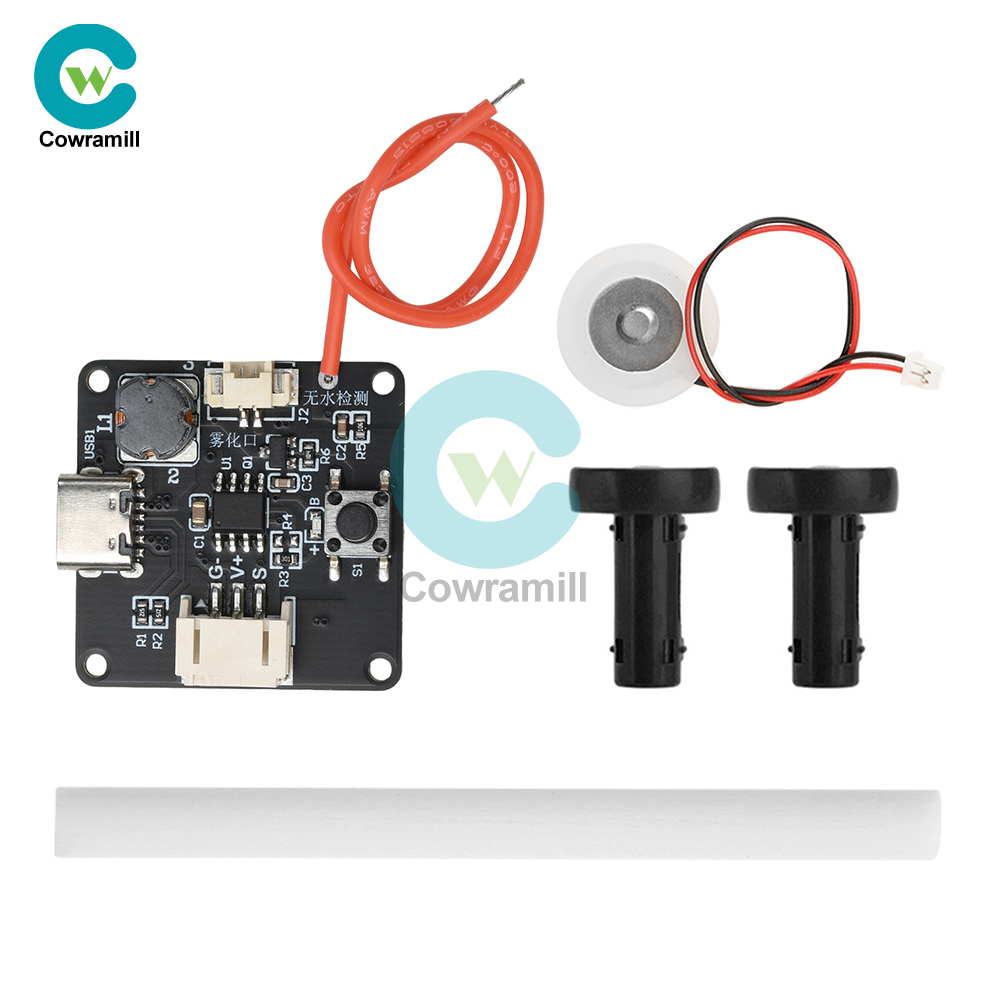

1 x Module

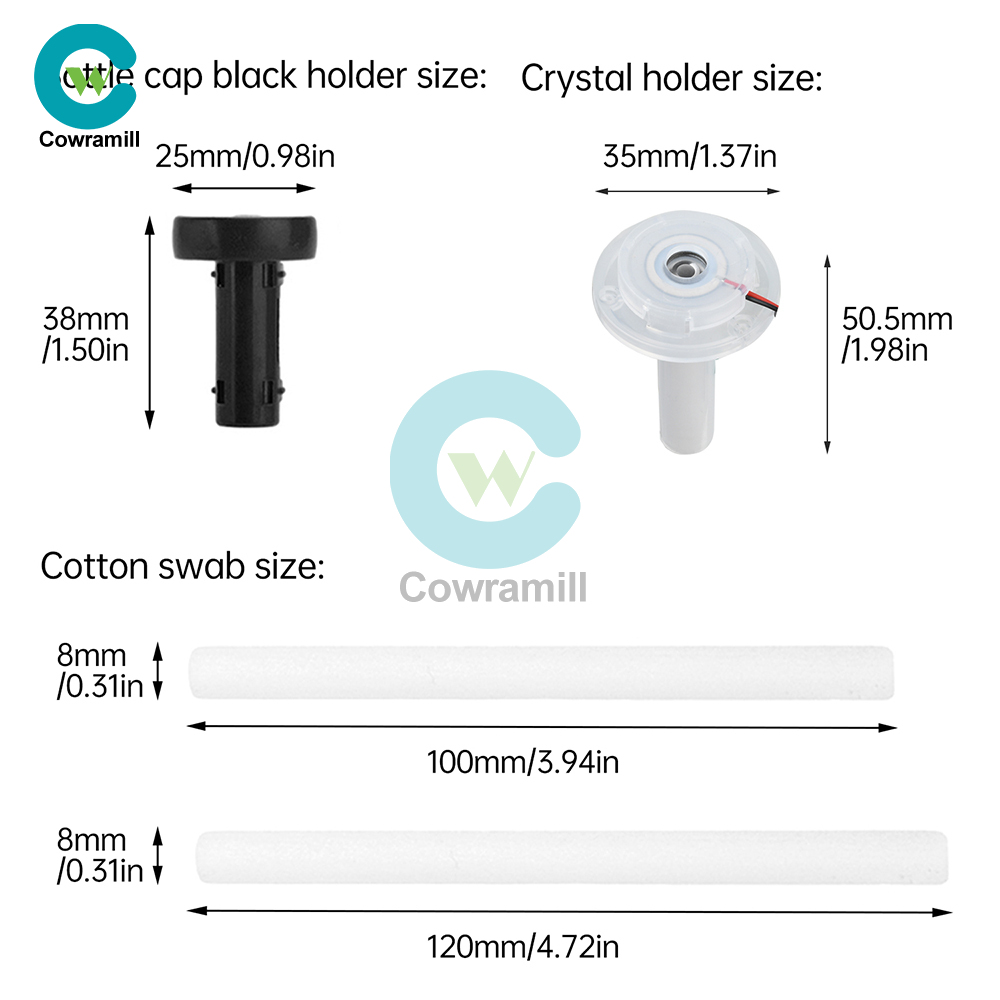

1 x Bracket Holder (optional)
1 x Atomizer Tablet (optional)
1 x Cotton Swab (optional)
