Details
1.Accurate control: the use of independent measurement channel design, tailored to the voltage regulator diode can be measured range 0.01-32V, power supply before measurement, so that accurate measurement at your fingertips!

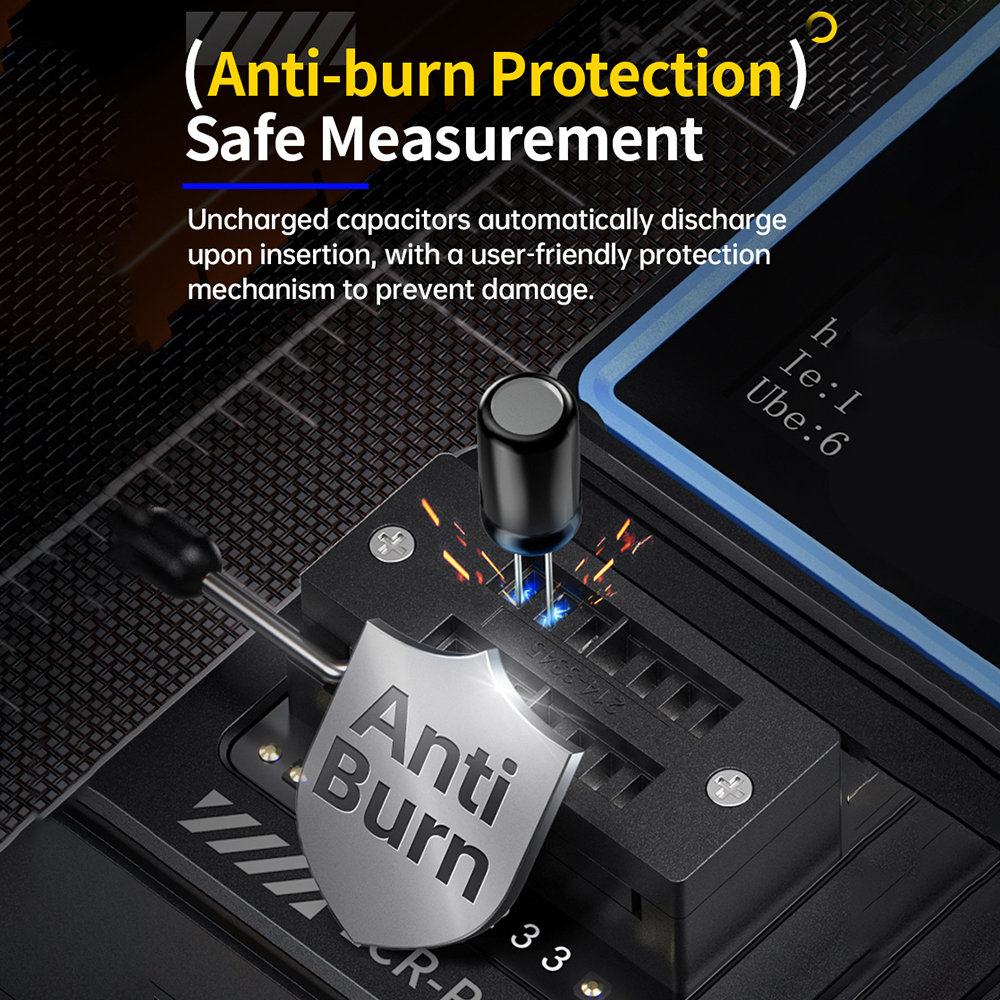

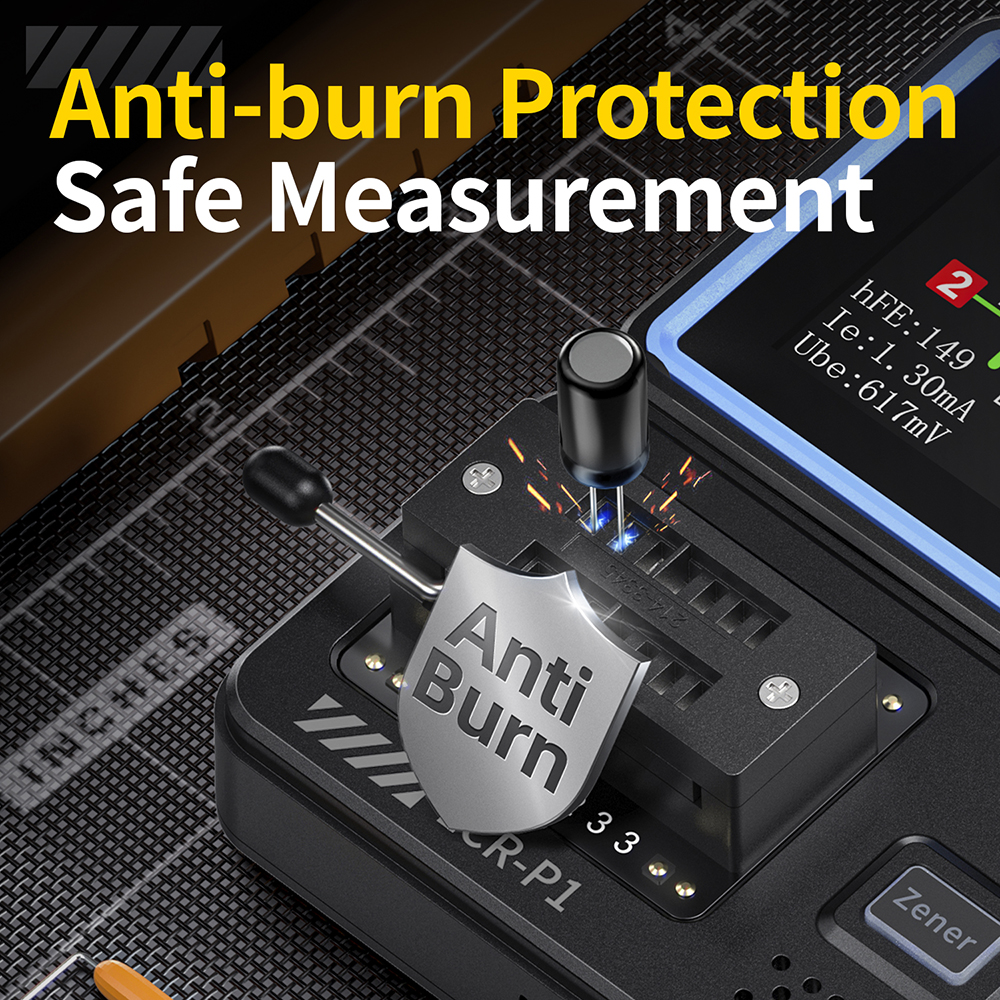

2. Anti-burn protection guards each measurement: undischarged capacitors in the insertion of the locking moment the machine will be discharged to the capacitor, humanized protection mechanism, anti-burn meter.

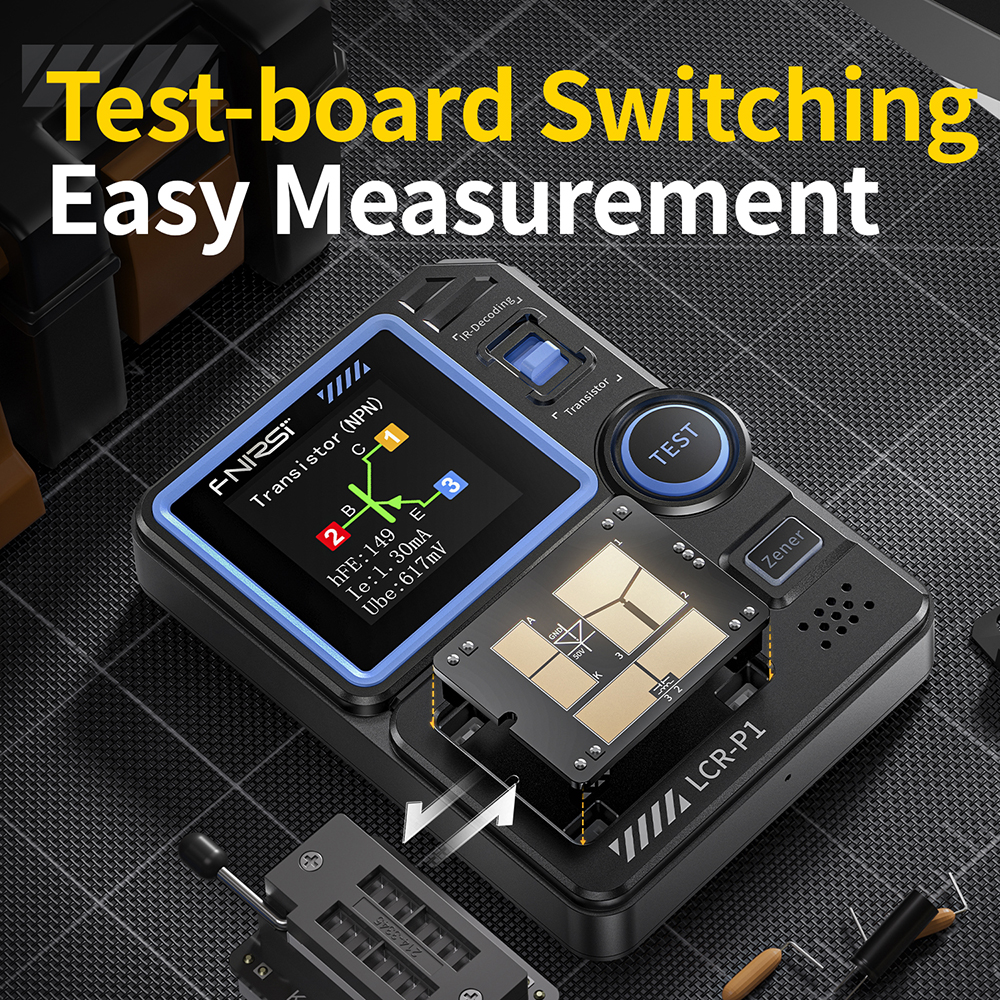

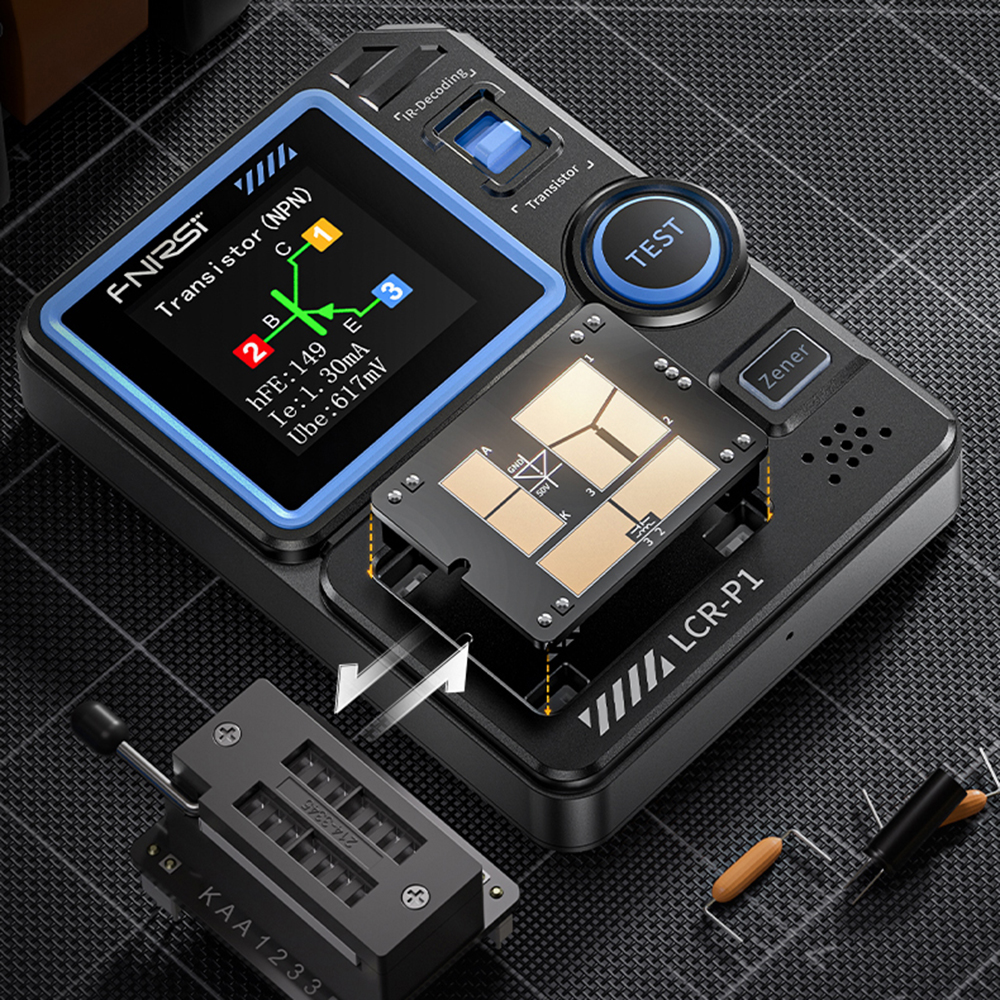

3. Replaceable patch holders for measurement: incorporating the function of replaceable patch holders to easily cope with a variety of testing needs, enjoy the unprecedented ease and efficiency

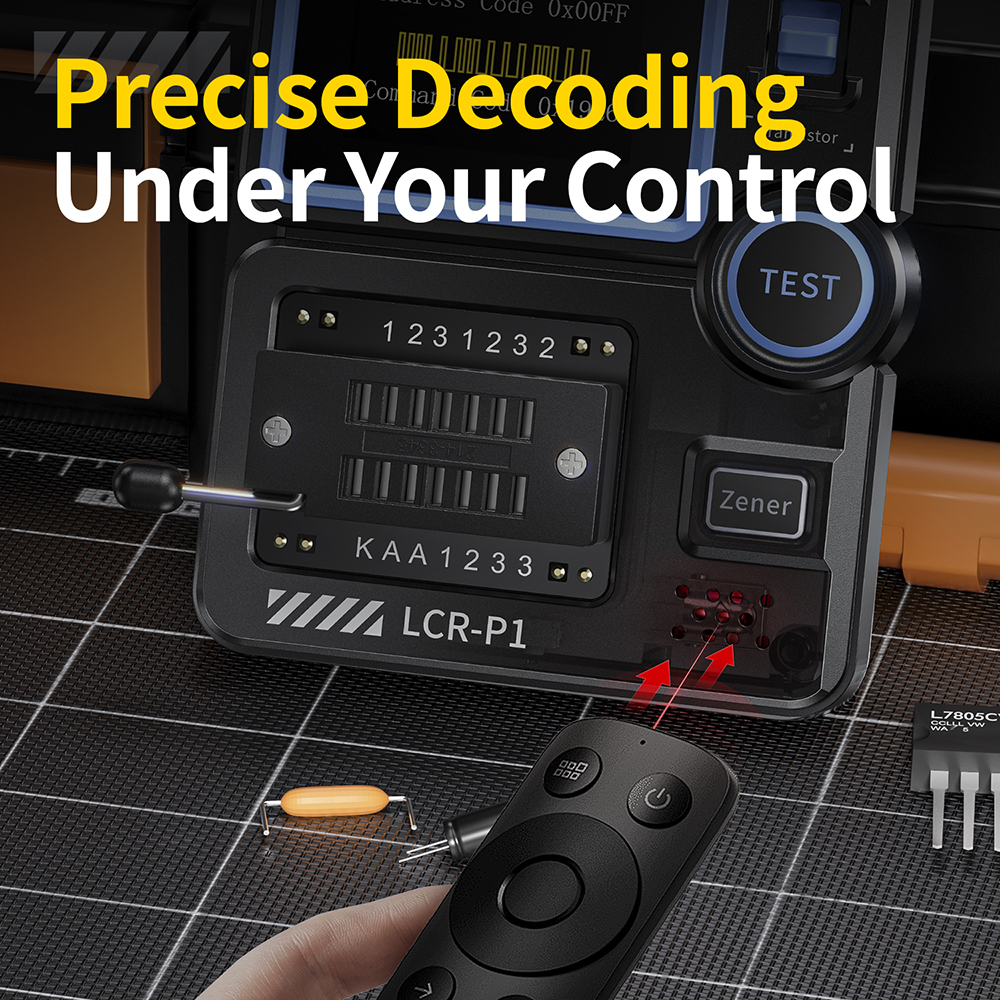

4. Accurate decoding: support for NRC infrared signal decoding, easy to test the remote control.

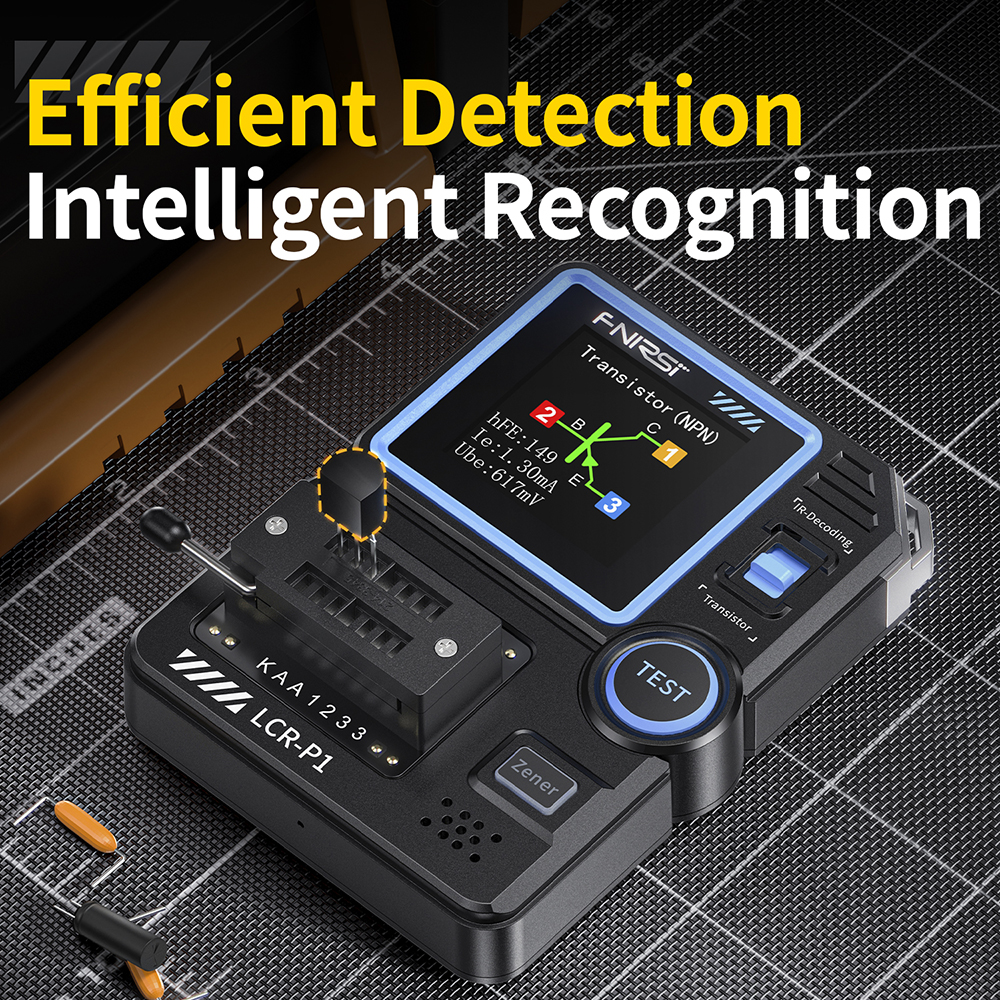

5... Efficient detection of intelligent identification: gently a plug a clip, a key to quickly identify the device parameters, saving time and effort
6. Wide range of applications to meet different testing needs: product development, home appliance repair, educational institutions, scientific research experiments, etc.
Model No.: LCR-P1
Display: 1.44-inch
Battery Capacity: 300mAH lithium battery (built-in lithium batteries)
Charging specifications: USB Type-C, 5V/1A Technical Parameters: Trigonometric, 5V/1A Technical Parameters: Trigonometry, 5V/1A Technical Parameters: Trigonometry, 5V/1A 5V/1A

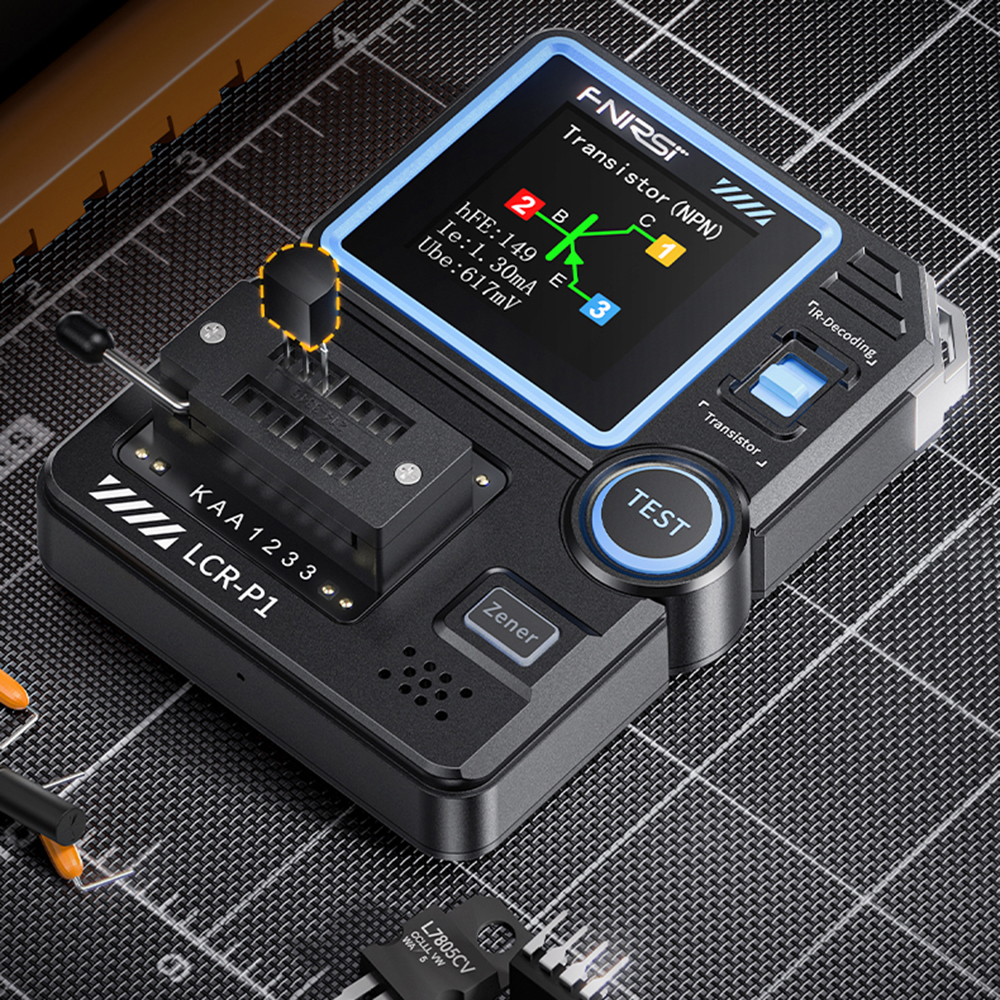

Triode:
Range: 10<β<600
Description: amplification hfe,base-emitter voltage Ube,Ic/le,collector-emitter reverse cutoff current lceo,lces,protection diode forward voltage drop Uf
Range: forward voltage drop <4.5V
Description: forward voltage drop,junction capacitance,reverse leakage current
Range: 0.01-4.5V , 0.01-32V
Description: (1-2-3 Test Area) Forward Voltage Drop,Reverse Breakdown Voltage, (K-A-A Test Area) Reverse Breakdown Voltage
RANGE: JFETS, IGBTS, MIOSTETS
DESCRIPTION: Gate Capacitance Cg,Drain Current ld at Vgs,Protection Diode Forward Voltage Drop Uf, Drain Current ld at Vgs, Protection Diode Forward Voltage Drop Uf, Turn-On Voltage Vt,Gate Capacitance Cg,Drain-Source Resistance Rds,Protection Diode Forward Voltage Drop Uf
Range: Turn-On Voltage <5V (Unidirectional SCR), Gating Trigger Current <6mA (Bi-Directional SCR)
Explanation: Gating Voltage
Range: 25pF~100mF
Explanation: capacitance value,Loss Factor Vloss, internal resistance ESR
Range: 0.01Ω-50MΩ
Description: Resistance value
Range: 10uH-1000uH
Description: Inductance value, DC resistance
Range: 0.1-4.5V
Description: Voltage value, Positive and Negative polarity

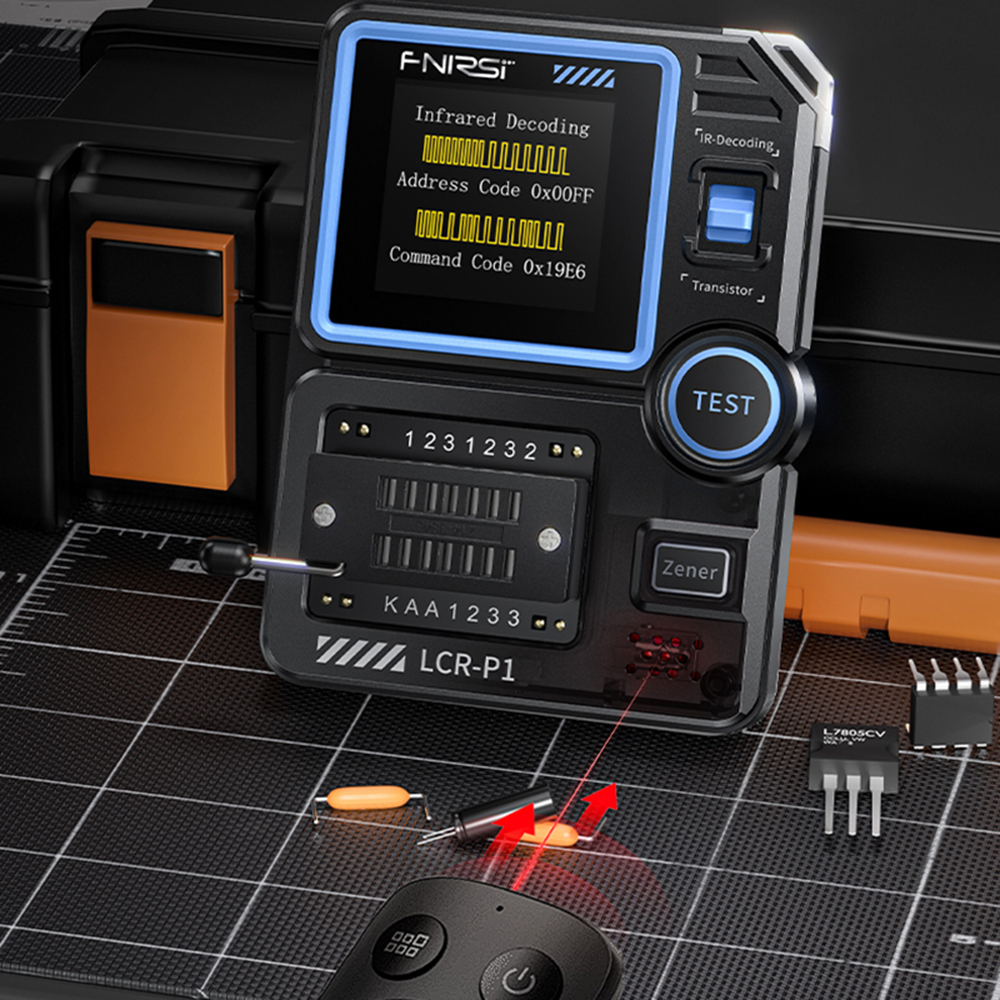

Range: NEC protocol infrared code
Description: Display the user code and data code, and show the corresponding infrared waveform
Main unit*1
Instruction manual*1
Type-C USB cable*1
Special movie test version*1
Test hook*3
