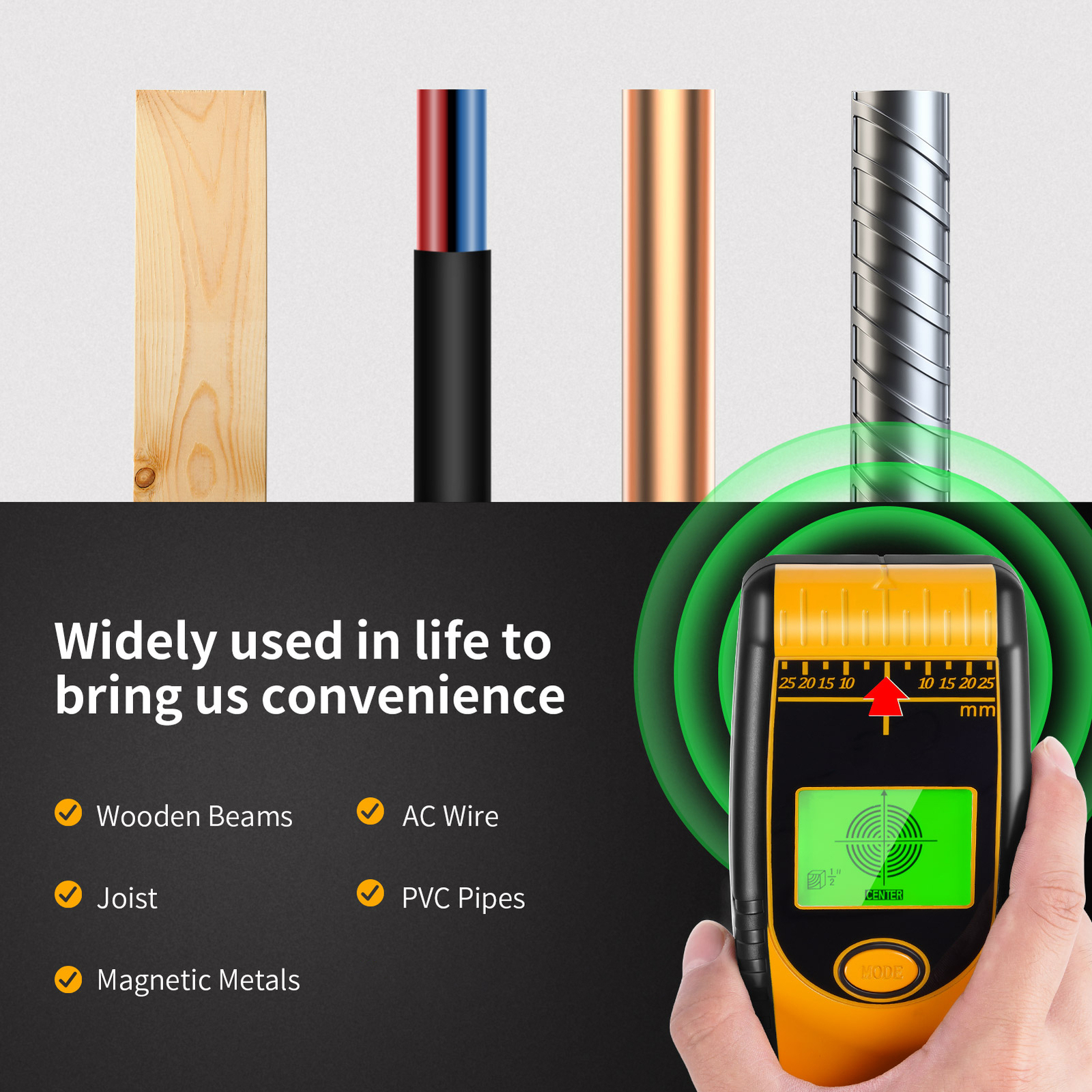

✔️【Electronic stud finder】-used to detect the specific location of wood, wires, metal, nails, pipes and other building materials in the wall. This wall scanner is equipped with 4 advanced and upgraded sensors and Magnetic Stud Finder function, providing higher accuracy than similar products, helping us to complete the renovation work quickly and efficiently.

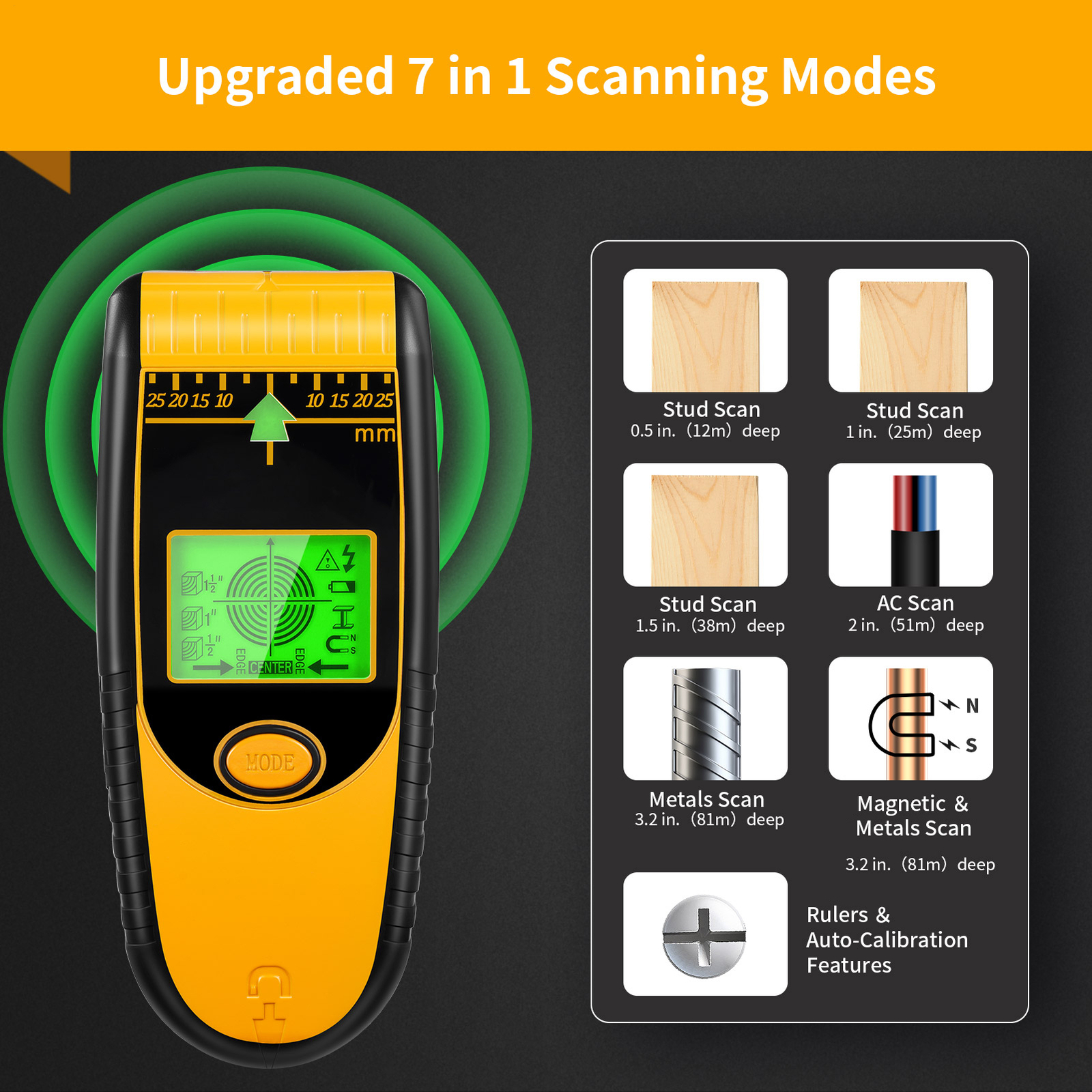

✔️【Upgrade 7-in-1 multi-function scanners】-With 3-level wooden beam joist detection mode: (12/25/38mm); magnetic and non-magnetic metal detection and recognition: (maximum 81mm); AC Wire scan: (maximum 51mm); Magnetic stud detector function; ruler function; Auto Calibration

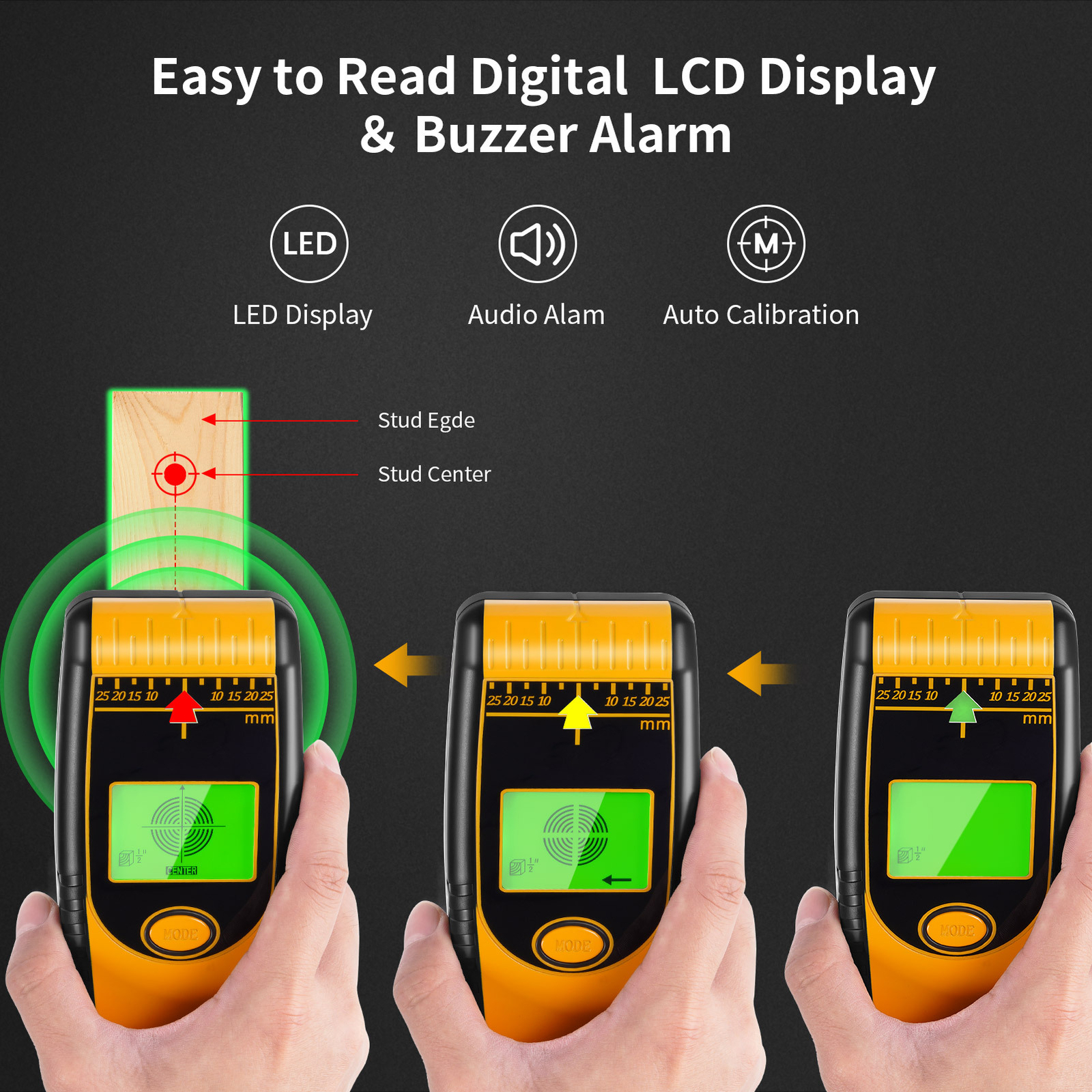

✔️【Smart stud sensor】-Just turn on the "Wall Detector" button, then press and hold the scan button to start automatic calibration, and move horizontally against the wall. When it encounters an object on the wall, the LCD screen displays the required stud material and the precise position of the stud, and displays a red light and a buzzer.

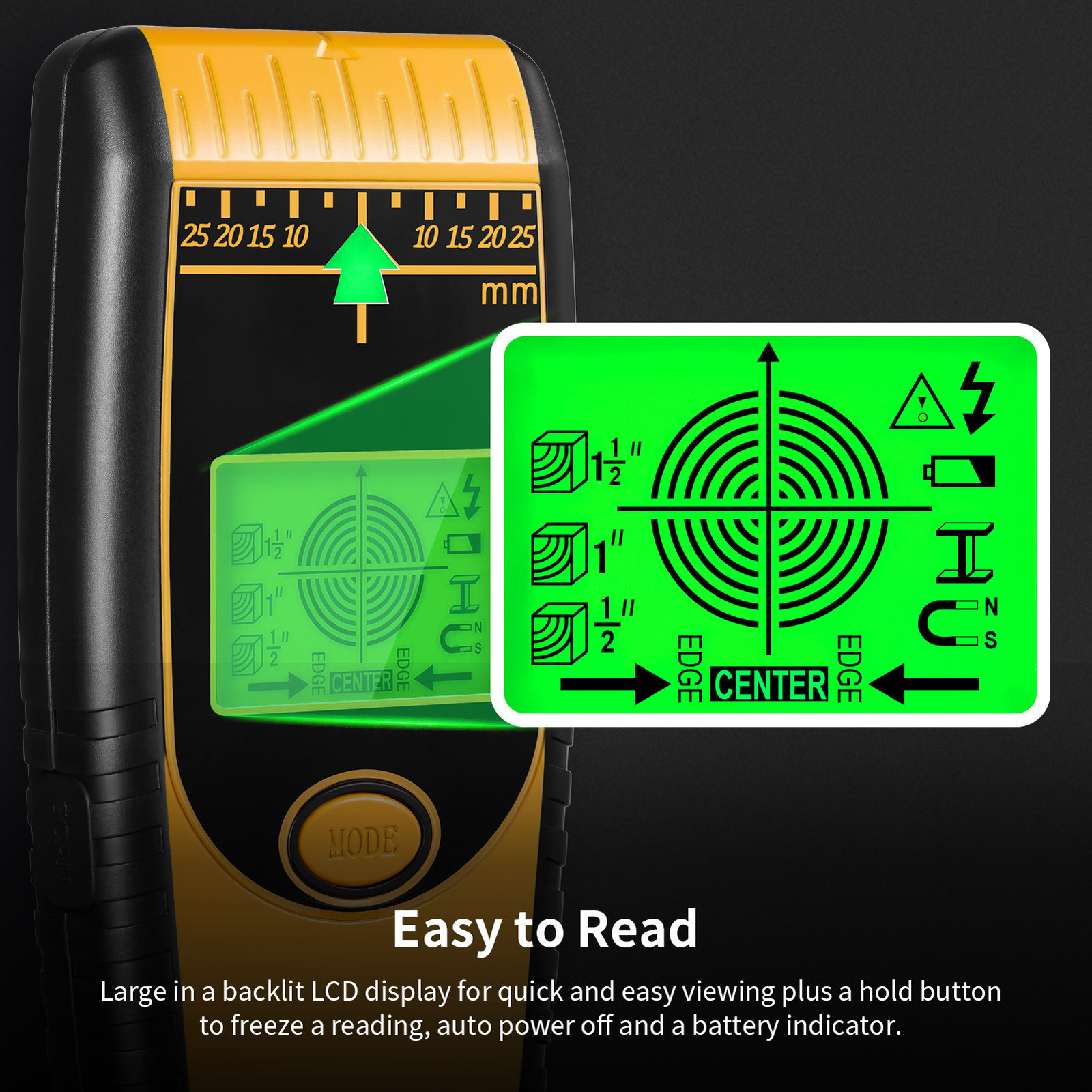

✔️【High performance】-This wall-mounted scanner has a backlit LCD display; 3-color LED display: (green light-no signal), (yellow light-signal), (red light-strong signal); low battery indicator; 9V carbon The battery is powered (included), the maximum working current is 15ma, it can be used continuously for 6 hours, and it can be used for half a year for 5 minutes a day.
✔️【One machine with multiple functions】-We have been committed to the research and development of stud detectors for many years. It is ergonomic, comfortable to use and light in weight. Suitable for your DIY home projects, such as: TV, cabinets, garage racks, paint, house decoration, etc. With the help of the "Wall Detector", accurate and fast positioning is achieved to avoid loss or rework due to opening errors.
Specification:

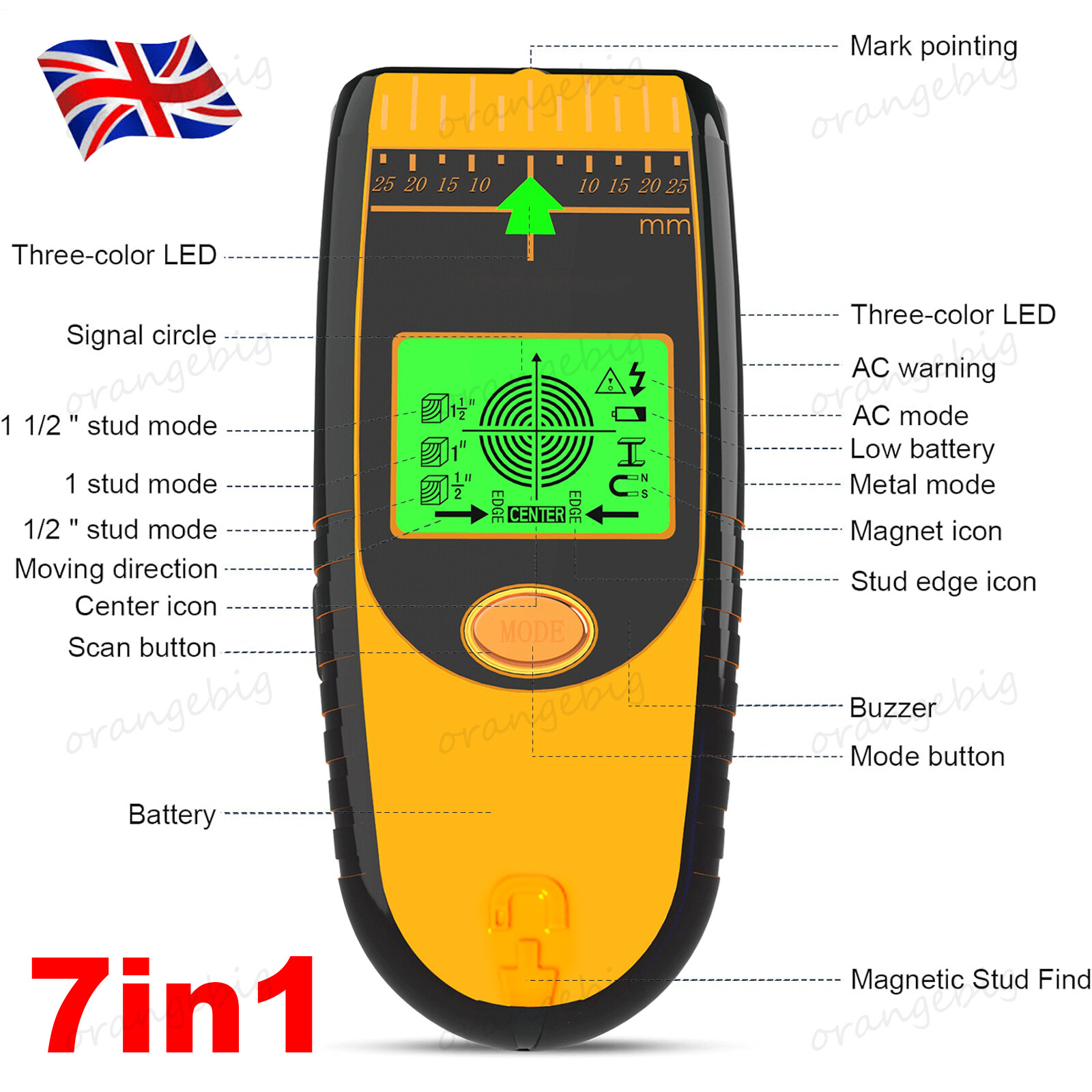

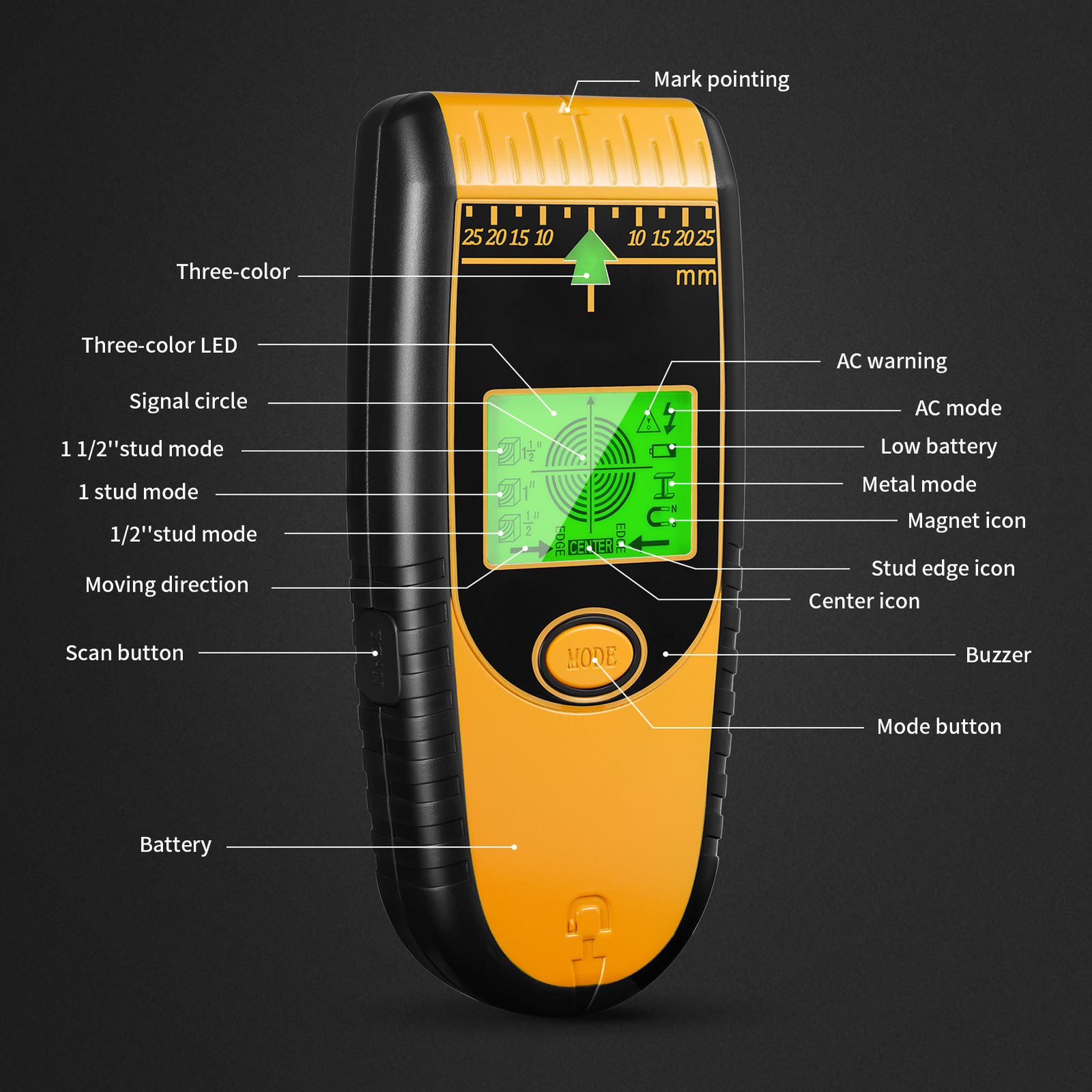

LCD & 3-color LED display measurement results
Low battery prompt
Buzzer prompt
Wood stem center positioning & edge positioning
3) Detects wood stem center, wall thickness within 1/2 inch (12mm)
4) Detects the center of wood stems and wall thickness within 1 inch (25mm)
5) Detects wood stem centers within 1 1/2 inches (38 mm) of wall thickness
Magnetic & non-magnetic metal detection and identification (maximum depth 81mm)
AC wire detection mode (maximum depth 51mm)
Working temperature: 0~40°
Working voltage: single 9V battery
Working current: <20mA
Product size: 185*80*23mm
The product has a scale ruler function
Product certification: battery certification (EMC, LCS, MSDS sea and air transportation appraisal report,)
CE\ROHS\UK CA
Product List:
1 * Wall Detector
1 * Battery
