1. 2.4-inch color display: equipped with a high-definition 2.4-inch color screen, the data is clearly visible, and the operation is intuitive and convenient.
2. Compatible with lithium iron phosphate batteries: supports lithium iron phosphate battery testing, with a wider range of application and meets diverse needs.
3. Spring battery holder design: adopts spring battery holder, which is convenient and fast to install and disassemble the battery, improving testing efficiency.
4. External testing function: supports external testing mode, can accurately detect various types of batteries, and is highly flexible. .

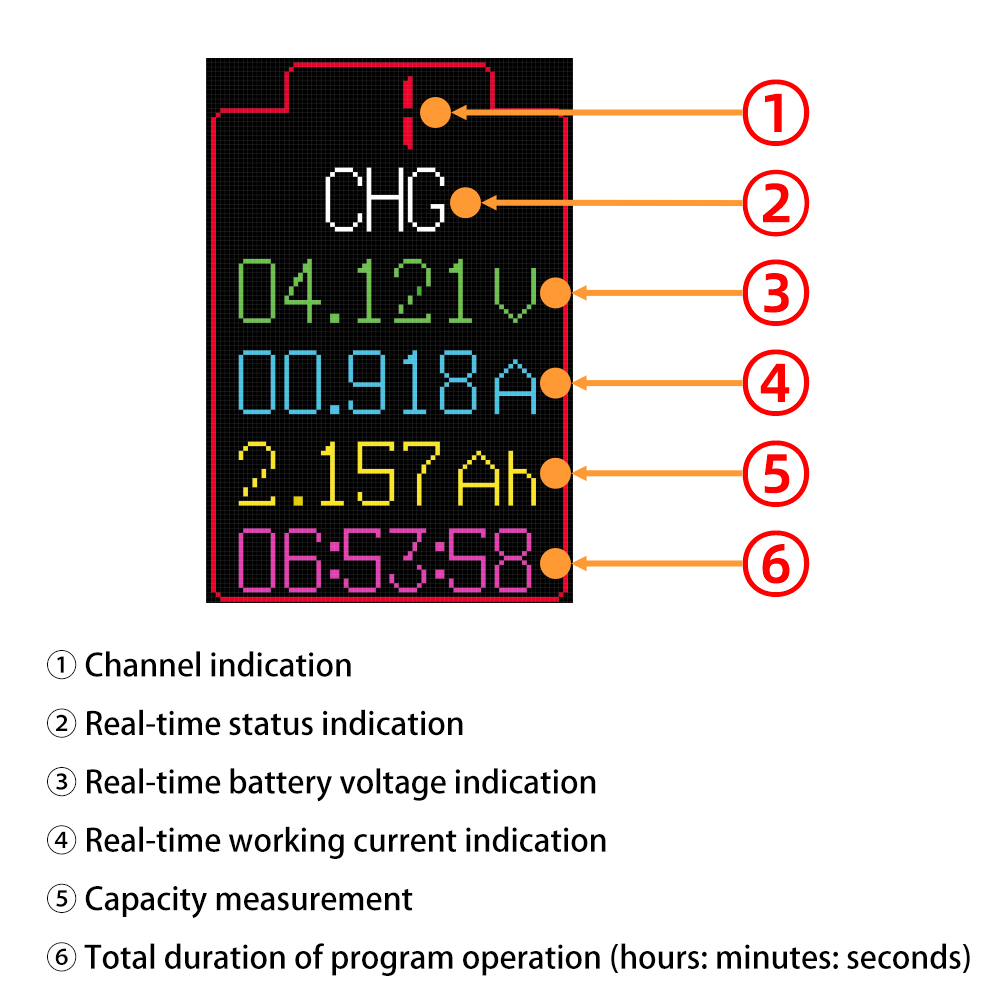

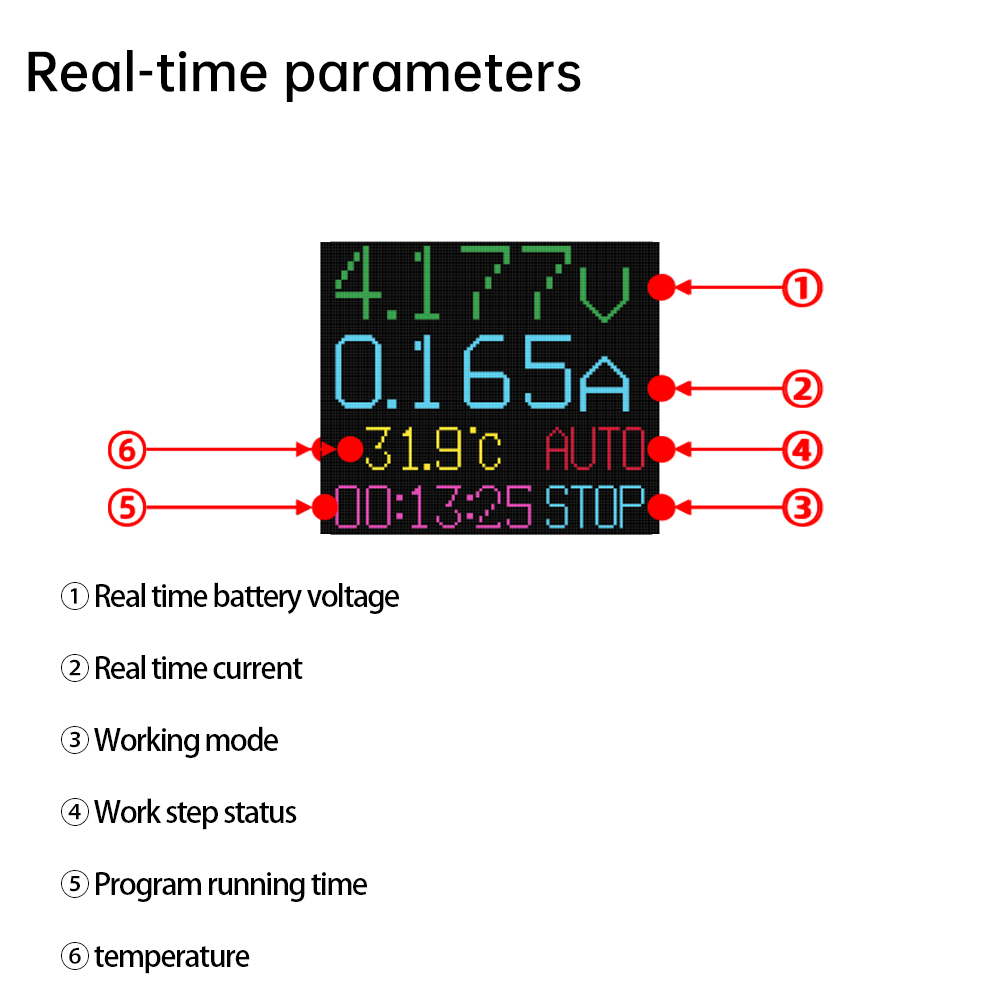

5. Real-time multi-parameter display: Real-time display of battery voltage, working current, capacity measurement and operating time, and fully grasp the battery status.

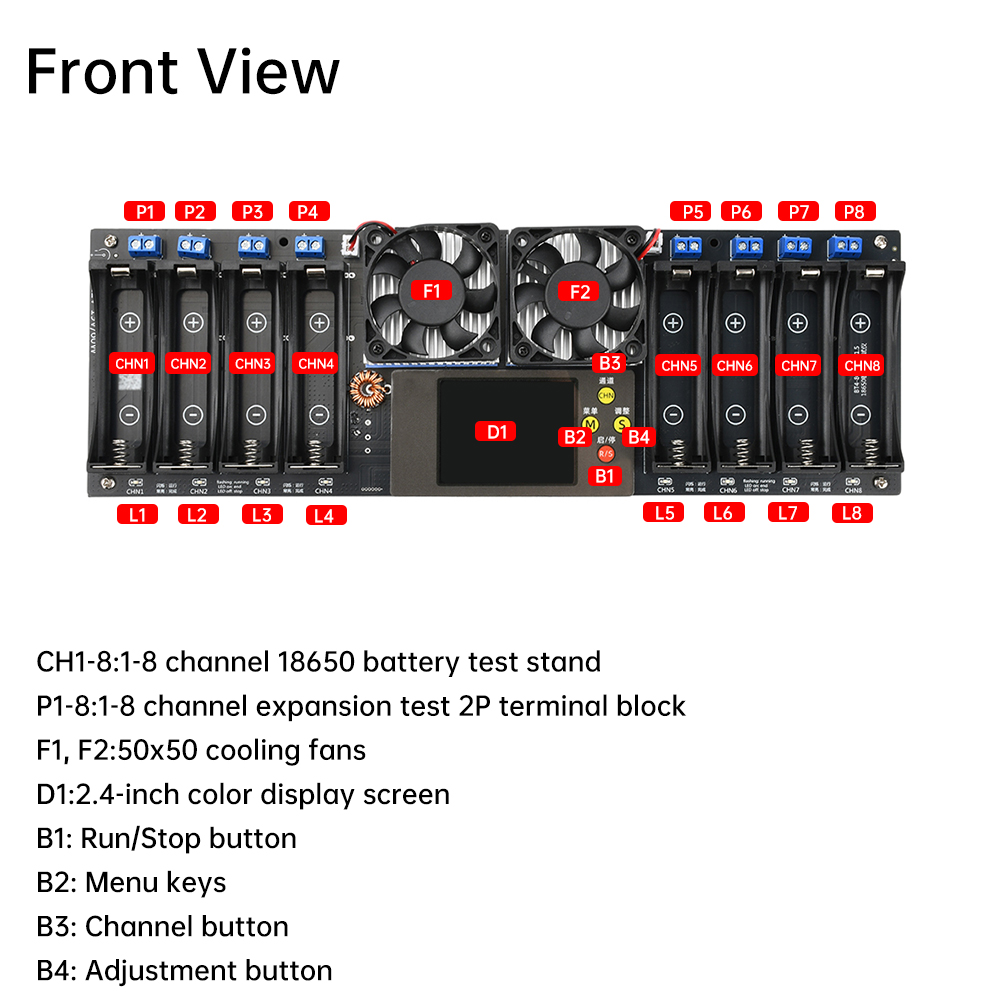

6. Channel type: 8 independent channels, each of which is not related, operates independently, and does not affect each other.
7. Channel synchronization: Supports 8-channel setting synchronization, and can also set the parameters of each channel separately.
8. Cyclic charging and discharging: Only one cycle of charging-discharging-discharging is supported in automatic mode, and multiple cycles are not supported.
Working voltage: DC 12~19V (standard bare metal, no power supply)
Power supply interface: DC5.5 high current interface power supply
Reverse connection protection: There is reverse connection protection, reverse connection power supply is prohibited
Channel type: 8 independent channels, each is not related, and does not affect channel synchronization: Supports 8-channel settings and synchronization, and can also set the parameters of each channel separately.
①Auto mode: Charging - Discharging - Full Stop
② Charge first and then release: Charge - Discharge - Stop
③Free first and then charge: Discharge - Charge - Stop
④ Charging: Charging-stop
⑤ Discharge: Discharge-stop
⑥Activation: Activation mode is a function, which means that the device has an activation mode. After running the activation mode, not all starving batteries can be activated. Forced power on will not stop automatically! ! !

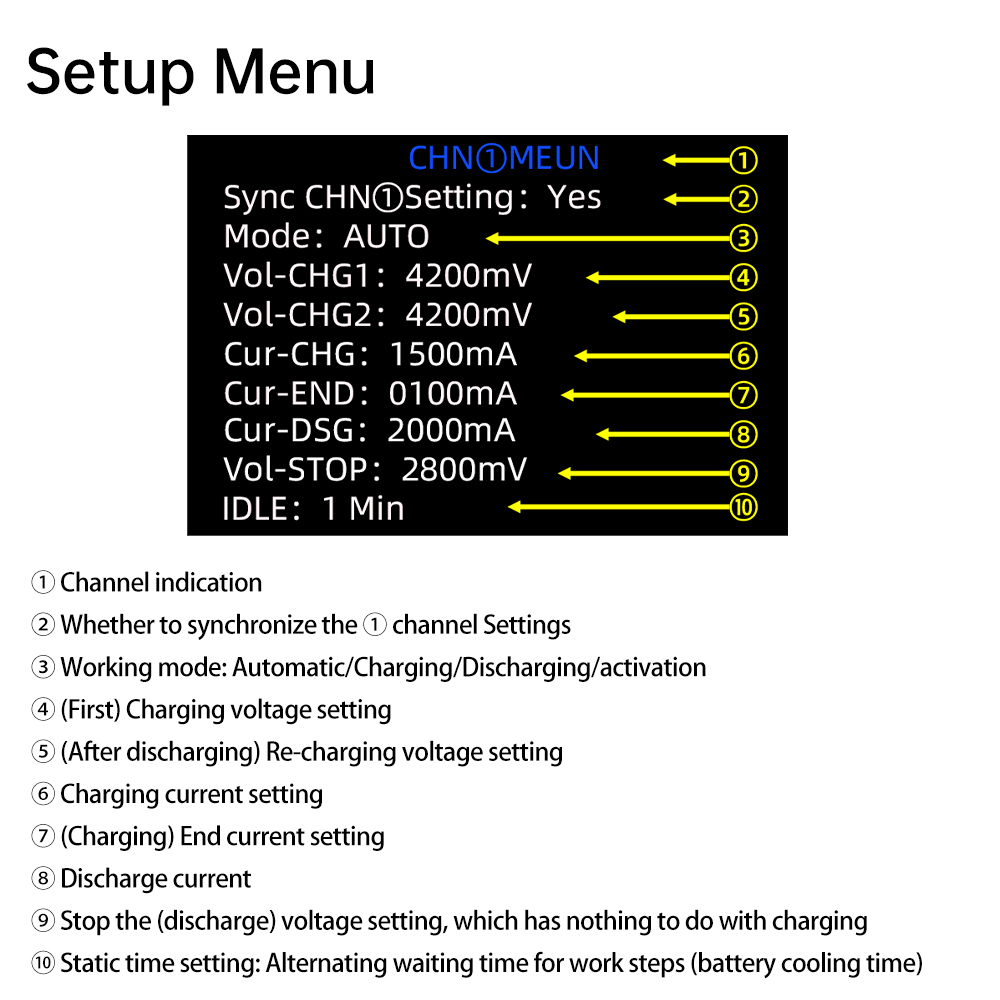

Charging (stop) voltage: 3000mV~5000mV, 50mV/speed adjustable
Recharge (stop) voltage: 3000mV~5000mV, 50mV/speed adjustable
Charging current: 500mA~1500mA, 100mA/speed adjustable
(Charging) End Current: 50mA, 100mA, 150mA, 200mA, 4-speed adjustable
Discharge current: 500mA~2000mA, 100mA/speed adjustable
(discharge) Stop voltage: 2000mV~3600mV, 100mV/speed adjustable
8-channel status preview: Supports 8-channel status 1-screen preview
Single channel details display: Support

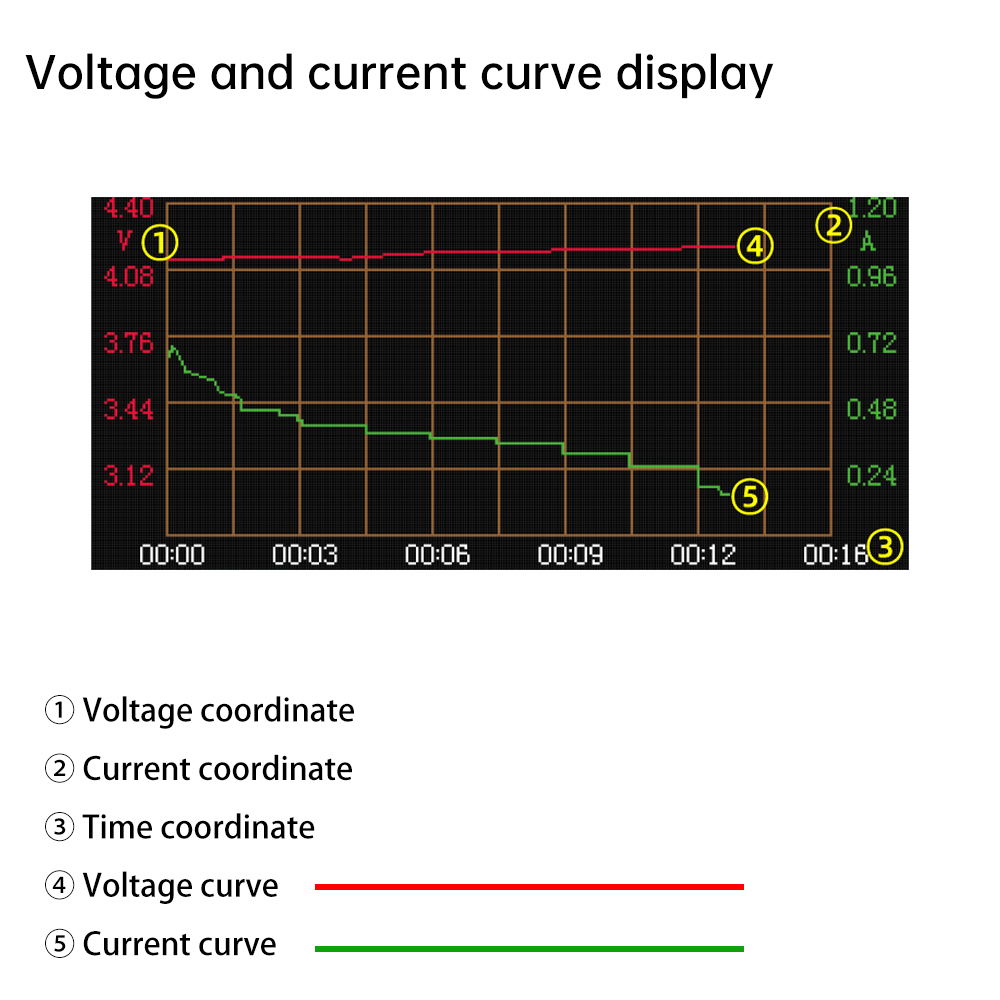

Single channel charging and discharging curve display: Supported
Temperature detection: measure the internal core temperature
Heat dissipation method: active heat dissipation
Overheating protection: Support
Loop charging and discharging: Only charge-discharging-discharging-discharging cycles are supported in automatic mode, and multiple cycles are not supported.
External test: Support, can be externally discharged through 2P terminals, single channel can only support one of the battery holders or external tests, and cannot be used to test at the same time.
Battery reverse connection protection: There is reverse connection protection, reverse connection of the battery is prohibited
Product size: 42×102×310mm
Tester*1
