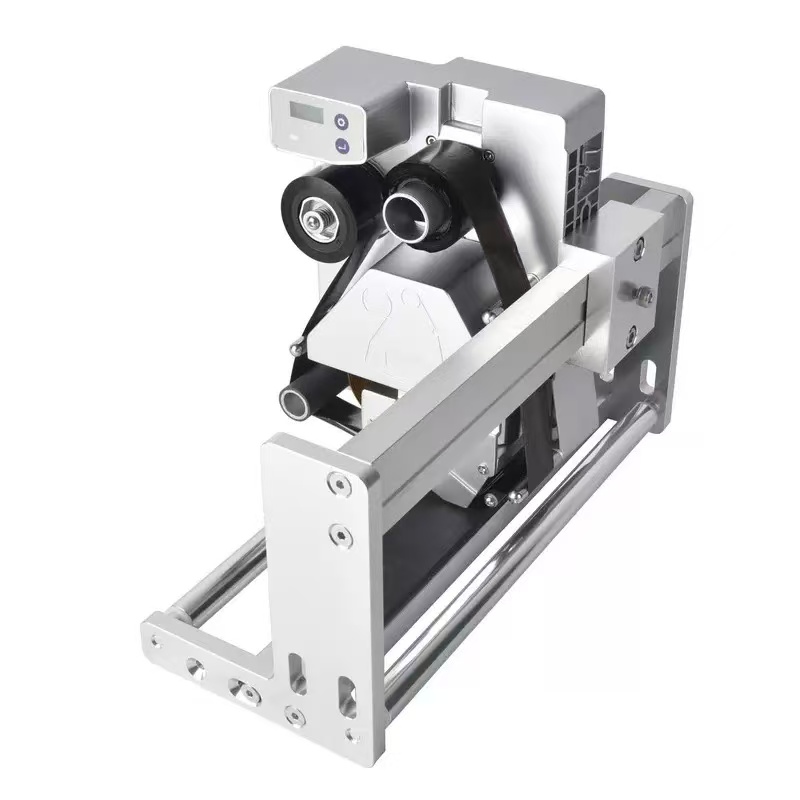

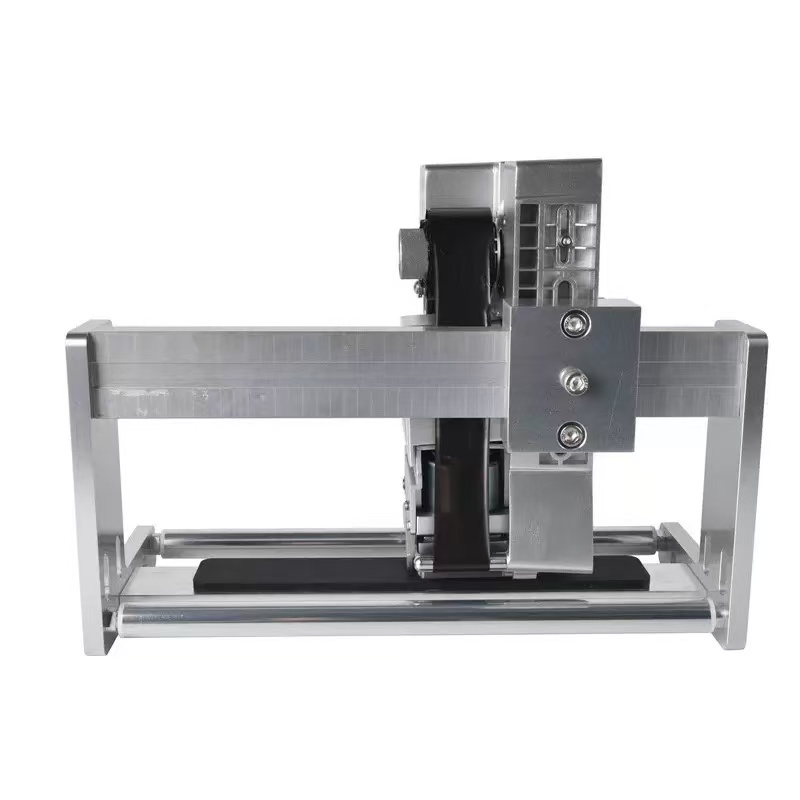

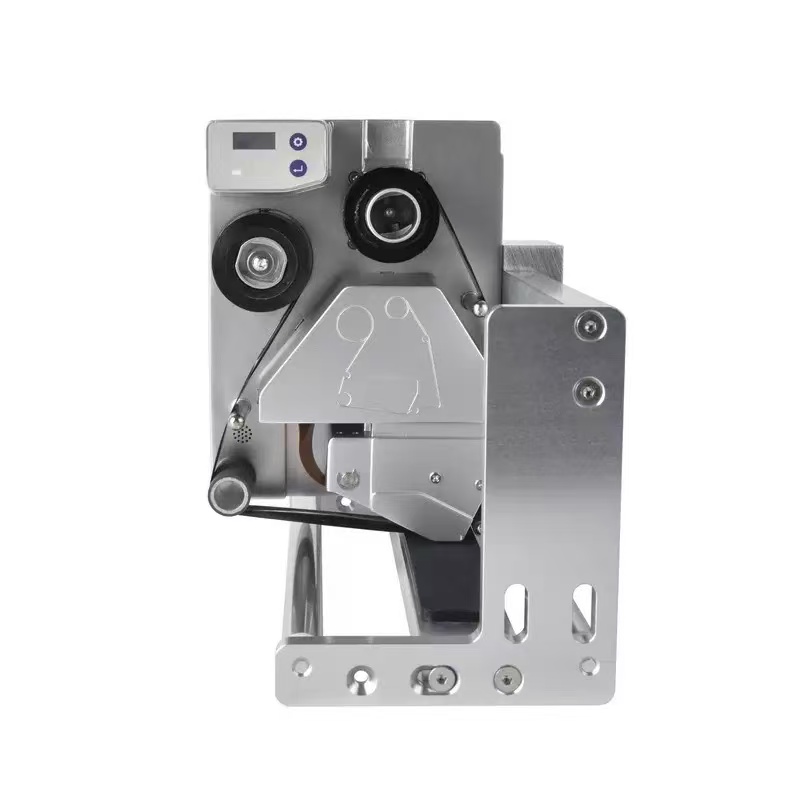

Code Date Number Date Coder Printer 20-200mm/s 12* 24mm Automatic Coding Machine

Product Description

Mobile phone control coding,
Except for changing the carbon ribbon, no tedious operations such as typesetting are required.

Coding length: 12mm
Coding width: 24mm
Printing mode: thermal transfer
Printing area: 24mm*12mm
Resolution: 203 dpi (8 dots/mm)
Printing speed: 20mm/s-200mm/s
Character size: 2mm-4mm adjustable
Character type: Chinese and English characters, numbers, punctuation
Printing area: 24mm*12mm
Coding direction: 0° or 180°
Printing time: 100 milliseconds (minimum dwell time of packaging film)
Scope of application: Applicable to vertical packaging equipment (such as vertical packaging machines, labeling machines, etc.)
Applicable equipment capacity: 200 packs/minute (fixed content with a print length of 15mm)
Coding type: production date, shelf life, sales period/automatic batch number, batch code/time (accurate to seconds)/factory number/machine number/custom text
External input: sensor signal input: NPN/PNP type (DC 12V-24V), switch type sensor
External output: non-edge contact
Carbon ribbon length: 200 m
Carbon ribbon types: mixed base, resin base
Flexible packaging material types: PVDCPET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, PE, VMPET, VMCPP and other films and composite films
Working temperature and humidity range: 5°C-40°C, 10%-90%, no condensation
IP protection level: IP40
Power supply: Adapter input: AC 100-240V ±10%, 50-60Hz, maximum output current 4A
I/O interface: Print signal, fault relay, 0V/COM, DC 24V
