SpeedyBee F405 AIO 40A Flight Controller 3S-6S LiPo ICM-42688P Gyro 25.5x25.5mm For 2-4" And Ultra-Light 5" FPV Drones Supports Wireless AIO DSHOT600/300
Features:
1. Equipped with IEM-426ABP Gyro

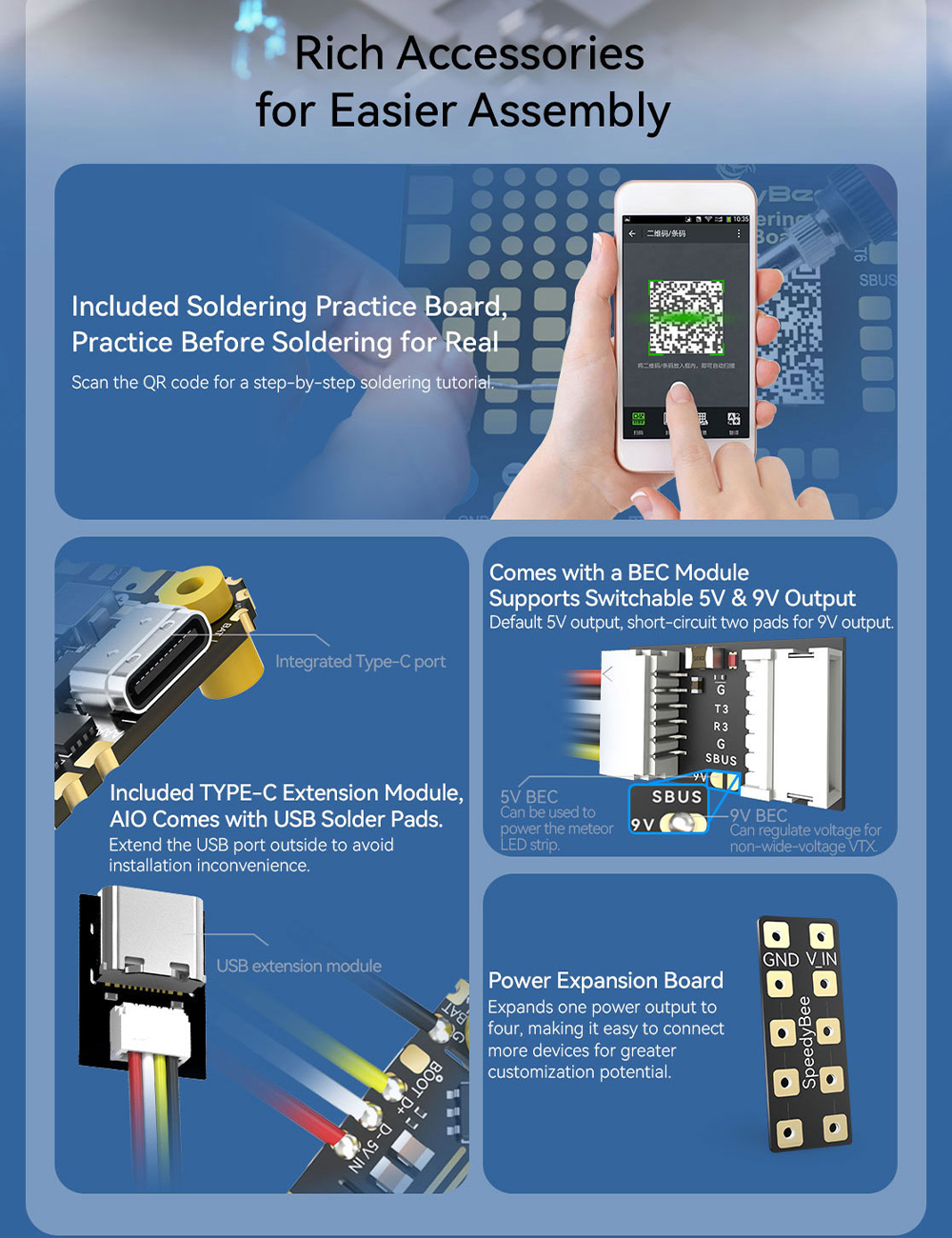

2. Soldering Practice BoardAlso includes BEC module, power expansionboard, and USB extension module.
3. More processing powerand larger flash memory!

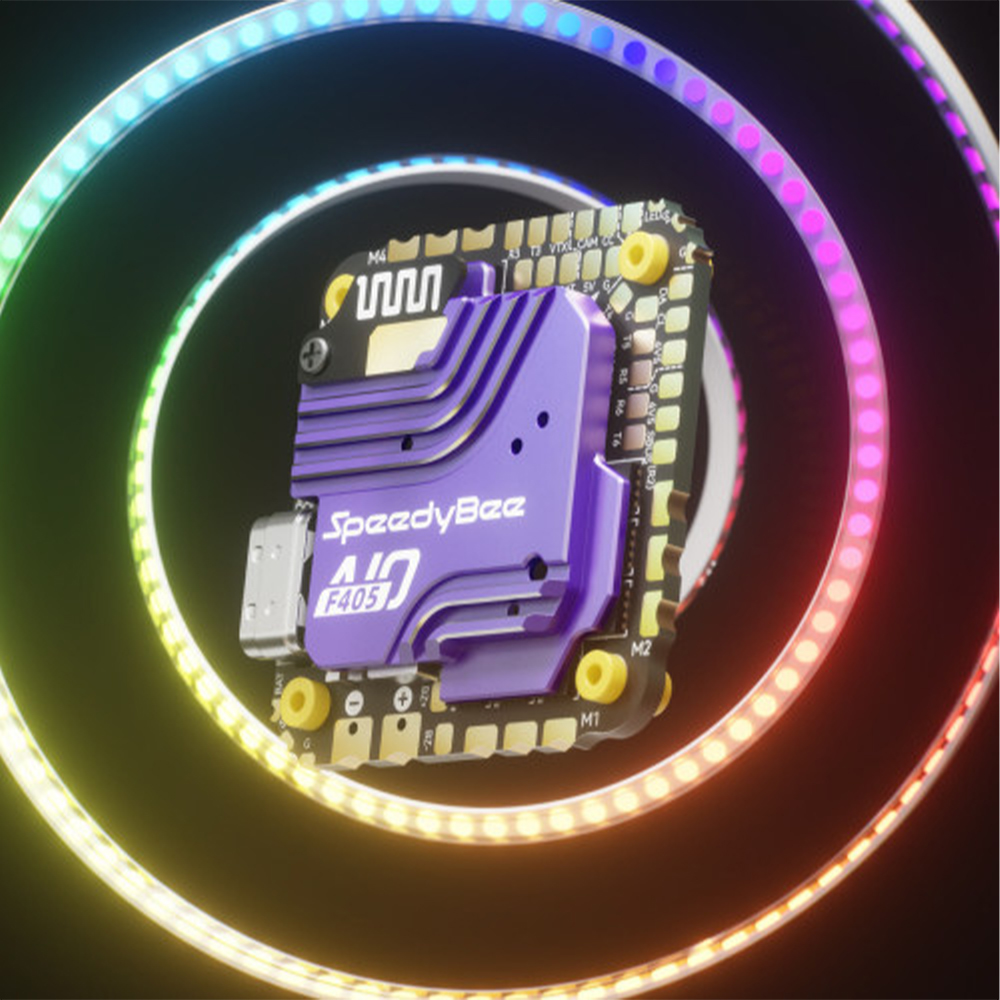

4. Wireless Configuration 2.0Supports Meteor LED, wireless BOOT button,wireless tuning, firmware updates via APP.
5. ESC Performance Upgraded!Continuous curent 40A, peak curent 45A
6. For 2-4" and ultra-light5" FPVdronesSupports 1002-2104 motors

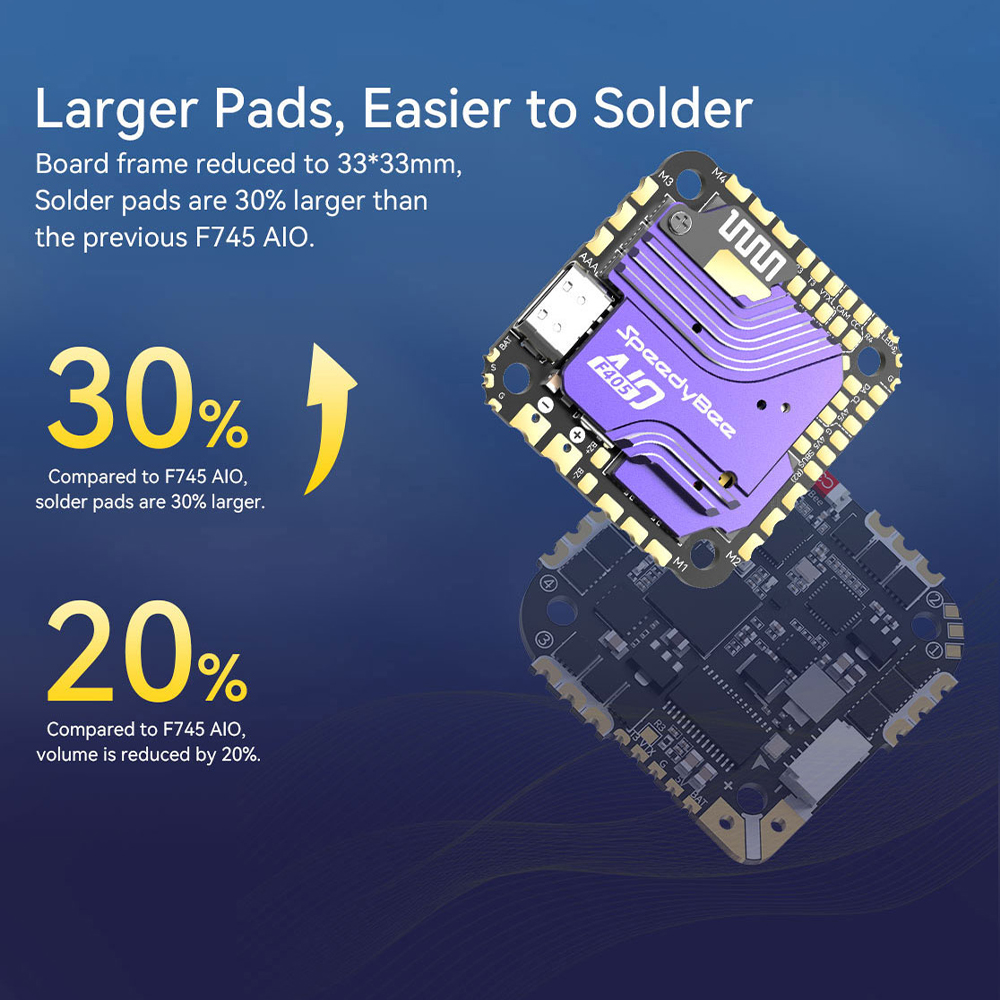

7. Increased by 30% than F745 AI0,makingsoldering easier.
Description:
F405 AIO 40A Flight controller wireless Configuration 2.0Supports Meteor LED, wireless BOOT button,wireless tuning, firmware updates via APP.More processing powerand larger flash memory!

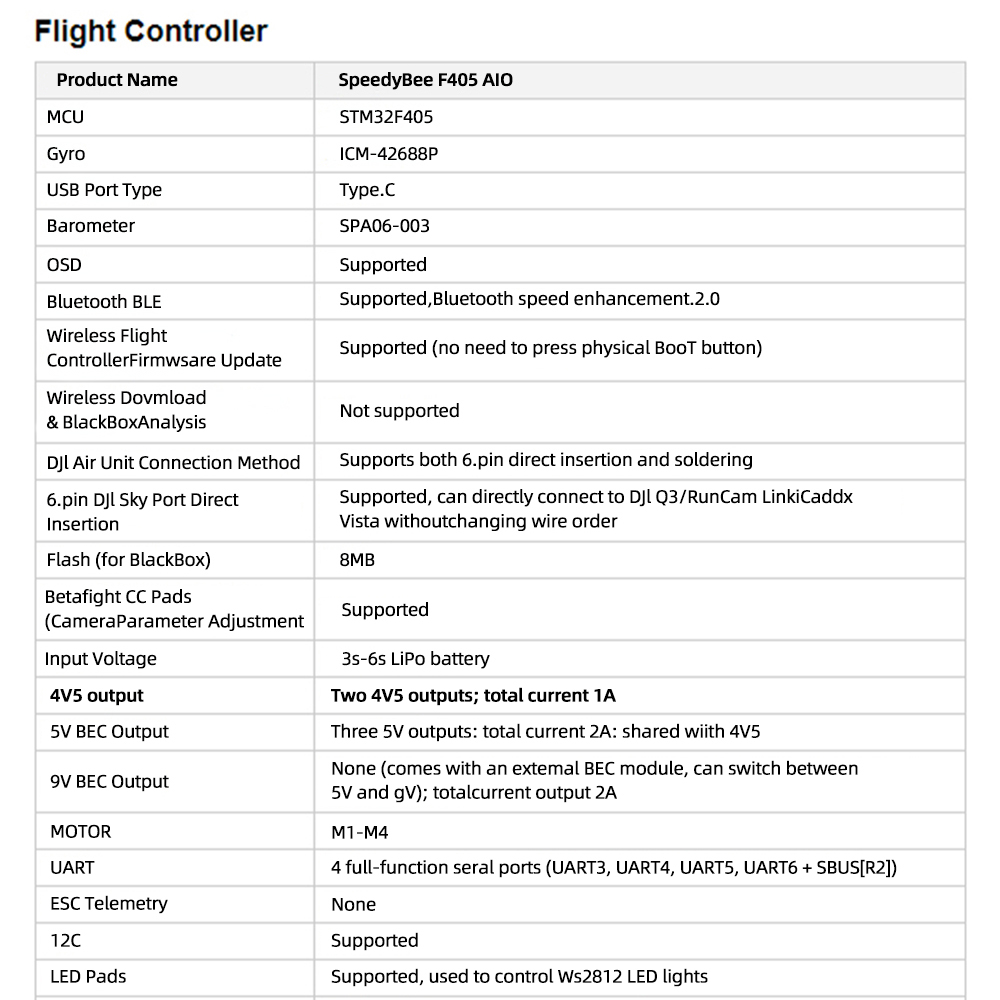

F405 AIO Flight Controller Specifications:
Product Name: F405 AIO Flight Controller

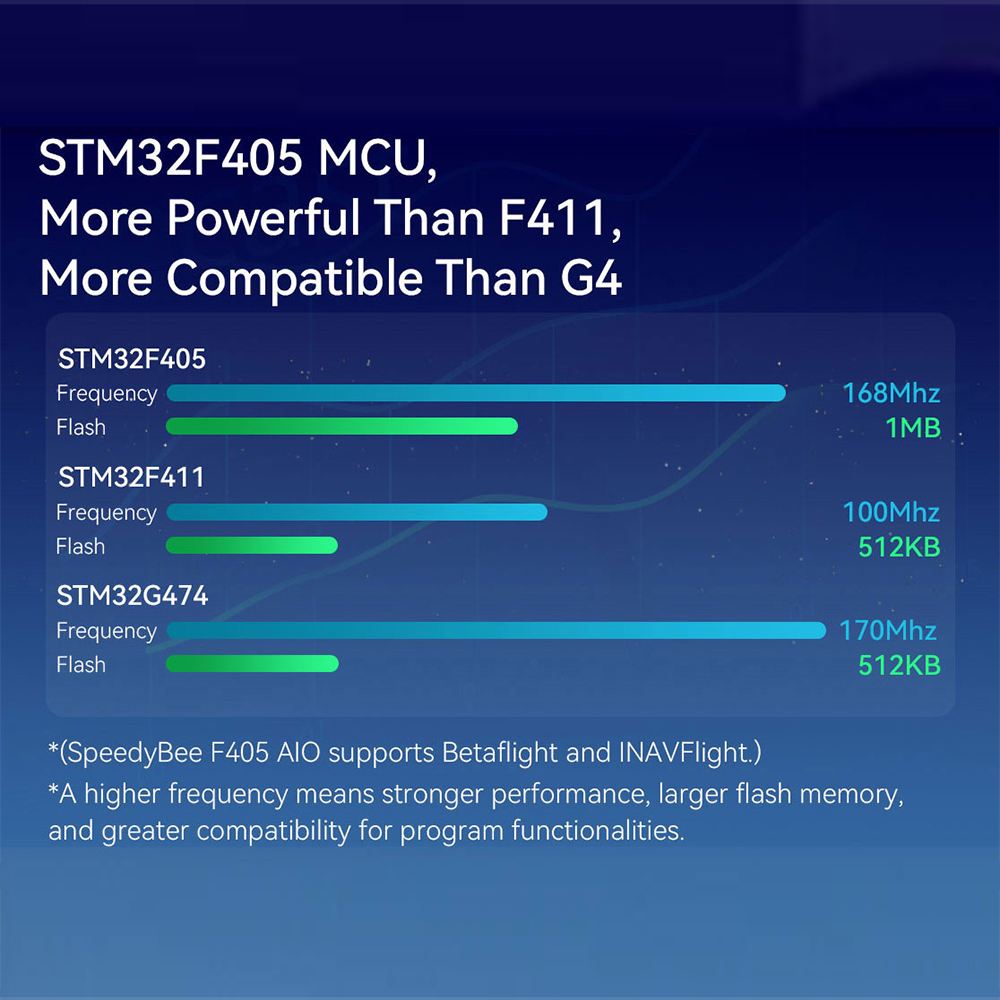

MCU: STM32F405
Gyro: ICM-42688P
USB Port Type: Type.C

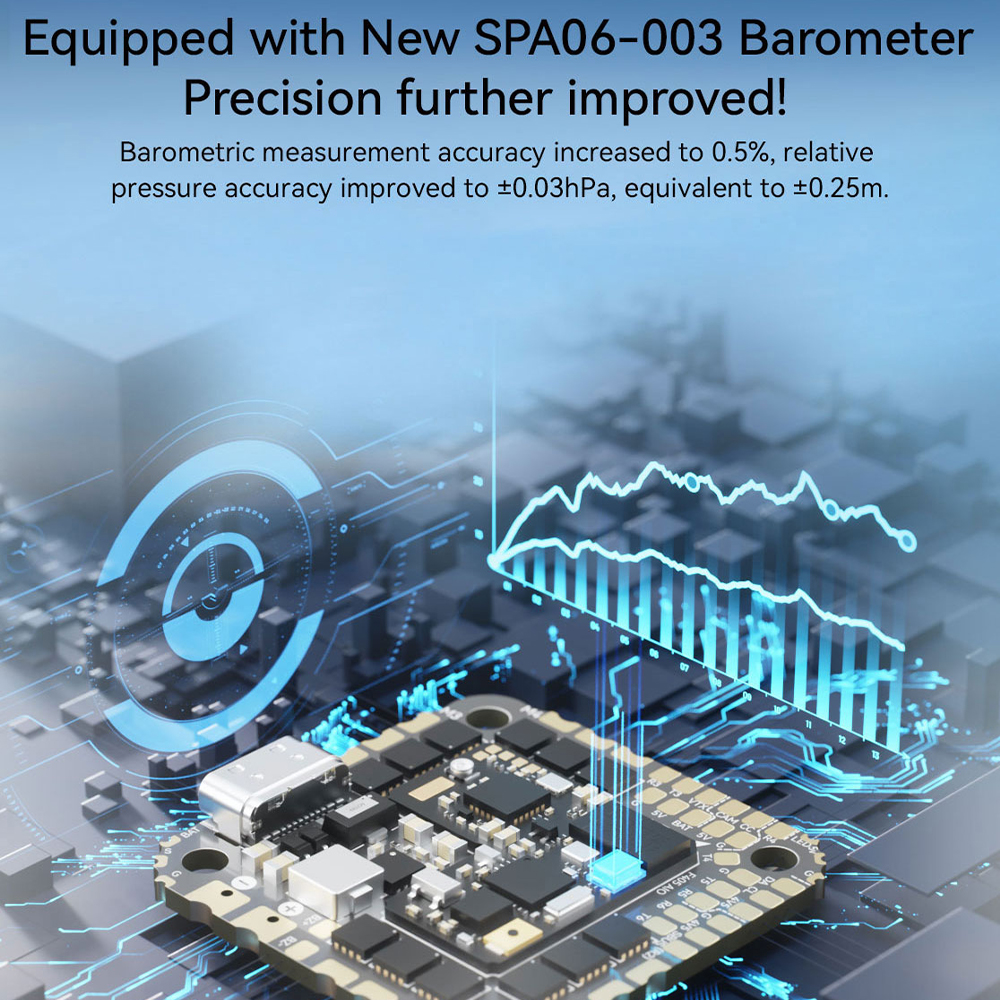

Barometer: SPA06-003
Bluetooth BLE: Supported,Bluetooth speed enhancement.2.0
Wireless Flight Controller Firmwsare Update: Supported (no need to press physical BooT button)
Flash (for BlackBox): 8MB
Betafight CC Pads(CameraParameter Adjustment): Supported
input Voltage: 3s-6s LiPo battery
MOTOR: M1-M4
Firmware: BetaFlight (Default), INAV

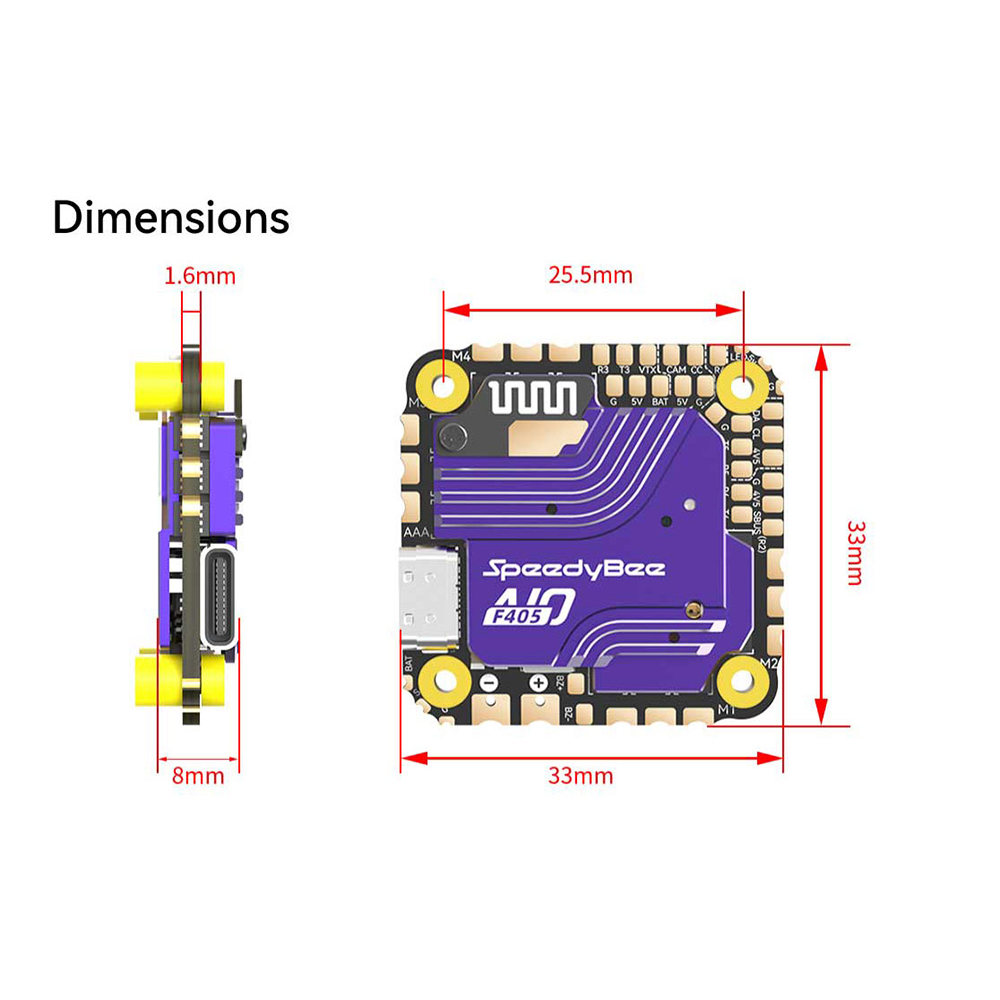

Mounting: 25.5 x25.5mm, 2mm hole diameter
Dimensions: 33.0mm (length)x 33.0mm (width)x 8mm (height)
Weight: 13.6g (including CNC)

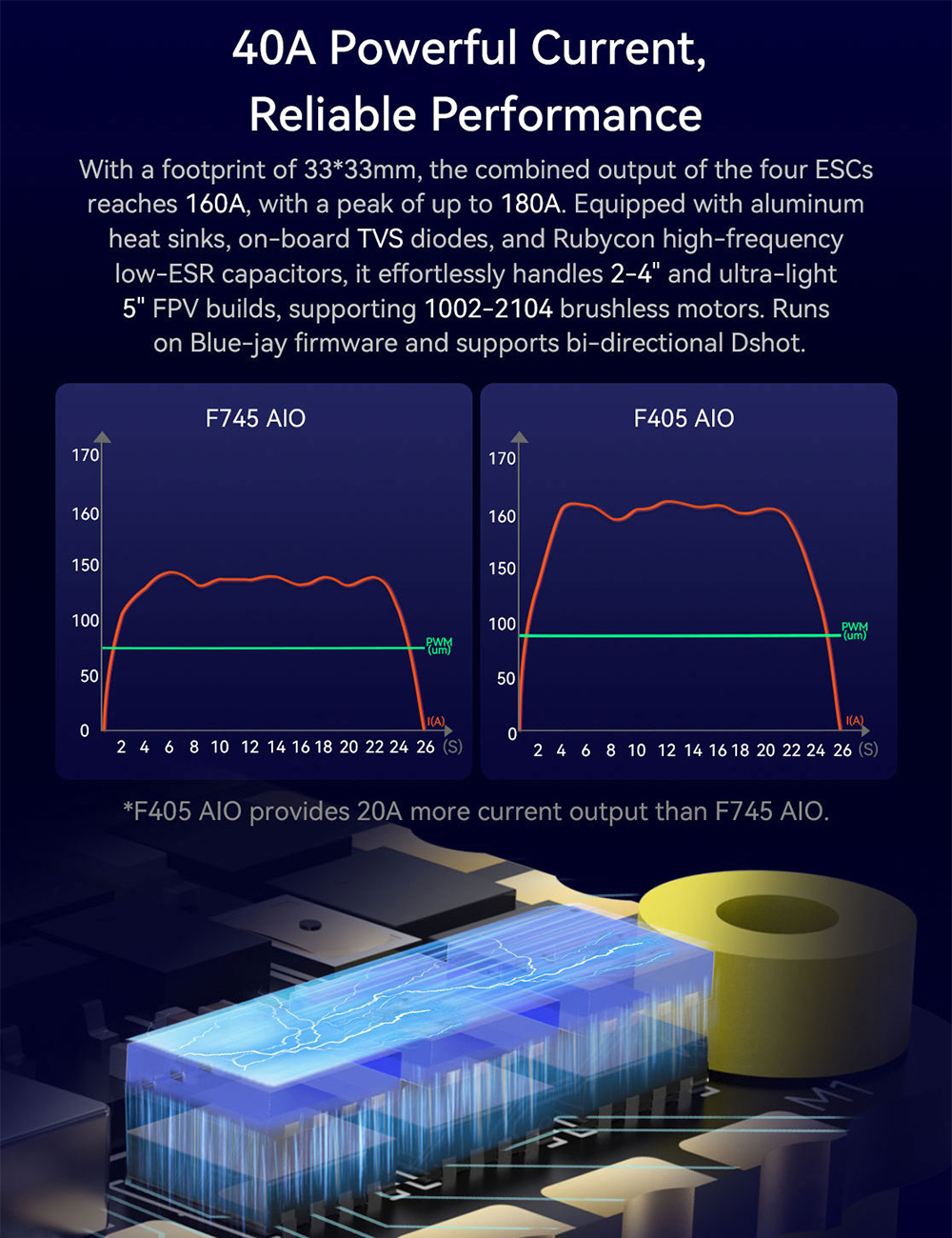

40A ESC Specifications:
Input Voltage: 3-6S LiPo battery
Continuous Current: 40A
Burst Current: 45A (10s)
ESC Protocol: Supports DSHOT600/300, other protocols may cause severe errors,
please use withcaution.
Output Voltage: VBAT battery voltage (used to power the flight controller)
Current Sensor: Supported (Scale= 254, Offset = 0)
Firmware: Bluejay JH-40 48kHz

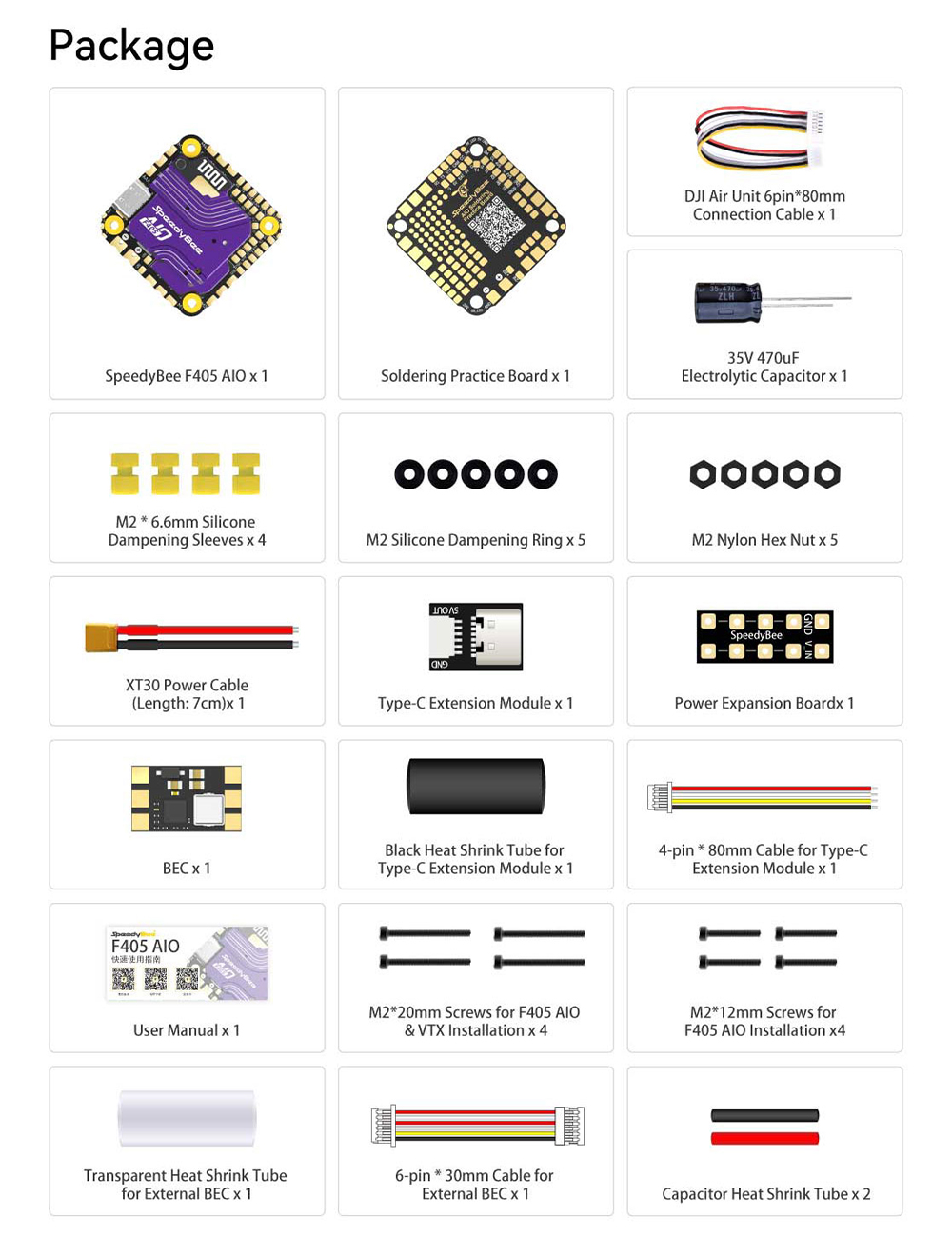

Package contents:
1* F405 AIO Flight Controller
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the
item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied,please express your use feeling.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video.
