Product features:

1. Use high-quality materials with guaranteed quality

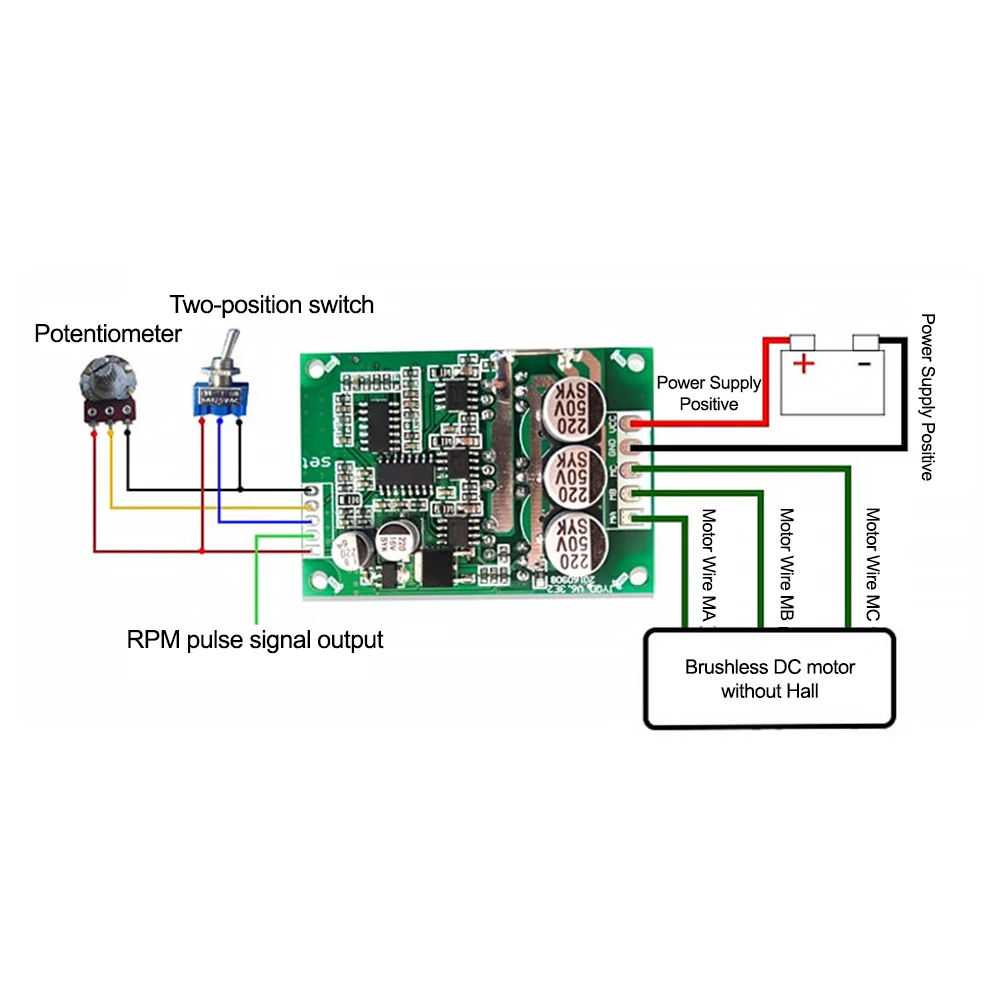

2. The driver supports forward and reverse switching, potentiometer speed regulation, potentiometers can generally be used for 10-50K, and PWM 5V signal speed regulation can also be used

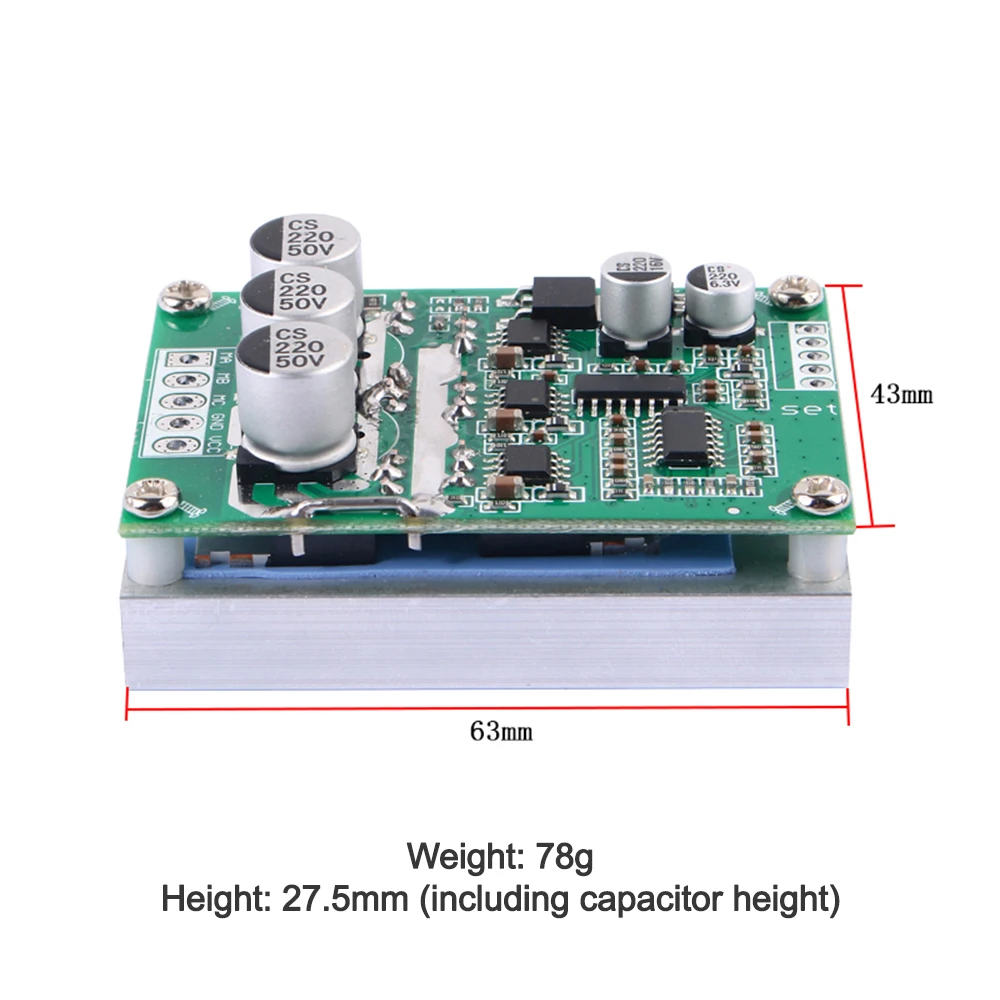

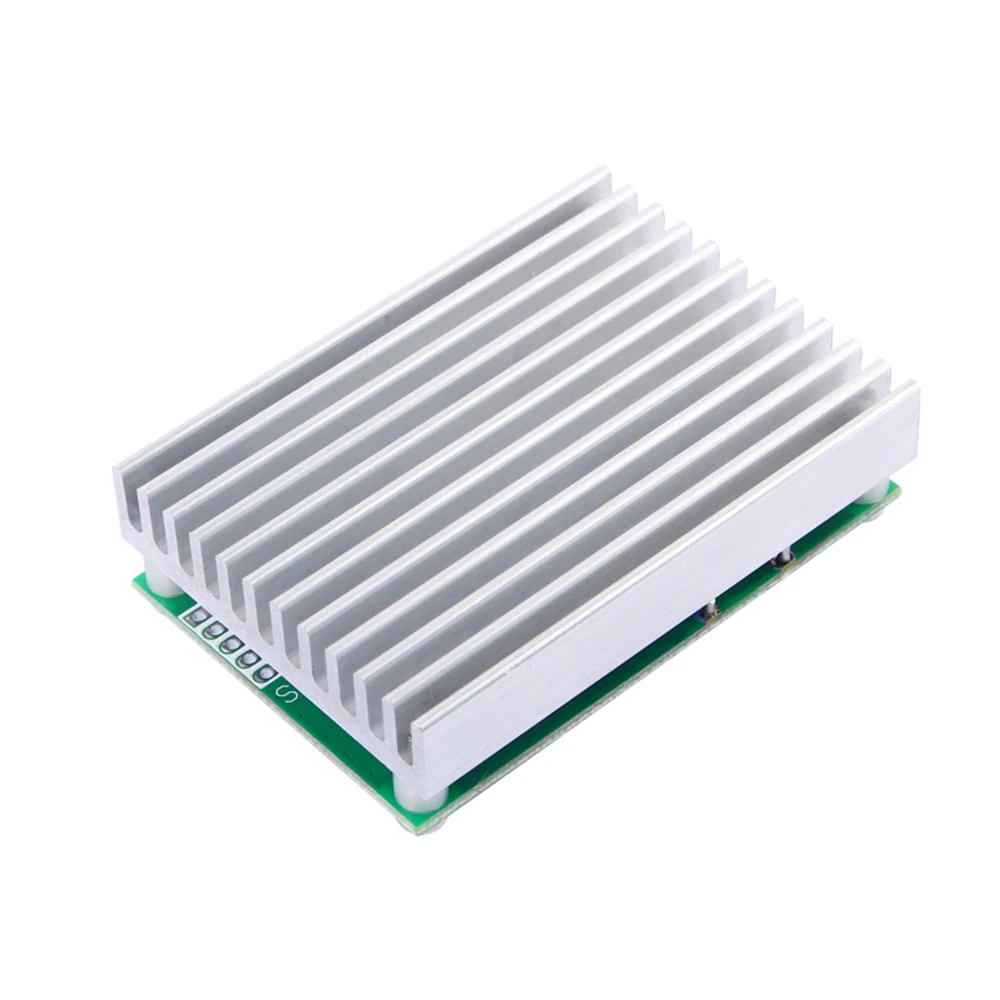

3. Easy to use, the driver board comes with 18mm thick heat sinks

4. Exquisite and compact appearance, neatly arranged components

5. Wide range of applications



Product parameters:

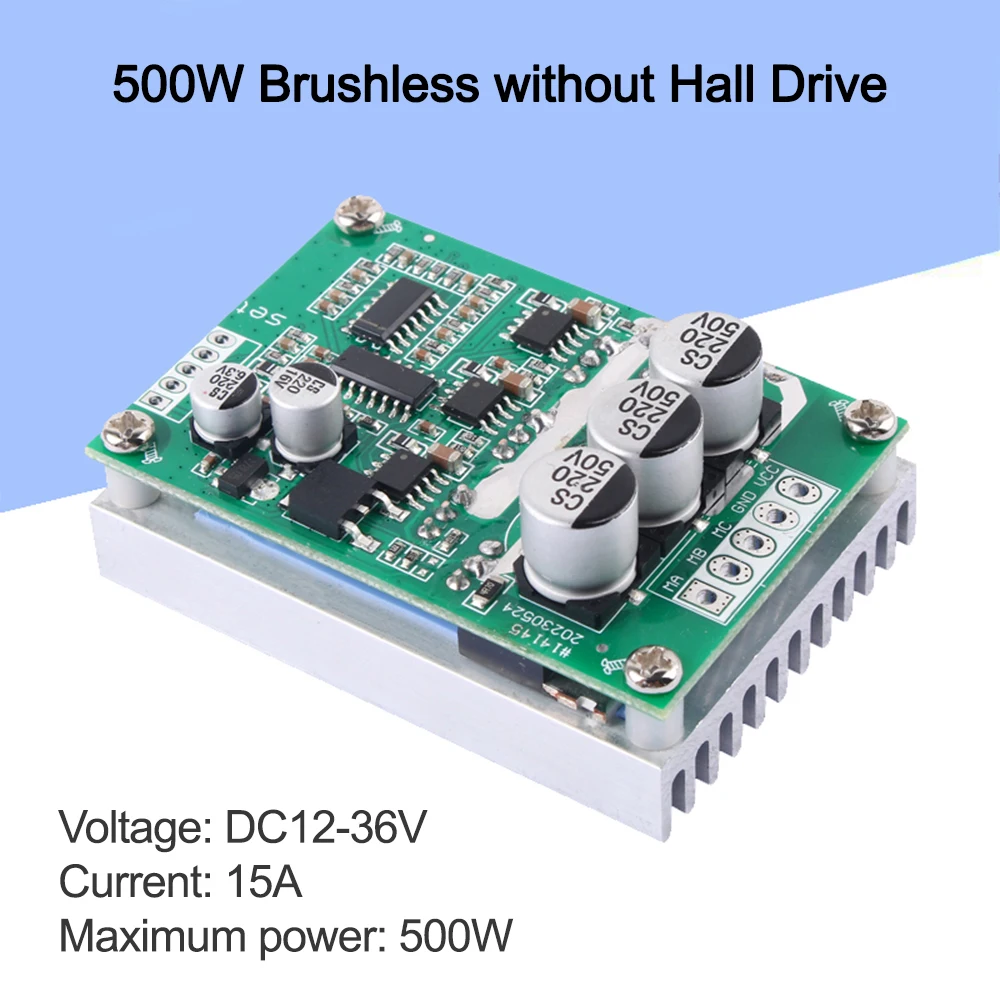

Voltage input: DC12-36V

Maximum current: 15A

Maximum power: 500W



be careful:

It is best to use an adjustable power supply current limiting mode to test whether the actual no-load current is abnormal during drive testing, in order to avoid high-power burning of the drive in the event of an abnormality

Do not short-circuit the output UVW three-phase, otherwise it will burn the drive. When using high power, it depends on the actual heat generation. If the heat generation is large, a fan should be added for forced air cooling to dissipate it

The drive does not come with sockets and wires, and requires soldering with an electric iron. The forward and reverse switches and speed control potentiometers need to be prepared by oneself. When soldering with a soldering iron, it is important to ensure good grounding to avoid damage to the drive caused by induced electricity



Packing list:

Motor drive board * 1
