20 Quart Single Acting Hydraulic Pump

Introduction

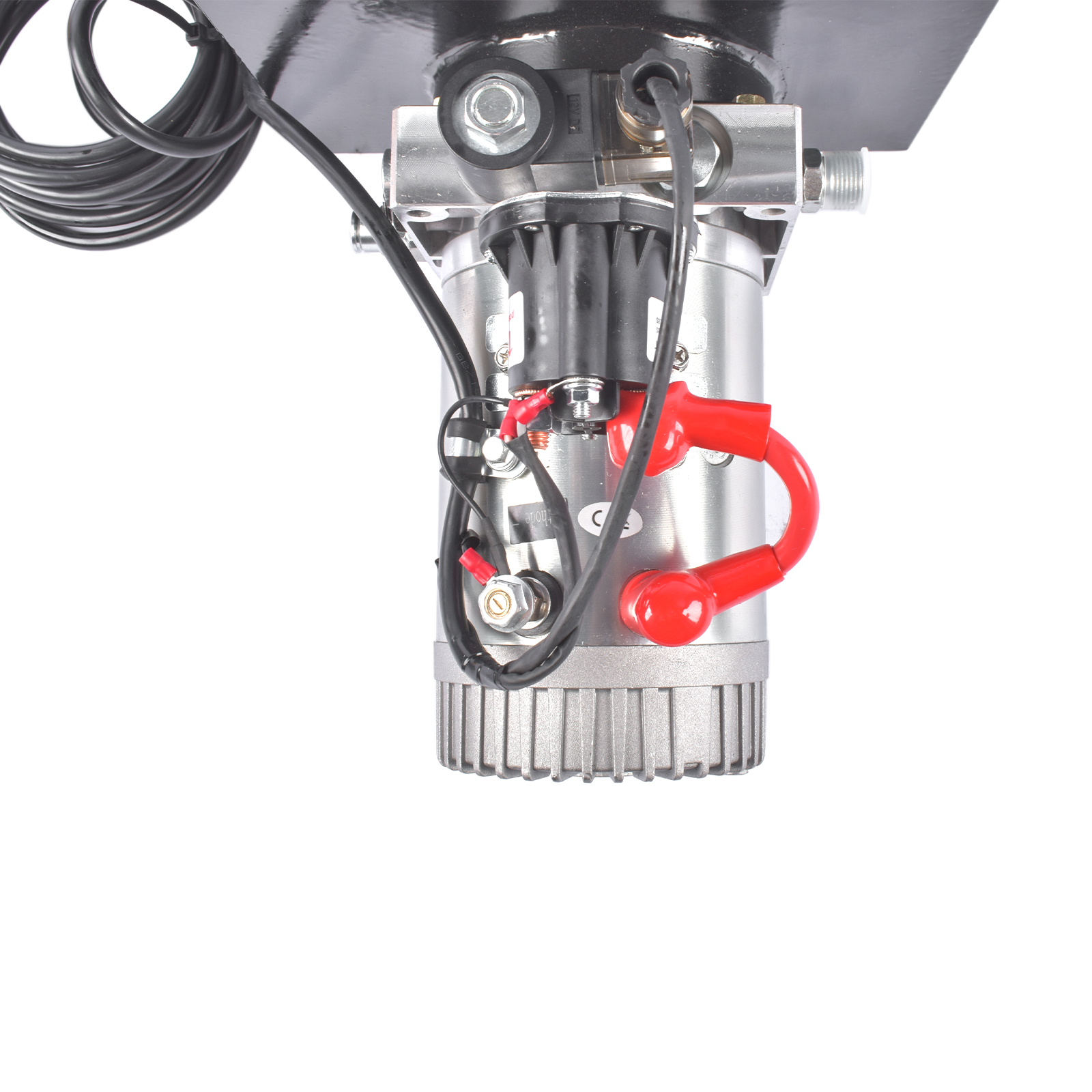

This hydraulic pump features a 12V DC motor with 1.6kW power. The single-acting power unit ensures stable lifting operations. You only need to add hydraulic oil, connect the power and tubing. No complex setup required. It's versatile for large machines, shear forks, elevators, forklifts, and more.
With its capacious fuel tank and powerful motor, this hydraulic pump effortlessly lifts heavy machinery, providing quick starts, precise control, and consistent reliability. Say goodbye to stalling and frequent failures.
Provide you with reliable hydraulic pump, built-in relief valve and throttle valve, so that the operation is more safe and secure, tight welding and rust-proof steel fuel tank is not easy to damage oil leakage.
Please note that continuous long-term operation is not recommended. When used in an S3 working system, it operates in cycles: 30s on, 270s off, and 180s max continuous working time. For extended operation, there's an intermittent 360s continuous working time.
Trusted by professional mechanics and construction sites, this 12V hydraulic pump. It's your powerful ally for tasks like cantilever tailplate operation, shear fork lifting platforms, vertical lifting platforms, semi-electric push trucks, dump trailers, and more.

Specifics
Type: Hydraulic Pump (20 Quart)
Voltage: DC 12V
Motor Power: 1.6KW
Acting: Single-acting
Oil Port Model: SAE#6 Port
Installation Method: Horizontal Mount
Reservoir Material: Metal
Package Includes: As Pics Shown!


Features

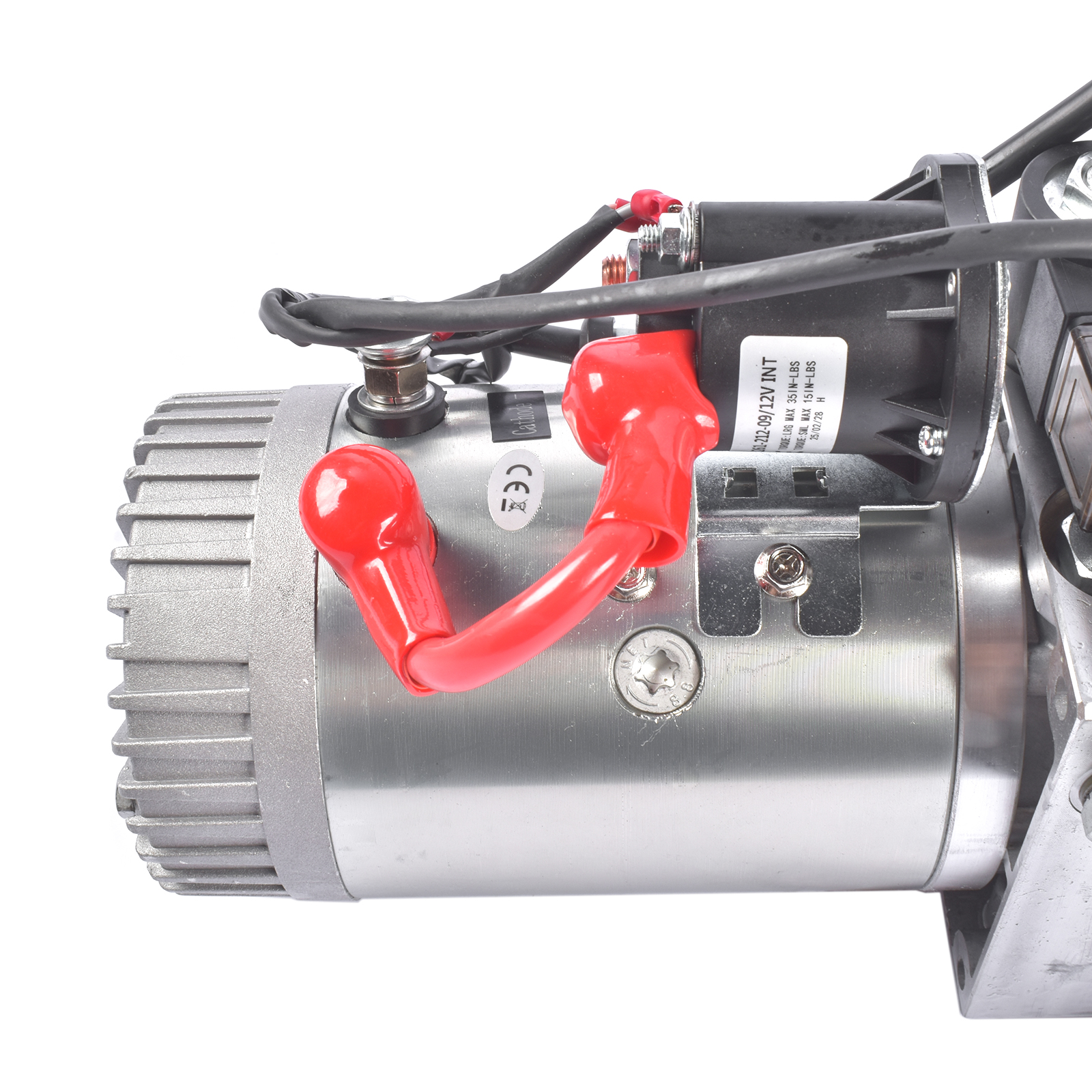

Our hydraulic pump adopts a 12V, 1.6kW DC motor, delivering a high flow rate of up to 0.91GPM. With a 20-quart tank and 16-20Mpa oil pressure, this powerhouse releases a maximum pressure of 3200 psi; the dump trailer pump can effortlessly handle heavy vehicles and machinery, lifting them with ease. Experience the power!

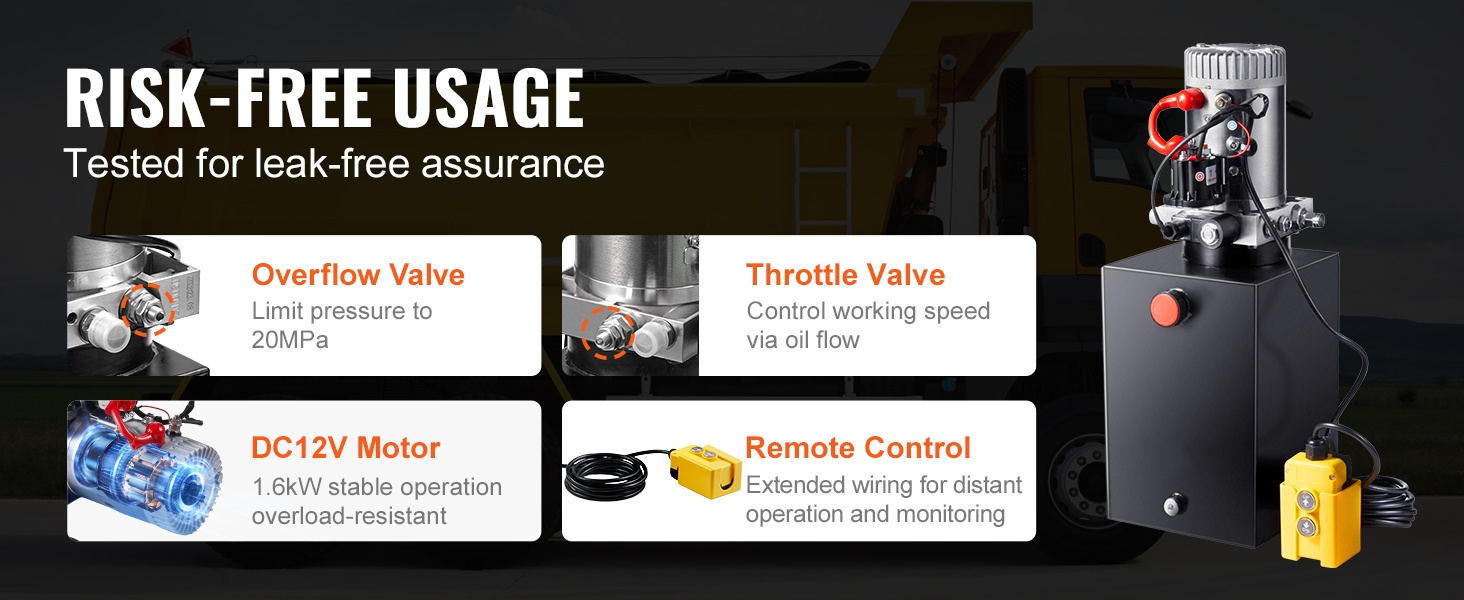

The hydraulic power unit employs a single-acting power mechanism, which enables a more stable and reliable lifting process. A built-in safety relief valve automatically releases pressure if the limit is exceeded, ensuring a safer operation with fewer failures.

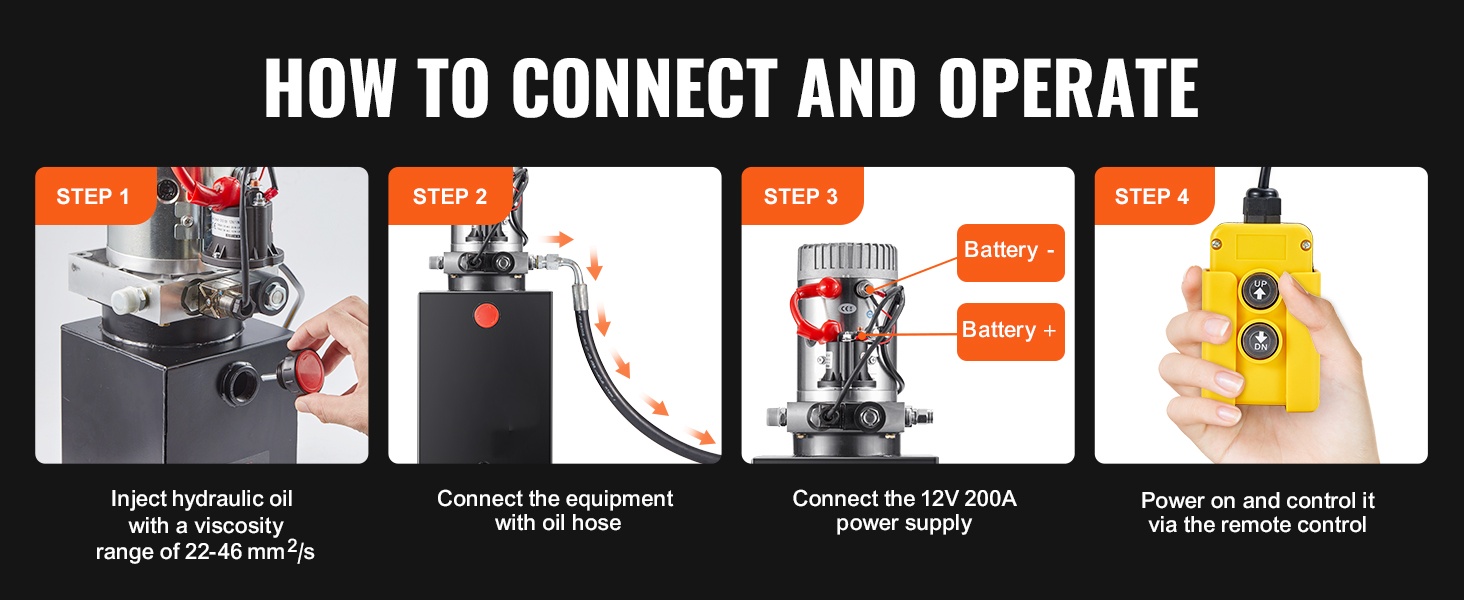

The 12V hydraulic pump arrives pre-assembled. Add hydraulic oil and connect the power supply and tubing, and you're ready to start. The hydraulic pump includes a SAE#6 connector, making it compatible with metric and American interfaces for your convenience.

Our hydraulic pump is built tough. It boasts robust overall sealing, minimizing the risk of oil leaks. The rust-proof solid metal steel tank ensures durability, even in high-impact situations and daily use. It's engineered to withstand the rigors of installation on heavy equipment.

This single-acting hydraulic pump isn't limited to one task. It's a versatile workhorse, suitable for various lifting and stamping applications. From dump trailers and container truck tailplates to hydraulic wood splitters, small presses, lifting platforms, semi-electric push trucks, bucket transporters, and more.

Package Includes

1x 12V Single Acting Hydraulic Pump

1x Dump Trailer Remote Control Switch

1x Additional SAE#6 Connector

1x English Manual

(As Pics Shown!)

Professional installation is highly recommended.

Please check the part number and illustrations carefully to ensure that it fits your model. If you are not sure, please contact us and we will respond as soon as possible.
