The kit does not include lithium batteries
1: Logistics tracking number:
After receiving your order, it takes 4-6 working days to fill in the tracking number;
2: Freight transportation information:
If the goods are in transit by rail or sea and you cannot see the logistics information, don't worry, you can contact us anytime,We will assist you with the inquiry and hope that you do not raise any disputes, as the goods are transported normally. Please understand;
3: Received goods:
When you receive the goods and encounter any problems, please contact us as soon as possible, and we will help you solve the problem;
4: Time difference issue:
Due to the time difference, the response to the message was not timely. Please understand that we will reply as soon as we see the message.
(If you have any questions, please feel free to contact customer service. Customer service will help you solve the problem. Please do not raise any disputes. Thank you for your cooperation.)
Motor Wheel Detail:

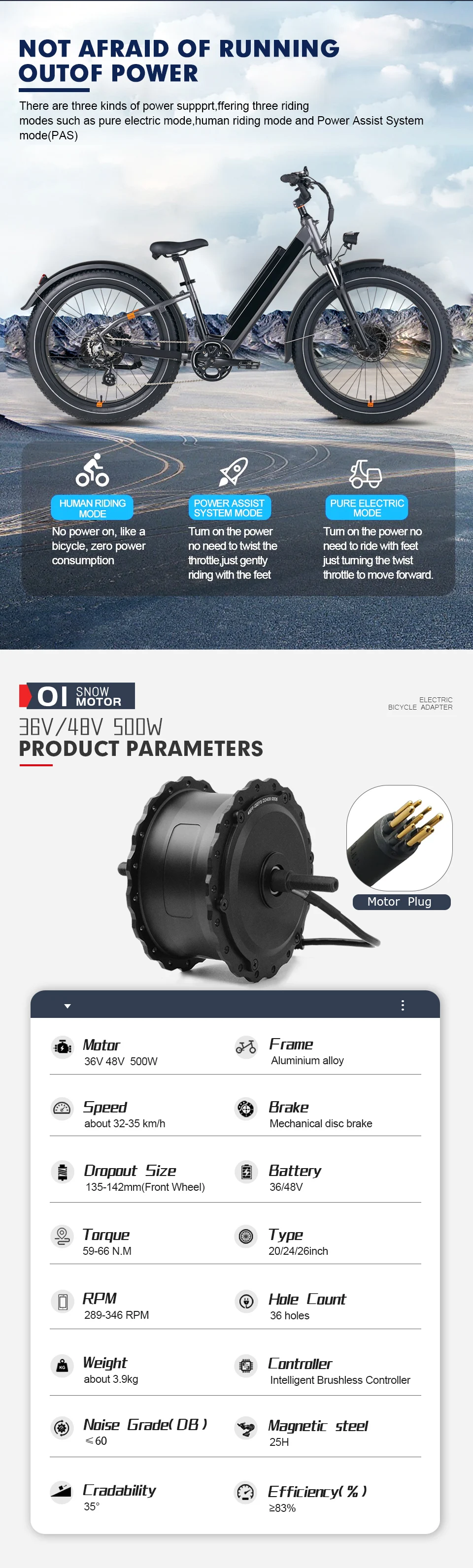

36V 48V 500W Fat Front Motor :
●Construction:Gear drive
●Rated Speed(KM):32-35km/h
●Rated Speed(rpm):289-346Rpm
●Torque(N.m): 59-66N.M
●Fork size(mm):135-142mm
●Motor weight (kg): about 4kg
●Magnet height: 25H
●Number of magnet poles: 20
●Operating Temperature: -20-45℃
●Installation: Front
●Certification: CE

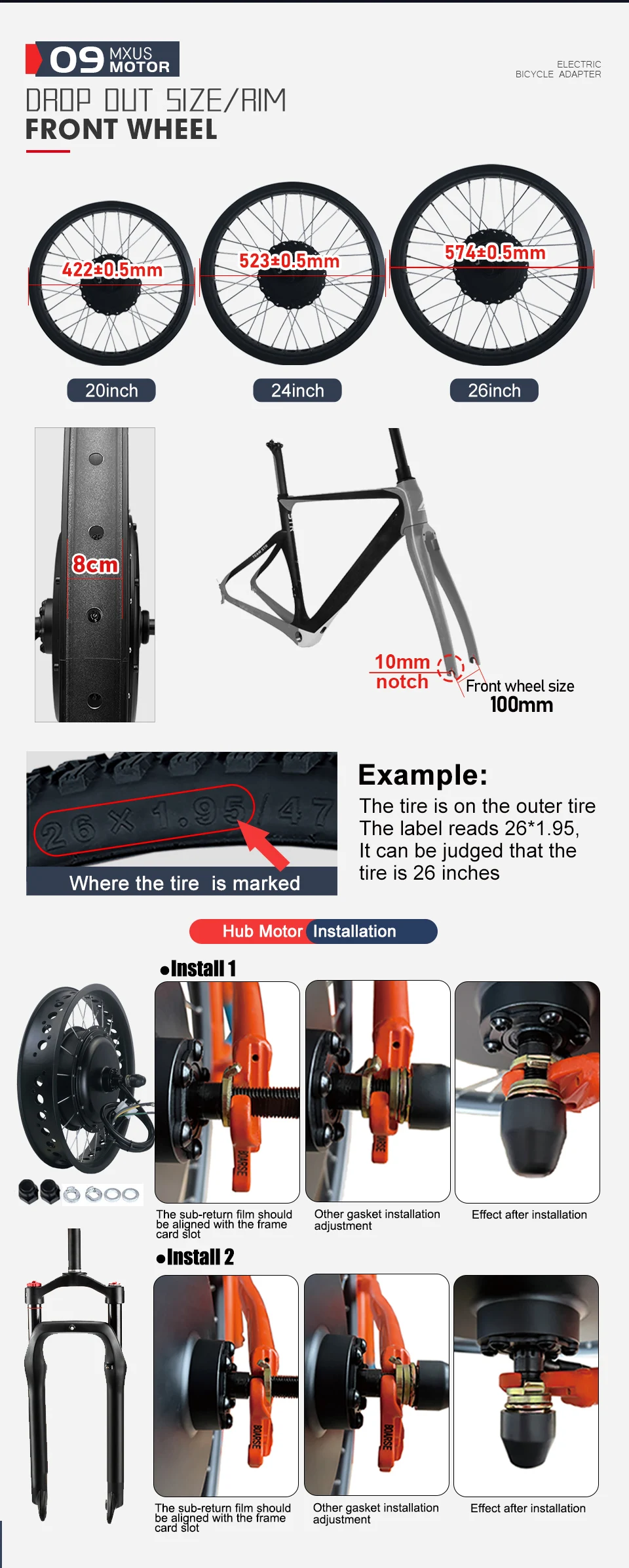

●Wheel Diameter (Inch): 20/24/26inch---Optional

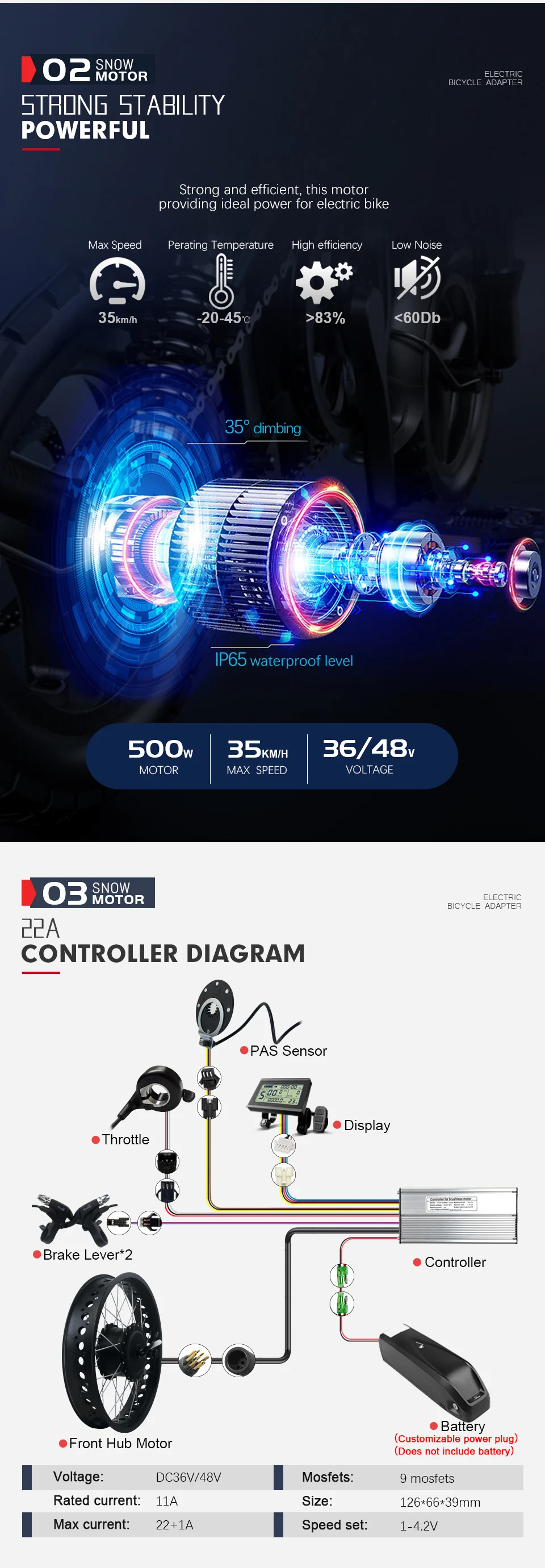

●Dimension :125*65*36 mm
●Weight :400g
●Mosfets :9 mosfets
●Maximum current :22±1A
●Rated voltage :DC36V/48V
●Speed set :1-42V
●Rated current :11A
Packaging List
●1 PCS * 500W Front Hub Motor with Rim and Spokes
●1 PCS * 500W Motor Controller

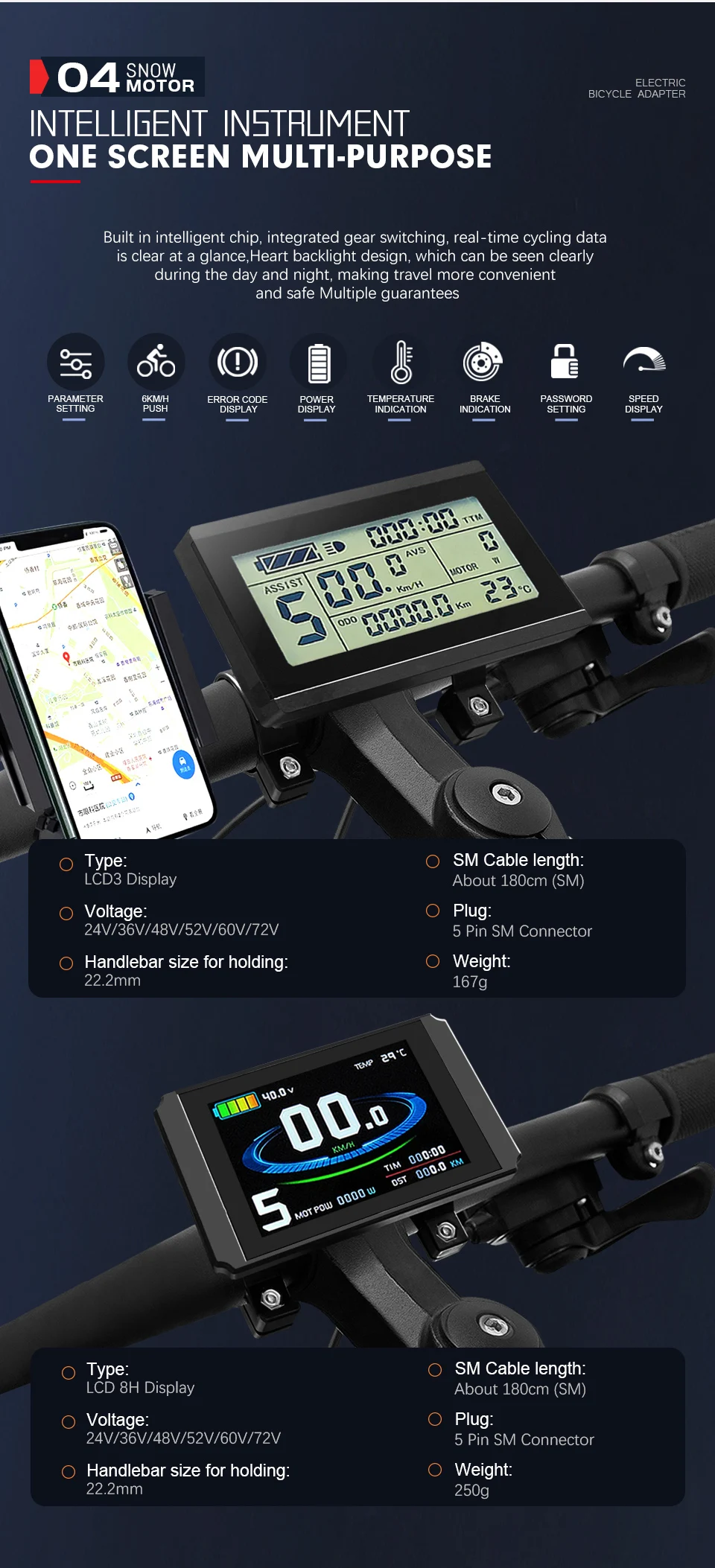

●1 PCS * Display( LCD,LED option)

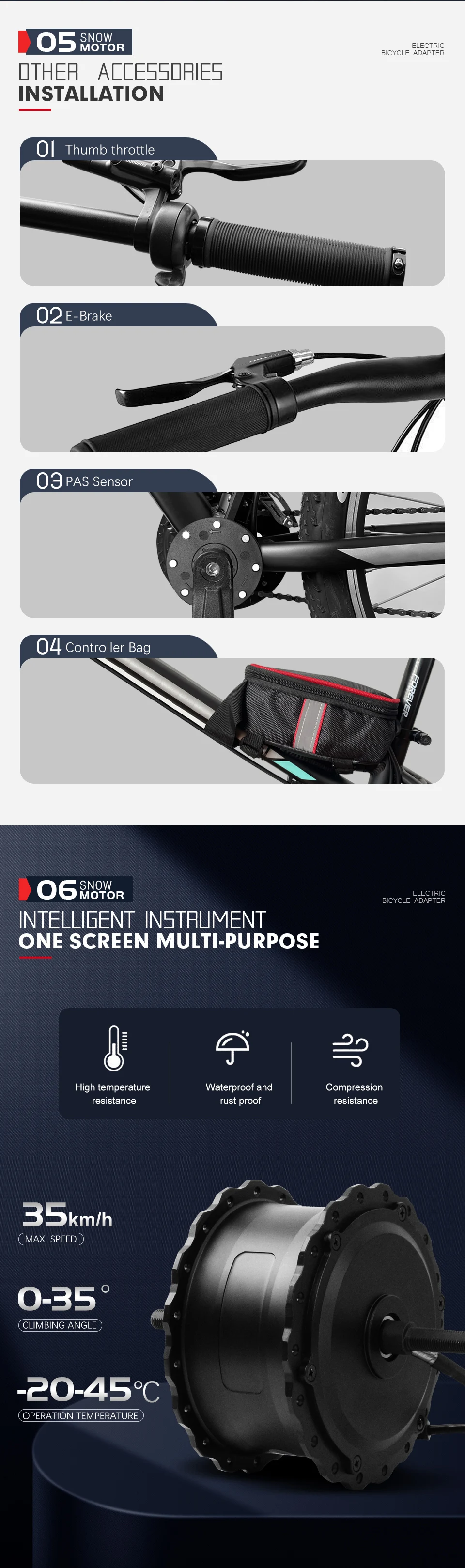

●1 PCS * Thumb Throttle (We default to ship thumb throttle, it can be changed to twist throttle if you need)
●1 PCS * PAS Sensor
●1 Pair * Brake Levers(We default to shipBrake Levers, it can be changed to Brake Sensors if you need)
●1 PCS * Motor Extension Cable
Gifts: 1 * Controller Bag( not battery) +1*Install cable ties and stretch film+1*Installation Manual
