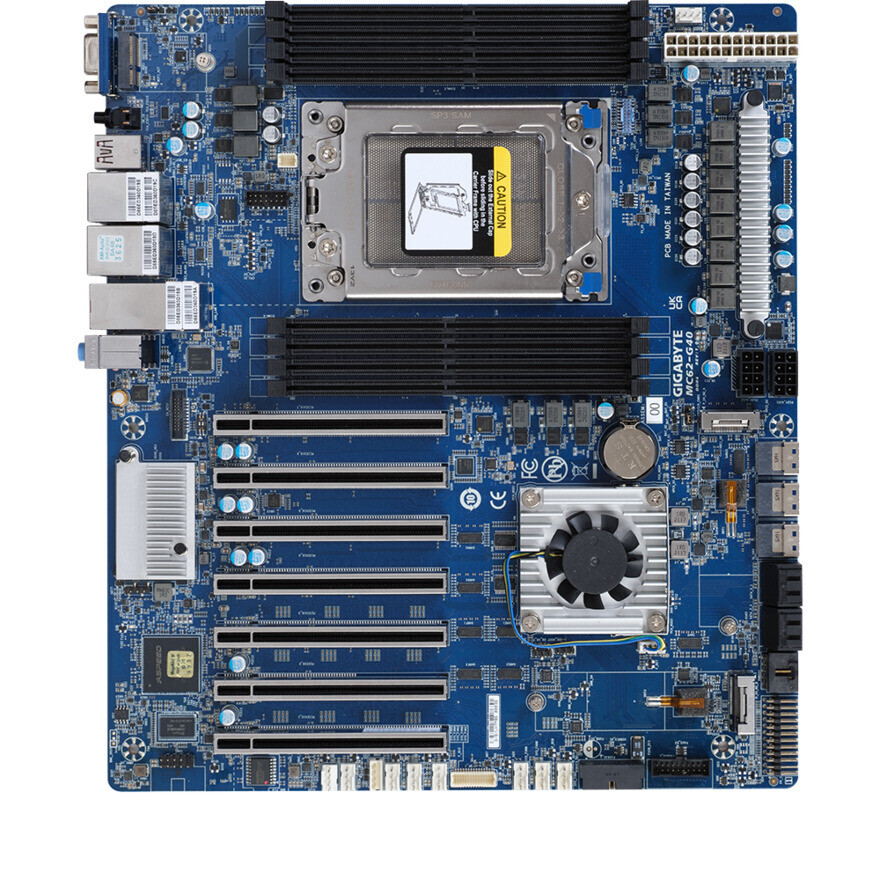

Board Size

CEB
305W x 267D (mm)

Processor Supported

AMD Ryzen™ Threadripper™ PRO 5000WX Series Processors
AMD Ryzen™ Threadripper™ PRO 3000WX Series Processors
Processor up to 64-core, 128 threads
Processor TDP up to 280W

Socket

sWRX8 Socket

Chipset Description

AMD® WRX80

Memory Type

8 x DIMM slots
DDR4 memory module supported only
8 channel memory architecture
Support for 3200/2933/2666/2400/2133 MHz; ECC & non-ECC; buffered & unbuffered; UDIMM, RDIMM, 3DS R-DIMM, LRDIMM
Total up to 2TB of system memory (256GB single LRDIMM capacity)

NOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0

Integrated Network

2 x 10GbE LAN (Intel® X550-AT2)
1 x GbE LAN (Intel® i210)
1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Integrated Audio Controller

Realtek® ALC4080 HD audio codec
Supports 7.1 channel configurations
3 ports Audio Jack (Audio in/Audio out/Mic)

Integrated SAS Controller

NA

Integrated SATA Controller

- 4 x SATA III 6Gb/s ports
- 2 x M.2 slot for storage (PCIe Gen4 x4 or SATA III 6Gb/s)
- 3 x SlimSAS ports (PCIe Gen4 x4 or 4x SATA III 6Gb/s each)

Support RAID Function

RAID 0, RAID 1, RAID 5 and RAID 10

Expansion Slot

Slot_7: 1 x PCIe x16 (Gen4 x16) slot
Slot_6: 1 x PCIe x16 (Gen4 x16) slot
Slot_5: 1 x PCIe x16 (Gen4 x16) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot
Slot_3: 1 x PCIe x16 (Gen4 x16) slot
Slot_2: 1 x PCIe x16 (Gen4 x8) slot
Slot_1: 1 x PCIe x16 (Gen4 x16) slot

2 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4 or 4x SATA 6Gb/s
- Supports NGFF-2242/2280 cards

1 x M.2 slot for Wi-Fi:
- E-key
- Supports NGFF-2230 cards

3 x U.2 connectors:
- SlimSAS type
- PCIe Gen4 x4 or 4x SATA III 6Gb/s

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x PCH fan header
8 x System fan headers
2 x USB 3.0 headers for 4 ports
1 x PMBus connector
4 x SATA III 6Gb/s ports
2 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
3 x slimSAS connectors
1 x Front panel header
1 x Back plane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x COM header

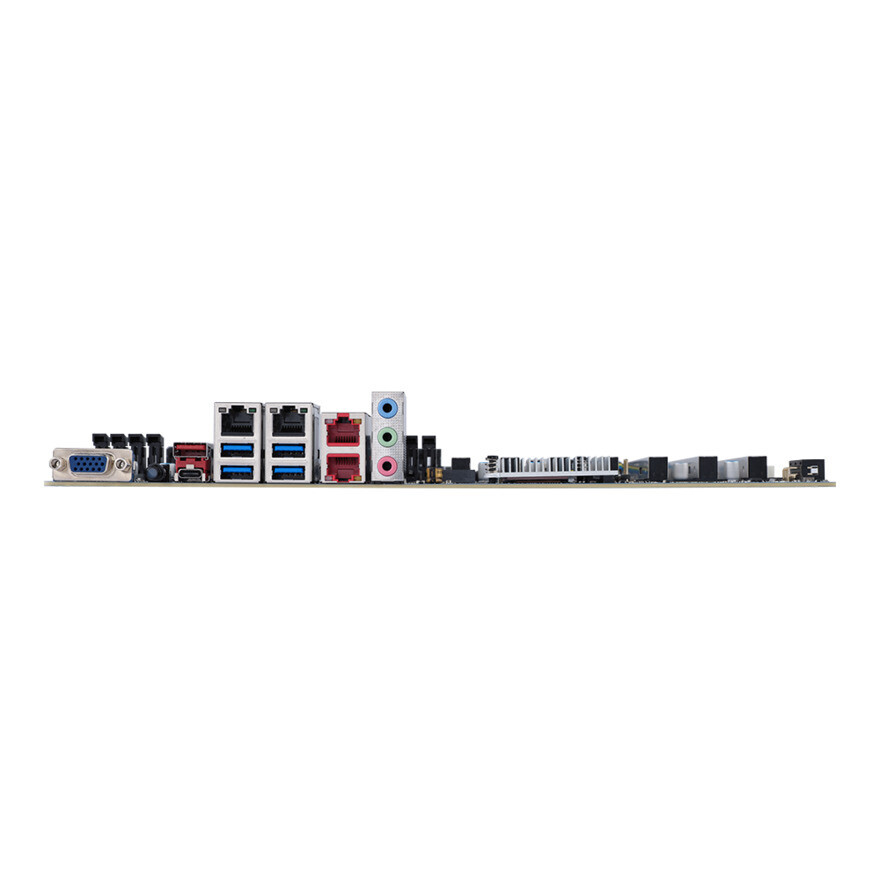

Rear I/O Connectors

1 x VGA
1 x ID Button
2 x USB 3.2 gen2 (Type-A + Type-C®)
1 x RJ45 (GbE LAN)
1 x MLAN
4 x USB 3.2 gen2 Type-A
2 x RJ45 (red) (10GbE LAN)
1 x 3 in 1 Audio jacks

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Driver Supported

Windows 10 (64bit)
Windows 11 (64bit)

Red Hat Enterprise Linux 8.2 (64bit)
Red Hat Enterprise Linux 8.3 (64bit)

Ubuntu 20.04 LTS (64bit)

Server Management

ASPEED® AST2600

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MC62-G40
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables (500mm)
1 x slimSAS to 4 SATA III 6Gb/s cable

Single Box dimensions: 360 x 330 x 80 mm
Carton dimension: 674 x 424 x 385 mm
Quantity: 10 x single box with one carton

Bulk Packaging Content

10 x MC62-G40
10 x I/O shields

Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MC62G40MR-00
Bulk: 9MC62G40NR-00
I/O shield: 12AIO-MC62G4-00R
Fan-Sink: (optional)
- Fan: 25ST2-88382C-D0R
- Sink: S25ST1-243103-A0R (optional)
