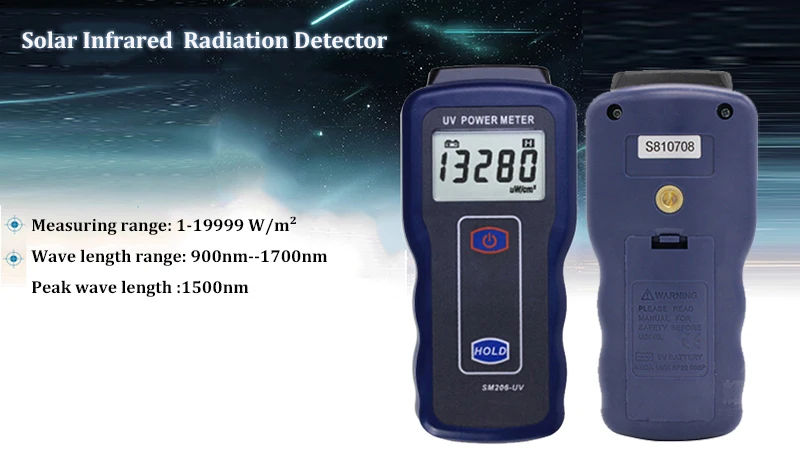

Solar Infrared Radiation Detector NIR Power Meter Wave length 900nm to 1700nm

Ⅰ Overview

This instrument is a precision instrument for measuring the intensity of solar infrared radiation. It is applied to the radiation intensity measurement of infrared sources (sun, infrared lamps, etc.), the resistance performance test for infrared light (thermal insulation performance test) of building and automotive insulation glass, thermal insulation film etc, the energy test of infrared bath, infrared physiotherapy lamp, infrared electric heater. Infrared light sources are often used for heating, physiotherapy, night vision, communication, navigation, plant cultivation and poultry breeding, etc.

Ⅱ Features

  4 1/2 digital display

  Data retention function

  Wide measure range without adjustment

Ⅲ Specifications

  Resolution: 1W/m²

  Error range: ± (10%R+2dgts)  R:readings

  Temperature error: ±0.38W/m² / ℃ deviation at 25℃

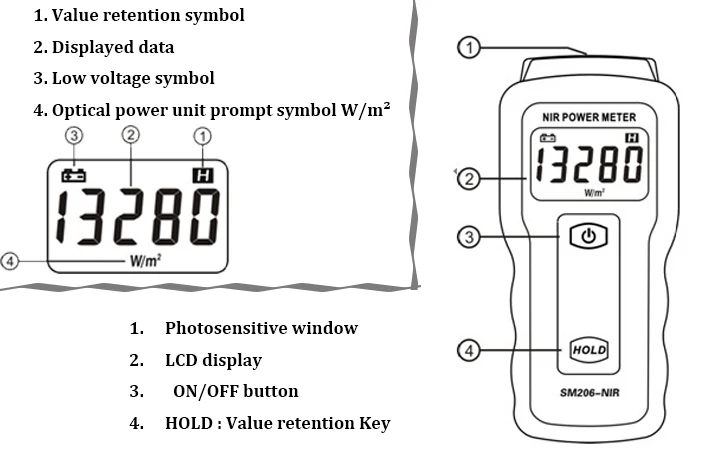

   Display: 4 1/2 LCD display, maximum displayed numerical value 19999, over load “OL”

   Drift: <±1.5% /year

  Measuring range: 1-19999 W/m²

  Wave length range: 900nm--1700nm

  Peak wave length :1500nm

  Sampling time: 2.5 times/s

  Operation temperature and humidity: 0°C to 40°C     <80%RH

  Storage temperature and humidity: -10°C to 50°C     <70%RH

  Dimensions and weight: 132（L） x 60（W） x 38 （H）mm

  Weight: approx. 150g

  Battery:  6F22 alkaline 9V battery(not included)

  Battery operation life: Approx. 100 hours
