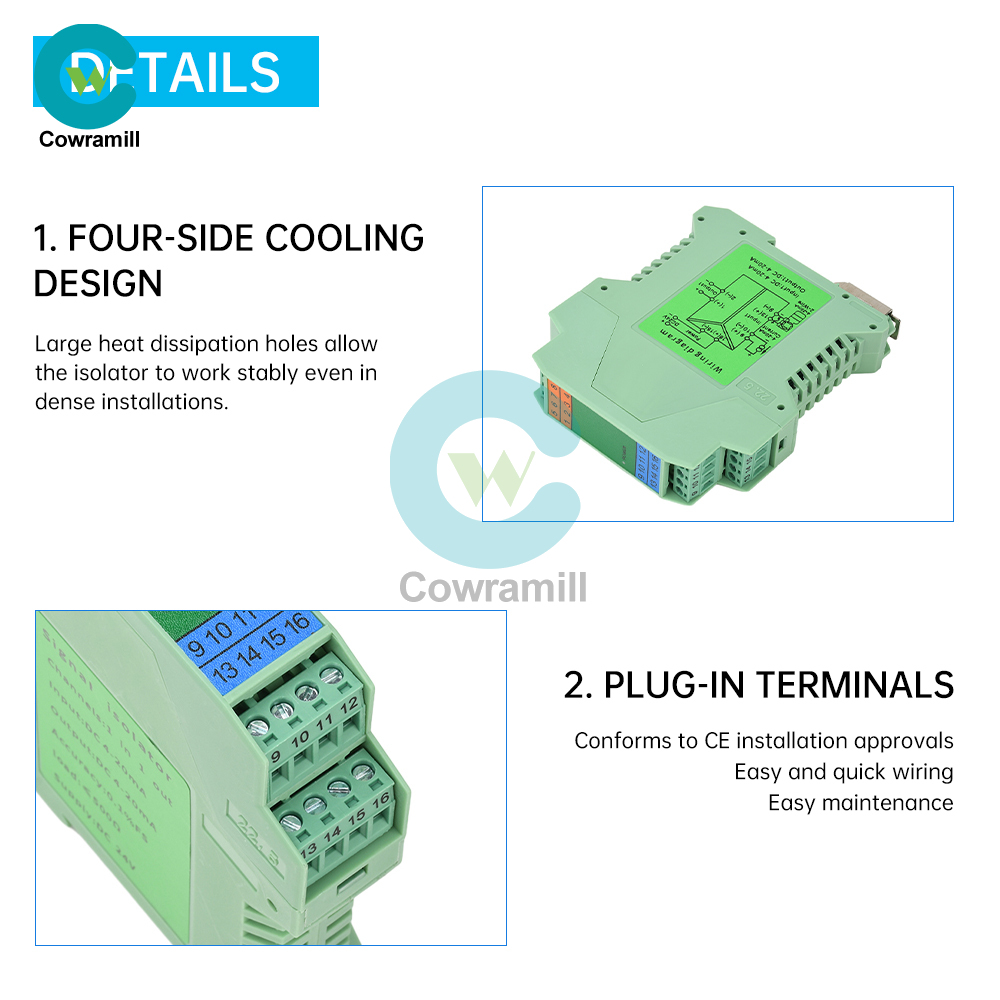

1. Four-side heat dissipation technology: large area heat dissipation holes are designed to ensure stable operation during intensive installation

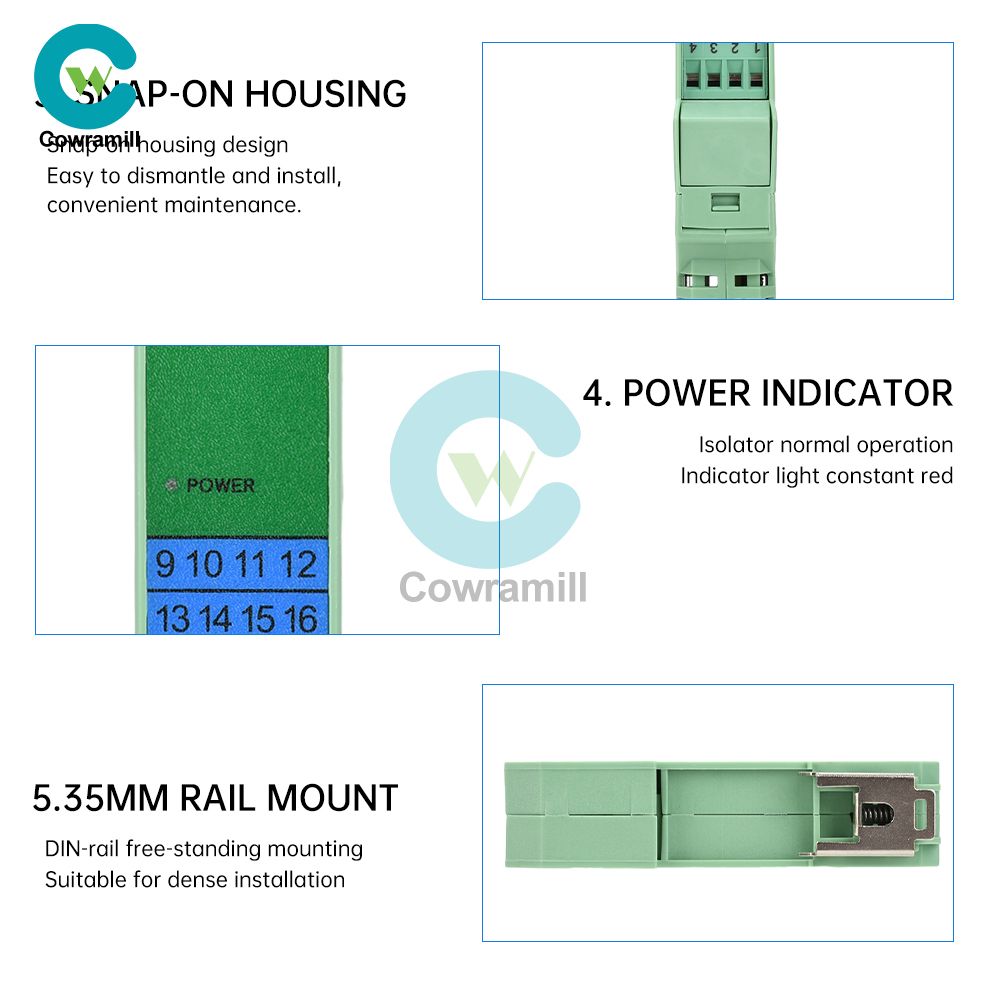

2. Plug-in terminals: CE certification, fast wiring and maintenance, convenient operation.
3. High precision performance: basic accuracy ≤ 0.1%, temperature drift as low as 0.005F.S./°C, more reliable data
4. Fast response time: response time ≤ 10ms, real-time signal transmission, efficient and stable
5. Strong anti-interference ability: in line with electromagnetic compatibility standards, suitable for complex industrial environments

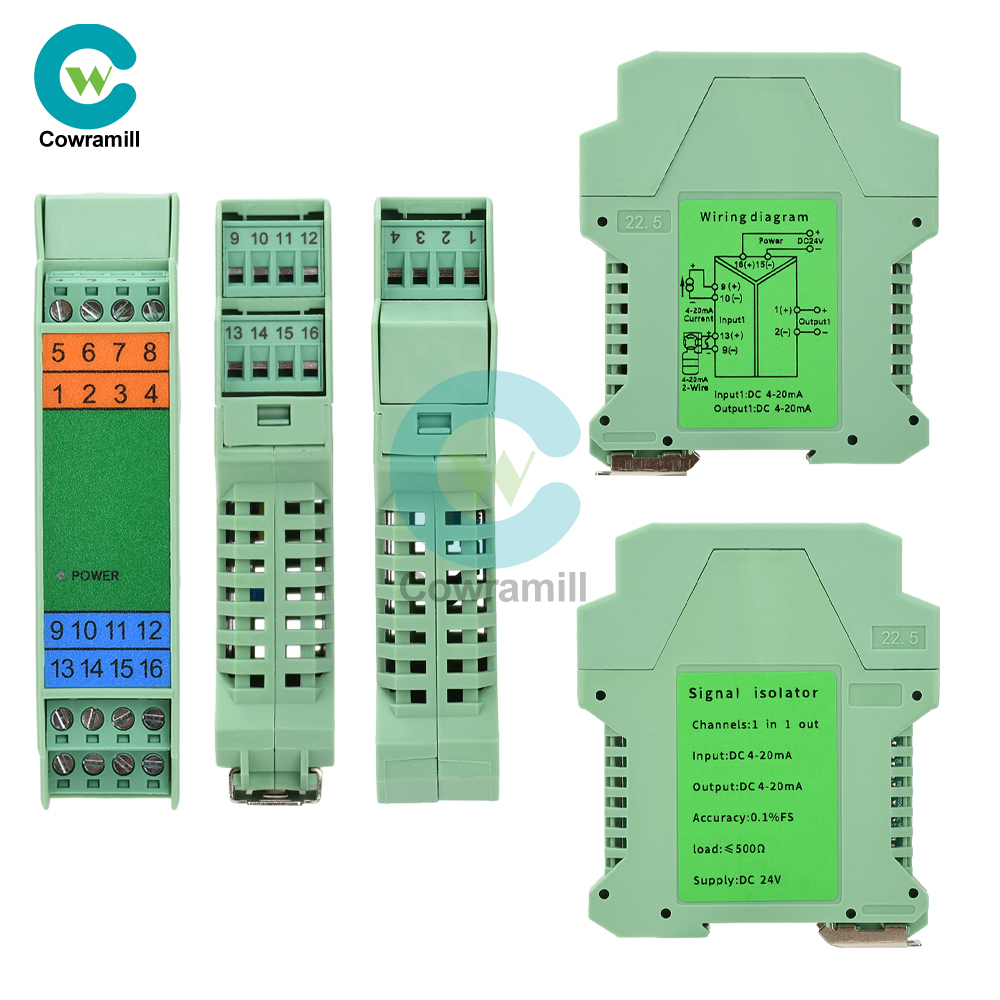

Product name: signal isolator
Input signal: 4-20mA
Distribution voltage: 24V (upper limit drive current 30mA)
Input impedance: ≤50Ω
Output signal: 4-20mA
Output load resistance:
RL≤500Q (when output is current signal)
RL≥1KΩ (when output is voltage signal)
Power supply: DC 24V; ± 10%
Current consumption:
≤70mA (one in and one out, DC 24V power supply, 20mA output)
≤120mA (one in one out, DC 24V power supply, 20mA output)
≤140mA (two in and two out, DC 24V power supply, 20mA output)
Basic accuracy: ≤0.1%F.S.
Temperature drift: 0.005F.S./°C (-20°C~+55°C)
Response time: ≤10ms (0~90%)(TYP)
Dielectric strength: 1500V AC/1min (between input, output, power supply)
Operating temperature range: -20~+55°C
Electromagnetic compatibility: in accordance with GB/T 182683 (IEC61326-1)

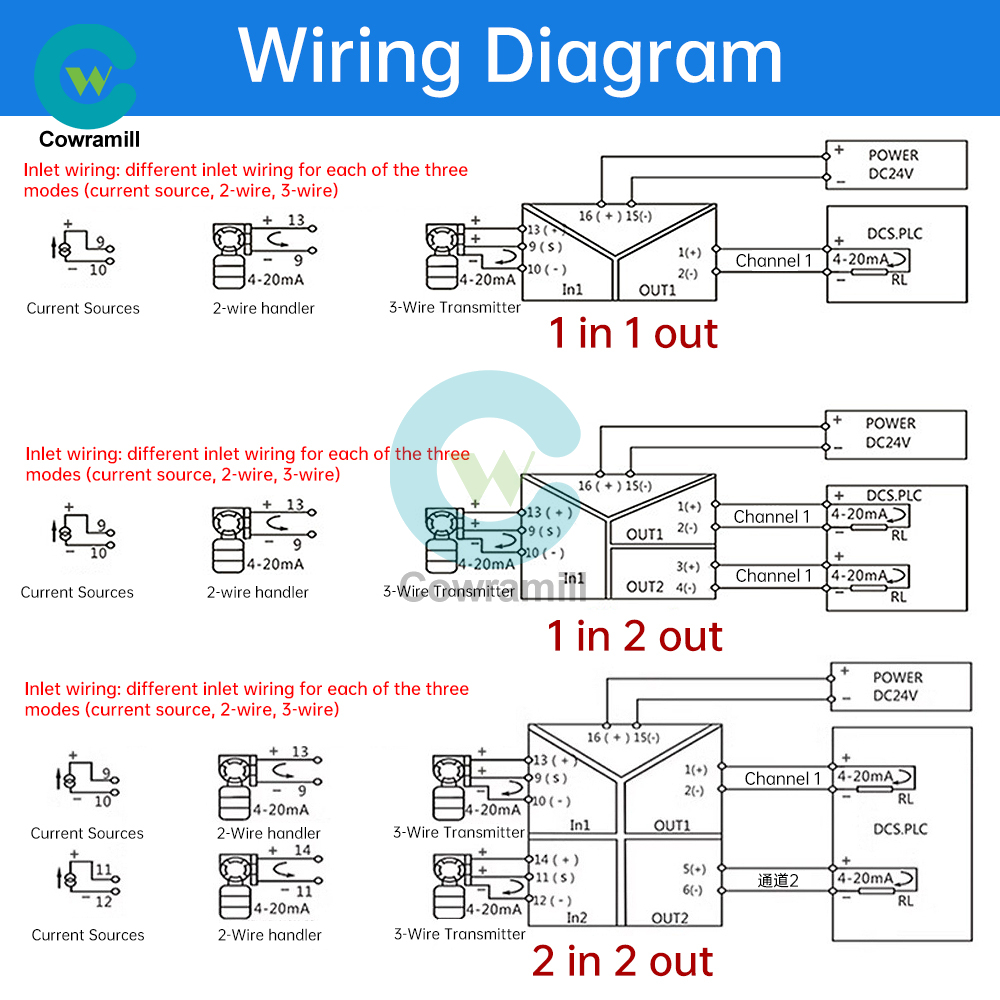

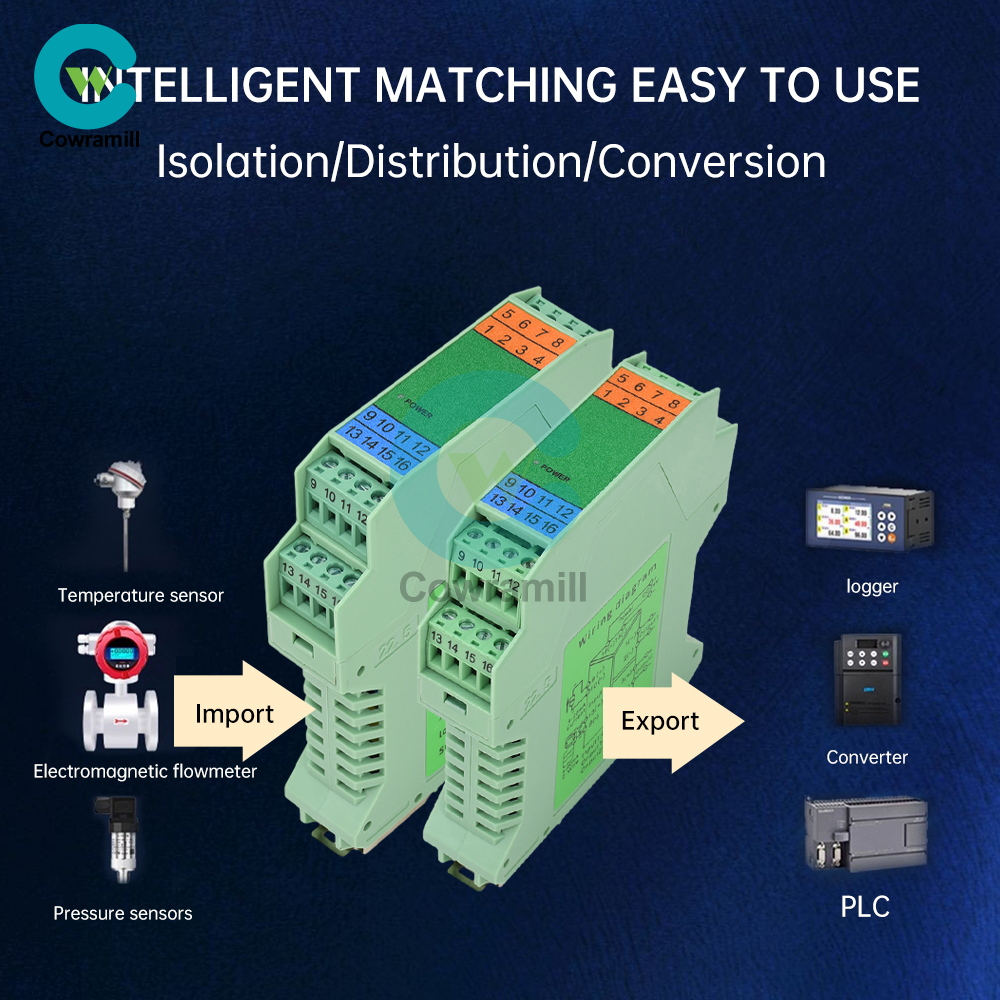

Use of field devices: 2-wire, 3-wire transmitter, current source

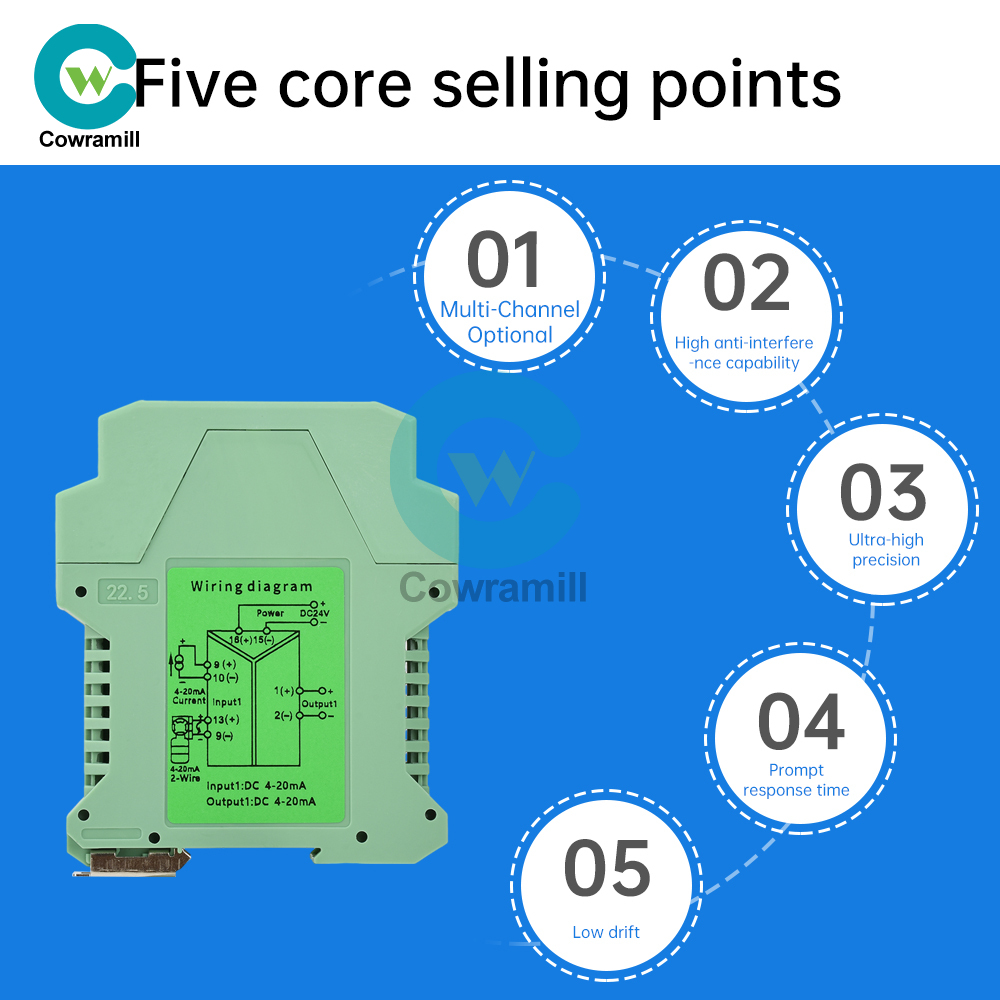

Product features: multi-channel selectable, strong anti-interference ability, ultra-high precision, fast response time, low drift temperature
1 x Isolator
