Introduction
* Tri-angle Gloss Meter manufactured according to international standard ISO2813 and standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.Gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
Product Features:
* With auto-calibration function;Meet the first grade requirements of JJG696;
* Large storage to save over 35000 data;
* With PC software for quality report, more extend functions;
* With multi working modes and multi-functions for most customers’ requirements.
Technical Specifications

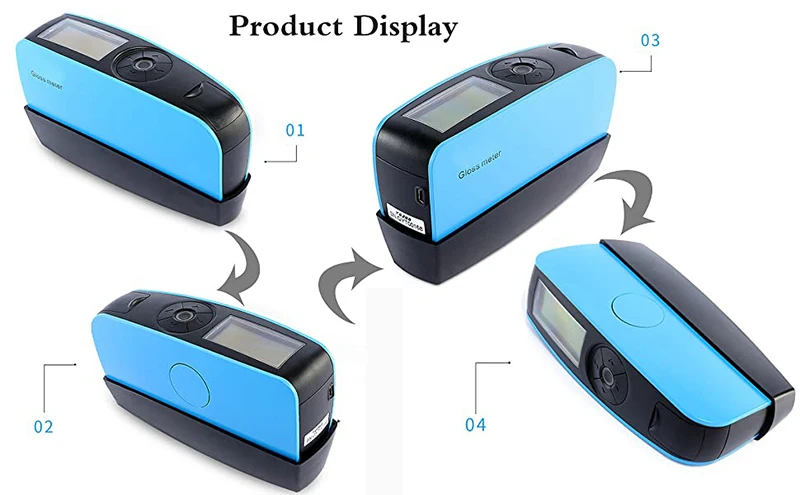

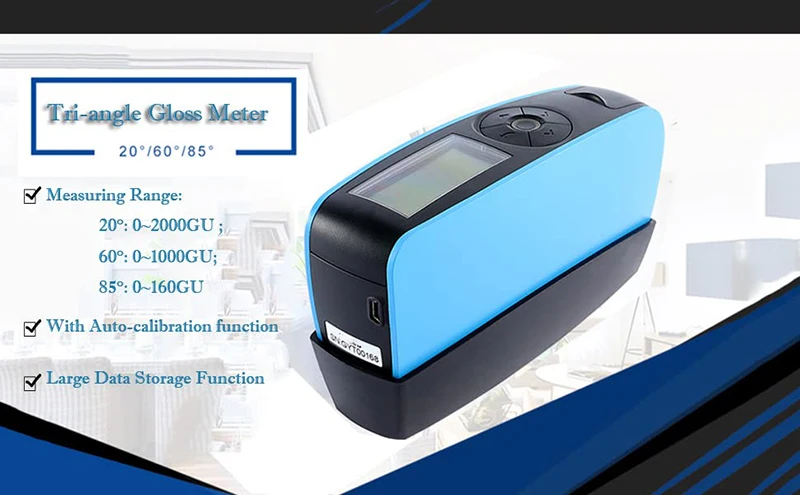

* Model: Tri-angle Gloss Meter
* Measuring Angle: 20° 60°85°
* Measuring Area: 20°:9X10 60°:9X15 85°:5X38
* Measuring Range: 20°: 0~2000GU ; 60°: 0~1000GU; 85°: 0~160GU
* Division Value: 0.1GU
* Measuring Modes: Basic mode; Statistic mode; Continuous mode; QC mode
* Measuring Time: 0.5S
* Repeatability: 0~100GU:±0.2GU ; 100~2000GU:±0.2%GU
* Accurate:Conform with JJG696 first grade requirements of gloss meter
* Long-time Calibration: Automatically check and made the calibration
* Language: Chinese & English
* Storage: 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
* Display: 2.3 inch white and black screen
* Size: 160*52*84mm; Weight: About 300g
* Power Supply: 1pc dry-cell battery(can measure 10000 times) or use USB Charge（Battery not included in the package）
* Interface: USB
* Standard Accessories: main unit, USB cable, user manual, calibration plate, QC software
