Features:

Bullet Points:
1. Instant water heater heats quickly and saves heating time. One-piece compact insulation reduces energy consumption.
2. The water heater uses stainless steel pipes, which has strong anti-pollution ability and can adapt to various complex water quality environments.
3. The small hot water tank can be placed in a beautiful space and can be installed in the kitchen, lounge, bathroom or anywhere else you want.
4. One-piece molding, strong and reliable, preventing environmental erosion in bathrooms and kitchens. Overpressure Protection: When the pressure in the liner exceeds the safe rated pressure, the safety relief valve will automatically release the pressure to protect the liner and your safety. Prevent dry burning: When the inner tank is dry and dry, the secondary insulation protection immediately cuts off the power supply and automatically stops working.
5. Eliminate the long wait for hot water in the sink and get hot water on demand whenever you need it.

Specifications:
Color: white
Style: vertical
Type: water storage
Shell material: ABS shell
Inner tank material: 304 grade stainless steel
Heating tube material: 316 stainless steel
Water inlet method: Top water inlet
Plug voltage: AC220V, British plug
Rated capacity: 10L
Rated power: 1500W
Rated water pressure: 0.75Mpa
Applicable water pressure: 0.05-0.6MPa
Rated current: 7A
Waterproof level: IPX4
Energy efficiency rating: 3
Heating time: 8-15 minutes (according to different water temperatures in different places)
Maximum temperature: 65℃

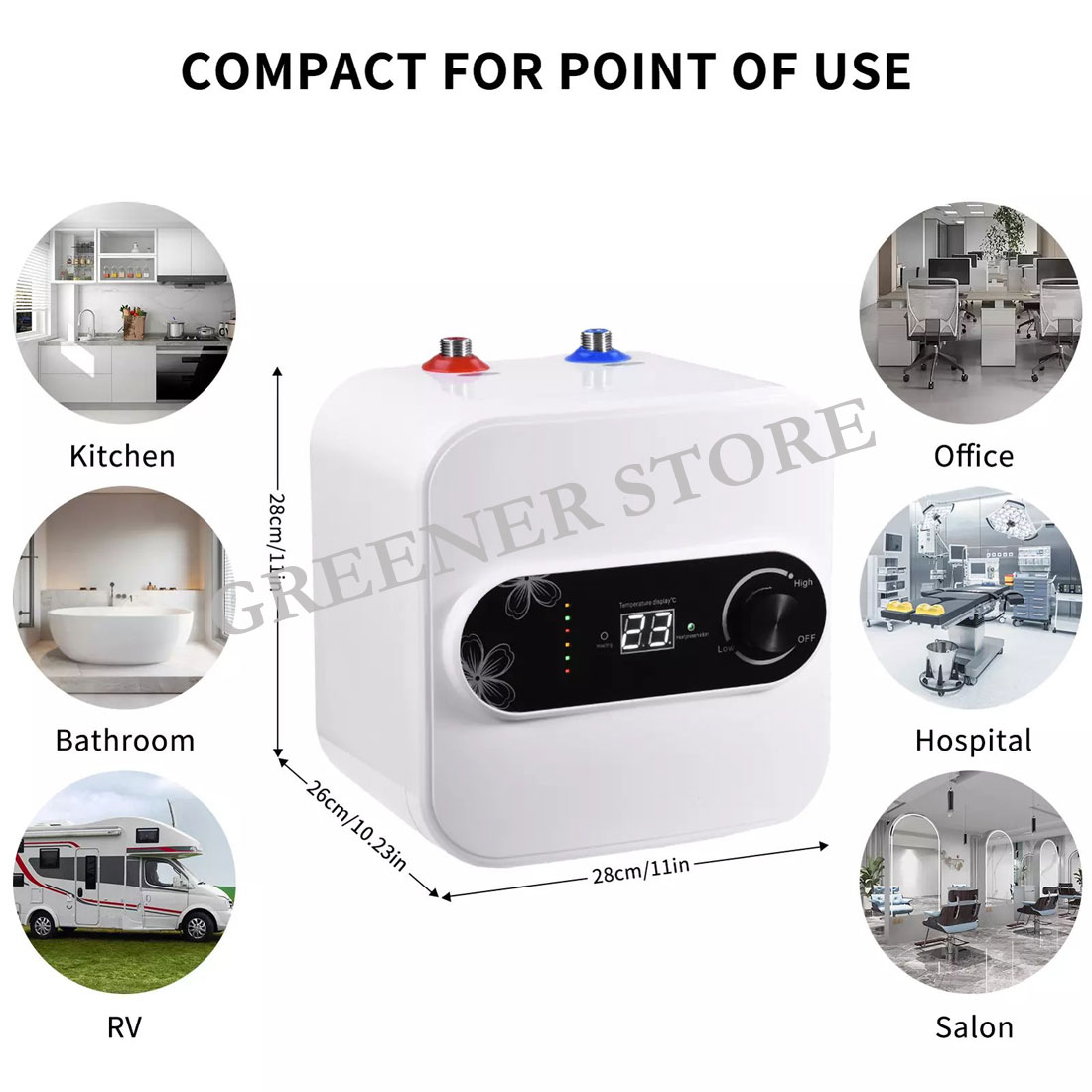

Product size: 280*260*280mm
Packing size: 370*340*330mm

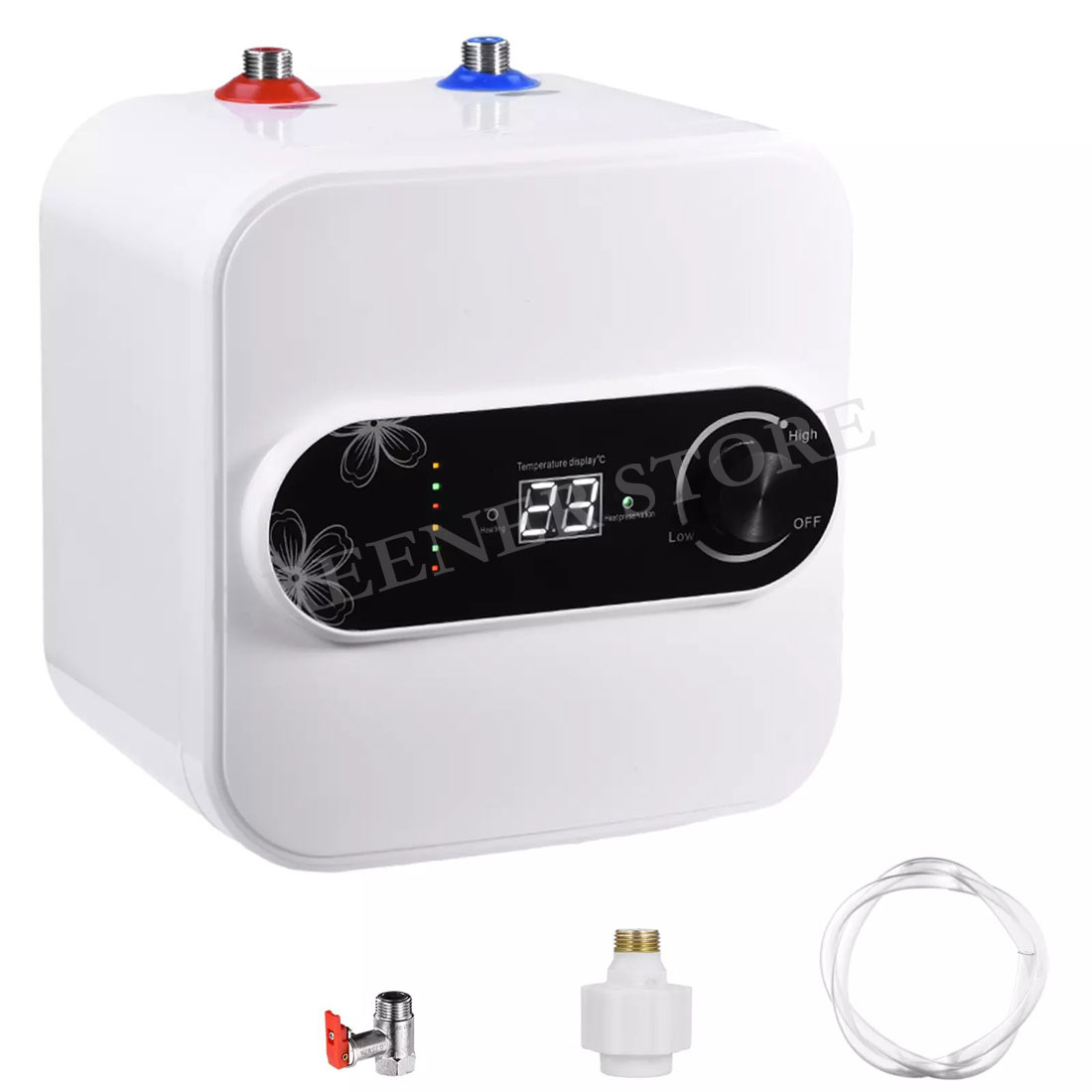

Packing List:
1*Xiaochubao water heater
1*drip pipe
1*Instruction manual
1*Electricity protection wall
1*pressure relief valve

Notes:
✔After installation, open the water inlet valve and turn the faucet to the hot water outlet. When the water comes out, turn the knob and turn it to the heat point. Turn off the tap. Wait 20-30 minutes for the first heating. After the heat preservation light is on, you can open the faucet and use it.
✔ Reduce heat loss Short distance hot water supply, minimize waiting time for hot water, save energy and bills. Whether used as the sole source of water heating for a single sink, or as a supplement to an existing heater located away from the sink, this premium mini tank water heater has minimal standby losses!

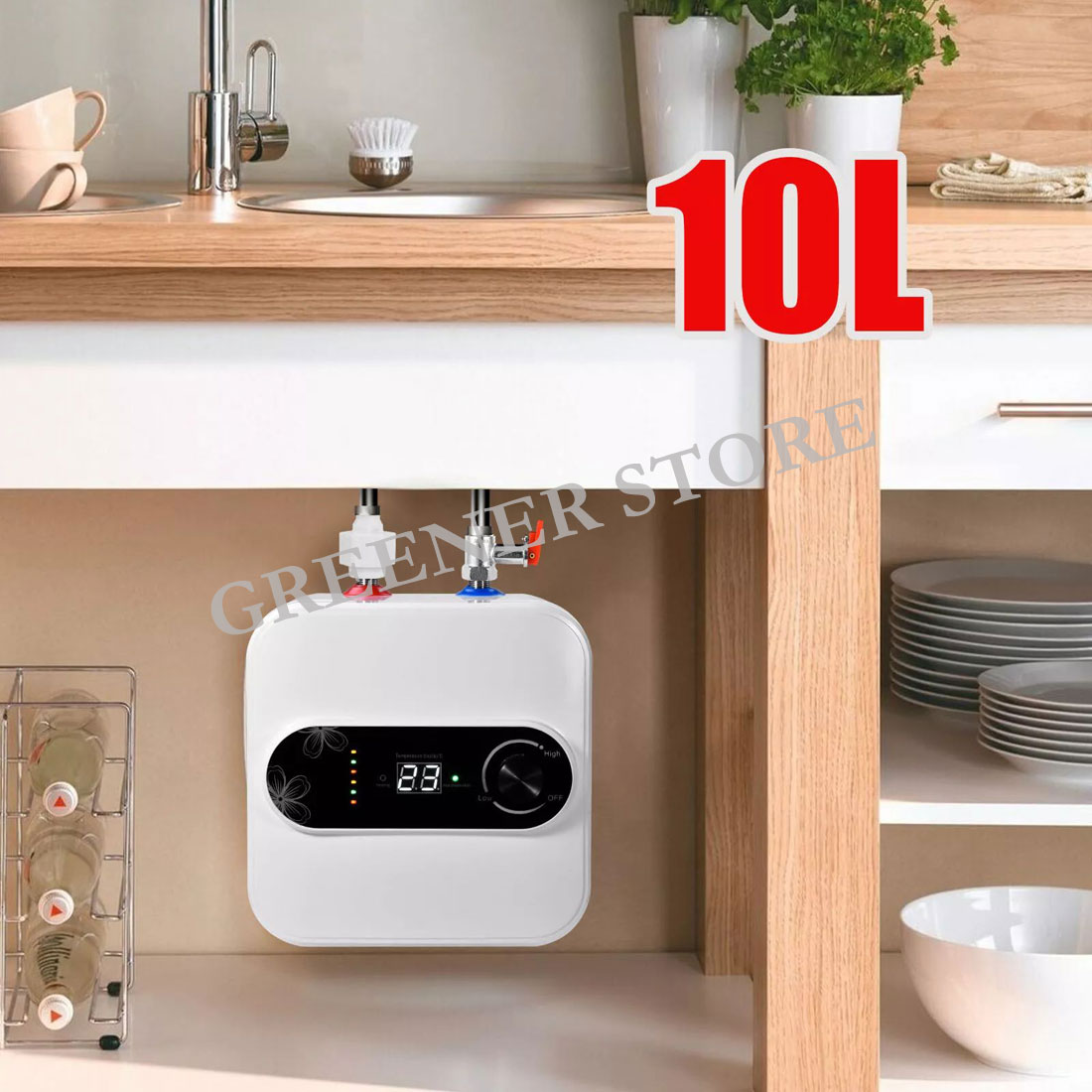

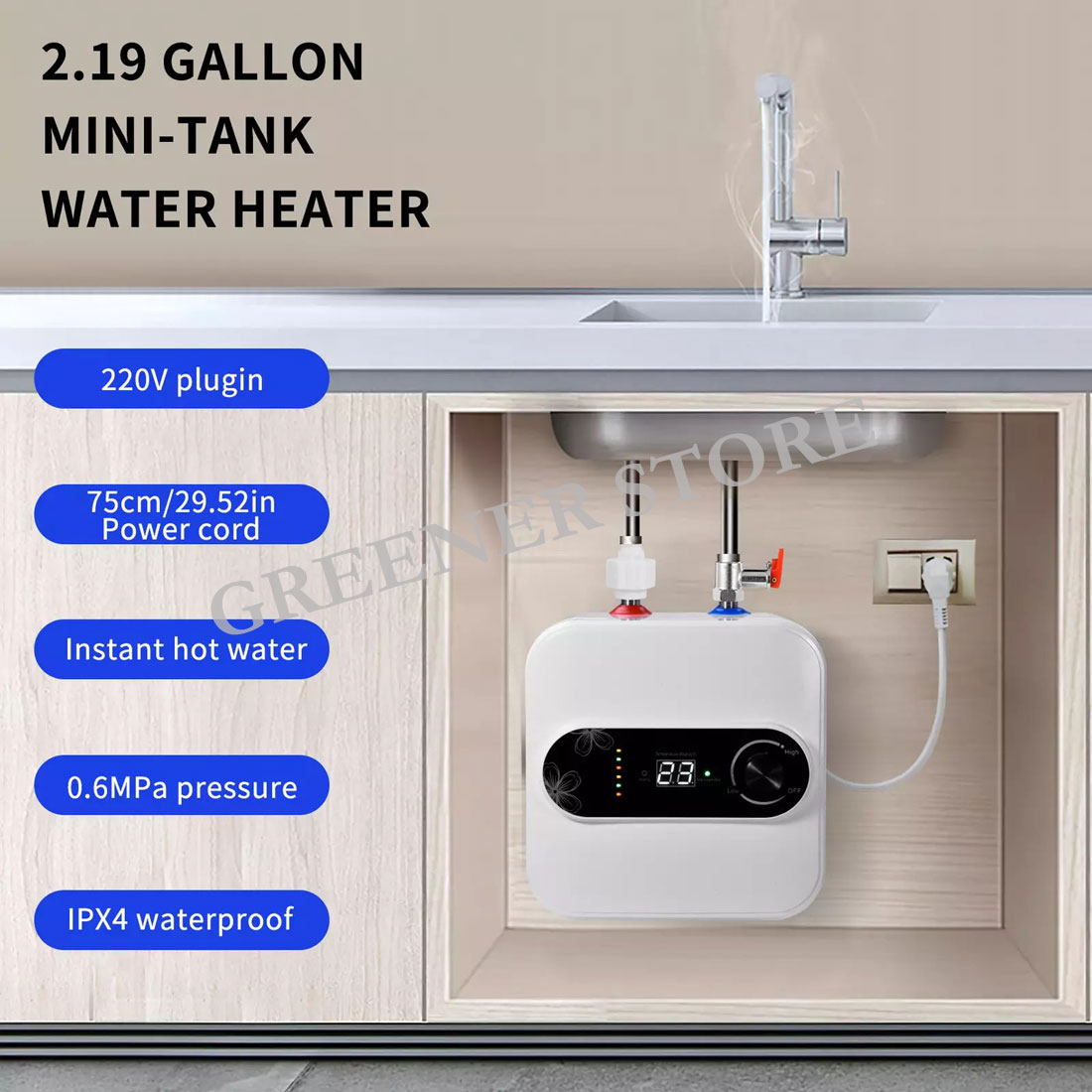

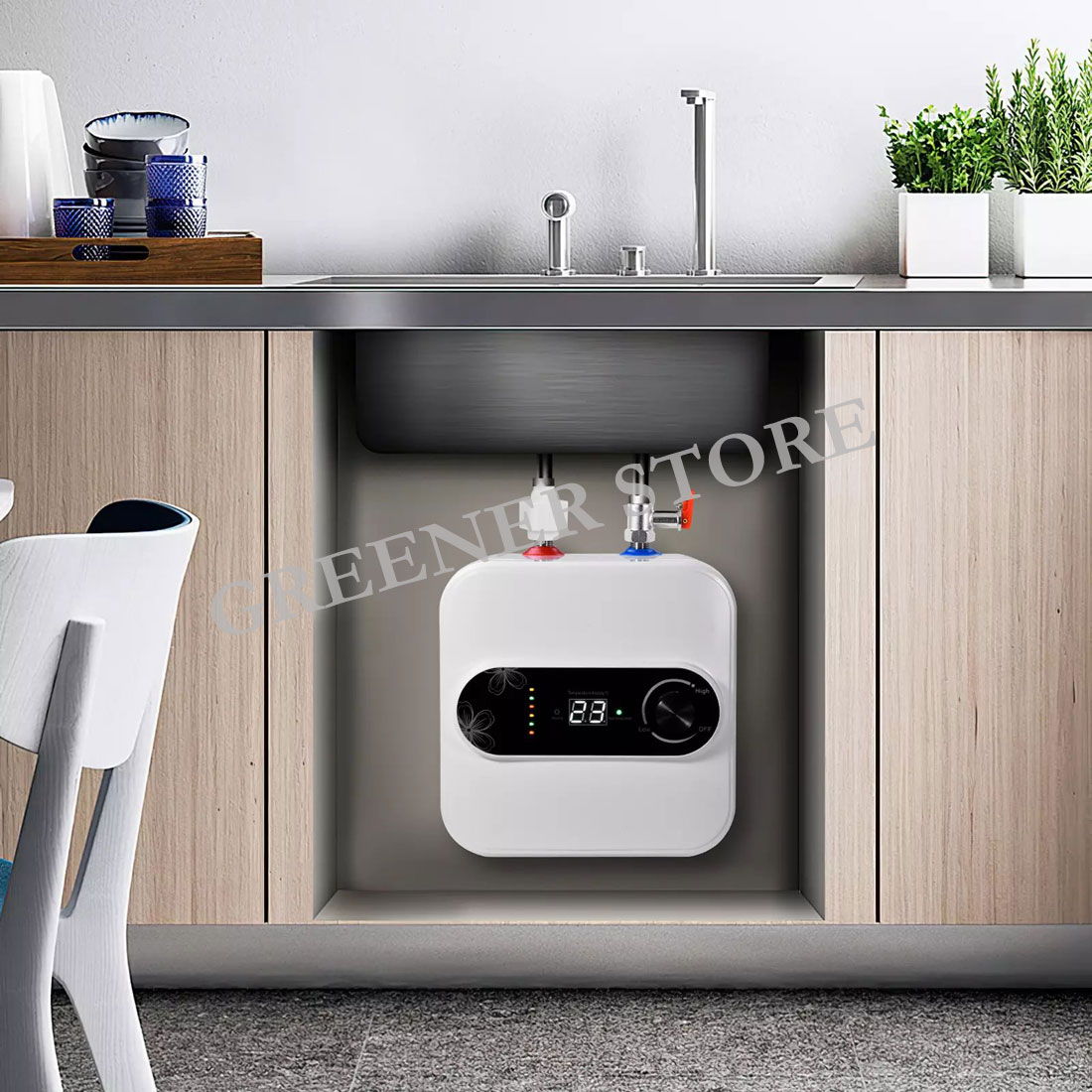

✔ Mini tank water heater is suitable for installation under the sink. Quickly provide hot water at the point of use
✔ Easily adjust to your specific needs! Our electric tankless water heaters feature 4 power levels (1-4) so you can easily tailor their performance to your family's needs.
✔ Suitable for small spaces The mini electric water heater is lightweight and compact in design and can be floor-standing, shelf-mounted or wall-mounted, making it perfect for any small space.

Are you still worried about not having enough hot water to wash dishes in winter? Then this top discharge electric water heater is perfect for you. It heats water quickly and has good heat retention. It can also provide you with a steady supply of warm water and automatically refill it, making your winter no longer cold and letting you feel the warmth of your home!

Detail
Indicator light: When the machine is in keep warm mode, it will light up green, so you can be sure that the water you are using is already warm.

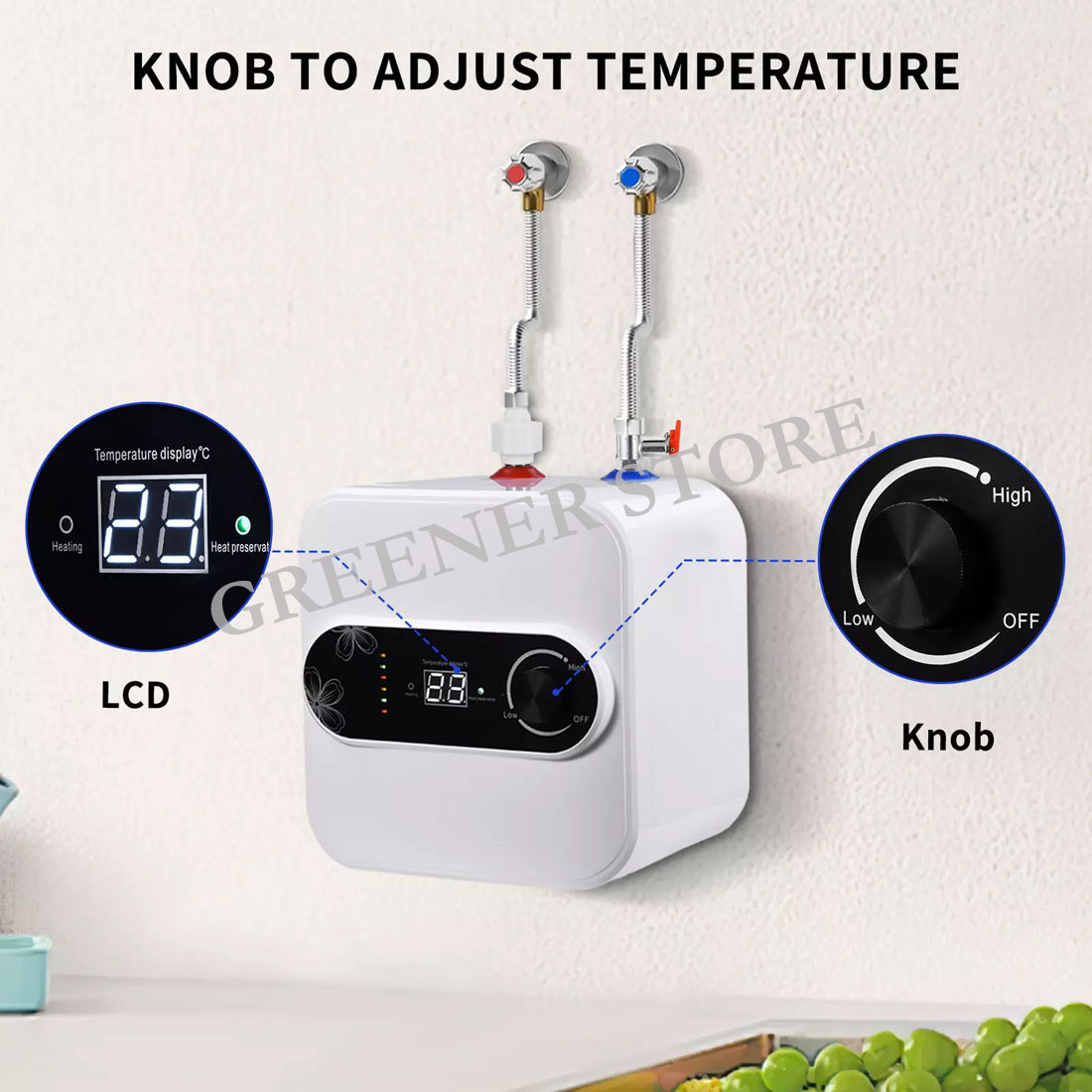

Temperature knob: Knob-type temperature control makes your operation simpler and more convenient.
Temperature display: It can display the water temperature to prevent you or your family from being scalded due to excessive water temperature, providing safety protection for your use.

Application

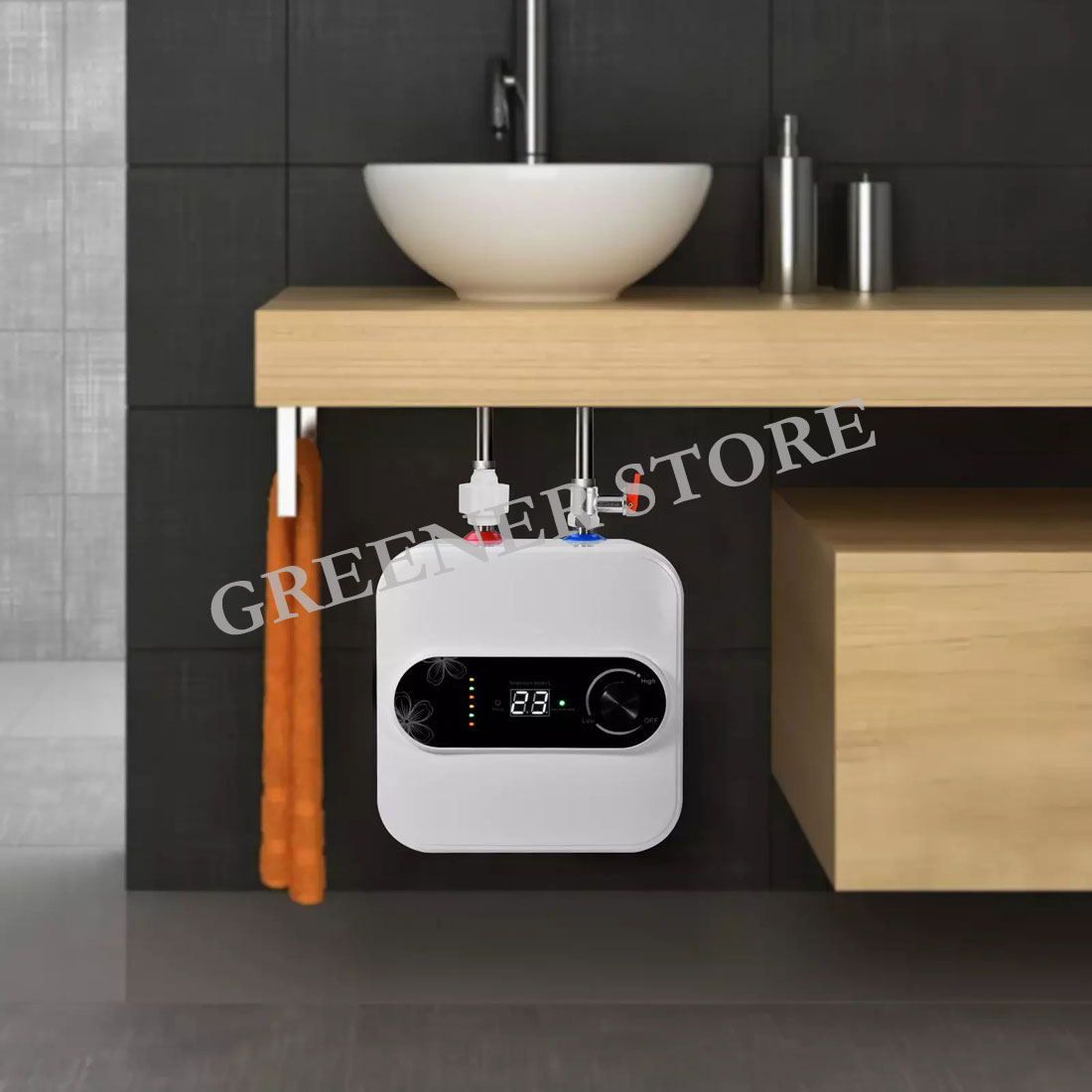

It can be installed in the kitchen, lounge, bathroom or anywhere you choose, providing you with hot water up to 65°C.
After installation, be sure to fill it with water before using it with electricity to prevent dry burning, and be sure to install a pressure relief valve!
Although the small kitchen treasure is small in size, it also requires a certain amount of installation space to install.

First, you should check the installation environment and then choose the specific size of the small kitchen treasure to buy according to the specific situation.

The Little Kitchen Treasure has two parts: upper water outlet and lower water outlet. Ours is the upper water outlet. The upper water outlet can be placed directly under the sink. This saves the step of installing and fixing the Little Kitchen Treasure. We only need to connect it to the water supply system. That's it.
If you choose the "undercounter type (that is, installed at the bottom of the cabinet)" installation method when installing the kitchen appliance, you must confirm whether the space under the cabinet is sufficient before purchasing the kitchen appliance to avoid being forced to change the installation location during installation. .

**Materials need to be prepared before installing the kitchen treasure, including metal hoses, tees, angle valves and wrenches, raw material belts, etc.

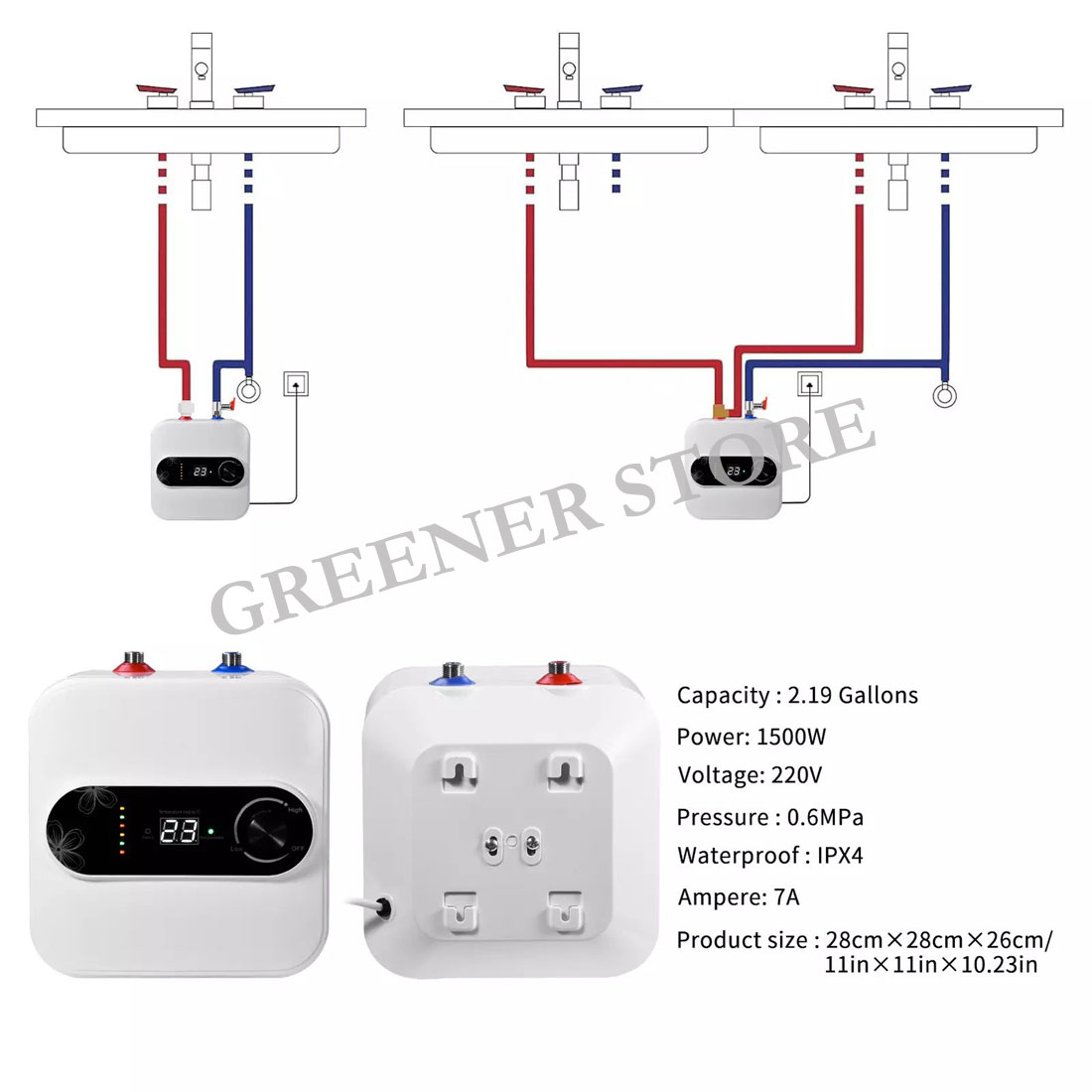

Installation method: Faucet-type installation. When purchasing the instant-heat kitchen appliance, open the package and we need to connect the inlet and outlet pipes to the upper and lower ports of the machine.
Then install the machine under the kitchen faucet or in a hidden place. Pay attention to the raw material tape to be wrapped enough to prevent water leakage.
After installation, first turn on the water and then turn on the electricity for testing. Open the angle valve, open the faucet to the hot water side, and wait until the water comes out normally from the hot water side. It means that the Xiaochubao water tank is full of water. At this time, you can turn on the electricity to boil water. Then use the faucet to release hot water.

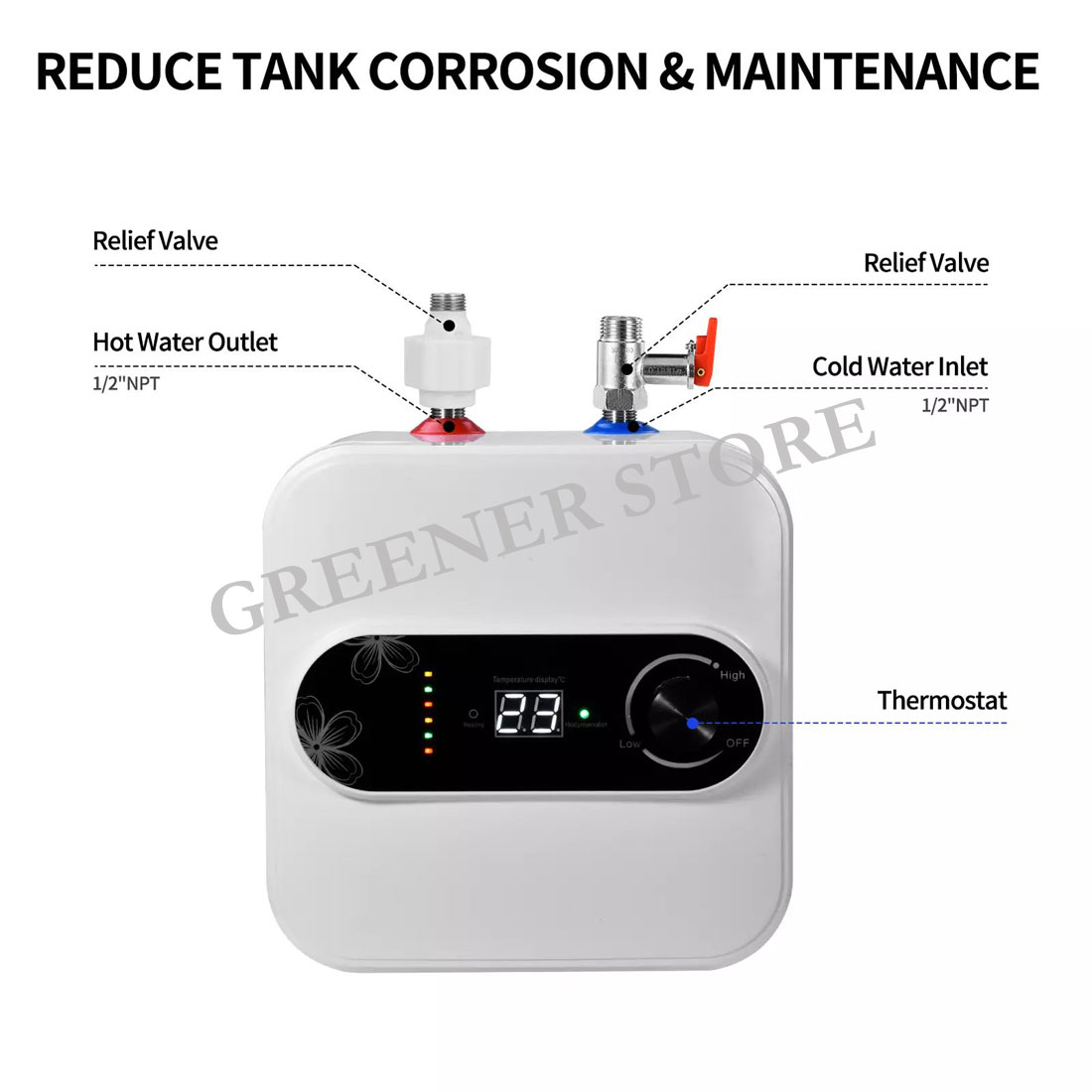

**Please ensure there is reliable power supply within the installation range. Install an anti-electricity wall at the red hot water outlet and a pressure relief valve at the blue cold water inlet.
**Please ensure that the tap water pressure at the installation site is 0.1Mpa, the faucet is a hot and cold faucet, the power socket is a three-plug power socket, and the drop between the water tower installation site and the water tower should be greater than 16 feet.
**Please do not install the machine upside down, sideways or backwards, as insufficient water will cause the machine to burn out.
**When installing for the first time, please fill it with water first and then turn on the power to avoid burning out the heating pipe.
**Do not use when water supply is out.
