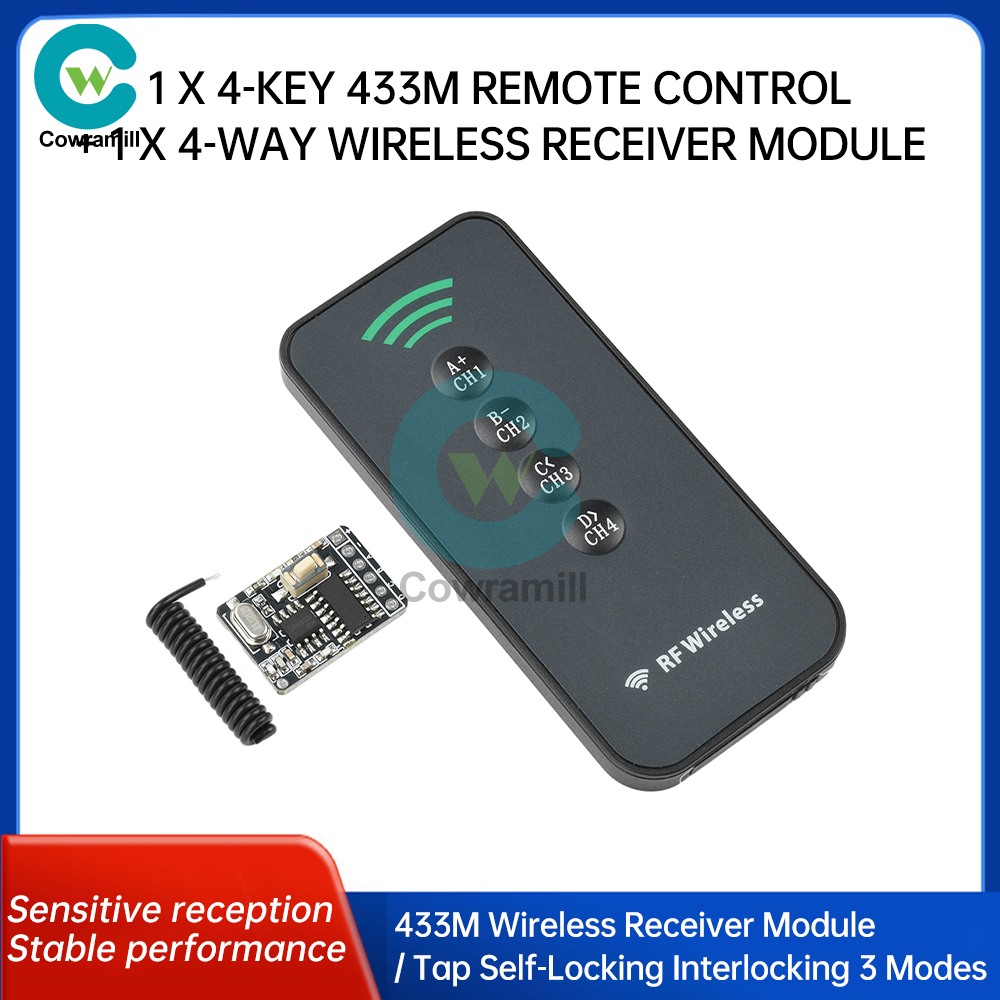

1.433MHz wireless reception: support learning mode, compatible with a variety of remote control signals
2. Three working modes: pointing, self-locking, interlocking optional, to meet the needs of different scenarios
3.High sensitivity reception: remote control distance up to 15-25 meters, strong performance through the wall, signal stability
4.Multi-channel independent control: support 4 independent outputs, flexible configuration to meet diversified needs.
5. Simple learning pairing: indicator light prompts pairing status, quickly complete the remote control binding.
Product name: 4-way wireless learning module remote control
Working voltage: DC 3-5V
Operating frequency: 433MHz (learning)
Remote control distance: 15-25 meters (through the wall)
Module size: 16*23mm

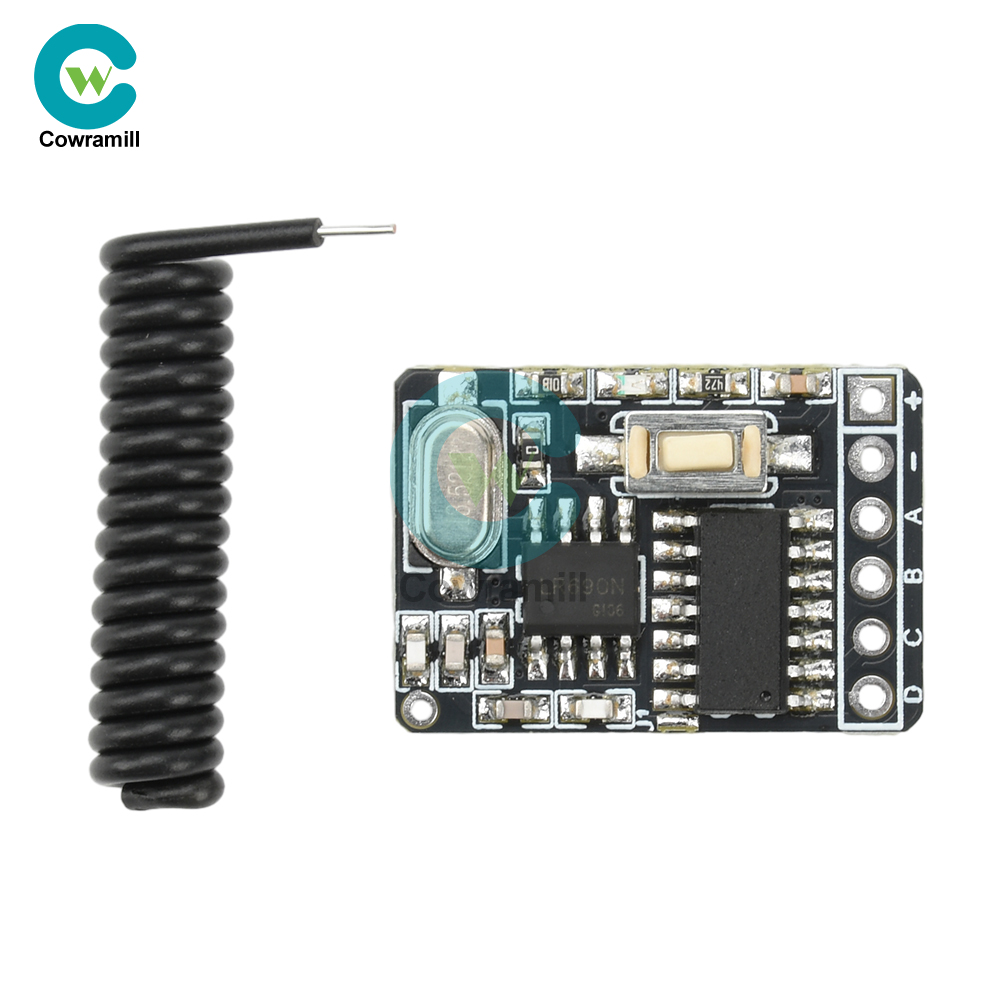

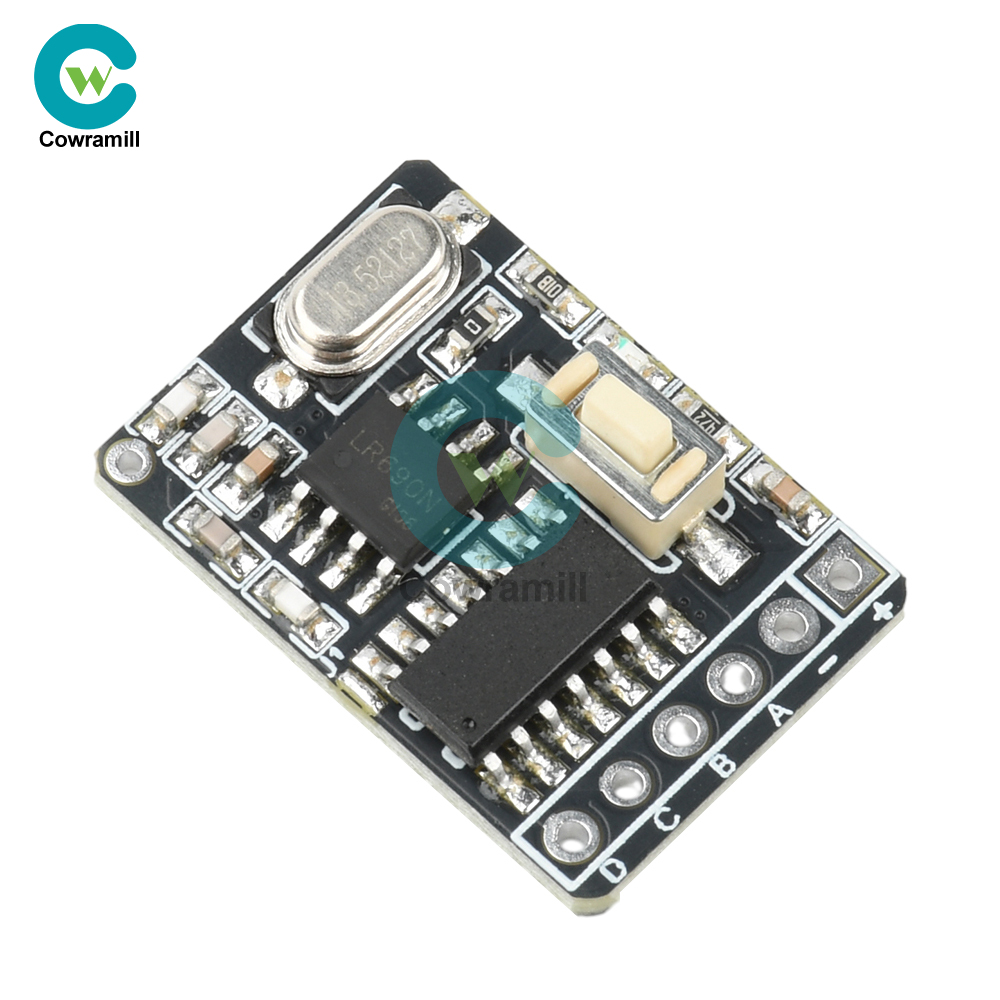

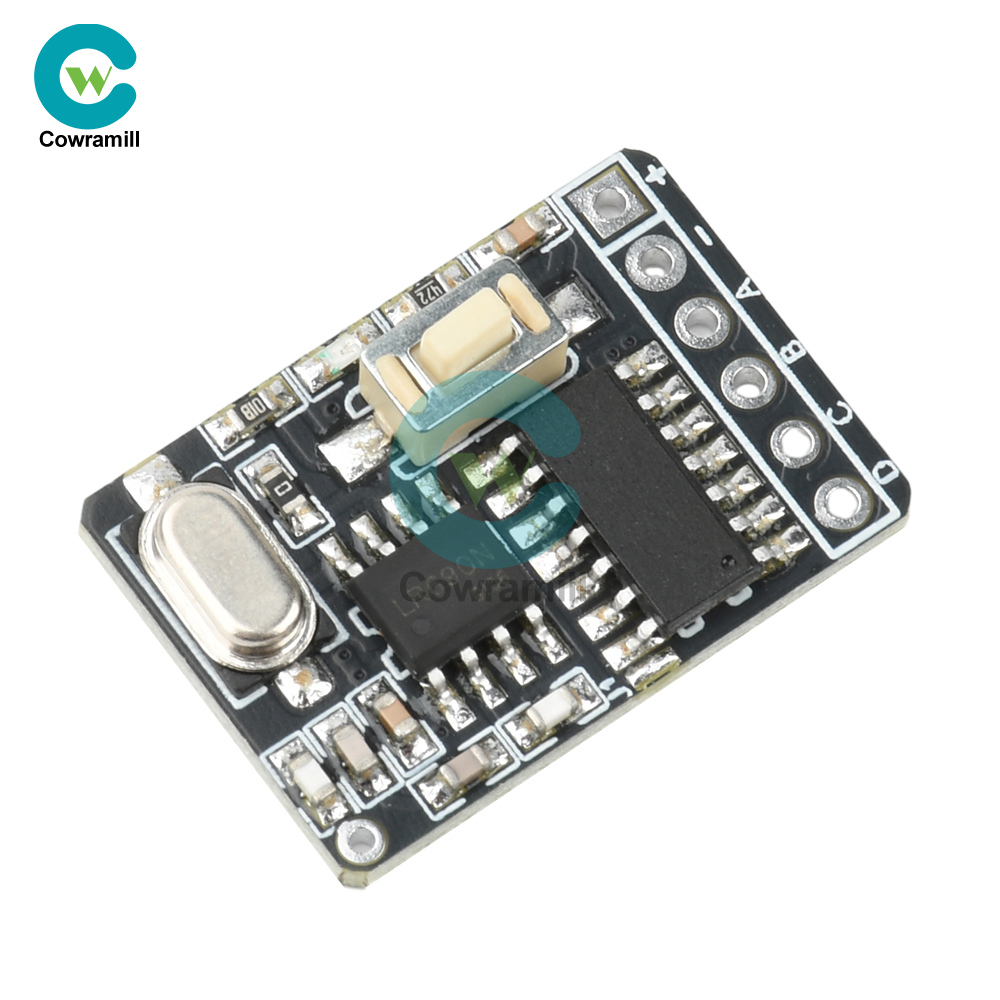

Wiring mode: (+) connected to the positive pole of the power supply (-) connected to the negative pole of the power supply; ABCD on behalf of the 1-4 outputs
Output mode: module power on 4-way default output is low; when receiving the remote control signal, the output becomes high; (short connect the module above the J1 bit, the module can be set to the default output high)
1. Press and hold the learning button above the module, the learning indicator flashes 1 and then release, at this time press the remote control button A need to learn, the module indicator flashes 3 and then does not flash, release the remote control button, the first A and remote control A key pairing is completed
2. Press and hold the learning button on the top of the module, the learning indicator light will flash 2 times and then release, at this time, press the remote control button B which needs to learn, the module indicator light will flash 3 times and then not flash, release the remote control button, the pairing of the second channel B and the remote control key is completed.
3. Press and hold the learning button on top of the module, the learning indicator light will flash 3 times and then release, at this time, press the remote control button C which needs to learn, the module indicator light will flash 3 times and then not flash, release the remote control button, the third way C and the remote control key pairing is completed.
4. Press and hold the learning button on top of the module, the learning indicator light will flash 4 times and then release, at this time, press the remote control button D that needs to learn, the module indicator light will flash 3 times and then not flash, release the remote control button, the fourth channel D and remote control D key pairing is completed.
5. Press and hold the learning button on top of the module, let go after the learning indicator flashes 5 times, then press the remote control button E that needs to be learned, the module indicator flashes 3 times without flashing, let go of the remote control button, the pairing of the total control key and the remote control E is completed (the total control key means: 1 button can control 4 ways at the same time)
Press and hold the button first, then power on, the module above the indicator light flash 1 to release, set for self-locking; flash 2 and then release, set for point action, flash 3 and then release, set for interlocking

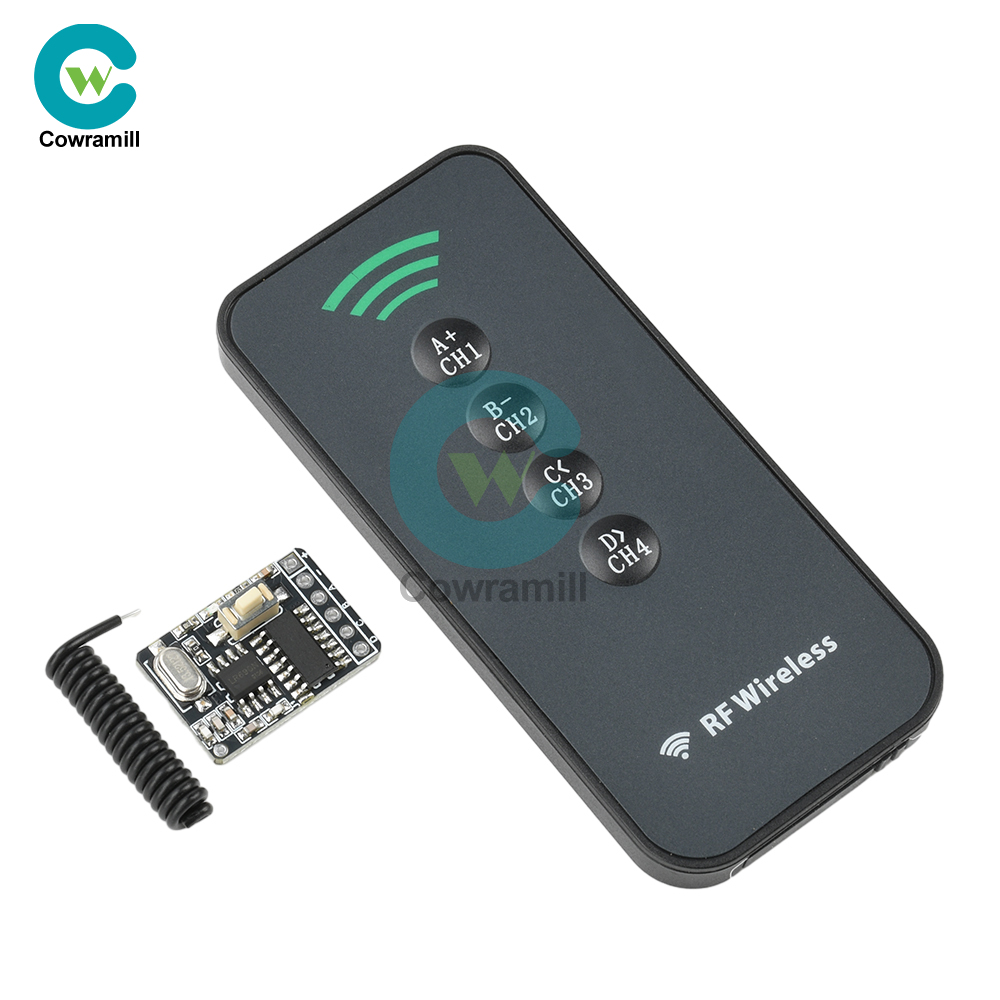

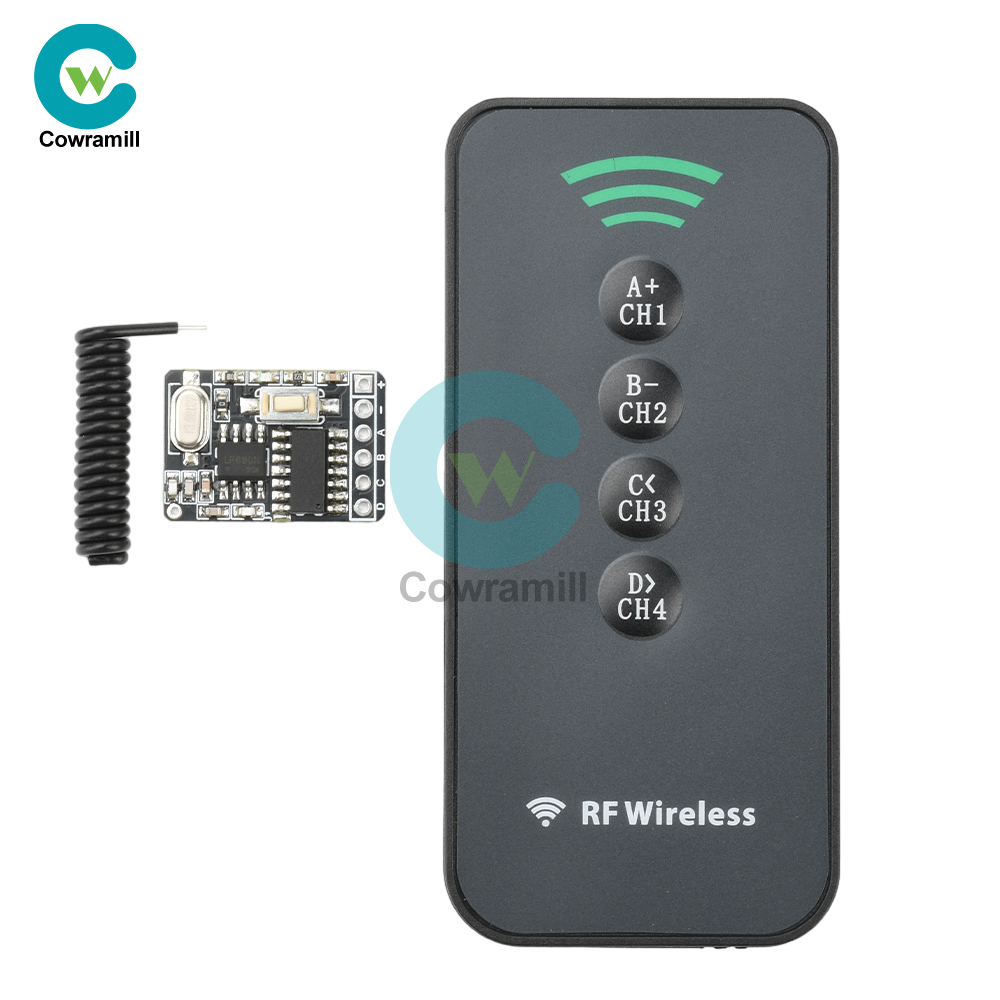

1 x Module
1 x Remote control (without battery)
1 x Antenna
