Dynamic mixing AB Dispenser Valve Electric Stirring Metal Bring Back Suction to Prevent Dripping Dispensing Valve Glue

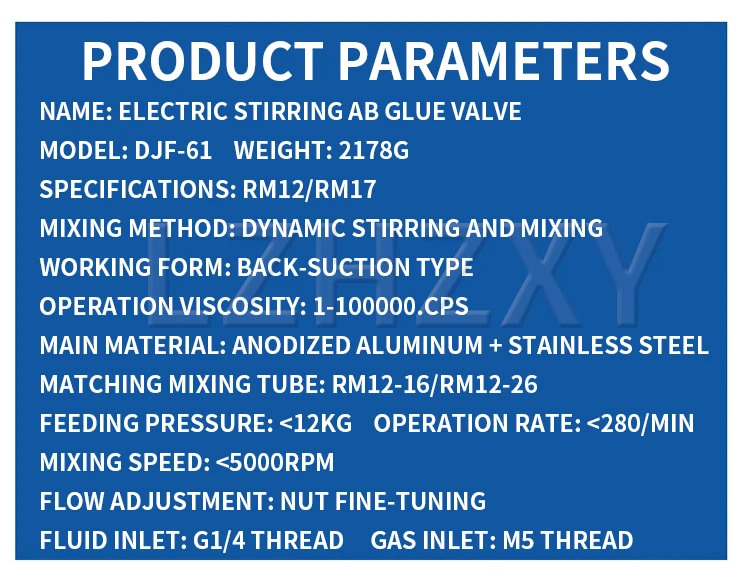

Name: Electric stirring AB glue valve
Model: DJF-61
Specifications: RM12/RM17
Mixing method: dynamic stirring and mixing
Working form: back-suction type
Operation viscosity: 1-100000.cps
Main material: anodized aluminum + stainless steel
Weight: 2178g
Matching mixing tube: RM12-16/RM12-26
Feeding pressure: <12KG
Operation rate: <280/min
Mixing speed: <5000RPM
Flow adjustment: nut fine-tuning
Fluid inlet: G1/4 thread
Gas inlet: M5 thread

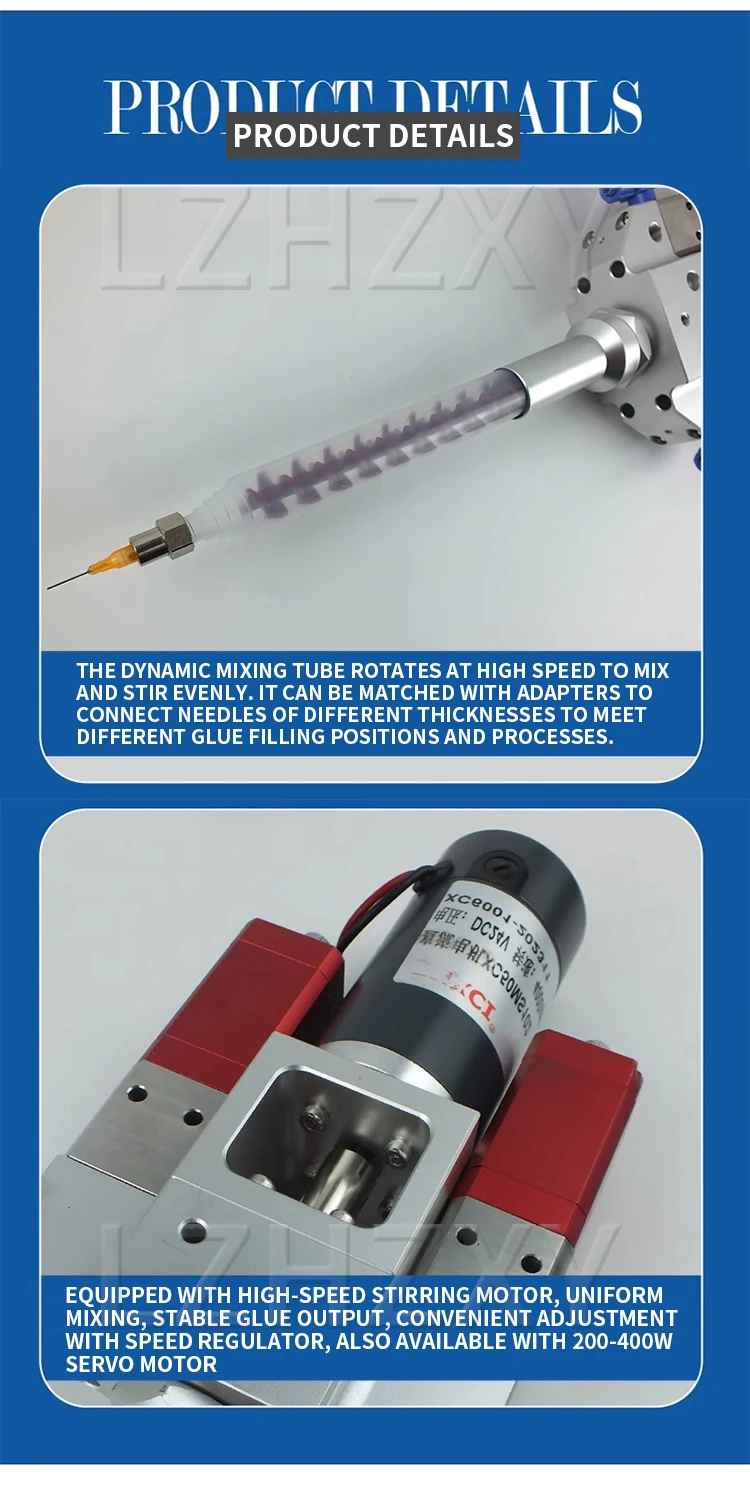

Product introduction: The dynamic AB glue valve adopts a back-suction glue-closing structure. When the glue is stopped, the glue is instantly sucked back and cut off, without drawing or dripping; the glue is mixed only when it is stirred, saving glue, suitable for glue with poor fluidity, and the glue output is stable.

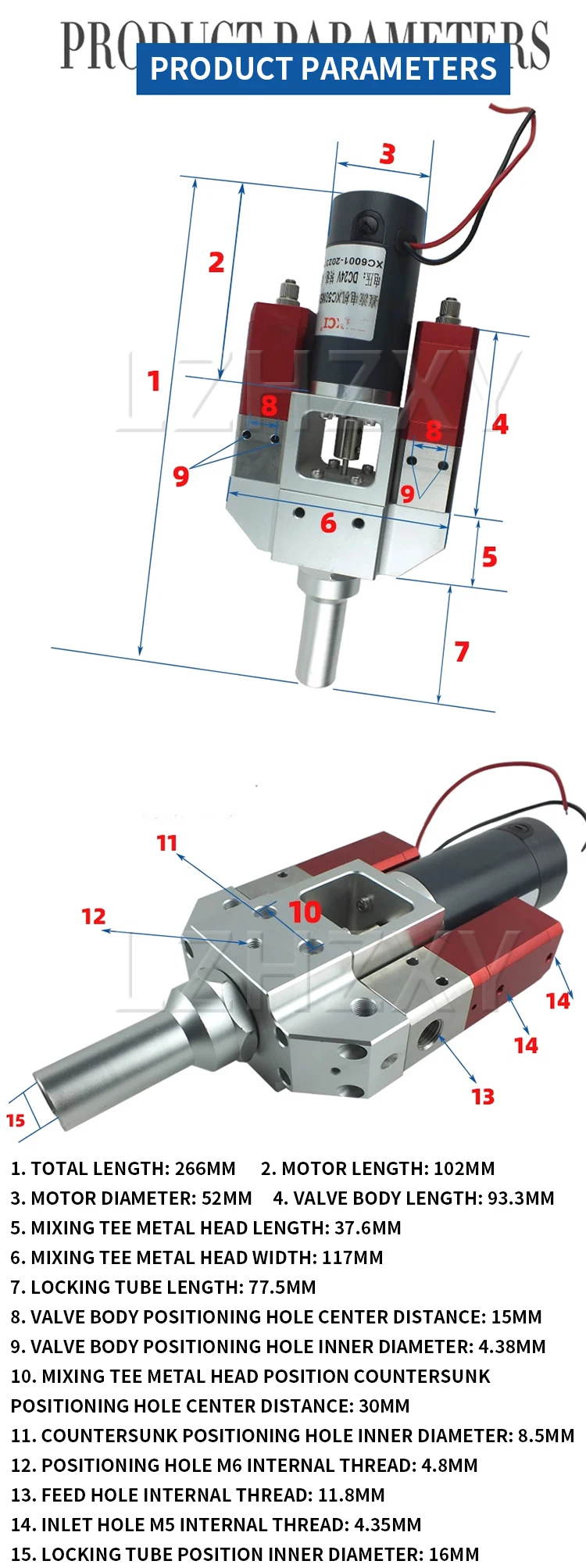

1. Total length: 266MM
2. Motor length: 102MM
3. Motor diameter: 52MM
4. Valve body length: 93.3MM
5. Mixing tee metal head length: 37.6MM
6. Mixing tee metal head width: 117MM
7. Locking tube length: 77.5MM
8. Valve body positioning hole center distance: 15MM
9. Valve body positioning hole inner diameter: 4.38MM
10. Mixing tee metal head position countersunk positioning hole center distance: 30MM
11. Countersunk positioning hole inner diameter: 8.5MM
12. Positioning hole M6 internal thread: 4.8MM
13. Feed hole internal thread: 11.8MM
14. Inlet hole M5 internal thread: 4.35MM
15. Locking tube position inner diameter: 16MM
