Support PD3.1 (PPS), QC3.0, SCP
With protection function, input over-voltage and under-voltage protection, input over-current protection, output over-current and short-circuit protection, over-temperature protection of the whole machine
Maximum output 20V 3.25A
Input 8~30V (buck only)
Input Voltage:DC 8~30V
Output voltage: when accessing TYPE-C compatible powered devices in the 3.3V~21V automatically adjusted (input voltage should be higher than the output voltage, if you want to trigger 20V fast charging then the input voltage should be higher than 20v)
Output power: Maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)
Maximum output: 20V 3.25A
Conversion efficiency: 92%~97
Output voltage ripple: <200mV
No-load current:<3mA
Input over-voltage and under-voltage protection
Input overcurrent protection
Output overcurrent short circuit protection
Over-temperature protection
Supported charging protocols: PD3.1 (PPS), QC3.0, SCP
Product dimensions:
Standard model: 32×20×10mm (excluding the protruding 1mm of C port female socket)
BC1.2, Apple protocols
for Qualcomm QC2.0 and QC3.0
for Huawei fast charging protocol FCP and SCP
for Samsung Fast Charging Protocol AFC
MTK PE+1.1 and MTK PE+2.0
PD2.0/PD3.1 (PPS) output protocols
Product application: all kinds of power supply modification fast charging output
When using 20~24V power adapter as input, it is recommended to energize the power supply before connecting to this module, otherwise there may be an error in matching the power of the module due to slow power up of the power supply and the module will not be able to output 65W.
Test conditions:Input voltage 24V, ambient temperature 24 ℃, the load is to support PD65W laptop (power about 50%), the computer runs a stress test to ensure that the power supply end of the power full 65w.

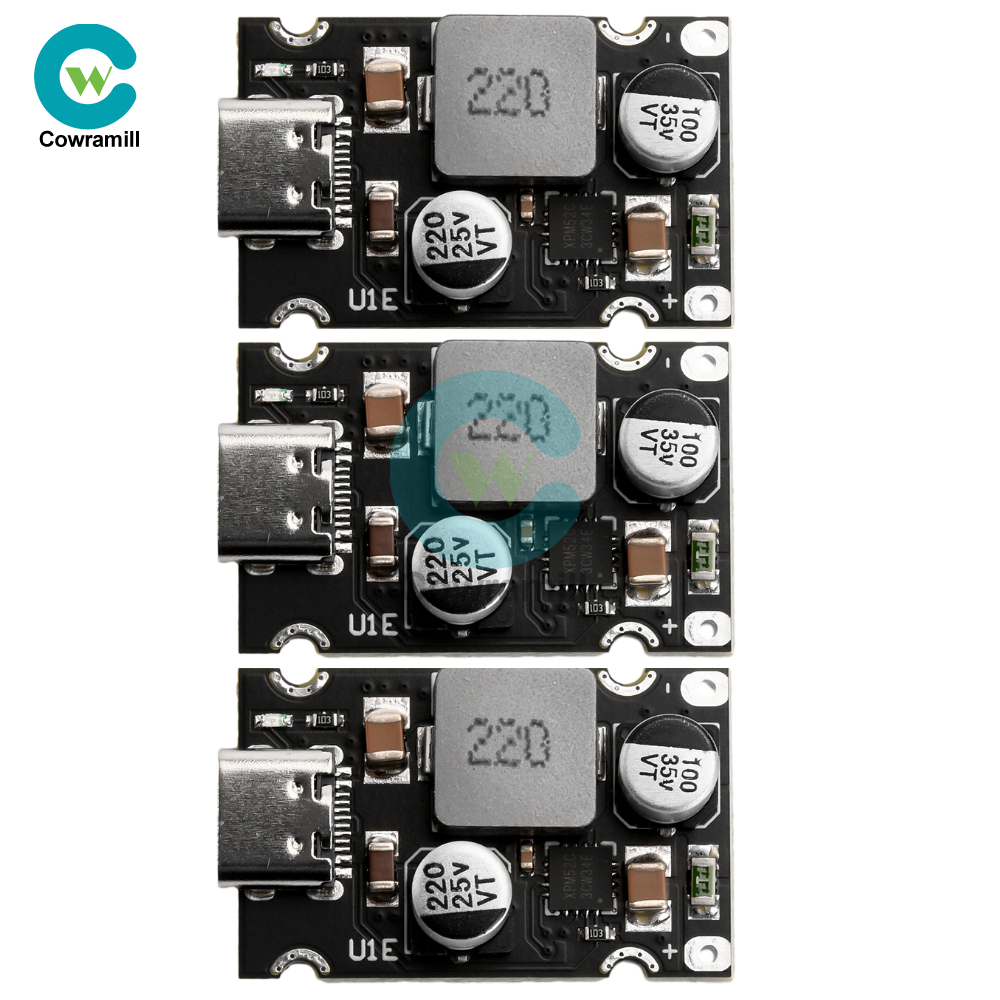

3X module
