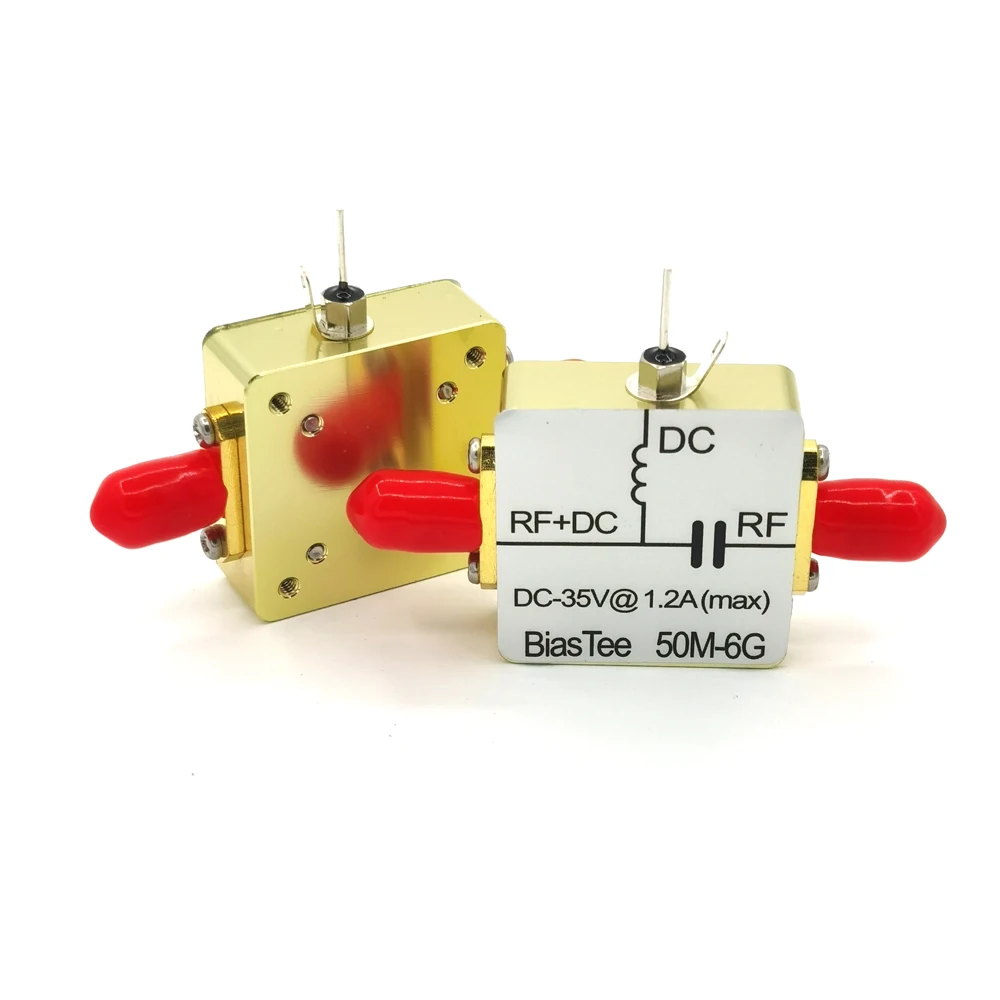

RF feed box Biaser Coaxial feed RF DC blocking 1M-6GHz Low insertion loss



Application scenarios:



Antenna RF feed

Connect the instrument to block the direct current when testing the module [The spectrum analyzer and signal source cannot be directly connected to direct current, so direct current is required.

Module size:



Length, width and height: 27mm*27mm*10mm

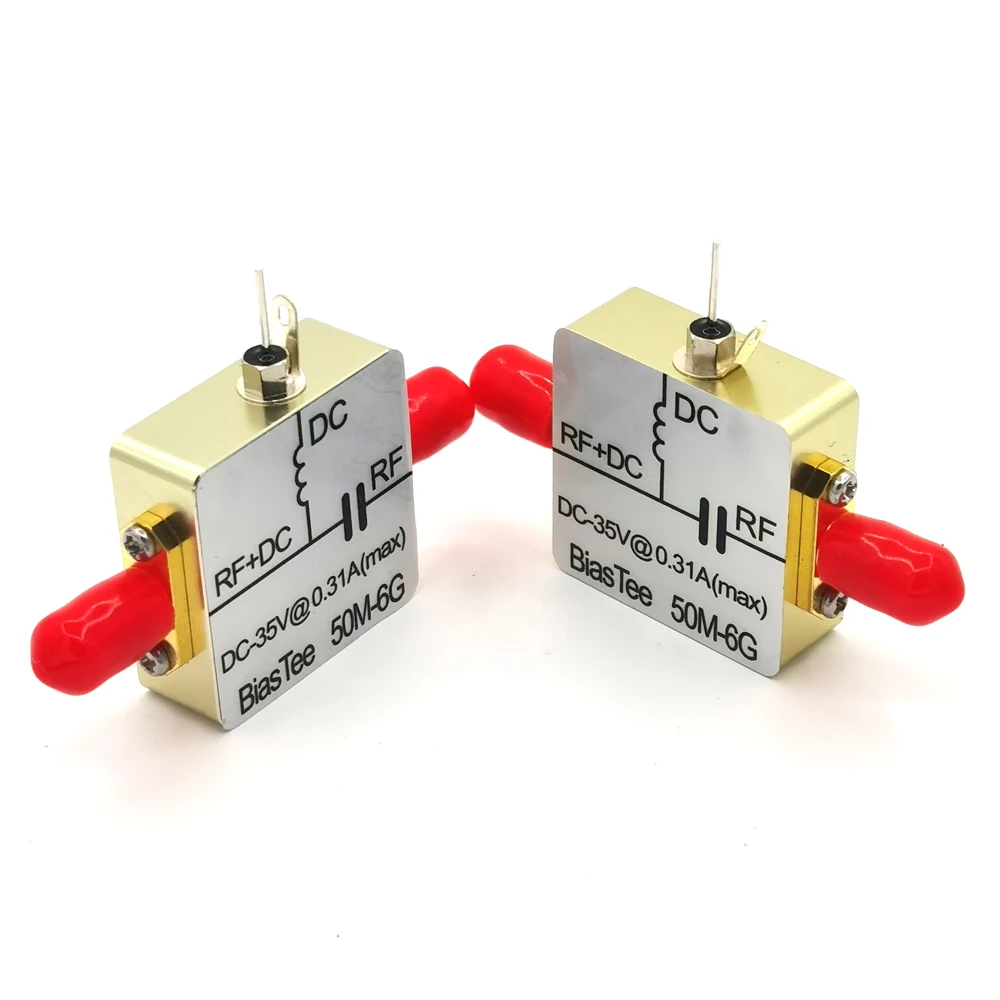

Module A parameters:



Working frequency: 50MHz-6GHz

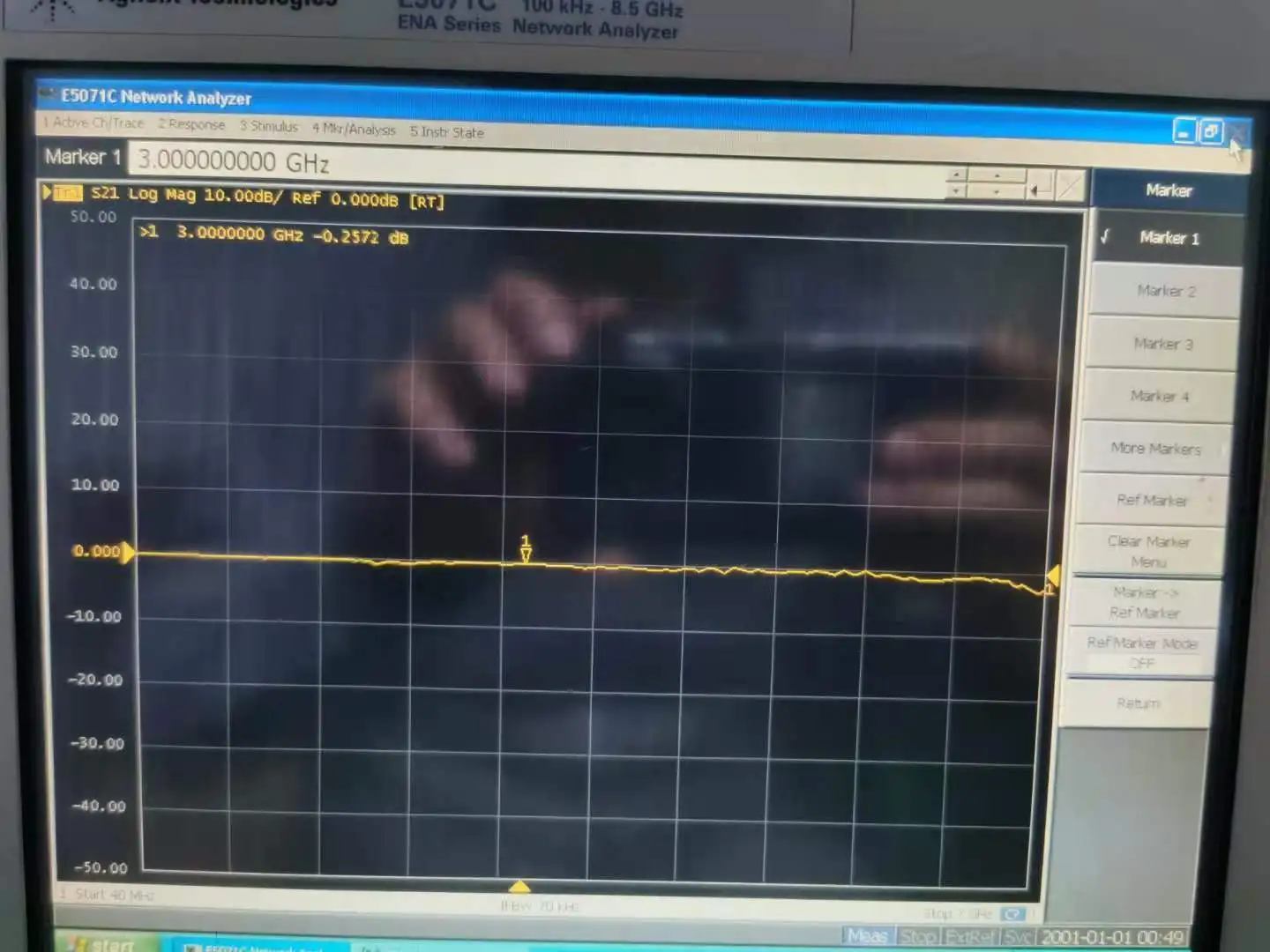

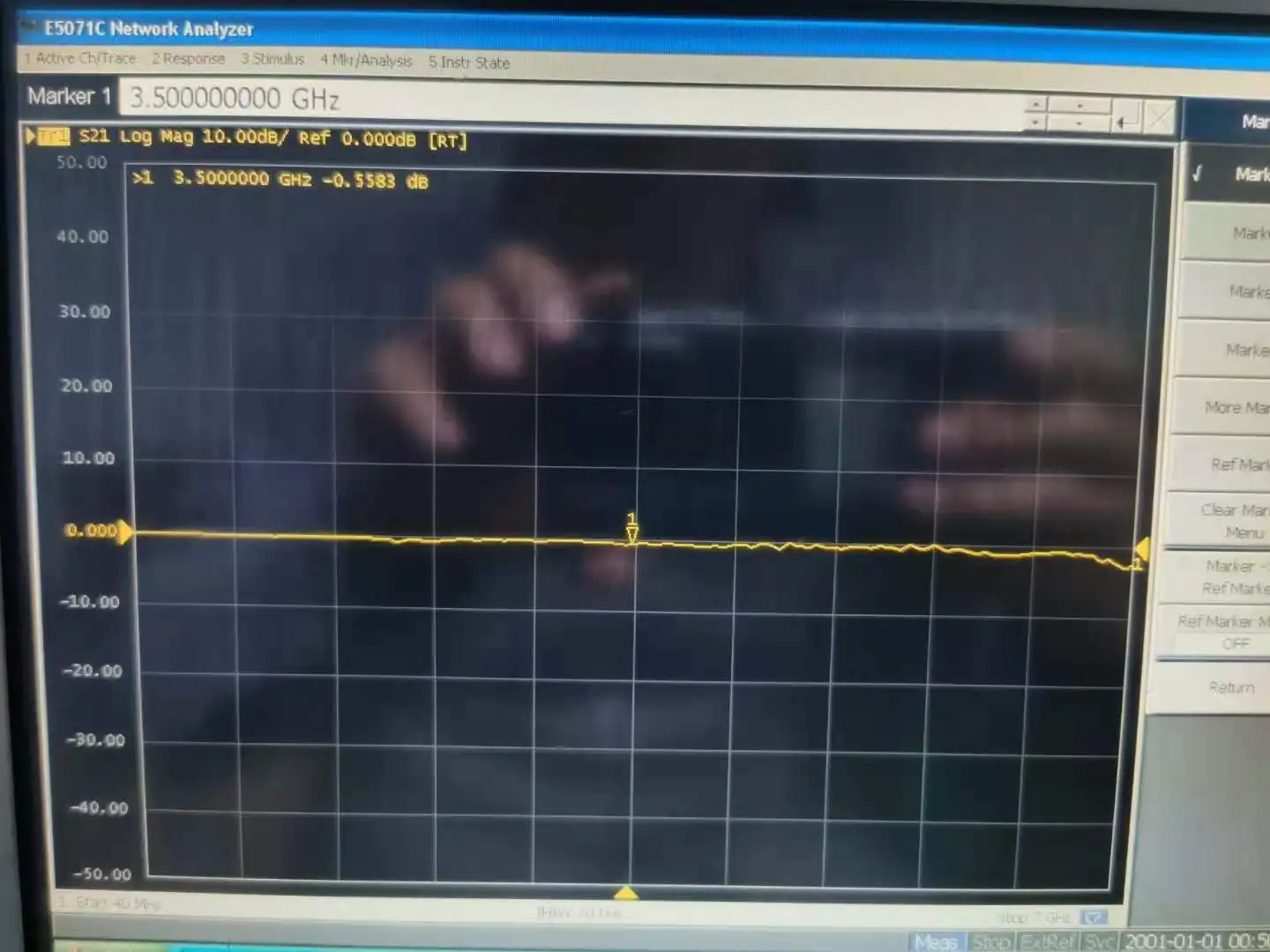

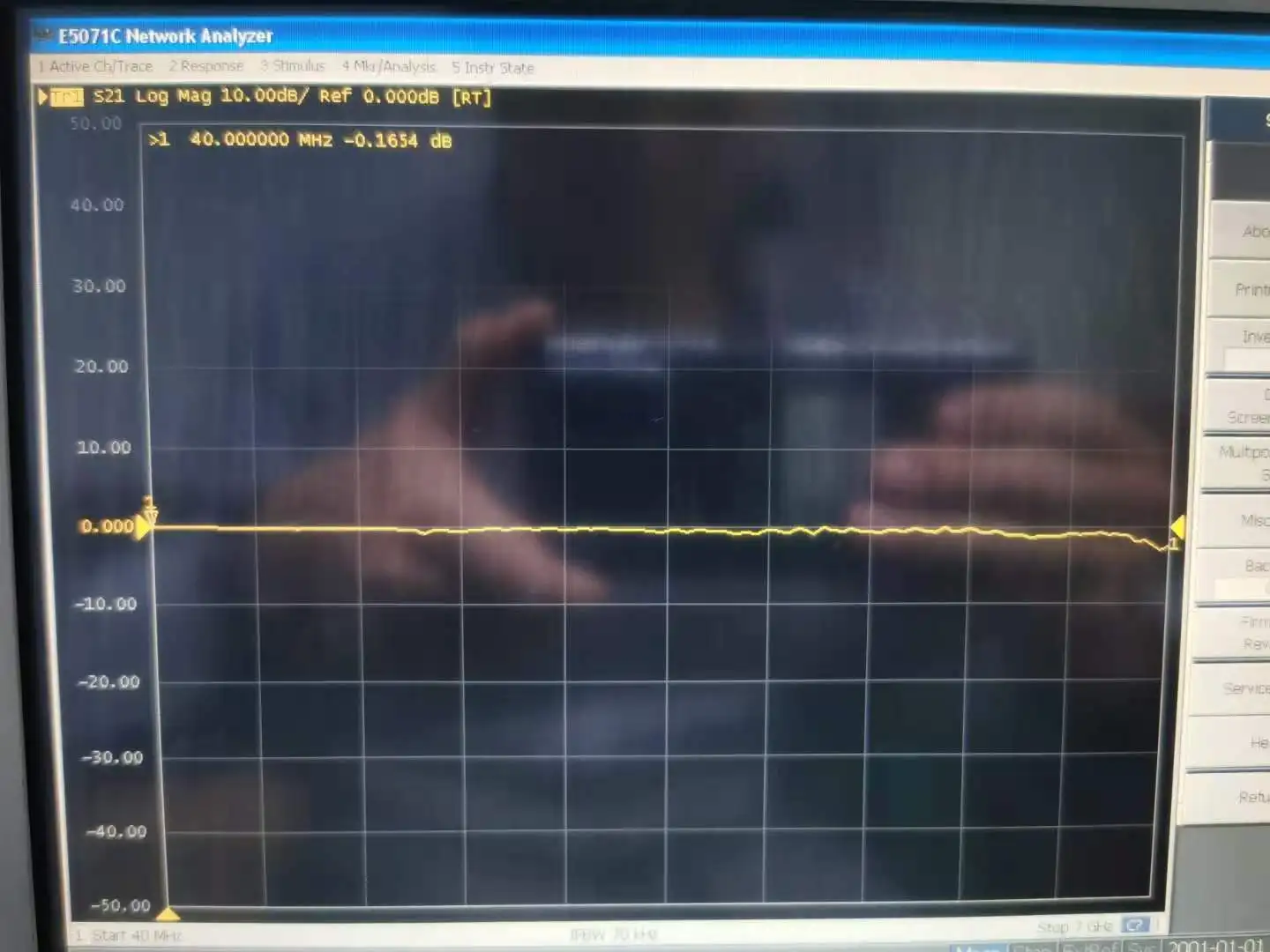

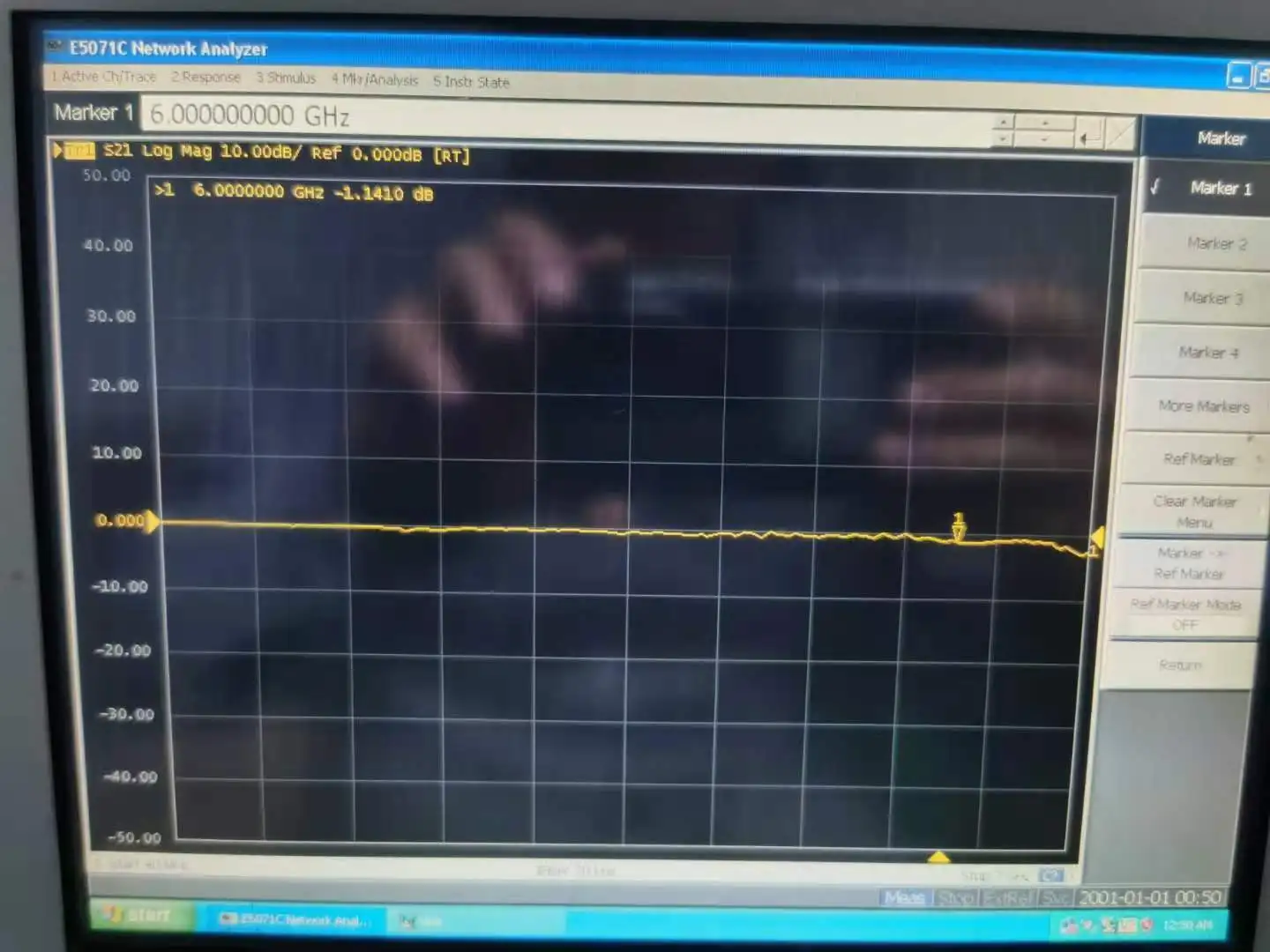

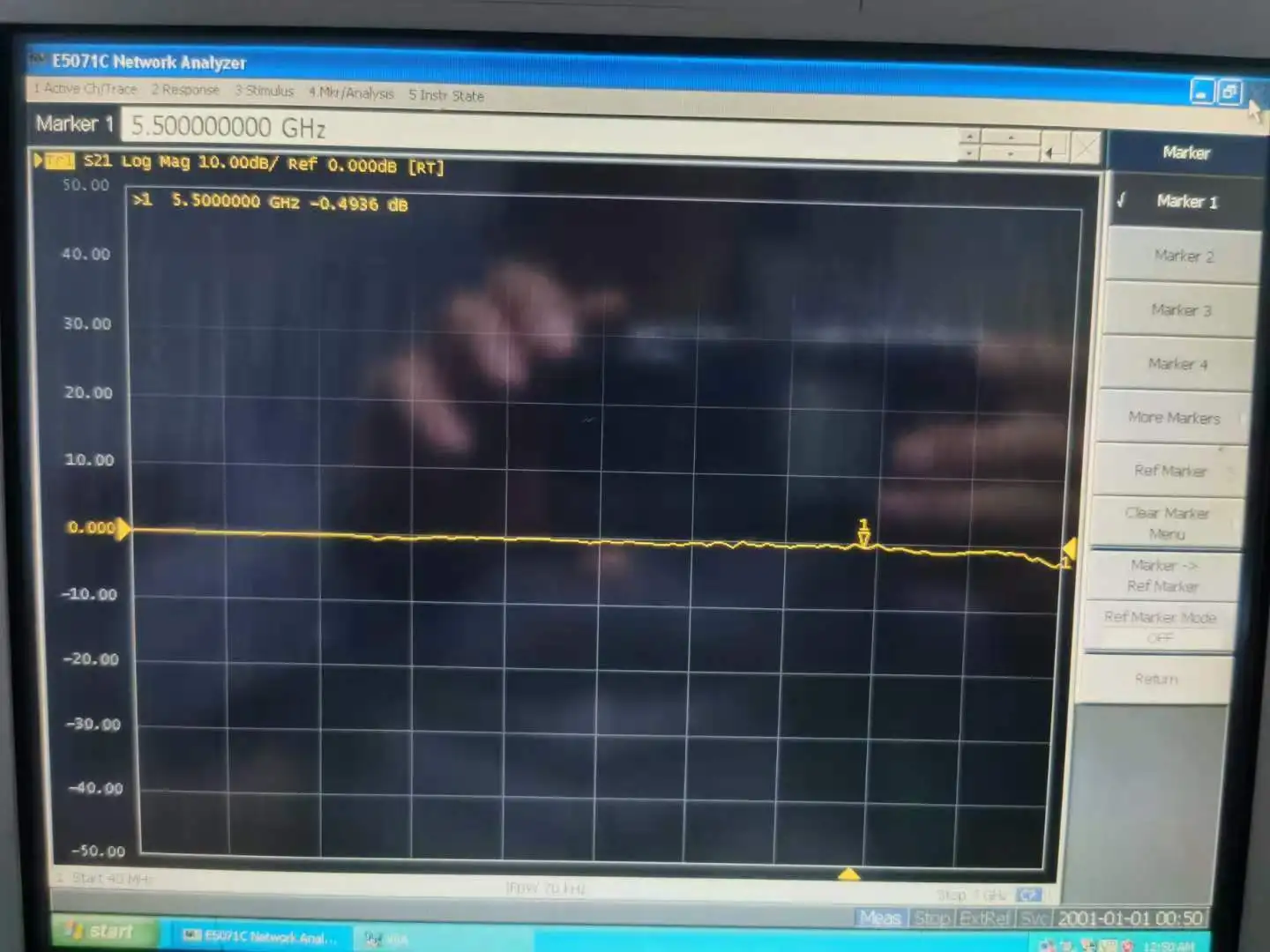

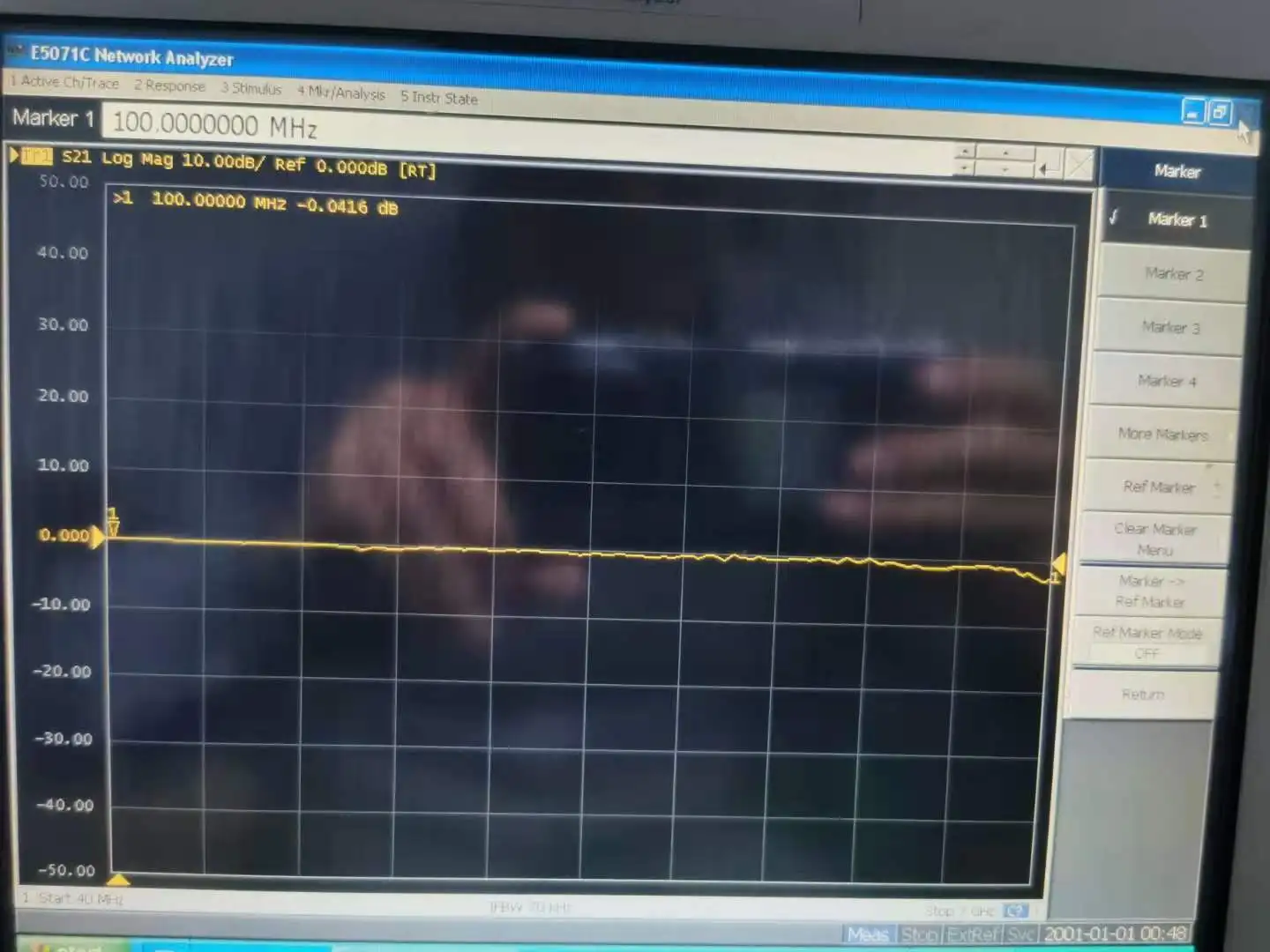

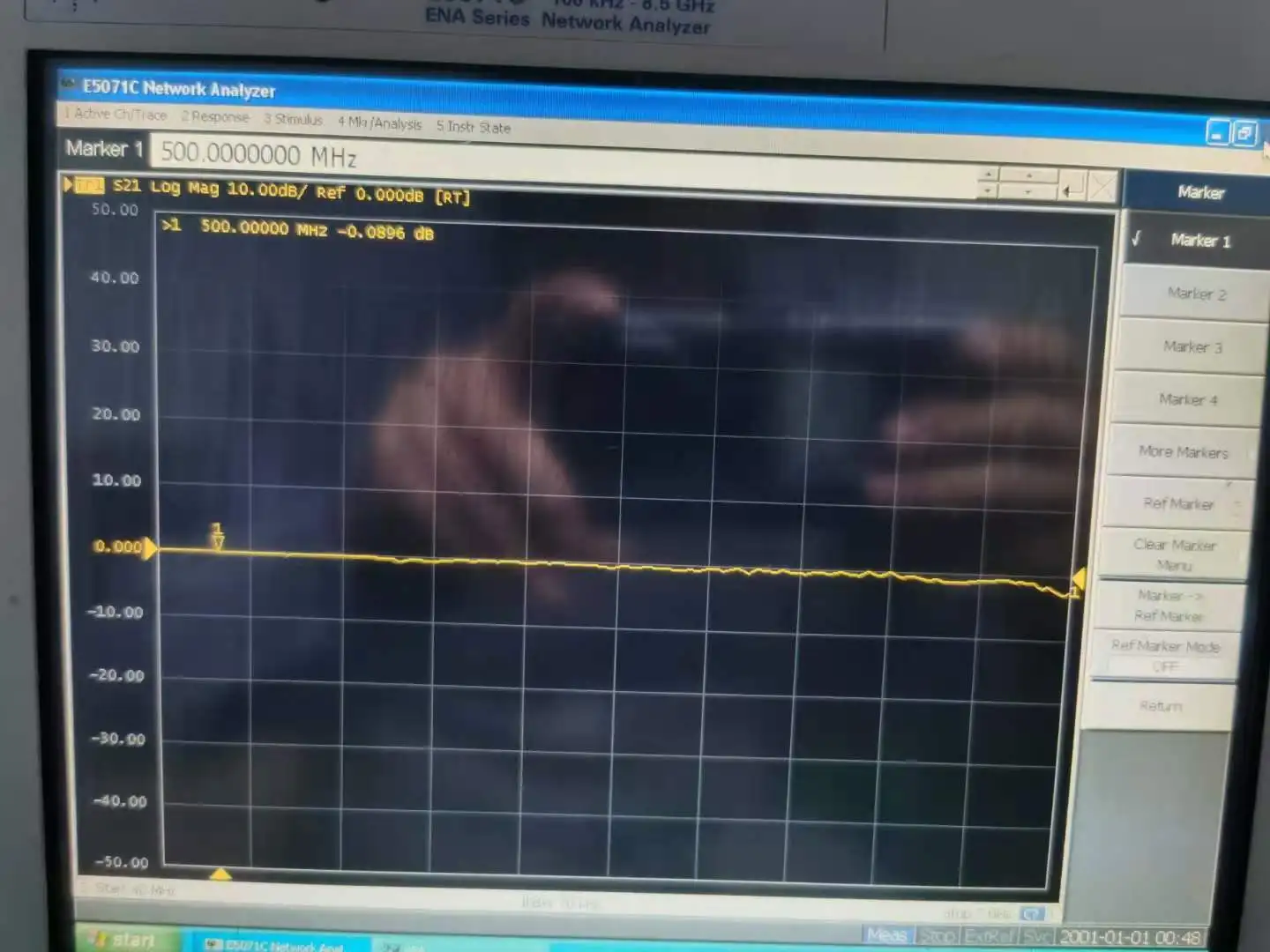

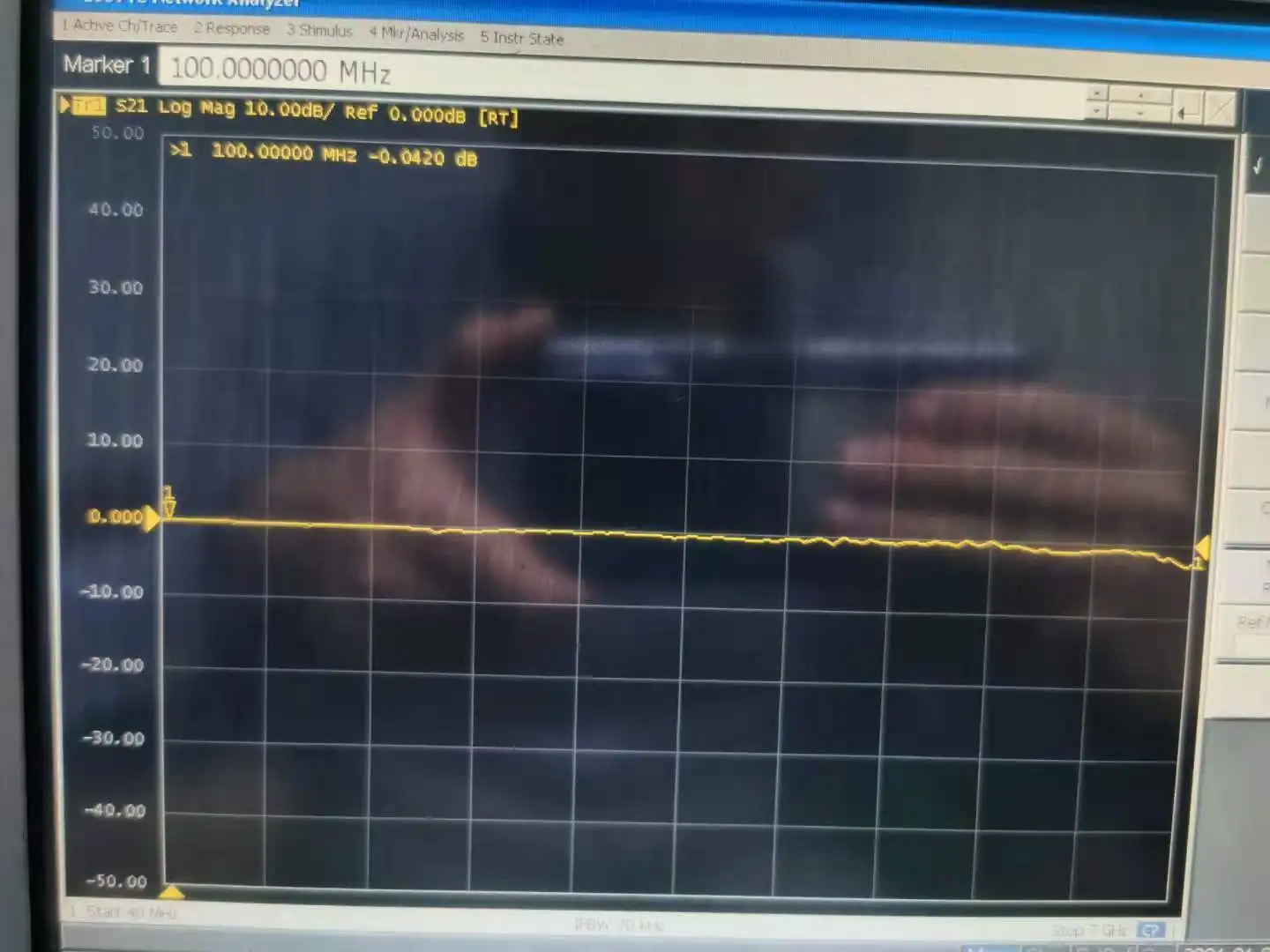

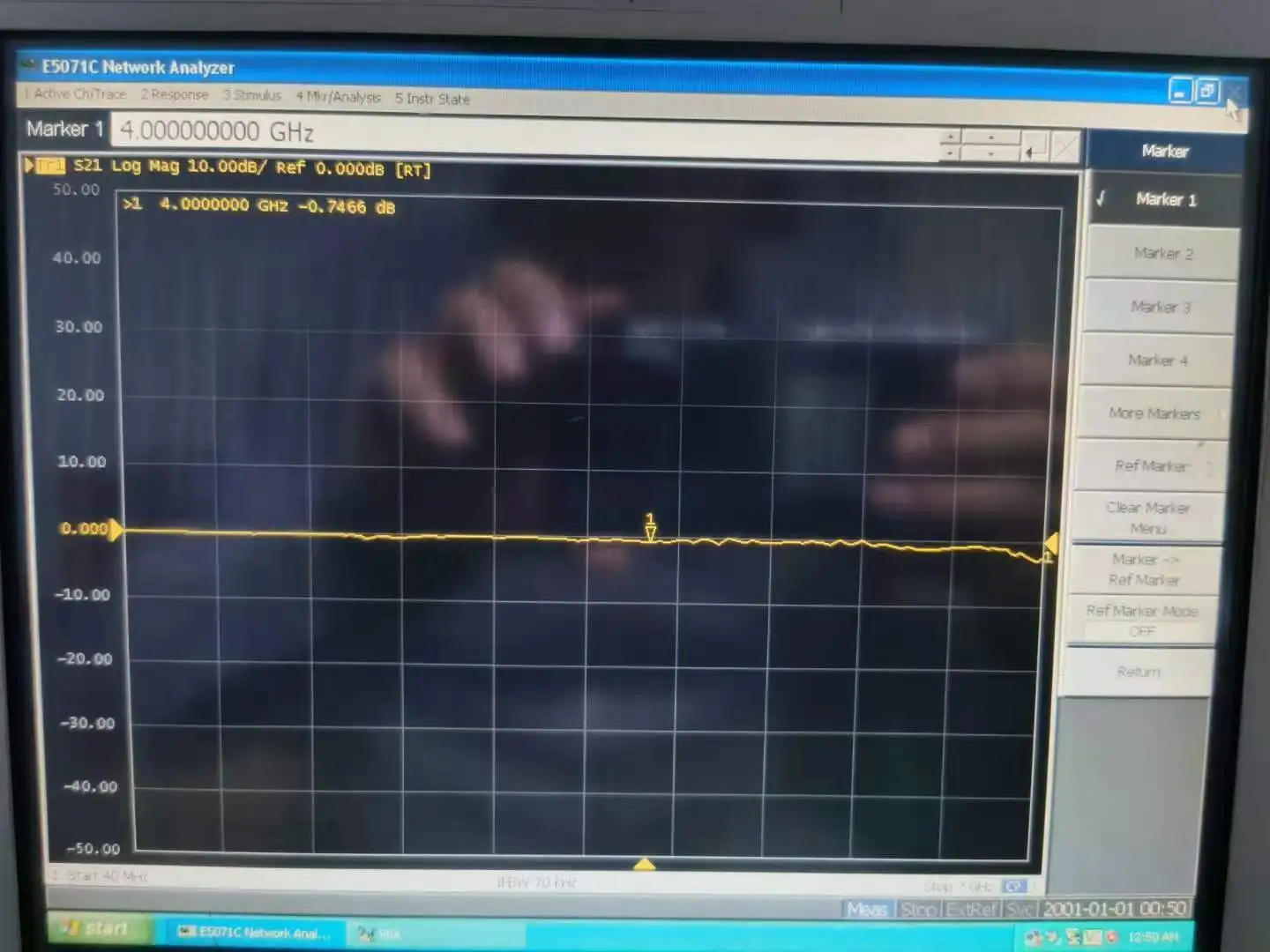

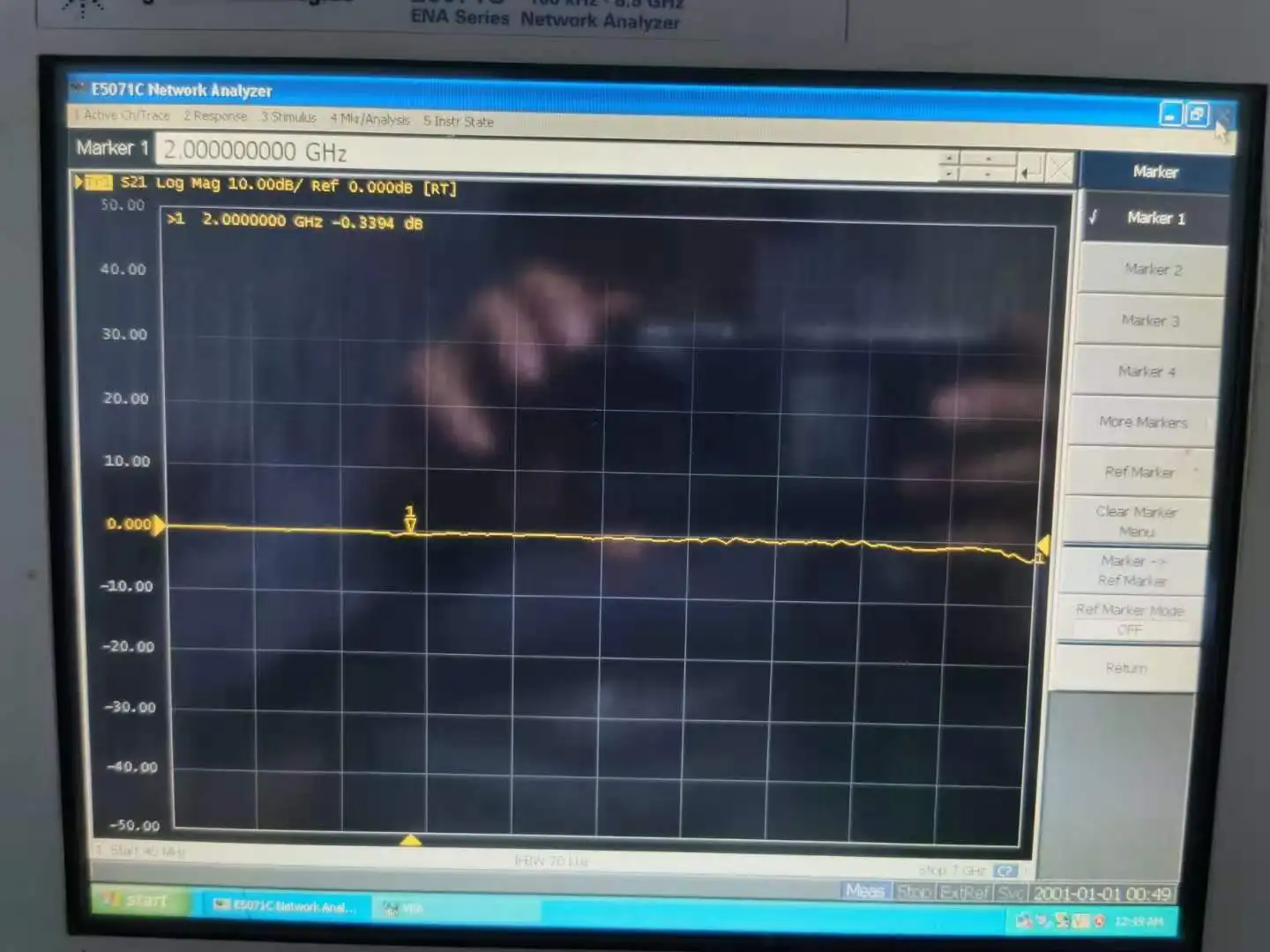

Insertion loss: ≤0.8dB

Normal working voltage: DC-35V

Normal working current: ≤0.31A

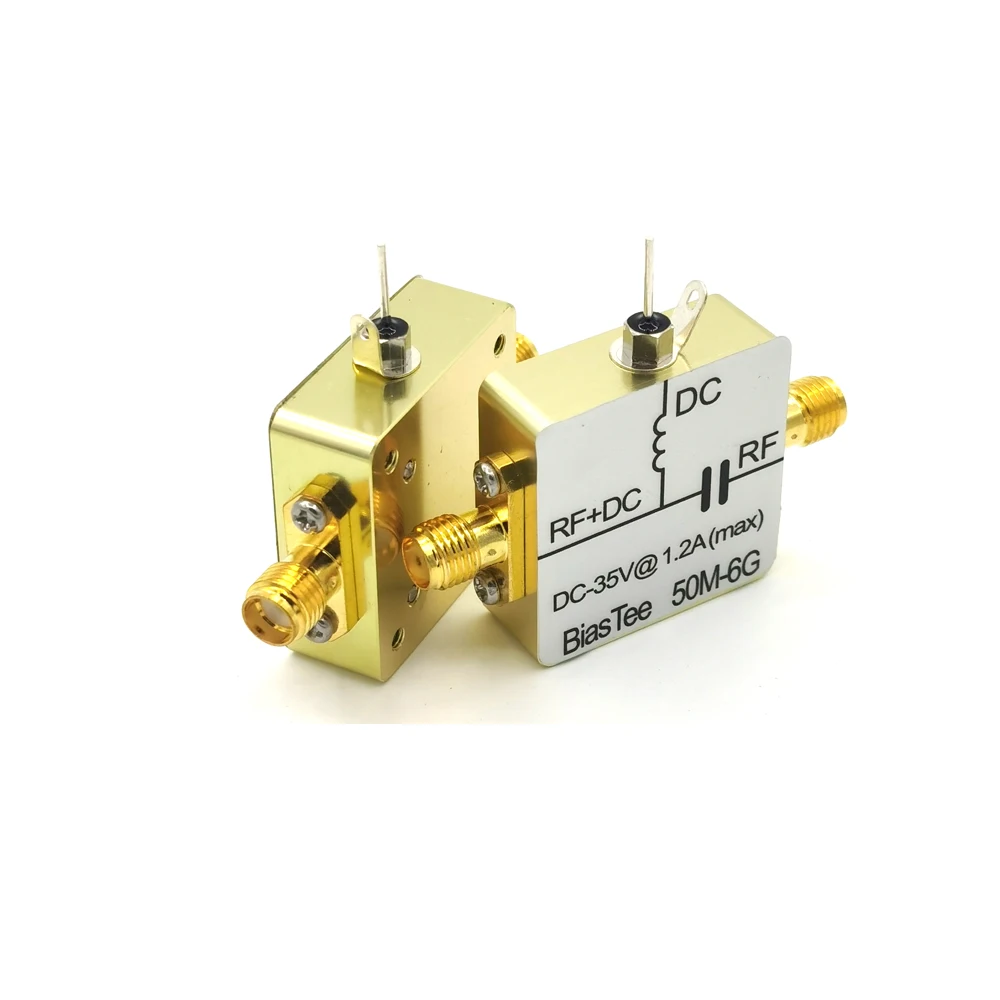

Module B parameters:



Working frequency: 50MHz-6GHz

Insertion loss: ≤1.2dB

Normal working voltage: DC-35V

Normal working current: ≤1.2A
