Product View
Detail

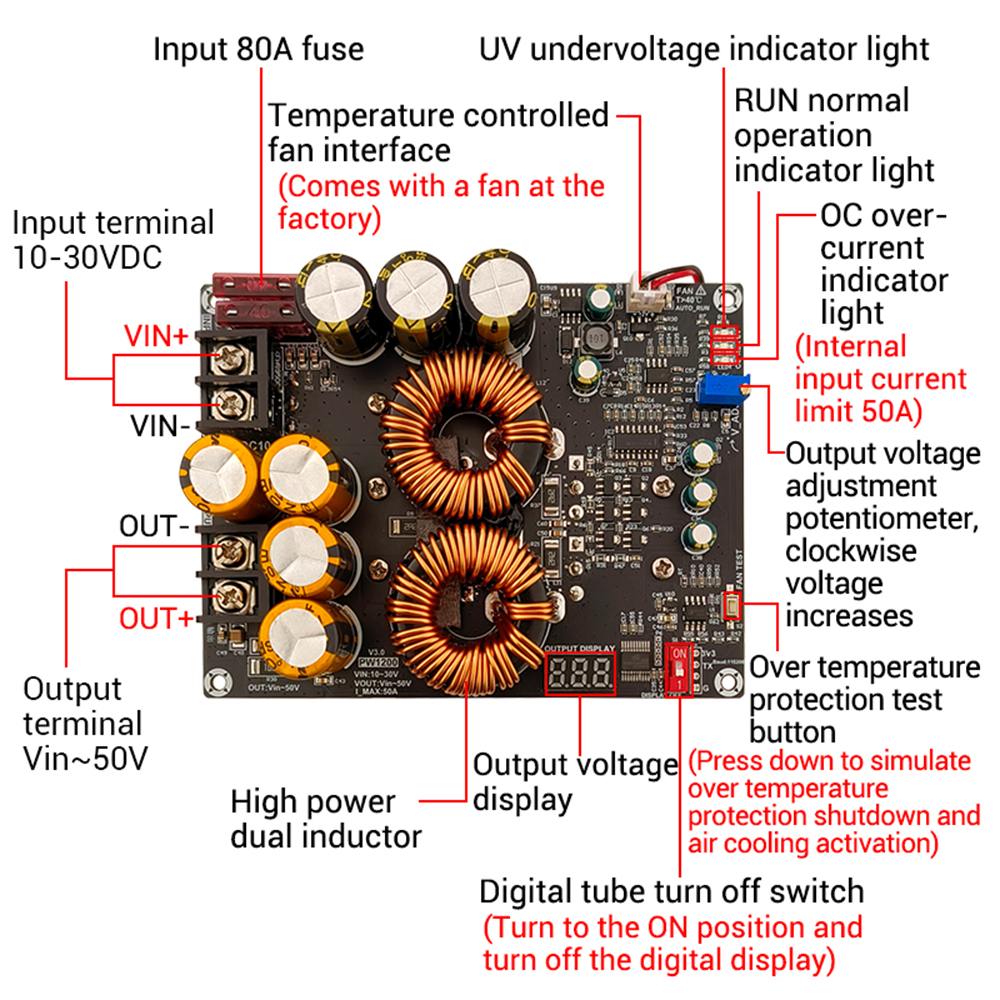

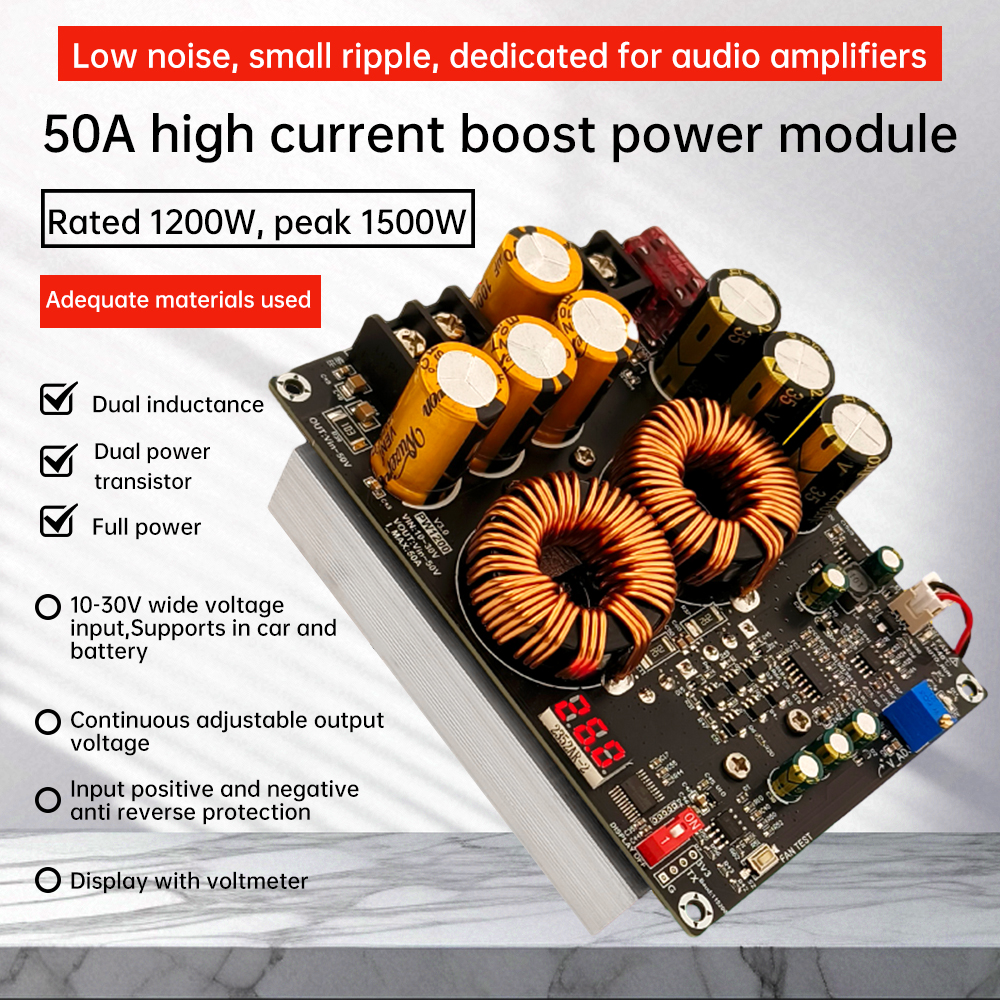

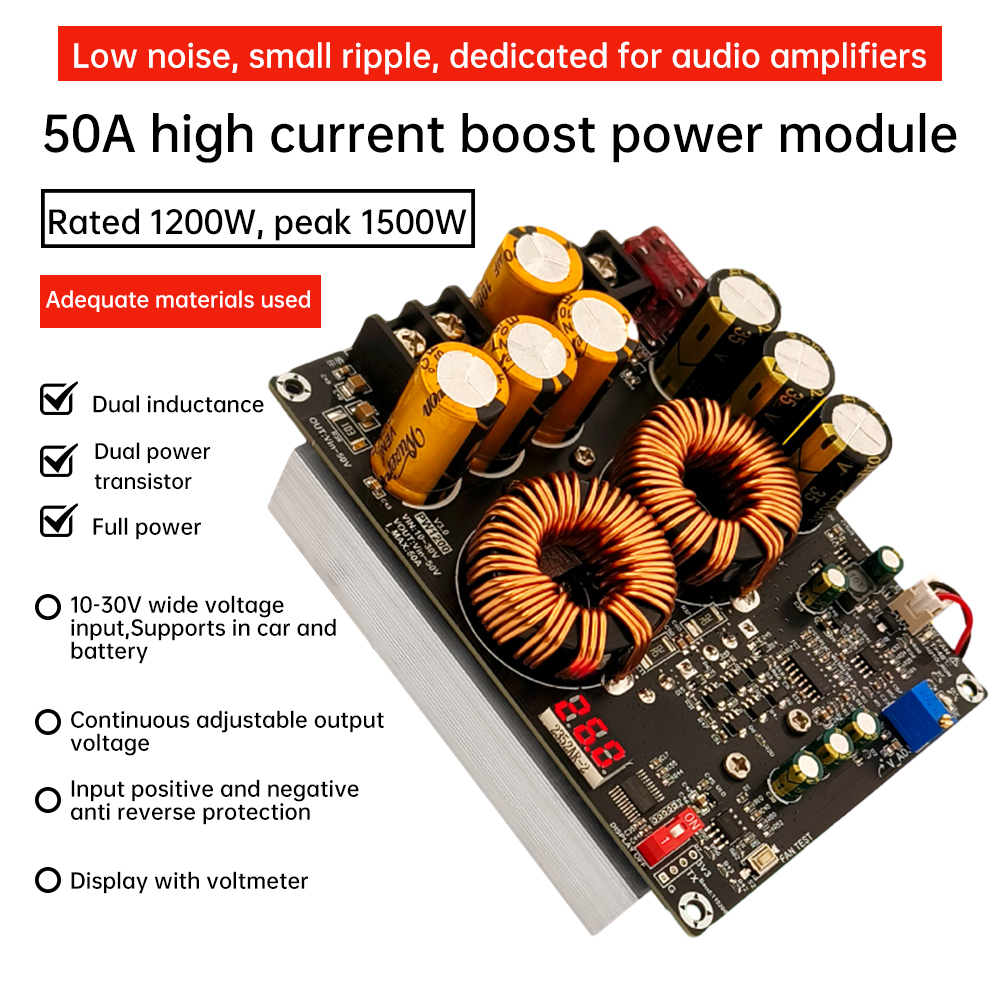

Features:

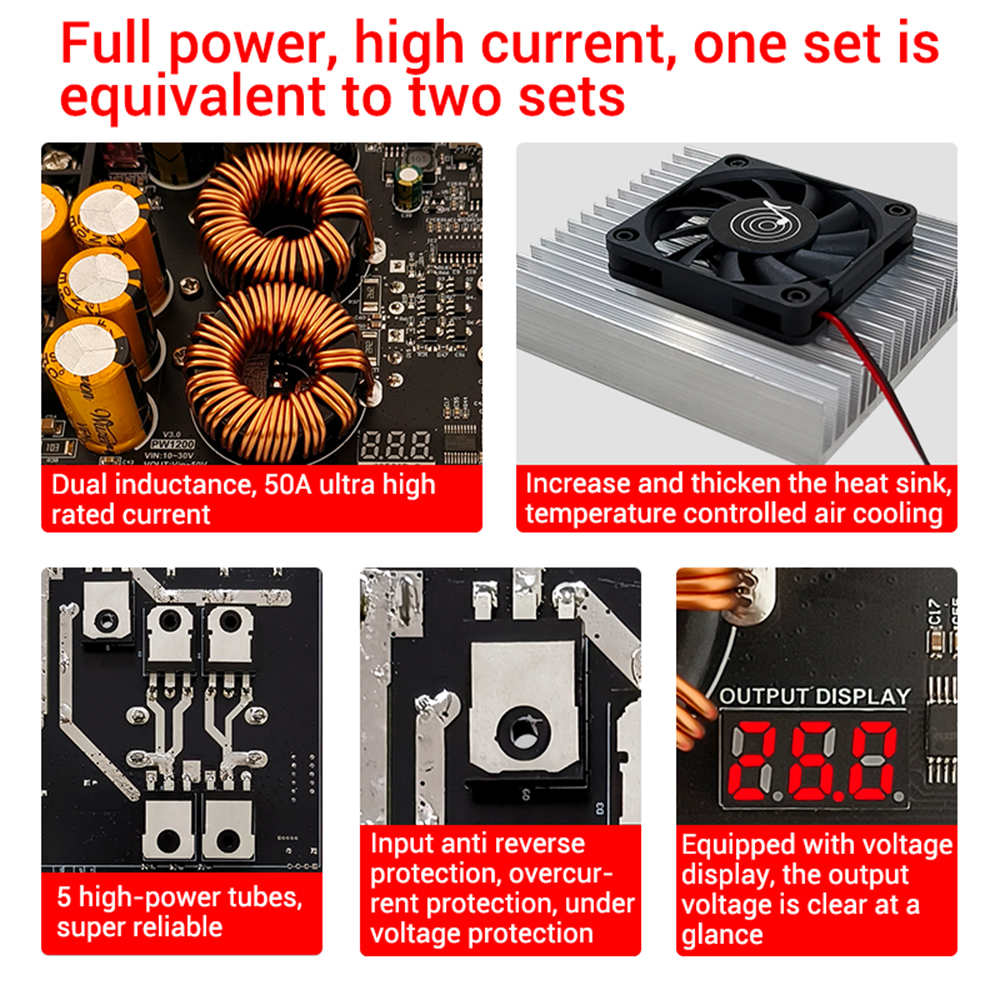

1. Dual inductor design, to ensure full power output, stable support for 1200W high-power applications
2. Extremely low ripple output, optimized for high-fidelity audio amplifier equipment sound quality performance
3. Maximum support for 50A high current, to meet the demanding needs of high-performance equipment on the current
4. Products with input anti-reverse connection protection, over-current protection, under-voltage protection
5. On-board voltage display, output voltage at a glance

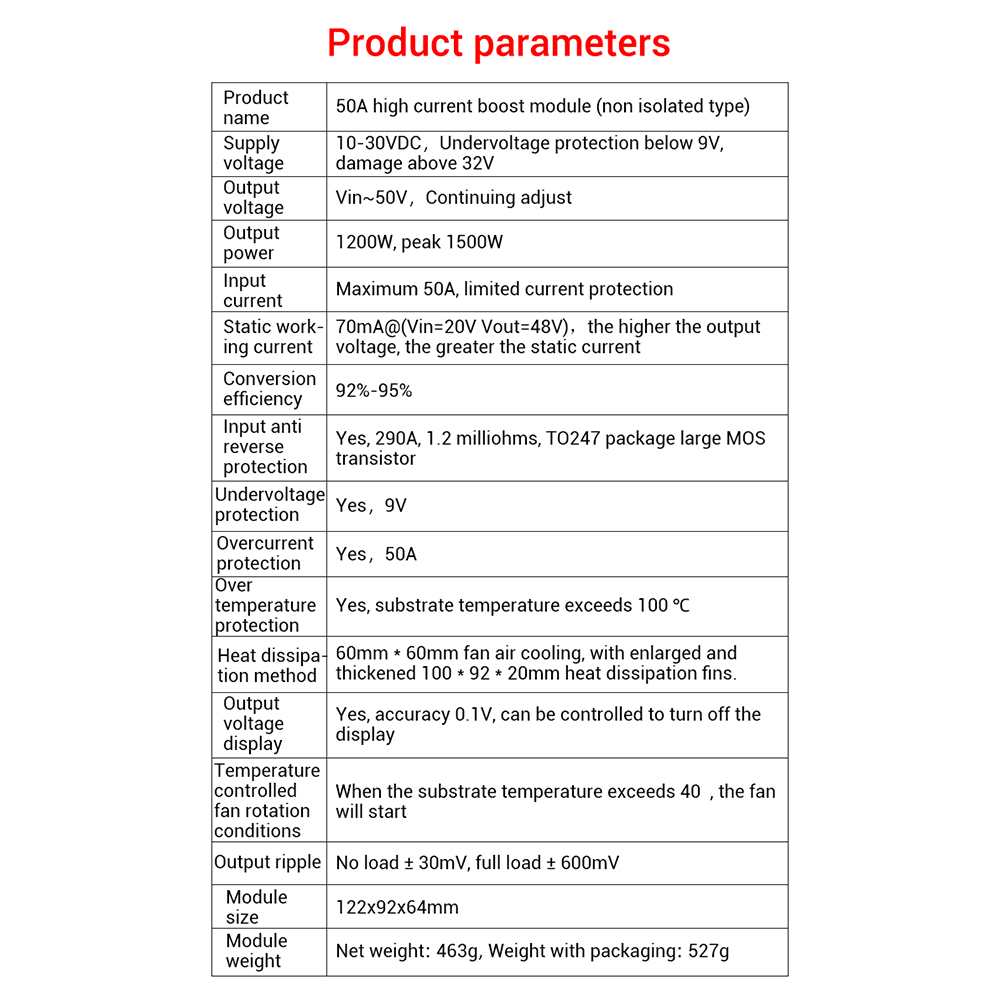

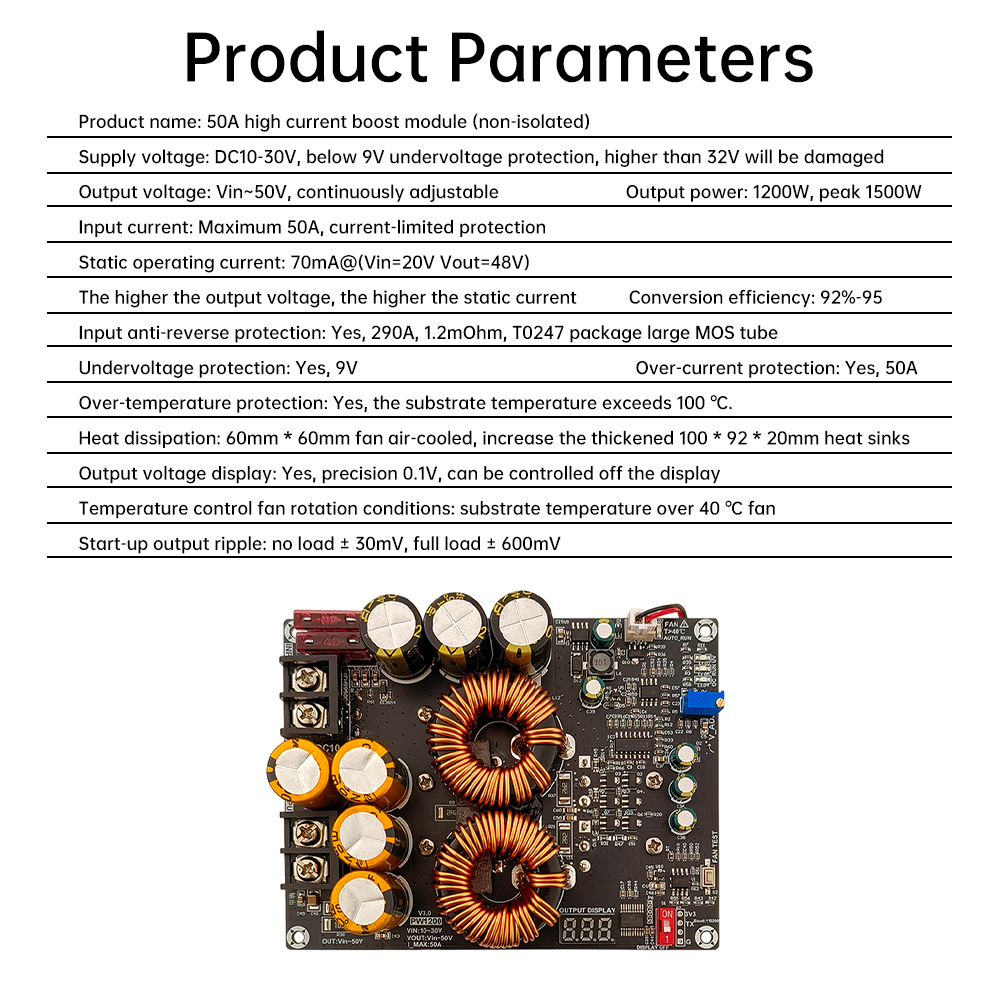

Parameter:
Product name: 50A high current boost module (non-isolated)
Supply voltage: DC10-30V, below 9V undervoltage protection, higher than 32V will be damaged
Output voltage: Vin~50V, continuously adjustable
Output power: 1200W, peak 1500W
Input current: Maximum 50A, current-limited protection
Static operating current: 70mA@(Vin=20V Vout=48V) the higher the output voltage, the higher the static current
Conversion efficiency: 92%-95
Input anti-reverse protection: Yes, 290A, 1.2mOhm, T0247 package large MOS tube
Undervoltage protection: Yes, 9V
Over-current protection: Yes, 50A
Over-temperature protection: Yes, the substrate temperature exceeds 100 ℃.

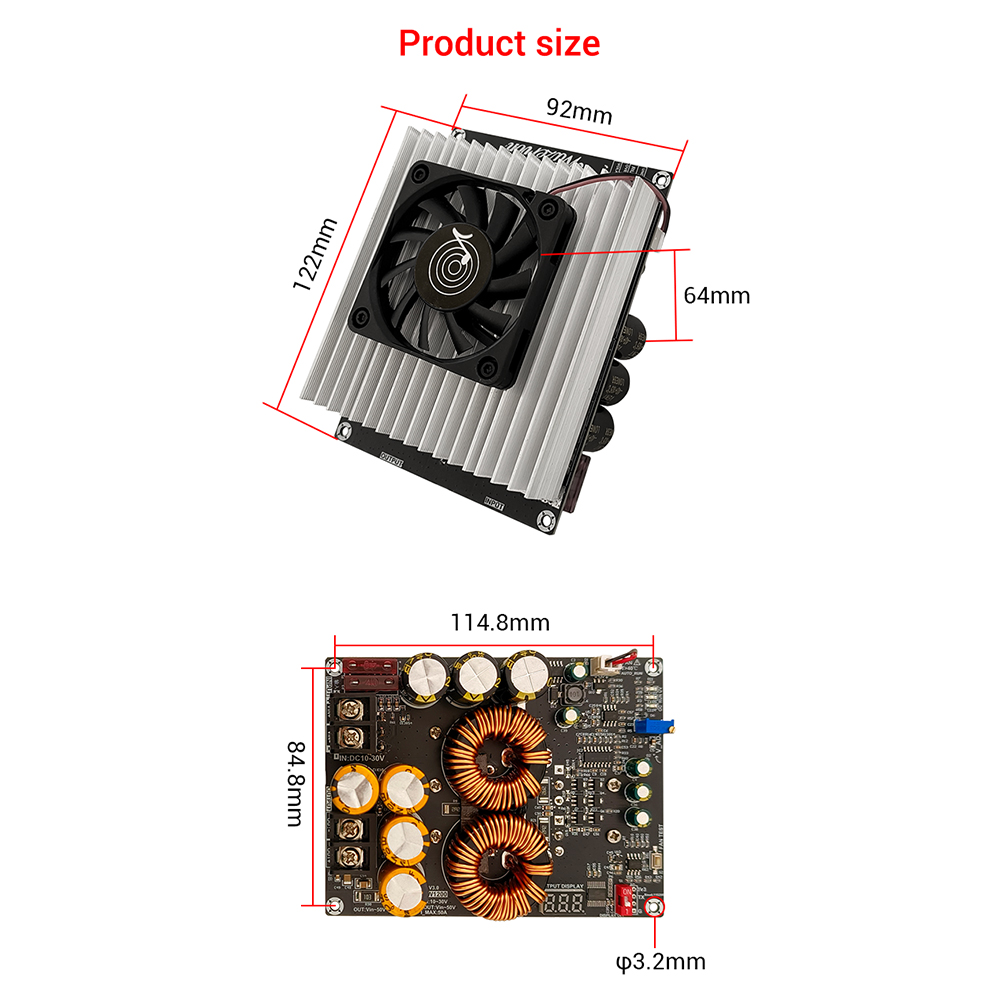

Heat dissipation: 60mm * 60mm fan air-cooled, increase the thickened 100 * 92 * 20mm heat sinks
Output voltage display: Yes, precision 0.1V, can be controlled off the display
Temperature control fan rotation conditions: substrate temperature over 40 ℃ C fan start
Output ripple: no load ± 30mV, full load ± 600mV

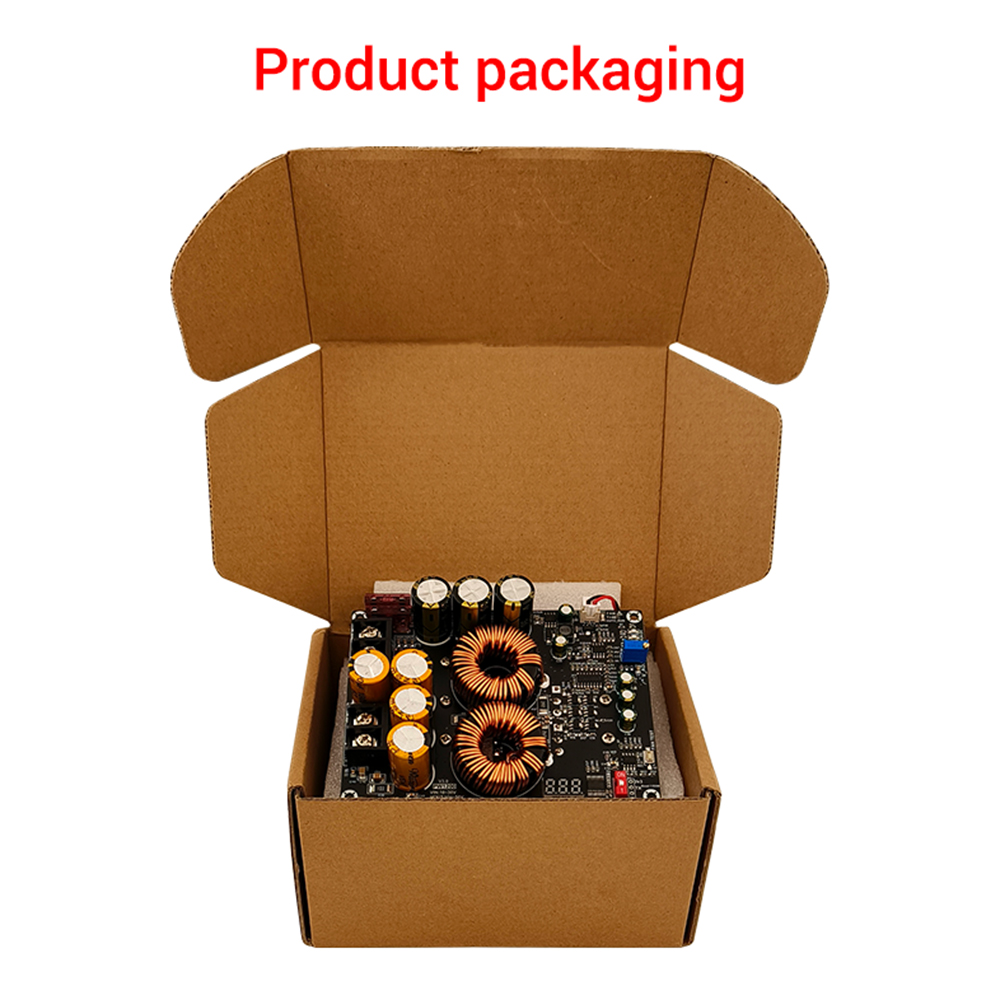

Package include:
Power supply module *1
