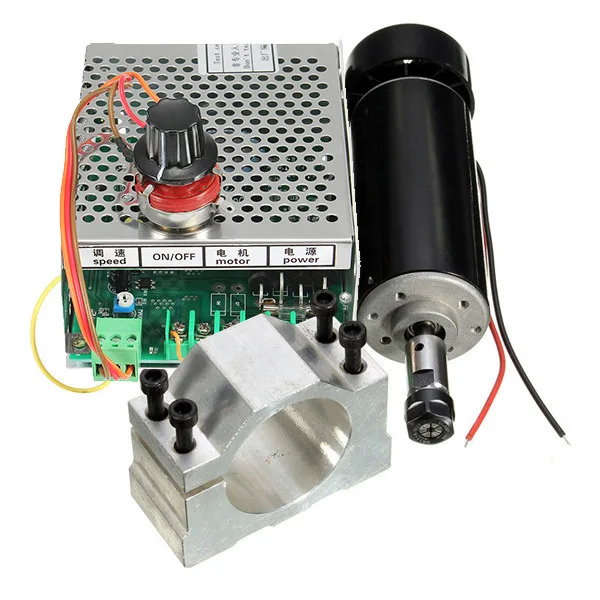

Spindle parameters:
Working voltage: 12-100VDC
Idling speed: 2000-12000 rpm
Power: 500W
Torque: 0.5NM
Insulation resistance: >2 megohm
Insulation dielectric strength: 400V
Diameter: 52mm
Length of chuck part: 45MM
Diameter of the chuck part: 16mm
Total motor length: about 190MM
Spindle radial runout 0.01-0.03 high accuracy
Can be used for solid wood PCB carving, drilling, etc.

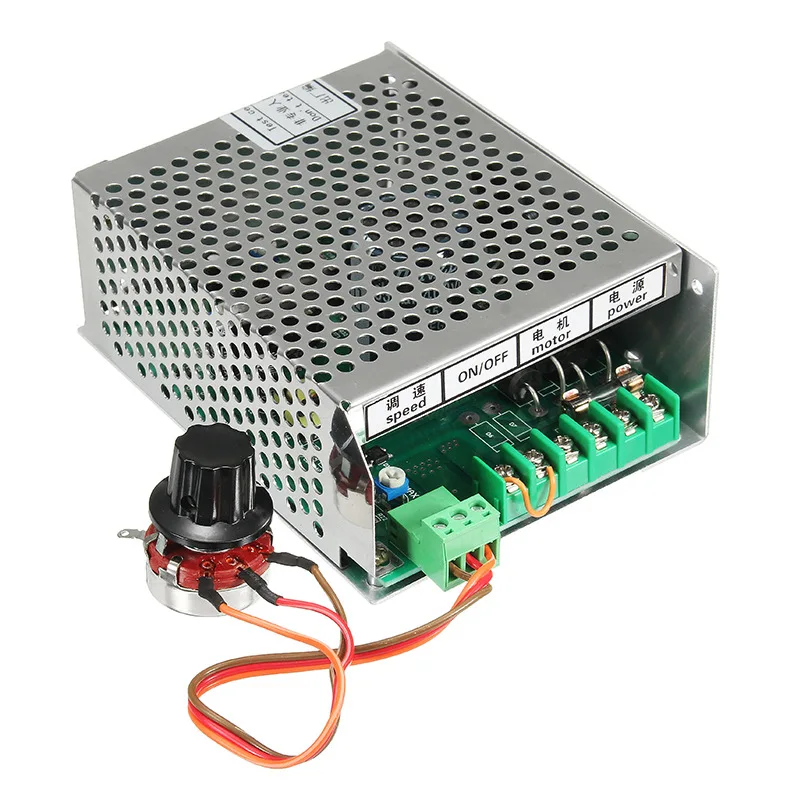

Detailed technical parameters of governor:
1. Input voltage AC110-AC220V±10%, global voltage 50/60Hz
2. Current limit: 6A
2. Adapted motor power: 50W～500W
3. Armature output voltage: DC0～100V adjustable
4. Dimensions: length 130mm×width 100mm×height 51mm

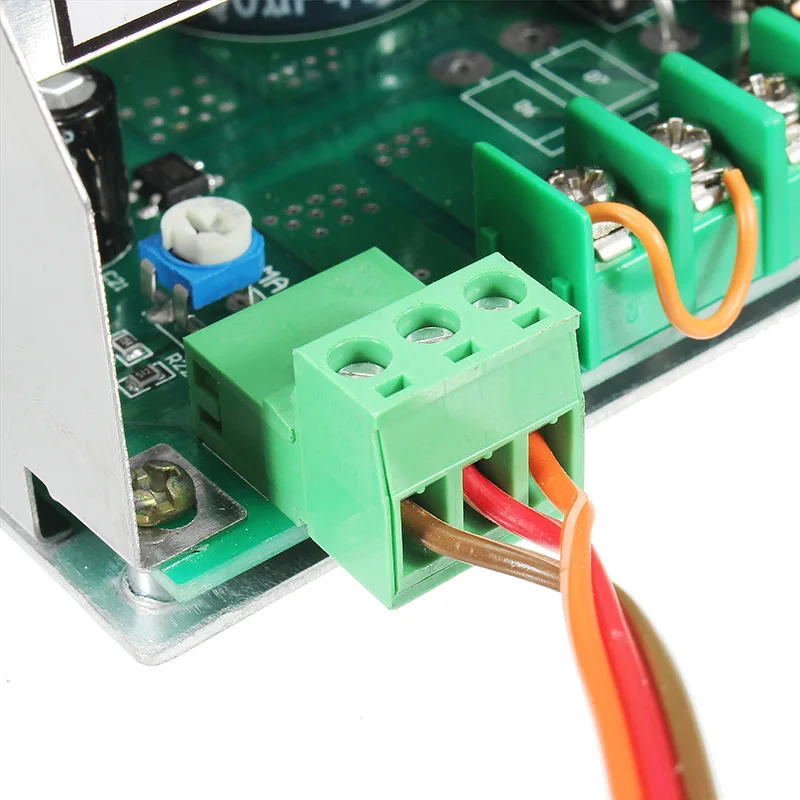

5. Wiring mode: terminal type (convenient and quick)
3. Working environment:
1. Ambient air temperature: -10～40°C
2. The relative humidity of the air is below 85%, with good ventilation
3. Install in a place with good ventilation, no severe impact, no vibration, no explosive dangerous medium and no conductive metal particles
4. Product features:
1. Using pulse width technology to make the speed more stable, with greater force at low speeds
2. With over-current protection cut-off device to make the performance more reliable
3. With a soft start device to eliminate excessive motor starting current
Note: This motor has quiet operation, low price, small size, high speed, and reinforced cooling fan at the end of the motor, so you can work for a long time without worry! A large amount can be excellent, and cooperation is welcome.
