Specifications

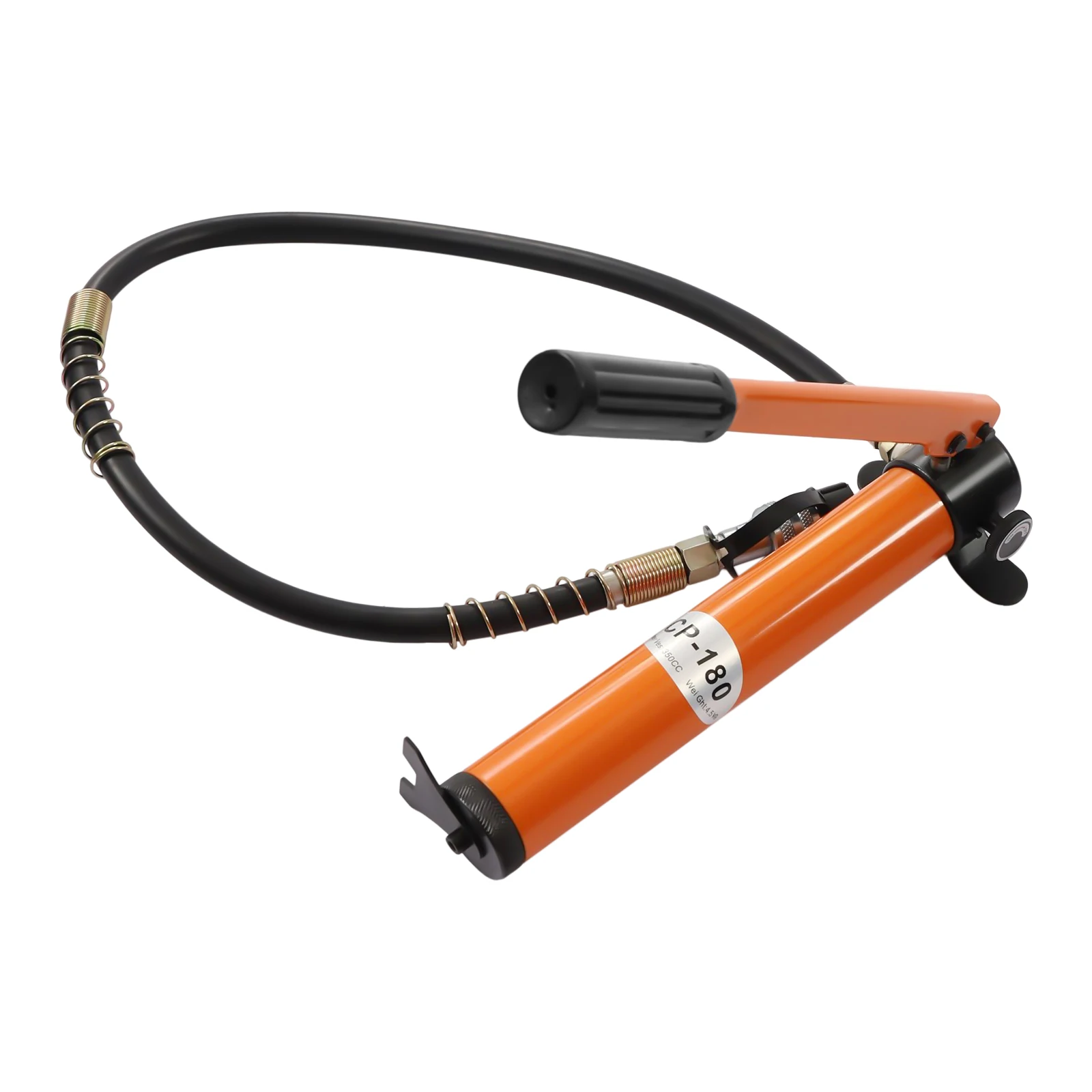

Name: Manual Hydraulic Pump
Color: Orange
Material: Steel
Surface Treatment: Plastic Spraying
Condition: Brand New
Type: Manual
Oil Reserves: 350CC
Maximum Pressure: 70Mpa（700kg/ cm²）
Low-Pressure Speed: 2L/ s (0.44Gal/ s)
High-Pressure Speed: 0.2L/ s (0.044Gal/ s)
Tubing Connector: ZG3/8''

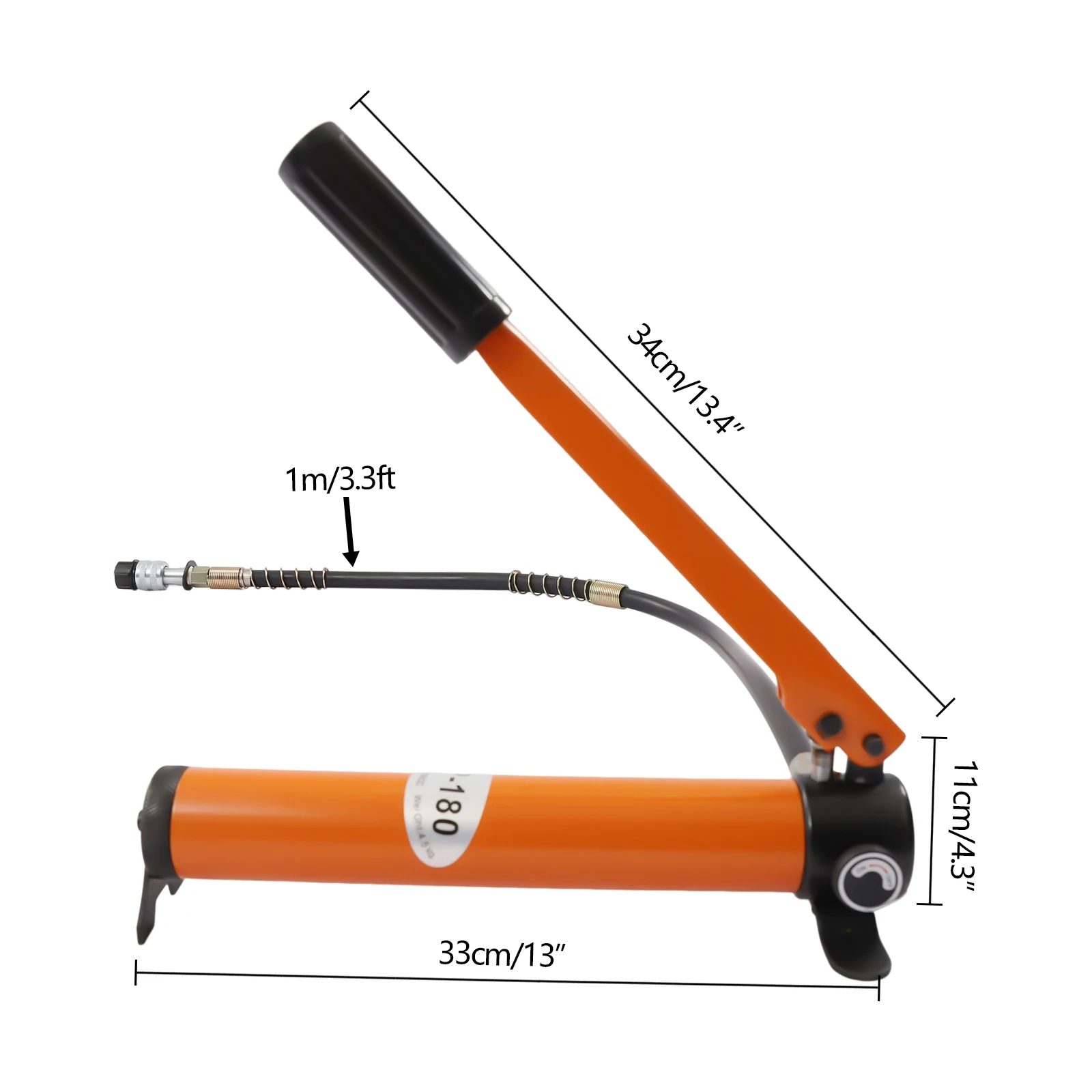

Pump Body Length: 33cm/ 13in
Pump Body Height: 11cm/ 4.3in
Handle Length: 34cm/ 13.4in
Hose Length: 1m/ 3.3ft
Package Size: 37.5*22.5*16cm/ 14.76*8.86*6.3in
Net Weight: 3.5kg/ 7.72lbs
Gross Weight: 4kg/ 8.82lbs
How to Use
1.Open the dust cover and connect it to the male connector of other tools.
2.Connect the connectors tightly to avoid leakage.
3.Tighten the pressure relief valve switch clockwise before use.
4.Press the handle back and forth.
5.Then the piston of the cylinder will rise.
6.Loosen the pressure relief valve switch counterclockwise.
Package Included
1* Manual Hydraulic Pump
1* 1m Hose
1* Handle
