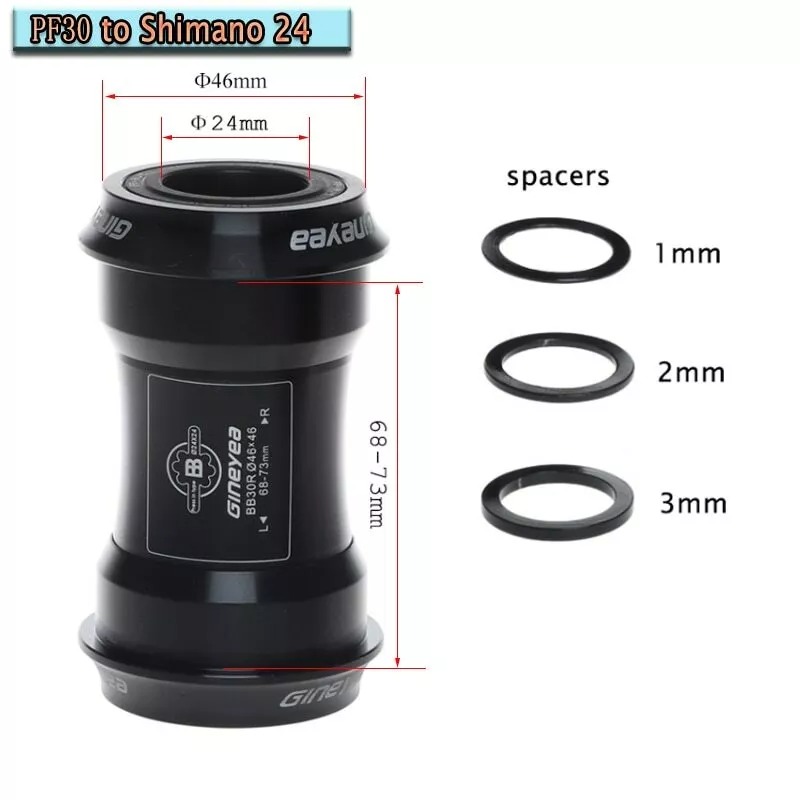

Gineyea PF30-24 Bottom Bracket Sealed Press-fit Folding Bicycle Holowtech XT

Brand: TAIWAN Gineyea
Type: Press-in BB30/PF30
Bearing: TAIWAN Sealed bearing
Suitable :SHIMANO, Tektro, Prowheel.. φ 24mm standard
Optional : SRAM/GXP φ 22mm Axis conversion sleeve
Annex: 1mm、2mm、3mm Gasket

Interpretation of specifications:

BB30 frame specification: frame bottom bracket size length 68-73mm-width*42mm (inner diameter)
PF30 frame specifications: frame bottom bracket size length 68-73mm-width*46mm (inner diameter)

Crankset Specifications:

SRAM/GXP crank 24*22 mm

Buying guide

Please measure the inner diameter of the bottom bracket and the axis diameter of the chainwheel before buying
If your frame bottom bracket inner diameter is 42mm, choose BB30
If your frame bottom bracket inner diameter is 46mm, choose PF30

E.g:

The inner diameter of the bottom bracket of the frame is 42mm, and the crankset is Shimano or 24 axis== then choose " BB30 to Shimano"

If the inner diameter of the bottom bracket of the frame is 4
