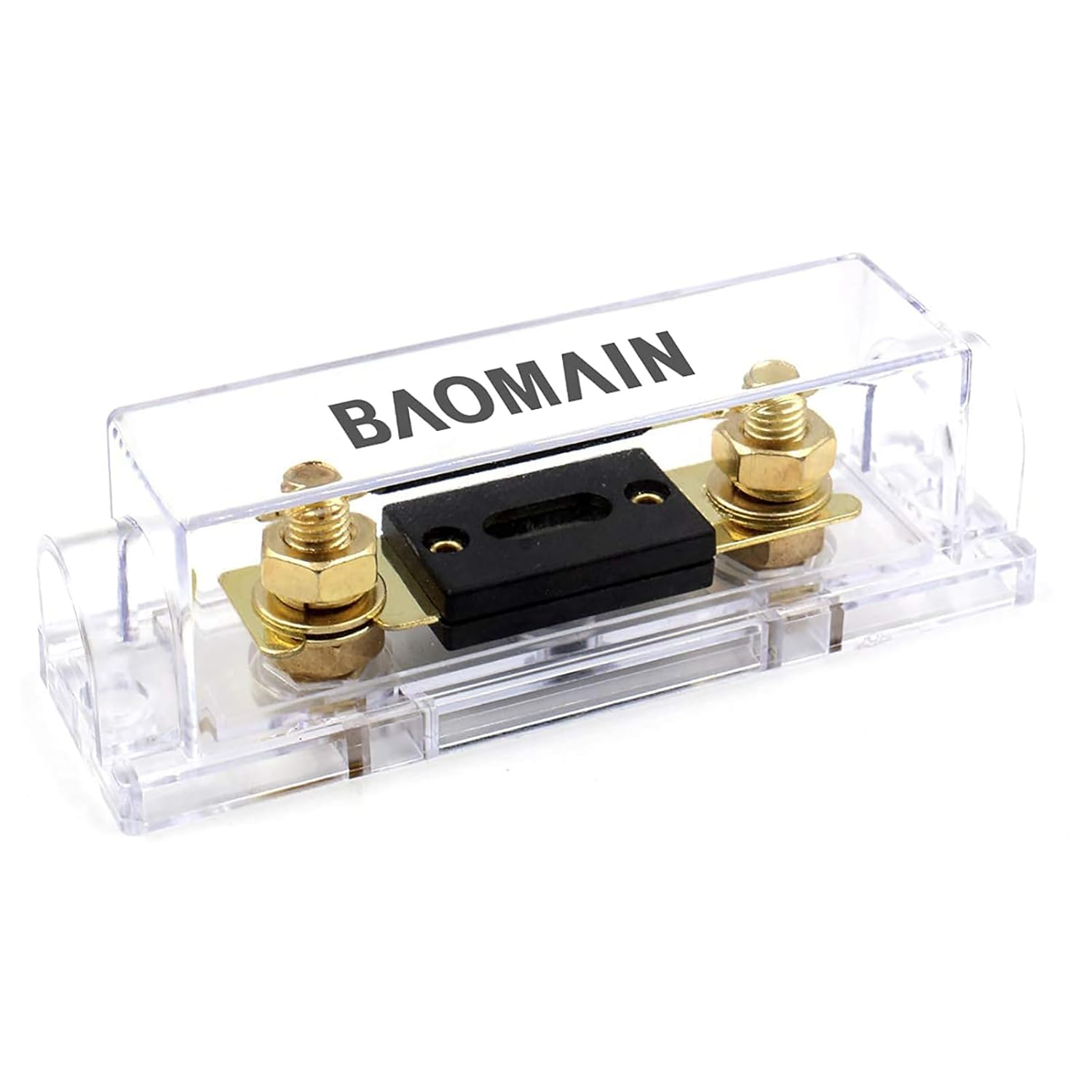

ANL Fuse Holder Kit with 180A Fuse – for Car Audio & 12V/24V Systems (180 Amp.)
Description
| Item model number | 180 Amp. |
| Is Discontinued By Manufacturer | No |
| Material | Plastic |
| AC Adapter Current | 180 Amps |
| Voltage | 32 Volts |
| Model | 180 Amp. |
| Specification Met | CE |
| Package Dimensions | 4.88 x 2.6 x 1.54 inches; 3.53 ounces |
- 180A High-Current Protection：Designed for 180 Amp ANL fuses to safeguard your car audio system, amplifiers, and 12V/24V vehicle electronics from power surges or short circuits
- Heavy-Duty & Reliable：Features a robust, heat-resistant fuse holder with secure mounting options, ensuring stable performance even in high-temperature engine environments
- Easy Installation & Compatibility：Universal in-line design works with most aftermarket car audio setups, RVs, and marine applications
- Safer Electrical System：RoHS-compliant materials meet safety standards, providing corrosion-resistant and durable protection for long-term use
- Complete Kit, Ready to Use：Includes 1 fuse holder + 1x 180A ANL fuses, eliminating the need for extra purchases—ideal for quick upgrades or replacements
Product Description
Baomain ANL Fuse Holder Kit - Protection for high current systems
Current selectable
Available Current Ratings:
- ANL-300A for current picture showed.
- The stamped steel design ensures clear and durable current rating identification.
- More current optional: 30A, 40A, 50A, 60A, 70A, 80A, 100A, 120A, 150A, 180A, 200A, 250A, 300A, 350A, 400A, 500A
- Note: Always confirm the correct amperage rating for your specific application before installation.
Key Features:
- 24K Gold-Plated Terminals - Ensures maximum conductivity and corrosion resistance for stable power delivery
- Universal Compatibility - Works with 0/2/4 AWG wires for car audio, power inverters, off-road lighting & marine/RV systems
- Vibration-Resistant Design - Secure screw-down terminals prevent loosening
- Easy Monitoring - Clear viewing window for quick fuse status checks
Ideal for:
- High-power amplifiers;
- Power inverters;
- Off-road lighting systems;
- Marine/RV electrical systems
Specification
| Model | ANL-H |
| Rated Current | 180A |
| Rated Voltage | 32V |
| Wire Gauge | 0/2/4 AWG |
| Material | PF&Gold tone plated metal for Fuse , Plastic for Holde |
| Ambient temperature | -68°F to 158°F (-20°C to 70°C) |
| Fuse Size | 80 x 19 x 8mm/ 3.1" x 0.75" x 0.31" (L x W x T) |
| Overall Holder Dimension | 4.84" x 1.46" x 1.50" (LxWxH) |
Effortless Installation with Standard ANL Size
Our ANL Fuse fits standard holders for quick, easy electrical system setup. Ideal for pros and DIYers alike, it gets your setup running fast.
Perfect Dimensions for Seamless Integration
- Holder: 123 x 37 x 38mm (4.84" x 1.46" x 1.50") – Compact yet sturdy, fits various enclosures.
- Fuse: 80 x 19 x 8mm (3.1" x 0.75" x 0.31") – Precision - sized for easy insertion and reliable performance.
Fusing Characteristics
Breaking Capacity Test Parameters:
- TESTING CURRENT: 150% of rated current; BLOW TIME LIMIT: Typically withstands for over 1 hour in lab tests
- TESTING CURRENT: 220% of rated current; BLOW TIME LIMIT: Typically withstands for over 60 seconds in lab tests
- TESTING CURRENT: 250% of rated current; BLOW TIME LIMIT: Typically withstands for 0.8–10 seconds in lab tests
- TESTING CURRENT: 400% of rated current; BLOW TIME LIMIT: Typically withstands for 0.2–2 seconds in lab tests
Important Notes:
- Performance characteristics may vary depending on：Installation conditions；Ambient temperature；Ventilation factors
- For fuses rated above 200A:Continuous operation at full rated current is not recommended
- Maximum permissible load is determined by:Wire gauge capacity；Terminal temperature limits；Environmental conditions
- Safety Notice:Always consult a qualified electrician when designing high-current circuits. Actual performance may vary based on specific application conditions.（All specifications based on:Standard laboratory conditions (73±41°F/23±5°C)，Proper installation per manufacturer guidelines）
Installation Schematic（Mounting diagram for reference only, actual product not included terminals）
Why Choose Our ANL Fuse Kit?
- Enhanced Conductivity - Gold plating reduces resistance for better power transfer
- Performance protection - Zinc alloy fuses with precise amperage ratings
- Safety-focused design - Insulated cover prevents accidental contact
Features
ANL Fuse Holders
This ANL fuse holder is transparent cover and base design, makes it easy to identify which fuse need to be replaced when fuse blows without removing the cover.
0/2/4 AWG
The terminals of this car audio fuse holder is M8 stud design, can be used with 0/2/4 gauge wire lugs for connection, which enables the wires to be thick and safe enough to handle large amperage current.
Gold Plated
The contact of this fuse holder and fuse are gold plated design, which effectively enhances the conductivity and corrosion resistance performances of holder with fuse
Wide Application
This fuse block aims to protect the vehicle and device from damage of overload, suitable for all kinds of new energy vehicles, electric vehicles, forklifts, special vehicles, car air conditioning, car audio, welding machines, etc.
