Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Engine Overhaul Reconstruction Kit For VW AUDI SEAT SKODA 1.8 TSI CDAA CDAB CDHA CDHB
Free expedited shipment to USA, normally delivery time 5-10 days
Supplying by Original suppliers and Germany Brands, Top End Quality Guaranteed !!!
PLEASE DO NOT COMPARE WITH AFTERMARKET PRICES
Please confirm your original piston pin bolt is Φ21mm
if you need Φ23mm piston pin bolt please contact me before buying
Please read carefully the "Fit Car Model" in the following
Pistons & Rings OE# Pistons & Rings Replacement OE#
06H 107 065 BK 06H 107 065 BF / BS / CP
N 905 583 01 (Φ21mm) 06H 107 065 T / F
06H 198 151 B 06H 198 151 C / J
06J 198 151 B/C
Pistons & Rings Spec
STD 0.00 spec (no fit cylinder expand)
Piston Diameter 82.5mm （3.25" / 3.25in.）
Pin bolt Diameter Φ21mm
Ring Thickness 82.5x1.2, 82.5x1.5 , 82.5x2.0
Buckle Size 21x1.5mm
Valves OE# Replacement OE#
06D 109 601 M 06D 109 611 L / T
06D 109 611 H
Bearing Shell OE# Bearing Shell Replacement OE#
06H 105 561 K 06H 105 561 C / M
06H 105 591 K 06H 105 591 C / M
06H 105 701 D GLB 06H 105 701 C GLB
Seals & Gasket Kit OE# Included Parts
06J 103 383 D / 06H 103 483 C Valve oil seal
06H 103 483 D / 06H 103 484 A Cylinder Head Gasket
06F 129 717 D / 06F 253 039 F Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C Camshaft oil seal
06J 115 441 A / 06J 121 119 Intake & Exhaust manifold Gasket
06H 103 121 J / 06H 103 171 F Valve Cover Gasket
06H 103 085 G / 036 109 675 A
Timing Chain Kit OE# Included Parts
06H 109 467 N / 06H 109 467 AE Timing Chain Tensioner
06H 109 158 H / 06H 109 158 J Timing Chain (Long)
06H 109 469 AQ / 06H 109 469 AH Timing Chain (Short)
06H 109 469 AP / 06H 109 469 T Timing Gear
06H 109 509 P / 06H 109 509 Q Timing Guide Set
06H 109 507 N / 06H 105 209 AQ Oil Pump Chain
06H 115 225 L Oil Pump Chain Tensioner
06H 103 269 H
06J 109 259 A
06H 103 144 G
06H 109 257 C
06K 109 210

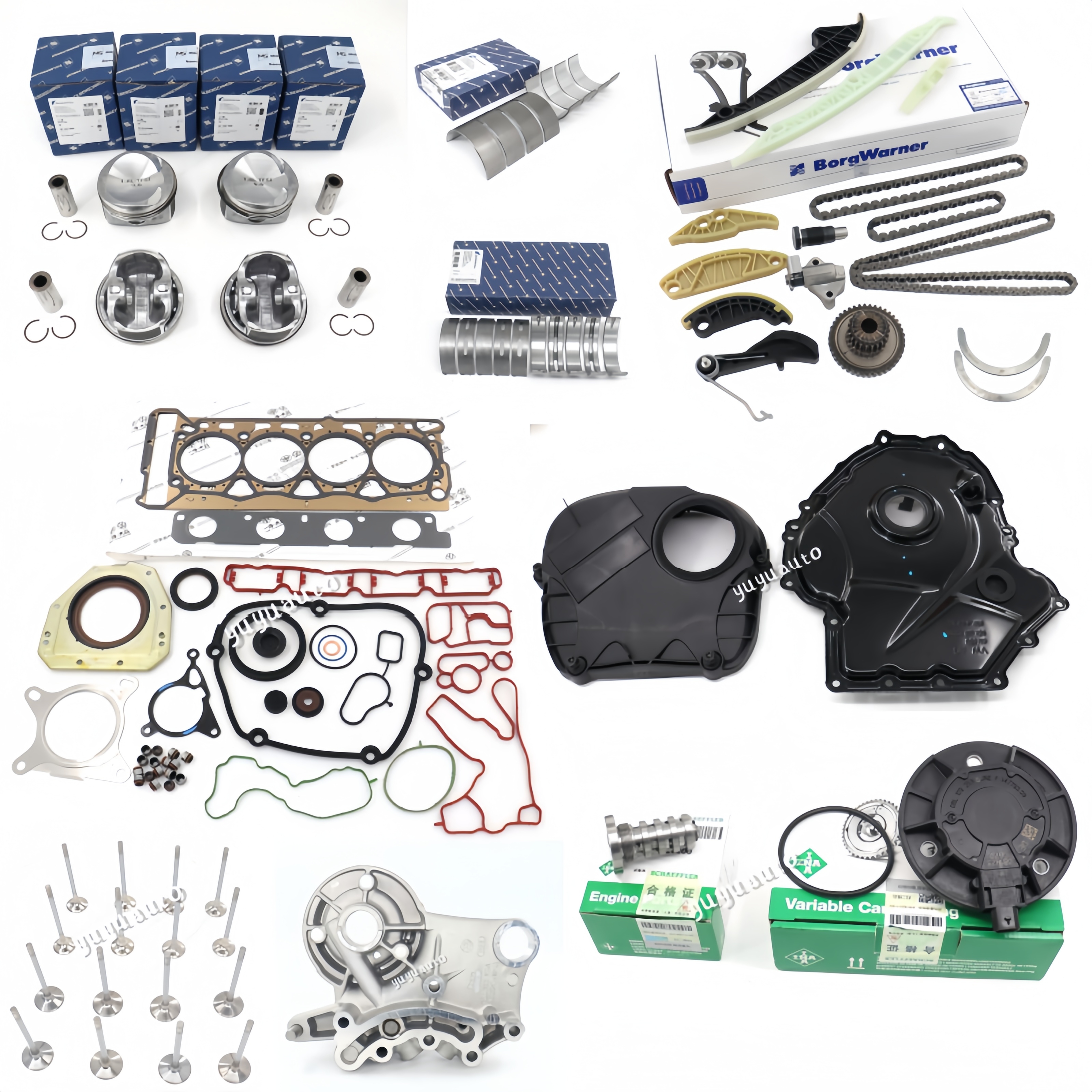

Package includes
Piston & Ring x4
Bearing Shell x1 set
Thrust washer x1 set
16pcs valves x1 set
Repair Kit x1 set
13pcs timing Kit x1 set
Fit Car Model
| Brand & Model | Produce Year | Fit Engine |
|---|---|---|
| AUDI | Piston pin bolt Φ21mm | |
| A3 | 2008-30.5.2011 | 1.8 TFSI CDAA |
| A3 | 2007-2008 | 1.8 TFSI BYT (contact me replace bearing shell) |
| A4 | 2009-30.5.2011 | 1.8 TFSI CDHA CDHB |
| A5 | 2008-30.5.2011 | 1.8 TFSI CDHB 118kw (160ps) |
| TT | 2008-30.5.2011 | 1.8 TFSI CDAA 118kw (160ps) |
| VOLKSWAGEN | Piston pin bolt Φ21mm | |
| Passat | 2010-2011 | 1.8 TSI CDAA CDAB |
| Passat | 2008-2011 | 1.8 TSI BZB CGYA (contact me replace bearing shell) |
| Passat CC | 2009-31.5.2011 | 1.8 TSI CDAA CDAB |
| Passat CC | 2008-2010 | 1.8 TSI BZB CGYA (contact me replace bearing shell) |
| Golf | 2009-2011 | 1.8 TSI CDAA |
| SKODA | Piston pin bolt Φ21mm | |
| Octavia | 2008-15.5.2011 | 1.8 TSI CDAA CDAB |
| Octaiva | 2007-2008 | 1.8 TSI BZB (contact me replace bearing shell) |
| Superb | 2008-15.5.2011 | 1.8 TSI CDAA CDAB |
| Superb | 2008-2009 | 1.8 TSI BZB (contact me replace bearing shell) |
