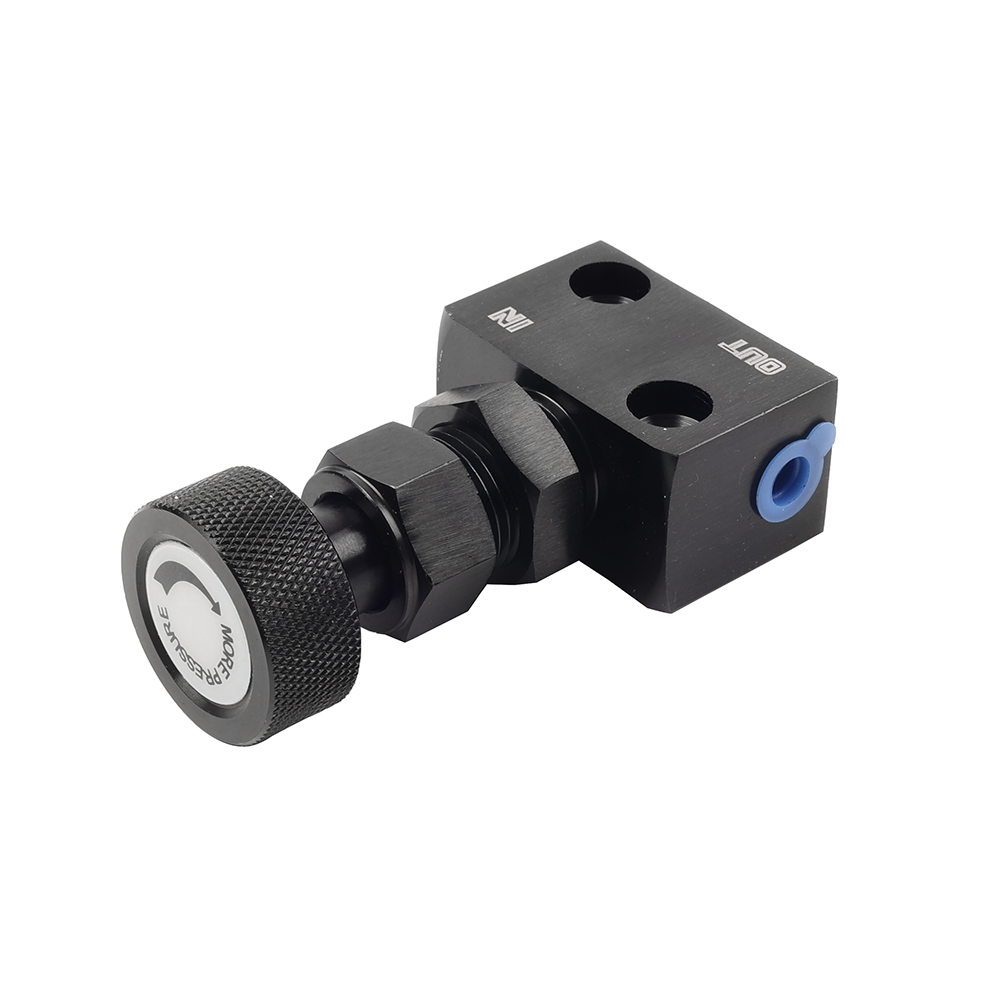

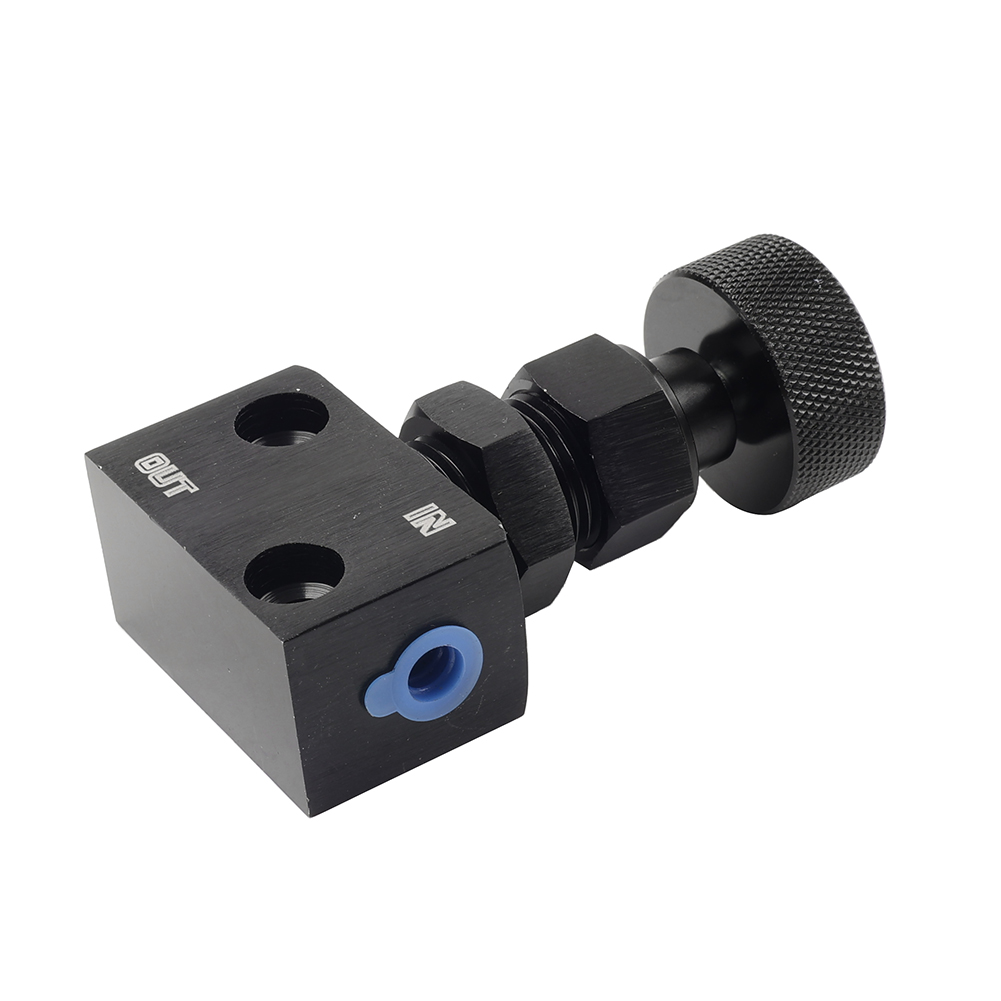

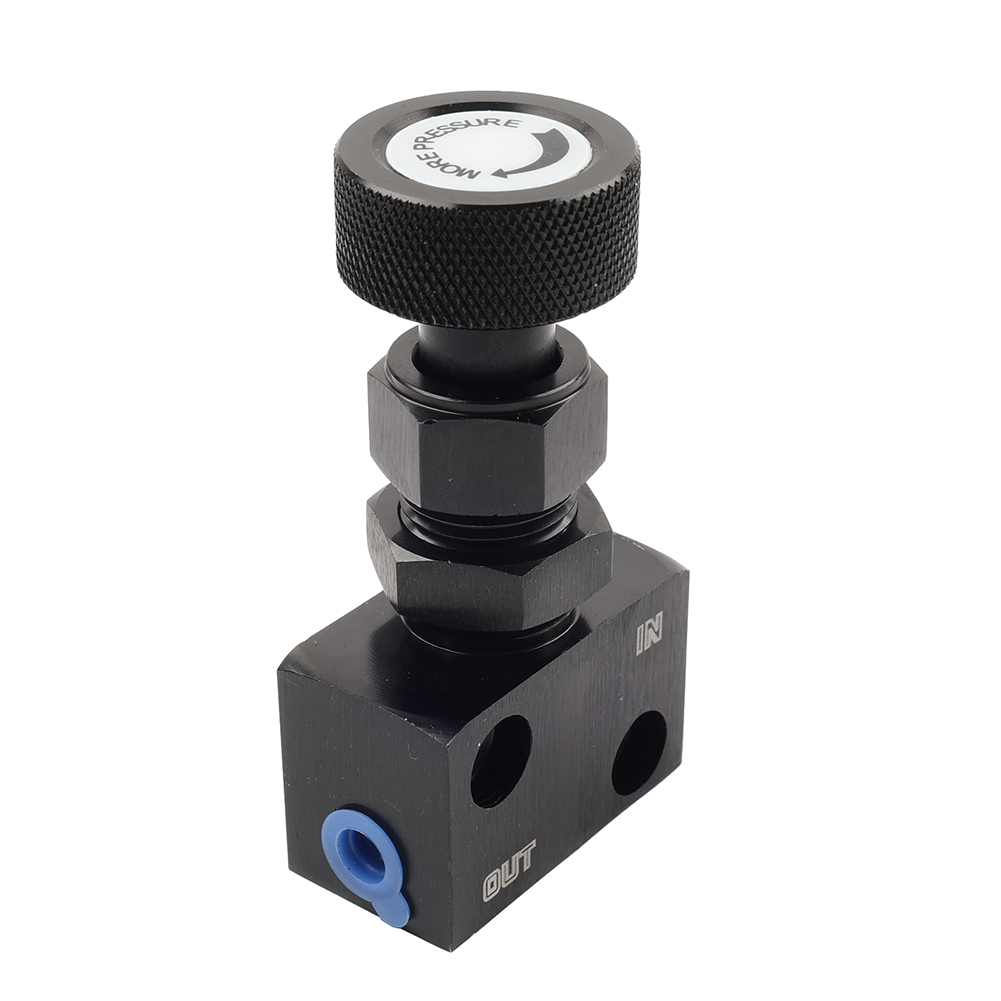

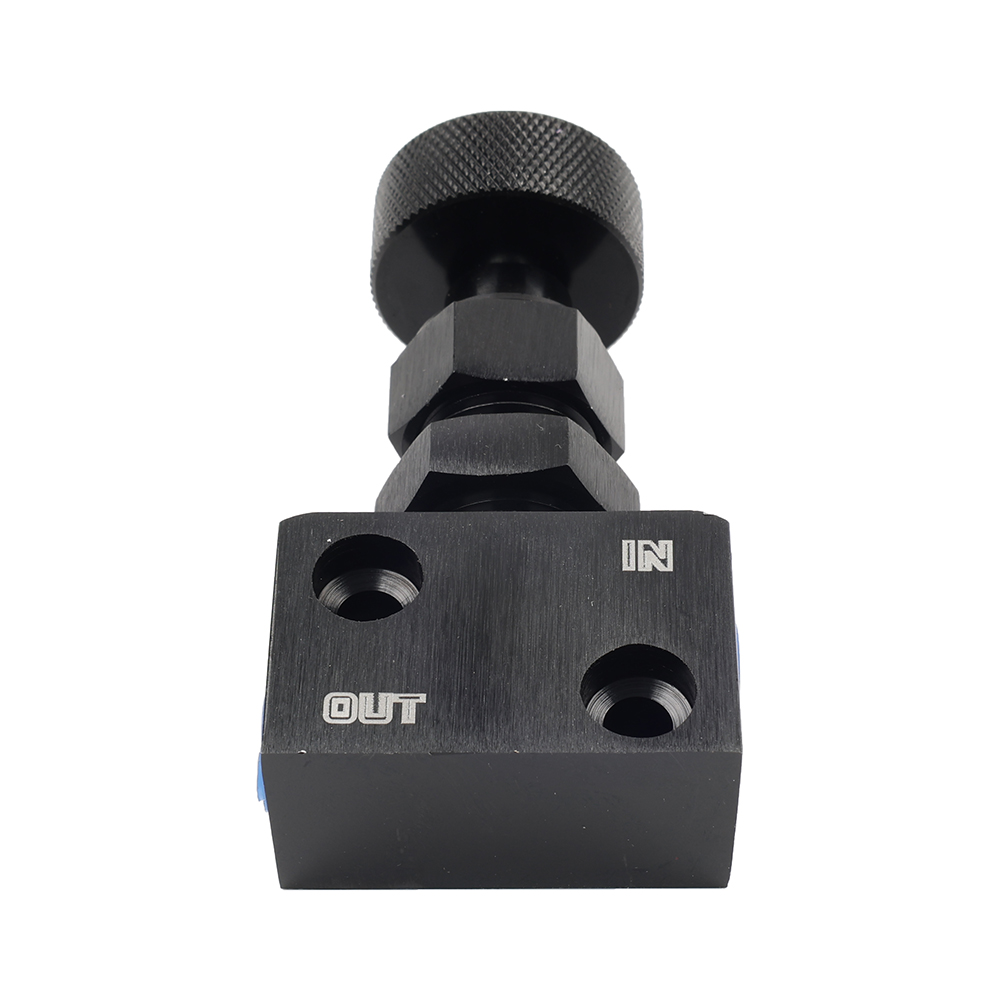

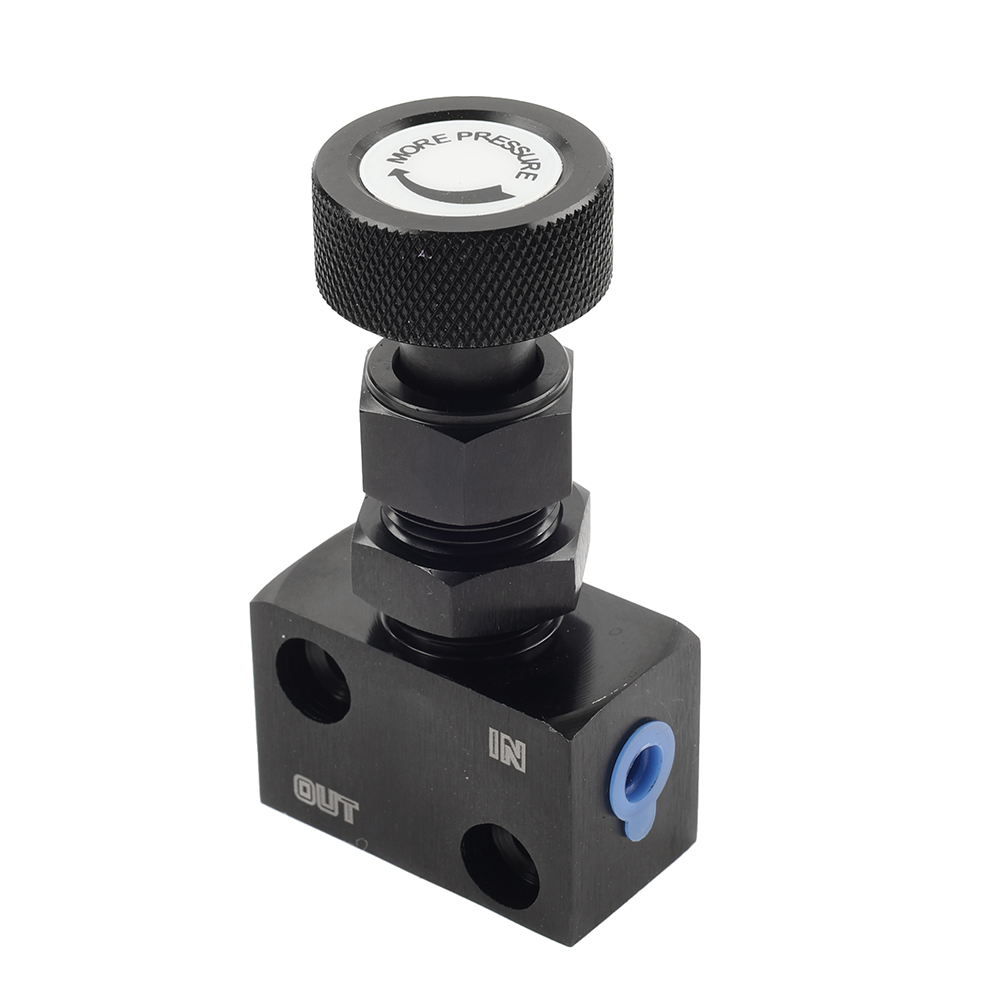

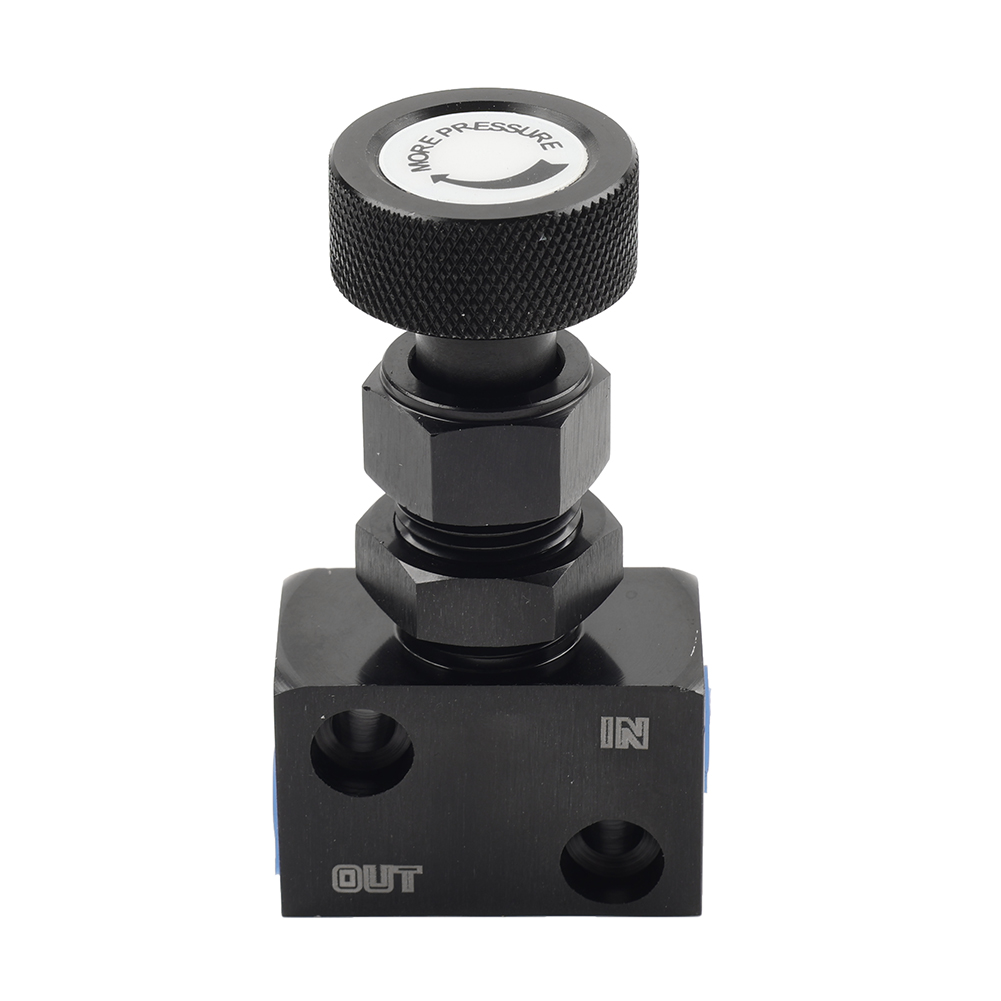

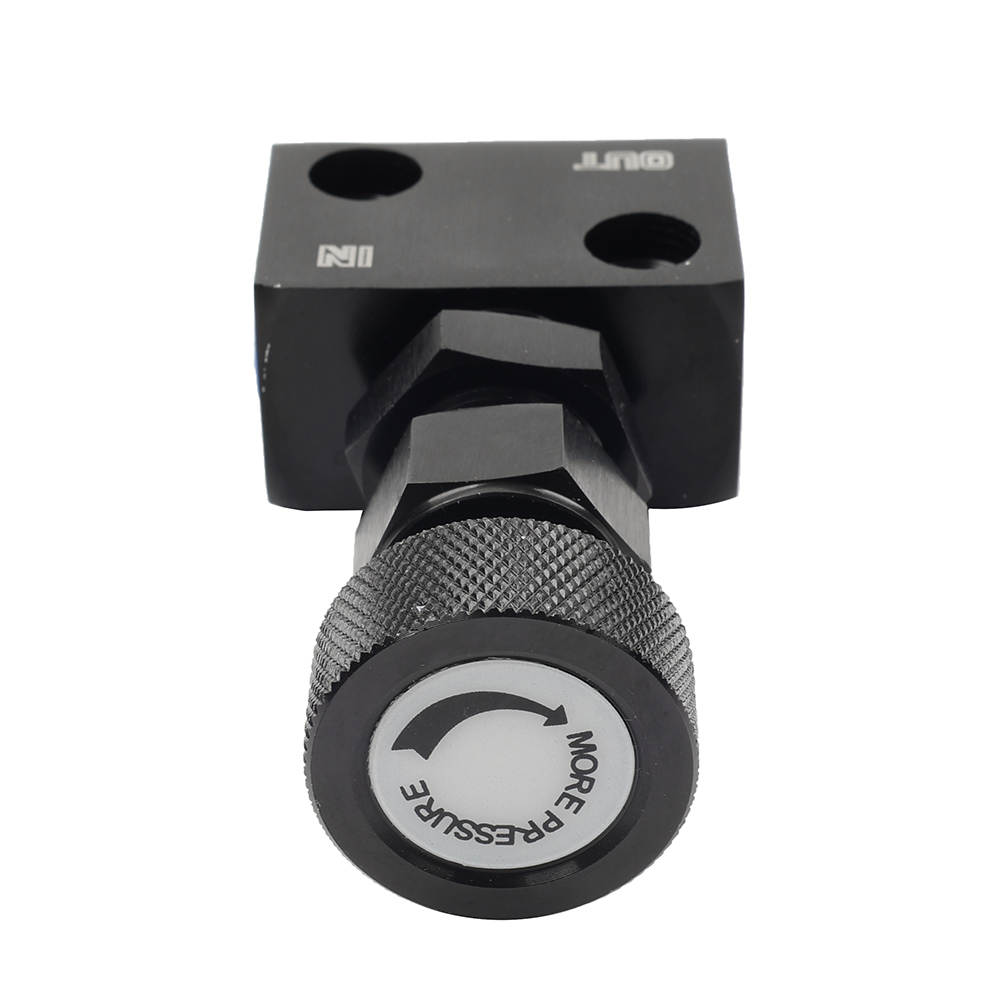

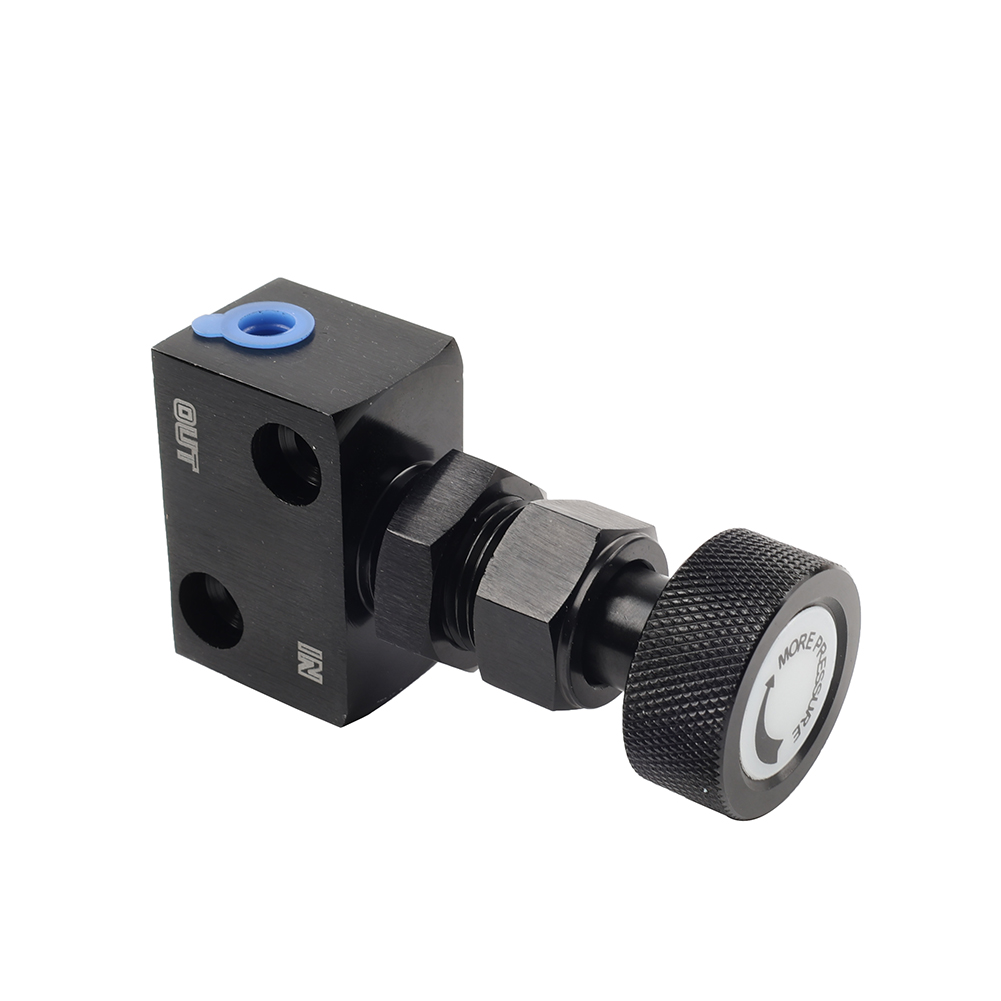

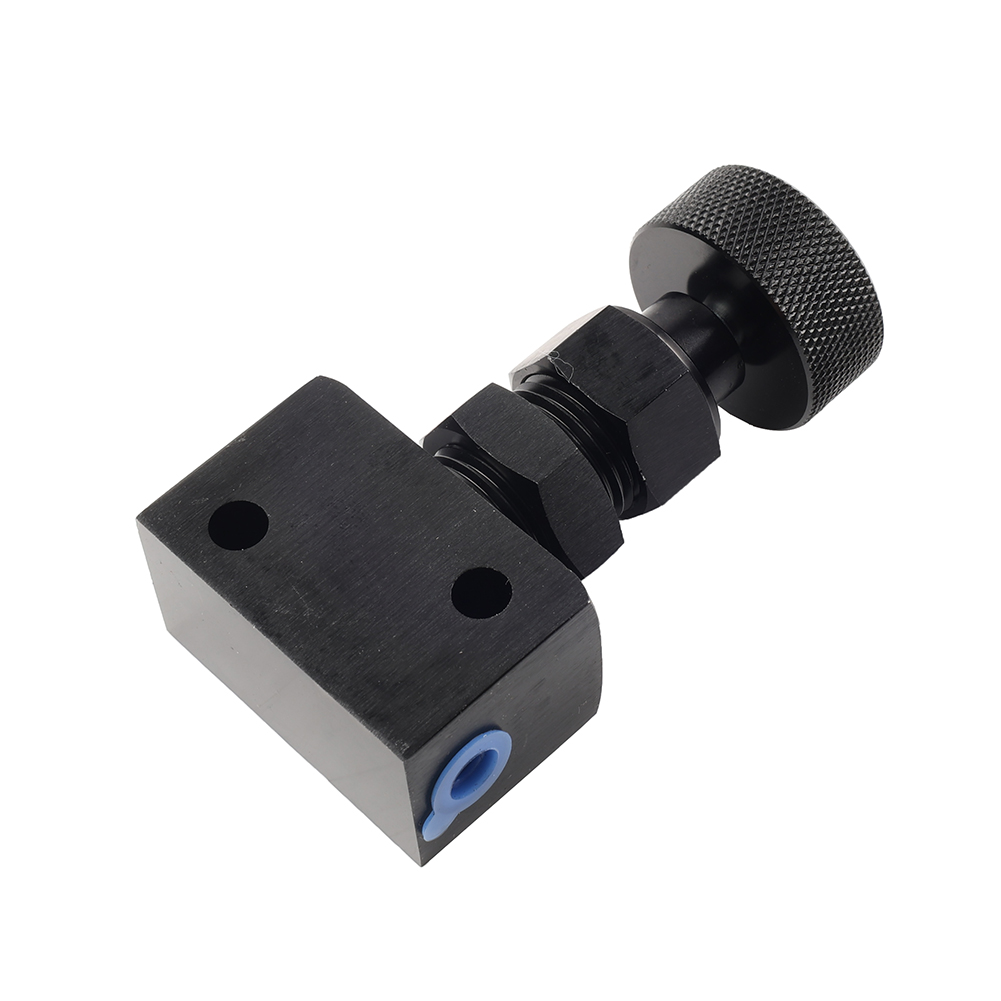

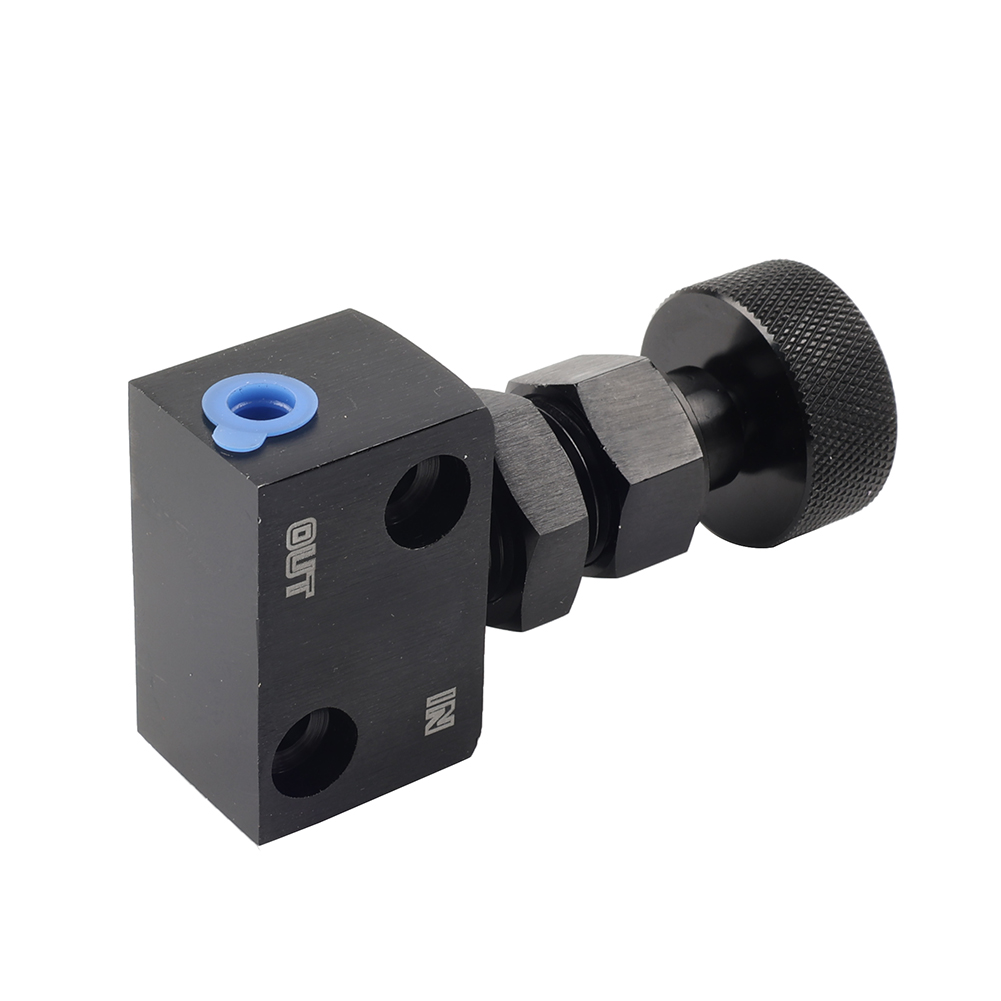

Adjustable Brake Bias Proportioning Valve Pressure Regulator For Brake Adjustment
Features:
1. Made of premium aluminum alloy, not easy to crack, quick response.
2. Provides for a maximum decrease of 60% in line pressure, and brings a much better overall braking performance.
3. Increase/decrease front to rear bias in cockpit.
4. Regulates the front to rear brake pressure by placing the valve in line to the rear brakes. More pressure is applied to the front to give a much better overall braking performance.

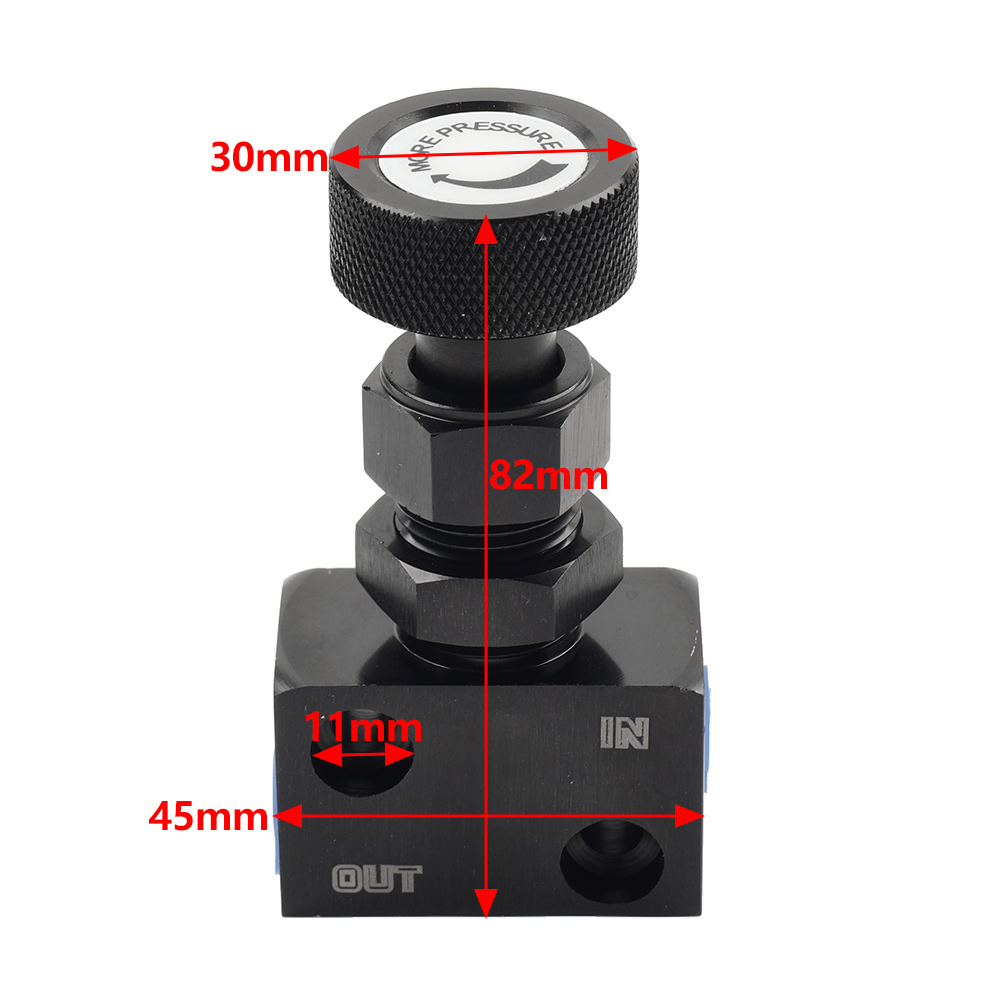

Specification:
Condition: Aftermarket New
Material: Aluminum Alloy
Color: Black (we also have silver)
Inlet & Outlet Posts: 1/8 NPT
Pressure Adjustment Range: from 100-1000 + PSI
Fitment:
Universal
Packing Included:
1 Pcs Brake Bias Proportioning Valve

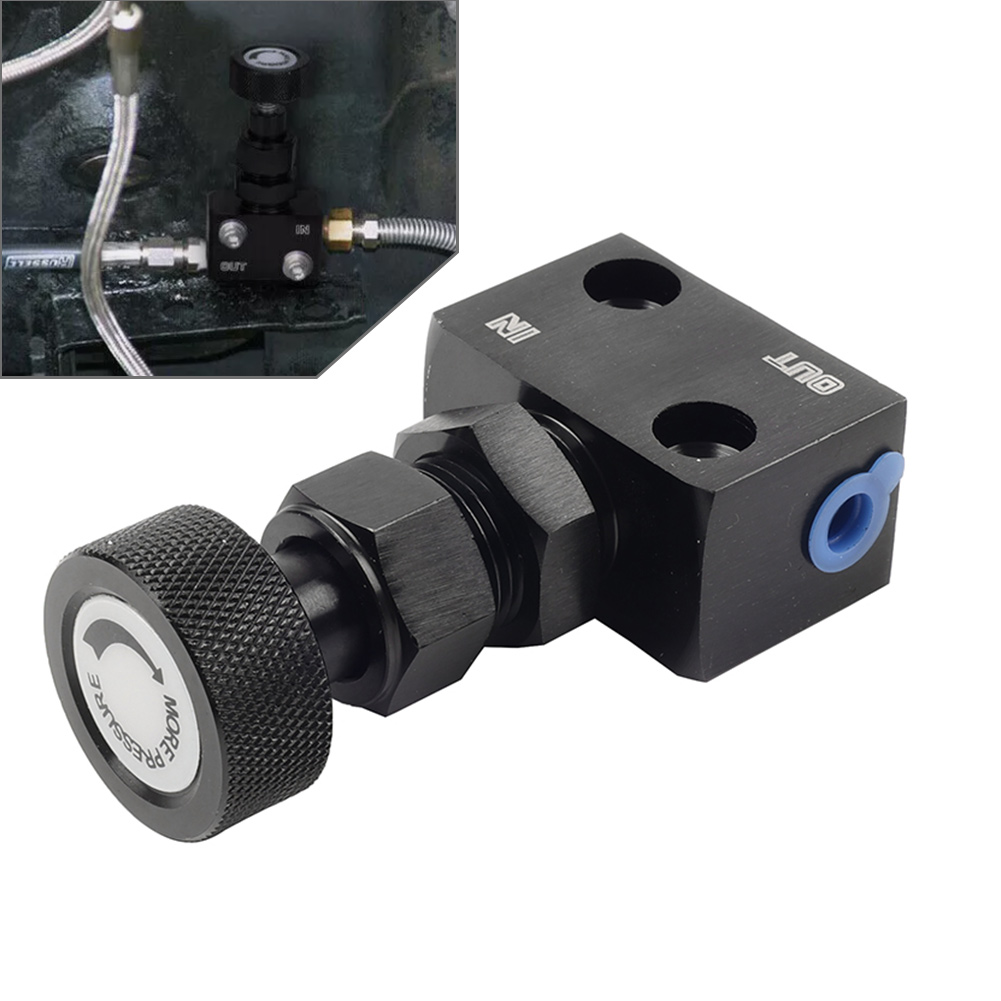

Installation:
1. Drain the brake fluid before you do anything else.
2. Use the two 0.25" body holes to secure the valve to a mount.
3. Connect the "IN" port to the pressure line coming from the master cylinder.
4. Connect the line going to the calipers to the "OUT" port.
5. Rotating the adjuster knob clockwise until it is all the way in.
6. Bleed the brake and check for any leaks at the valve or its fittings.
7. Do some test braking to adjust the bias before it works properly.
(Pleasse make sure the valve isn't rubbing against any other brake lines or contact with the hood.Brings a much better overall braking performance)
Operation:
The knob rotated all the way out (counter-clockwise) will provide a maximum pressure reduction of 60%.
Rotating the know in (clockwise) will incrementally increase line pressure, up to full pressure.
Notes:
1. No installation instruction included.
2. Please allow slight manual measurement deviation for the data.
3. Due to the lighting and screen settings, the real color may slightly different from the picture.
