- Drain grate is compatible with Spee-D Channel Drains
- Drain cover blocks debris from entering & clogging drainage pipes
- 16.8 sq. in. per ft. open surface area, 51 GPM per ft. flow rate

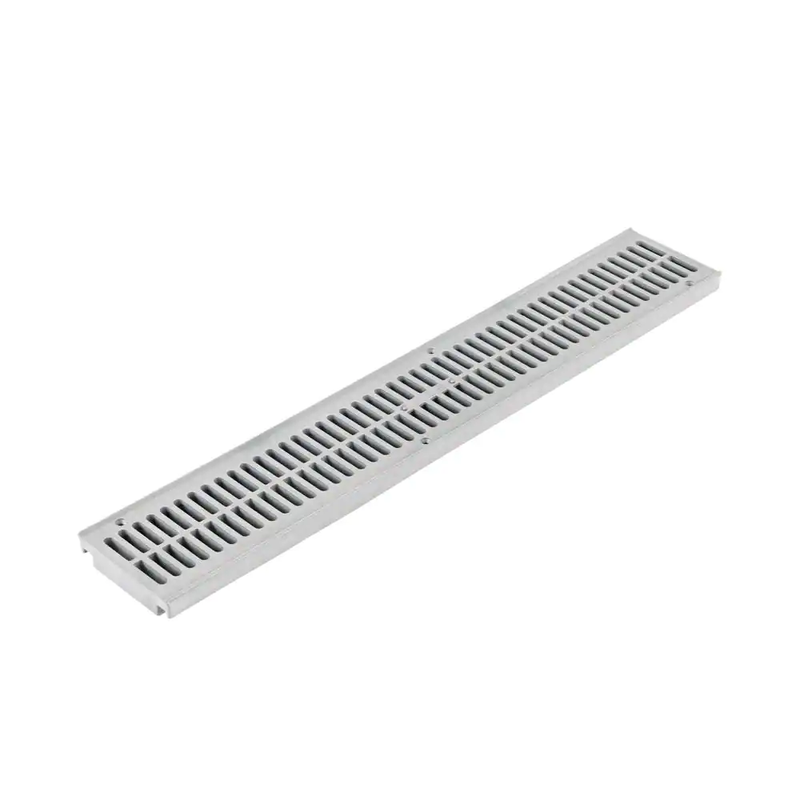

The NDS Spee-D Channel 2 ft. Drain Grate is ideal for residential and commercial use. The flanges on the bottom of the channel make installation easy by providing a lip for anchoring. The patented flying buttress design gives support from both sides of the channel as well as from underneath.
- Prevent leaves and debris from entering the channel drain and clogging the drainage system
- Use with the Spee-D Channel Drain, part of the NDS Profile Channel series, to collect moderate flows from driveways, concrete and paver patios, pool areas, courtyards, and walkways, and direct it away for proper release
- Grate fits on top of the Spee-D Channel Drain and can be secured with screws; use two 2 ft. Spee-D Channel Drain Grates for 4 ft. Spee-D Channel Drain, and five 2 ft. Spee-D Channel Drain Grates for 10 ft. Spee-D Channel Drain
- 16.8 sq. in. per linear ft. open surface area. 51 GPM per ft. flow rate
- Rated for NDS Class B loads of (up to 175 psi) when properly installed-recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant
- Spee-D Channel Drain Grates are available in a variety of colors, materials, and decorative styles
- Comes with 1 Spee-D Channel Drain Grate
- Use with the Spee-D Channel Drain as part of a complete drainage system to collect and direct water to drain pipes for proper release downstream
- Place on top of Spee-D Channel Drain (grate can be secured to top of channel with screws); use two 2 ft. channel drain grates for 4 ft. Spee-D Channel Drain, and five 2 ft. channel drain grates for 10 ft. Spee-D Channel Drain
- Removable grate makes it easy to clean debris from channel for maintenance
- Spee-D Channel Drain Grate made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
- Works with the Spee-D Channel Drain; use Spee-D Channel Drain Outlets to connect to drain pipes; use Spee-D Channel Drain 45º and 90º Elbows, Tees, and Crosses to customize layout; use Spee-D Channel Drain End Cap to seal unused openings
- Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream. Use with a Flo-Well Dry Well System and EZ Drain Gravel-Free French Drain System to detain excess water and slowly release it into the ground
- Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
- Founded in 1972, NDS is the preferred choice of professionals, the largest supplier of channel drains in North America, and the leader in stormwater management with proven products, tools, and support to help you get the job done right
-
| Color Family |
Gray |
| Color/Finish |
Gray/Matte |
| Compatible Area of Use |
Driveway,Patio,Pool Deck,Walkways |
| Material |
Polyethylene |
| Maximum Working Temperature (F) |
140 |
| Minimum working temperature (F) |
33 |
| Pack Size |
1 |
| Package Quantity |
1 |
| Pipe or Fitting Product Type |
Accessory |
| Product Weight (lb) |
1.25 lb |
| Manufacturer Warranty |
N/A |
| Max Compatible Pipe Size (In) |
4" |
| Min Compatible Pipe Size (In) |
3" |
| Product Depth (in) |
3 in |
| Product Length (in) |
24 in |
| Product Width (in) |
4.13 in |
