Supermicro H11DSI Motherboard +2x EPYC 7601 CPU, 64GB 2133P RAM, Not H11DSI-NT

Product Description

You need to pay the customs duties by yourself. so, please tell us how much should we declare for the customs value.

Package include: 1x Supermicor H11DSI Motherboard(include I/O Cable and I/O Shield

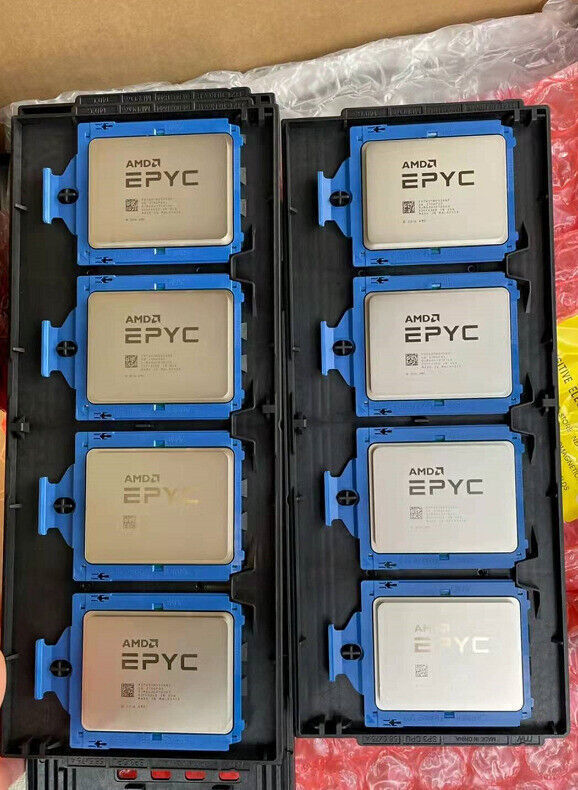

                             2x AMD EPYC 7601 CPU

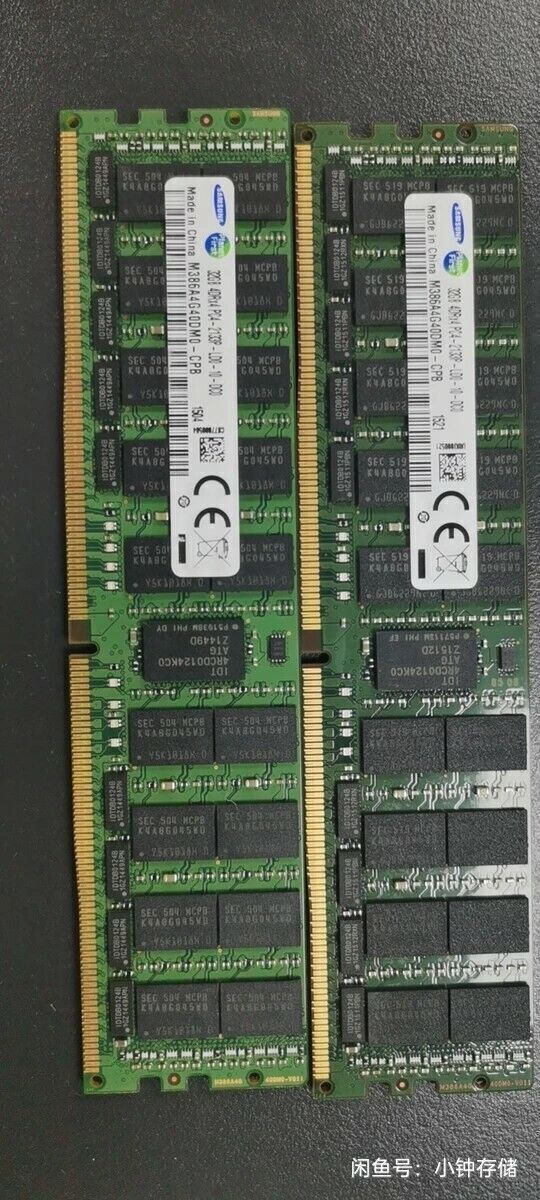

                             2x Samsung 32GB 2133MHz RAMs DDR4

We can help you test them before shipping.

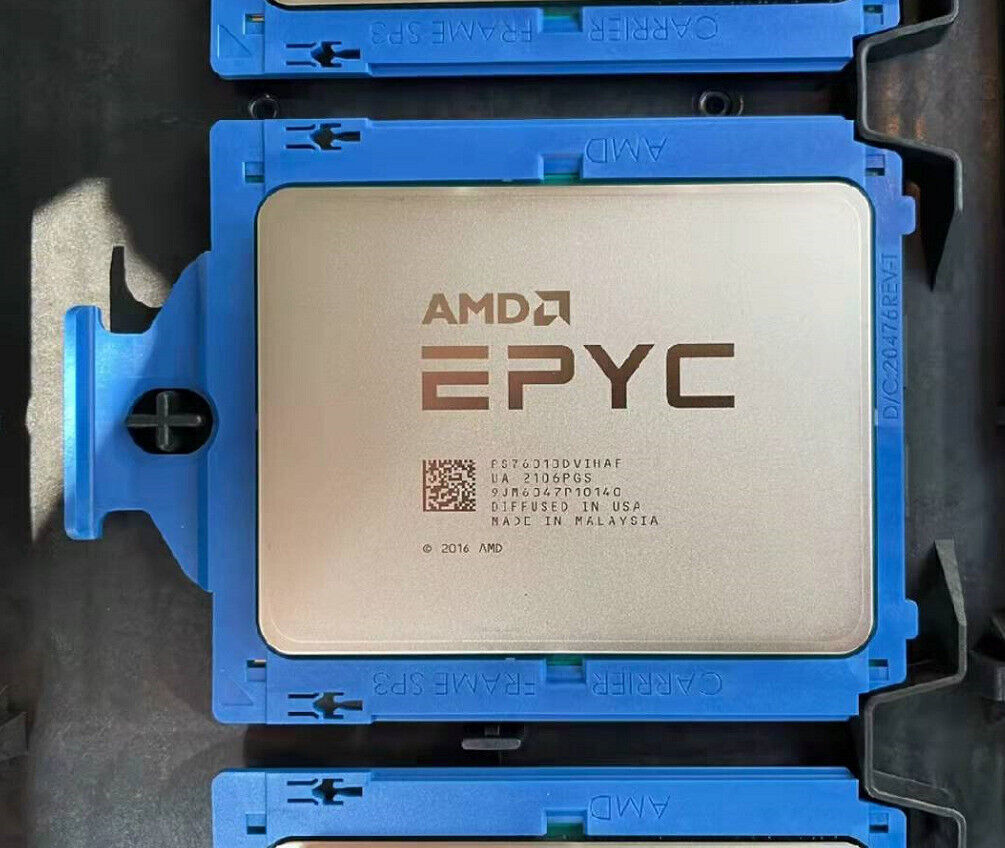

AMD EPYC™ 7601

Specifications
# of CPU Cores
32
# of Threads
64
Base Clock
2.2GHz
Max Boost Clock
Up to 3.2GHz
All Core Boost Speed
2.7GHz
Total L3 Cache
64MB
Package
SP3
Socket Count
1P/2P
PCI Express® Version
PCIe 3.0 x128
Default TDP / TDP
180W
System Memory
System Memory Specification
Up to 2666MHz
System Memory Type
DDR4
Memory Channels
8
Per Socket Mem BW
170.6 GB/s
Key Features
Workload Affinity
Analytics
CAE/CFD/FEA
ERM/SCM/CRM apps
High capacity data mgmt (NR/RDBMS)
HPC parallel
Foundation
Product Family
AMD EPYC™
Product Line
AMD EPYC™ 7001 Series
Platform
Server
OPN Tray
PS7601BDVIHAF
OPN PIB
PS7601BDAFWOF

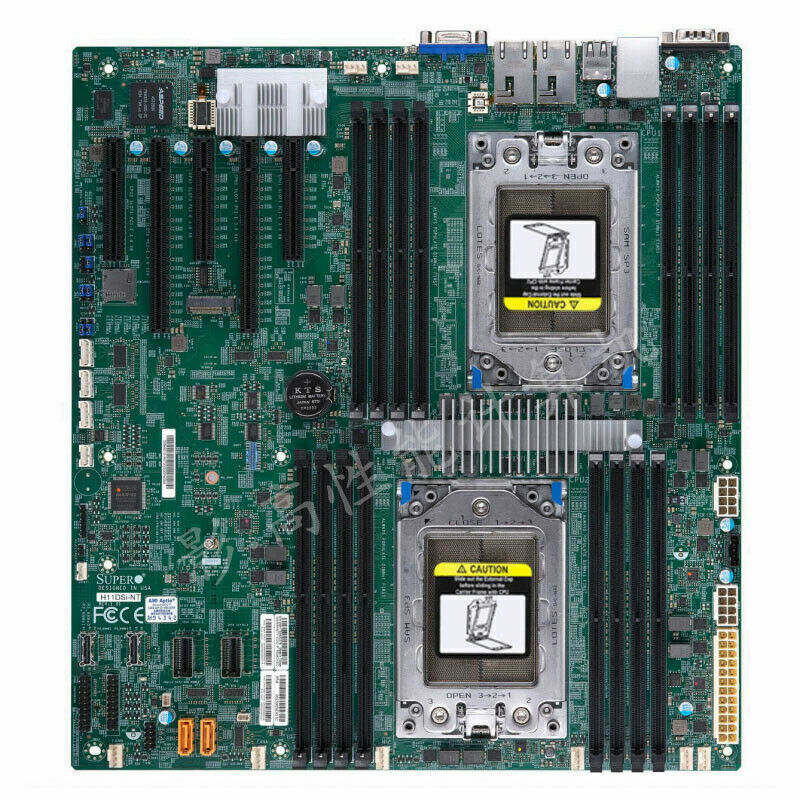

Specifications

Product SKUs

MBD-H11DSi
  • H11DSi
MBD-H11DSi-B
  • H11DSi (Bulk Pack)

Physical Stats

Form Factor
  • E-ATX
Dimensions
  • 12" x 13.05" (30.5cm x 33.1cm)

Processor/Chipset

CPU
  • Dual AMD EPYC™ 7001/7002* series Processors (*Board revision 2.x required)
  • Socket SP3
  • Up to 240W TDP
Cores
  • Up to 32 Cores
  • Up to 64 Cores (Board revision 2.x required)
Chipset
  • System on Chip

System Memory

Memory Capacity
  • 16 DIMM sockets
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • 2 1GbE LAN via Intel® i350-AM21
  • 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
  • ASPEED AST2500 BMC

Input / Output

SATA
  • 10 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 4 USB 2.0 ports (2 rear + 2 via header)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • 1 TPM 2.0 header

Expansion Slots

PCI-Express
  • 3 PCI-E 3.0 x8
  • 2 PCI-E 3.0 x16

M.2
  • Interface: 1 SATA/PCI-E 3.0 x2
    (Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
  • Form factor: 2280, 22110
  • Key: M-key

Chassis ( Optimized for H11DSi )

2U
  • SC213AC-R1K23LPB
  • SC216BE1C4-R1K23LPB
  • SC825TQC-R802LPB
  • SC826BE1C4-R1K23LPB
  • SC829HE1C4-R1K62LPB
3U
  • SC836BE1C-R1K23B
4U
  • SC745BAC-R1K28B2
  • SC846BE1C-R1K23B

System BIOS

BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1

Management

Software
  • Super Doctor 5
  • Watch Dog
  • NMI
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery

PC Health Monitoring

CPU
  • Monitors CPU Core Voltages, +1.5V, +1.8V, +12V +5V, +5V standby
  • CPU switching voltage regulator
  • Supports system management utility
  • VBAT
FAN
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
  • Dual Cooling Zone
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I2C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • UID


Operating Environment / Compliance

Environmental Specifications
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
