Details And Specifications:

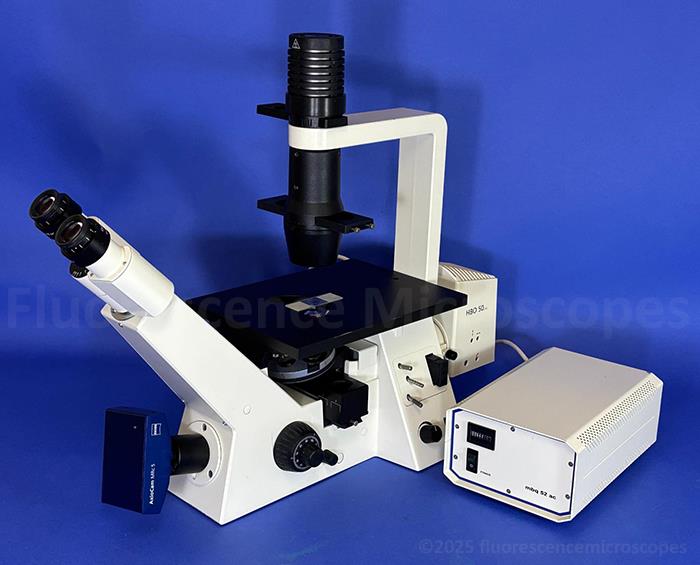

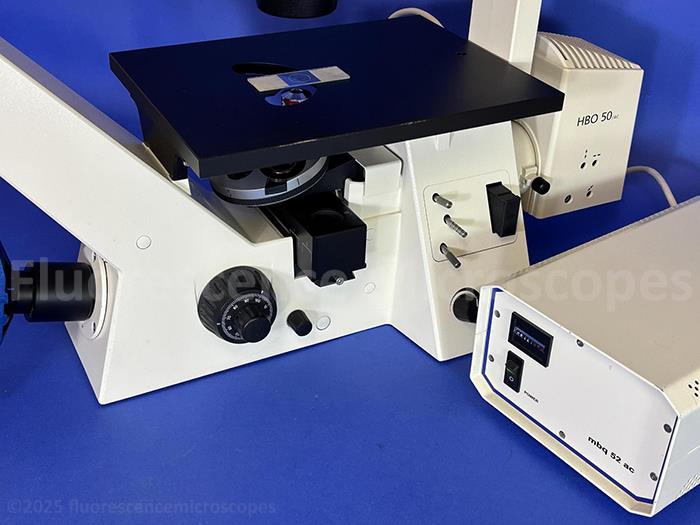

• Inverted design. Useful for petri dishes and cell culture vessels.
• Clinical Grade and size frame. This is smaller than the research grade Axiovert 200 model.
• Binocular head with front photography port. Camera and camera adapter are NOT included and sold separately.
• Eyepieces: Pl 10x/18. Both ocular eyepieces have diopter adjustments.
• 0.4 Numerical Aperture Condenser.
• This condenser has the ability to slide back out of the path of the specimen vessel on the stage. In addition, if you have a very large specimen vessel, this style of microscope will accommodate it. You simply push the condenser all the way back out of the way and can still get a decent image.
• This frame has DIC openings in the nosepiece. Contact us if you would like to have Differential Interference Contrast (DIC) included.
• 6V-25W Halogen transmitted illumination.
• Voltage: This microscope and fluorescence power supply is can be used on either 110 V or 220 V for worldwide usage.
• This microscope is in great condition and gives good imaging.

Objectives:

• 5x. A-Plan 5x / 0.12. ∞/-. Ph0.  Phase Contrast. This works with both 0.17mm and petri dish thickness.
• 10x. A-Plan 10x / 0.25, ∞/-.  Ph1. Phase Contrast. This works with both 0.17mm and petri dish thickness.
• 20x. Plan-Neofluar 20x / 0.50, ∞/0.17. Spring.  (non-phase). This objective should only be used with a 0.17mm cover slip thickness.
• 40x. LD Achroplan 40x / 0.60, Korr, ∞/0-2 mm. Correction collar. (not phase). This correction collar can be adjusted to image through standard 0.17mm cover slip thickness, all the way up to a 2mm thick petri dish.
• All objectives can image fluorescence. The 20x will be best.
• Contact us if you would like to have different objectives or any other configuration.

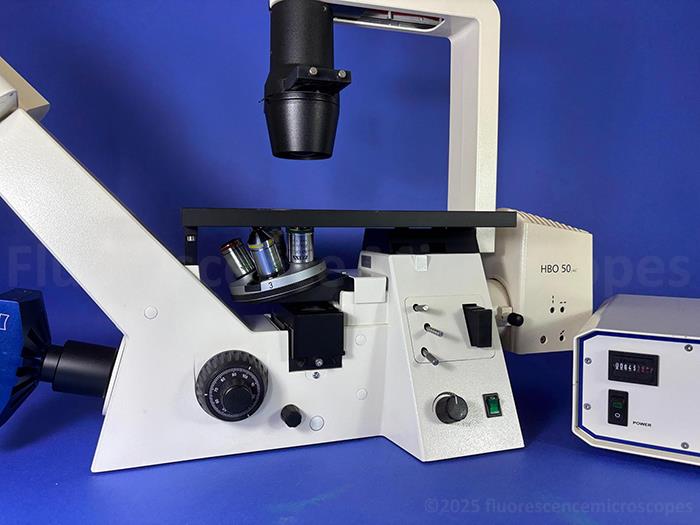

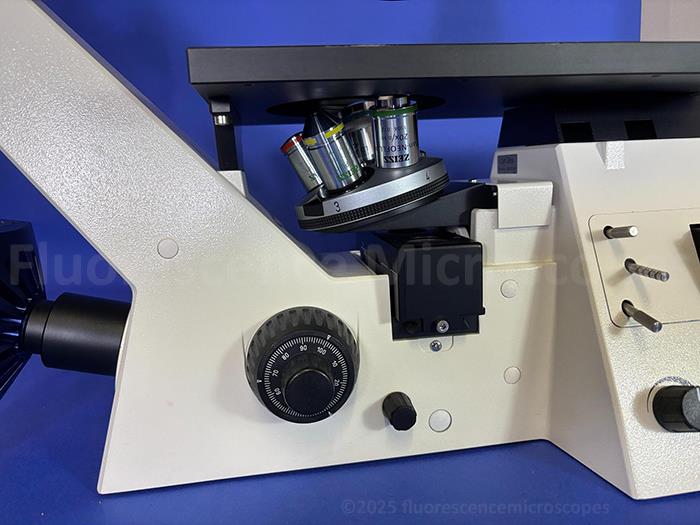

• Five place objective nosepiece.

Fluorescence Imaging:

• FITC dichroic filter cube. The tray slider has three positions. The middle position is for brightfield and phase contrast. One position has an FITC filter cube and the other position could have another fluorescence filter cube inserted.
• Contact us if you would like to have additional fluorescence dichroic filter cubes. We carry many in stock.
• HBO 50 fluorescence illumination system. Includes mbq50 power supply, lamp housing, and bulb.

Phase Contrast Microscopy:

• Phase contrast slider with three spaces. One has an ND neutral density filter, another has a PH0 phase annuli, and another has a PH1 phase annuli.
• Contact us if you would like to have a PH2 annuli.

Photography Port:

• This frame includes a front photography port. The photographs show a c-mount with camera.
• However, this camera and c-mount camera attachment are not included. They are only shown to demonstrate how they could be connected. This unit will ship with a plastic cap and/or tape over the front port. If you would like to connect camera equipment, please let us know and we can discuss these optional accessories.
• The illumination can be set to 100 percent to eyepieces or 100 percent to camera port.

Optional Accessories:

• We have XY stage movements, but sold separately. For this simple clinical-grade microscopes, most users move the specimen by hand on top of the stage. Contact us if you need an XY movement system.
• We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.
• Other objectives may be added.
• We can add a VAR Varel variable relief contrast system to this unit.
• We are a Chroma dealer. Brand new Chroma hard coated filter cubes with lifetime warranty may be added. Contact us if this option is needed.

Market Value:

• In addition, we are including a one year warranty, money back guarantee, and free USA shipping that are value added additions not given by most resellers and should be considered when comparing.

Setup Support and Training:

• We assist our customers via live video with instructions and  training to get them up and going quickly. We train you as needed to set up and operate this equipment. This is after-sales support and is at no charge.

User Manual and Instructions:

• Upon purchase, we will email links to the user manuals / instructions.
